Quickstart

The Quick Start Guide provides simple step by step instructions on how to do an initial system setup for the EVAL-ADA4356EBZ board.

FPGA-based evaluation

Use this guide when evaluating with an FPGA carrier board. It covers SD card preparation, hardware assembly, Linux boot, and testing with Scopy and IIO Oscilloscope.

• On ZedBoard
  • Using Linux as software
    • Necessary files
    • Required Software
    • Required Hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands for the serial terminal
      • Scopy
      • IIO Oscilloscope

Supported carriers

The EVAL-ADA4356EBZ is an FMC mezzanine card that needs a carrier to plug into.

The carriers we support are:

FPGA board	EVAL-ADA4356EBZ
ZedBoard	FMC LPC

Supported environments

Eval Board	FPGA board	HDL	Linux software
EVAL-ADA4356EBZ	ZedBoard	Yes	Yes

Hardware setup

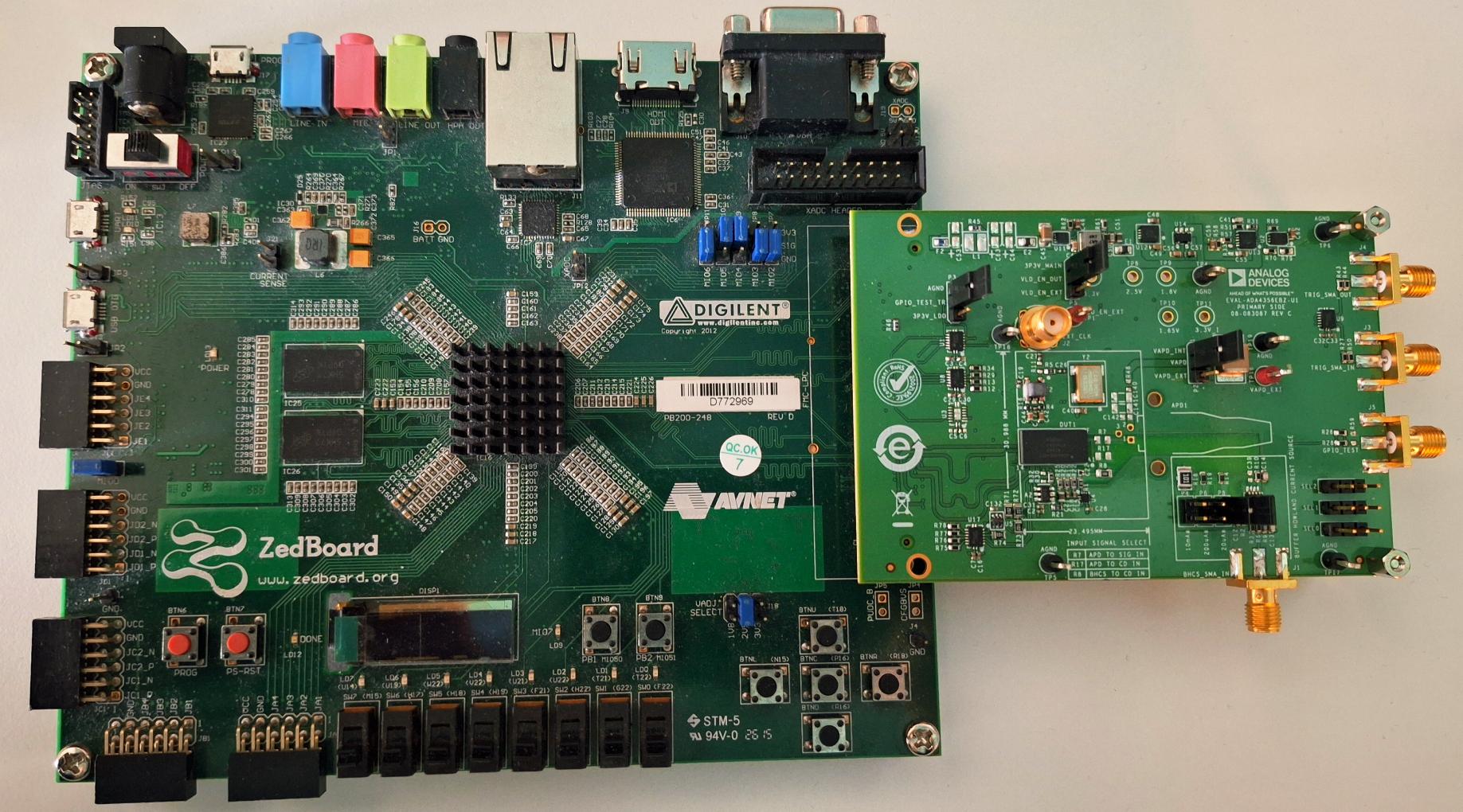

On the ZedBoard, the EVAL-ADA4356EBZ connects to the FMC LPC connector. The carrier setup requires power (12 V), Ethernet, and UART (115200) connections.
