ZedBoard

This guide provides quick instructions on how to set up the EVAL-AD400x-FMCZ on:

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/ZedBoard.png

Figure 1 ZedBoard development platform

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.

Using Linux as software

Necessary files

Note

The SD card includes several folders in the root directory of the BOOT partition. In order to configure the SD card to work with a specific FPGA board and ADI hardware, several files must be copied onto the root directory. Using the host PC, drag and drop the required files onto the BOOT partition, and use the EJECT function when removing the SD card from the reader.

The following files are needed for the system to boot:

  • HDL boot image: BOOT.BIN

  • Linux Kernel image: uImage

  • Linux device tree: devicetree.dtb

They can either be taken from the SD card – already generated by us, or you can build them manually:

  • Instructions on how to choose the boot files from the SD card can be found in the Platform-Specific Manual Steps section from here: Hardware Configuration.

  • Instructions on how to manually build the boot files from source can be found here:

Important

Some projects provide multiple devicetree files in the SD card’s boot folders. Make sure you select the devicetree that matches your specific use case (e.g., zynq-zed-adv7511-ad4020.dtb for the AD4020).

Required Software

  • SD Card 16GB imaged with Kuiper (check out that guide on how to do it, then come back to this section)

  • A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

Required Hardware

  • AMD Xilinx ZedBoard FPGA board and its power supply (12V)

  • EVAL-AD400x-FMCZ evaluation board

  • SD card with at least 16GB of memory

  • Micro-USB cable (UART)

  • LAN cable (Ethernet)

  • Signal generator

More details as to why you need these can be found at Prerequisites.

Testing

Creating the setup

EVAL-AD400x-FMCZ/ZED
https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/ad4020_zed.jpg

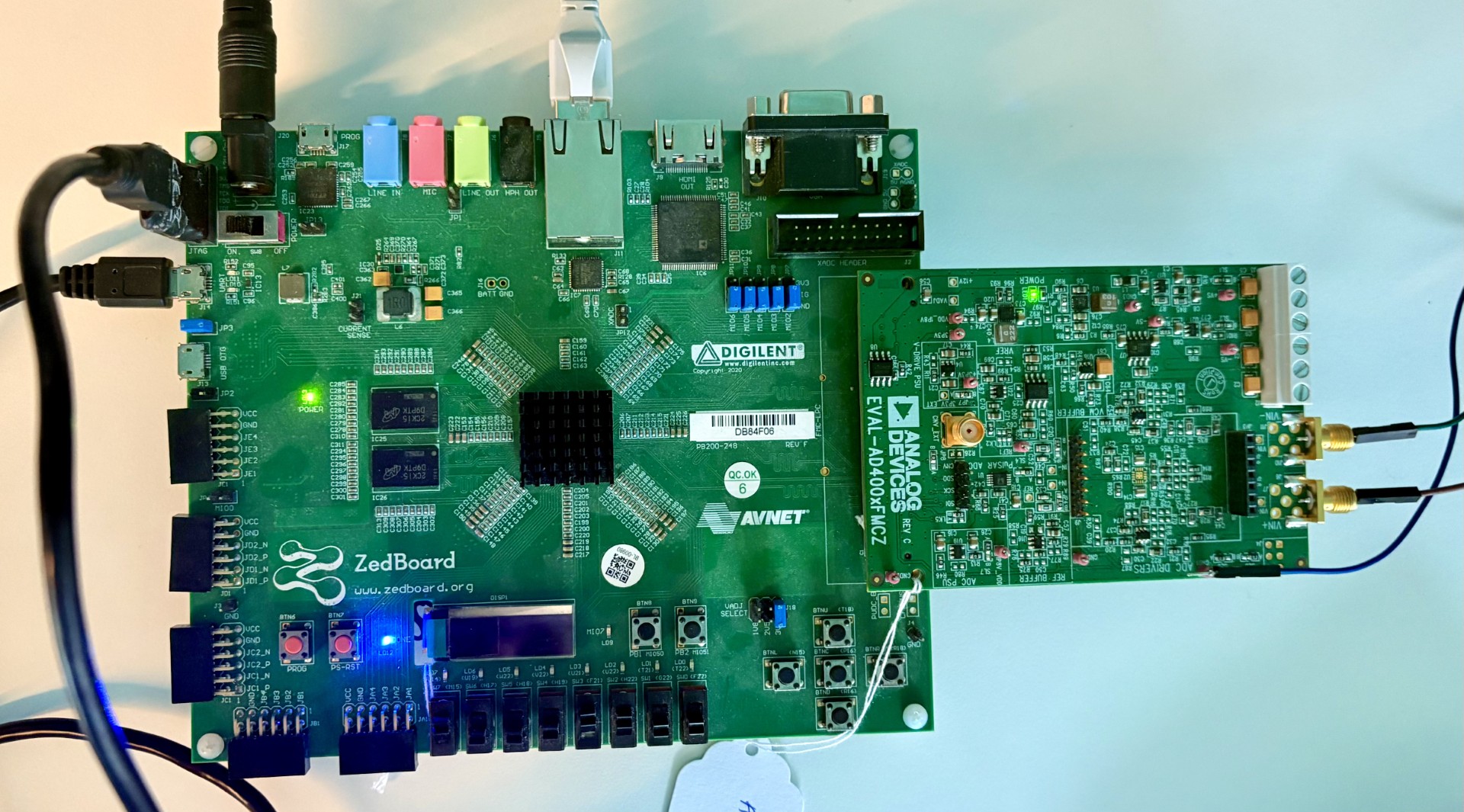

Figure 2 EVAL-AD400x-FMCZ/ZED Linux setup

In the following example, we will prepare the evaluation setup by connecting the EVAL-AD400x-FMCZ board to the ZedBoard and applying a test input signal.

Follow the steps in this order, to avoid damaging the components:

  1. Get the ZedBoard

  2. Configure ZedBoard for SD BOOT:

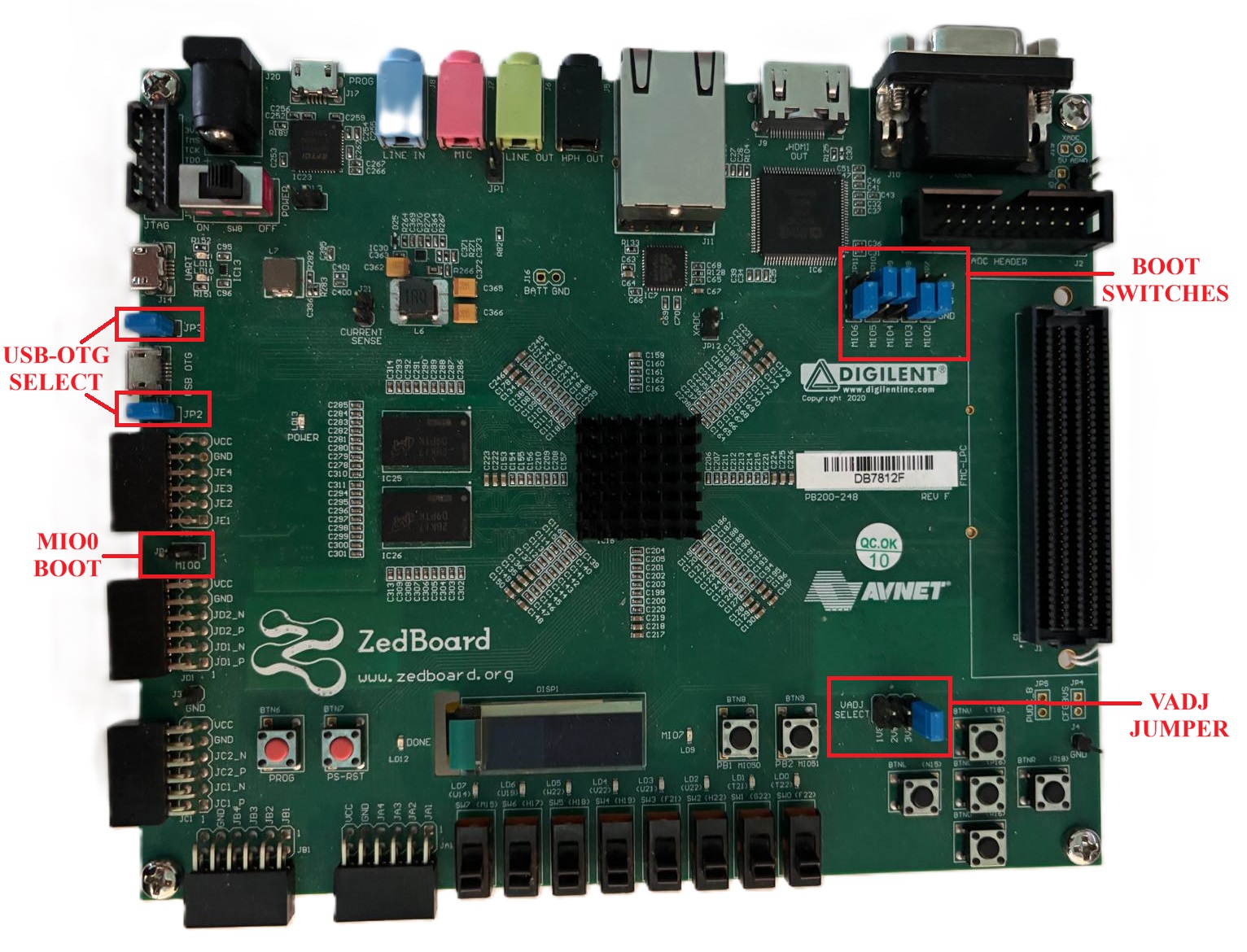

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_zed_sdcard.jpg

    Figure 3 ZedBoard SD boot jumper configuration

    The BOOT switches (JP7-JP11) and the MIO0 jumper (JP6) must be set for SD-card boot mode. VIO must be set to 3.3V, as specified in the HDL project’s README at PULSAR-ADC HDL project. Optionally, to use USB peripheral devices with the ZedBoard, install jumpers JP2 and JP3.

  3. Insert the SD card into the SD Card Interface Connector (J12)

  4. Connect your signal generator to the analog inputs of the evaluation board using the appropriate jumper wires or SMB connectors.

  5. Plug the EVAL-AD400x-FMCZ into the FMC LPC Connector (J1)

  6. Plug the Power Supply into 12V Power input connector (J20) (DO NOT turn the device on).

  7. Plug-in an Ethernet cable from your router/switch to the Ethernet port on the FPGA board

  8. Connect the UART port of ZedBoard (J14) to a PC via MicroUSB

  9. Turn on the power switch on the FPGA board

  10. Observe Kernel and serial console output messages on your terminal

Boot messages

The following is what is printed in the serial console, after you have connected to the proper ttyUSB or COM port:

U-Boot 2018.01-01677-geb93226123b (Mar 09 2026 - 12:15:19 +0200), Build: jenkins-development-build_uboot-69

Model: Zynq Zed Development Board
Board: Xilinx Zynq
Silicon: v3.1
DRAM:  ECC disabled 512 MiB
MMC:   sdhci@e0100000: 0 (SD)
SF: Detected s25fl256s_64k with page size 256 Bytes, erase size 64 KiB, total 32 MiB
In:    serial@e0001000
Out:   serial@e0001000
Err:   serial@e0001000
Net:   ZYNQ GEM: e000b000, phyaddr 0, interface rgmii-id
eth0: ethernet@e000b000
reading uEnv.txt
408 bytes read in 21 ms (18.6 KiB/s)
Importing environment from SD ...
Hit any key to stop autoboot:  0
Device: sdhci@e0100000
Manufacturer ID: 3
OEM: 5344
Name: SK32G
Tran Speed: 50000000
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 29.7 GiB
Bus Width: 4-bit
Erase Group Size: 512 Bytes
reading uEnv.txt
408 bytes read in 21 ms (18.6 KiB/s)
Loaded environment from uEnv.txt
Importing environment from SD ...
Running uenvcmd ...
Copying Linux from SD to RAM...
reading uImage
9122840 bytes read in 525 ms (16.6 MiB/s)
reading devicetree.dtb
22455 bytes read in 31 ms (707 KiB/s)
** Unable to read file uramdisk.image.gz **
## Booting kernel from Legacy Image at 03000000 ...
   Image Name:   Linux-6.12.0-27244-gc894bed472b7
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    9122776 Bytes = 8.7 MiB
   Load Address: 00008000
   Entry Point:  00008000
   Verifying Checksum ... OK
## Flattened Device Tree blob at 02a00000
   Booting using the fdt blob at 0x2a00000
   Loading Kernel Image ... OK
   Loading Device Tree to 1eb11000, end 1eb197b6 ... OK

Starting kernel ...

Booting Linux on physical CPU 0x0
Linux version 6.12.0-27244-gc894bed472b7 (mandrica@romlx3) (arm-amd-linux-gnueabi-gcc.real (GCC) 13.3.0, GNU ld (GNU Binutils) 2.42.0.20240723) #3 SMP PREEMPT Thu Apr  2 15:57:20 EEST 2026
CPU: ARMv7 Processor [413fc090] revision 0 (ARMv7), cr=18c5387d
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
OF: fdt: Machine model: Xilinx Zynq ZED
OF: fdt: earlycon: stdout-path /amba@0/uart@E0001000 not found
Memory policy: Data cache writealloc
cma: Reserved 128 MiB at 0x16800000 on node -1
Zone ranges:
Normal   [mem 0x0000000000000000-0x000000001fffffff]
HighMem  empty
Movable zone start for each node
Early memory node ranges
node   0: [mem 0x0000000000000000-0x000000001fffffff]
Initmem setup node 0 [mem 0x0000000000000000-0x000000001fffffff]
percpu: Embedded 12 pages/cpu s17356 r8192 d23604 u49152
Kernel command line: console=ttyPS0,115200 root=/dev/mmcblk0p2 rw earlycon rootfstype=ext4 rootwait clk_ignore_unused cpuidle.off=1
Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
Built 1 zonelists, mobility grouping on.  Total pages: 131072
mem auto-init: stack:all(zero), heap alloc:off, heap free:off
SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
rcu: Preemptible hierarchical RCU implementation.
rcu:    RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2
NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
efuse mapped to (ptrval)
slcr mapped to (ptrval)
L2C: platform modifies aux control register: 0x72360000 -> 0x72760000
L2C: DT/platform modifies aux control register: 0x72360000 -> 0x72760000
L2C-310 erratum 769419 enabled
L2C-310 enabling early BRESP for Cortex-A9
L2C-310 full line of zeros enabled for Cortex-A9
L2C-310 ID prefetch enabled, offset 1 lines
L2C-310 dynamic clock gating enabled, standby mode enabled
L2C-310 cache controller enabled, 8 ways, 512 kB
L2C-310: CACHE_ID 0x410000c8, AUX_CTRL 0x76760001
rcu: srcu_init: Setting srcu_struct sizes based on contention.
zynq_clock_init: clkc starts at (ptrval)
Zynq clock init
sched_clock: 64 bits at 167MHz, resolution 6ns, wraps every 4398046511103ns
clocksource: arm_global_timer: mask: 0xffffffffffffffff max_cycles: 0x26703d7dd8, max_idle_ns: 440795208065 ns
Switching to timer-based delay loop, resolution 6ns
Console: colour dummy device 80x30
Calibrating delay loop (skipped), value calculated using timer frequency.. 333.33 BogoMIPS (lpj=1666666)
CPU: Testing write buffer coherency: ok
CPU0: Spectre v2: using BPIALL workaround
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
Setting up static identity map for 0x100000 - 0x100060
rcu: Hierarchical SRCU implementation.
rcu:    Max phase no-delay instances is 1000.
smp: Bringing up secondary CPUs ...
CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
CPU1: Spectre v2: using BPIALL workaround
smp: Brought up 1 node, 2 CPUs
SMP: Total of 2 processors activated (666.66 BogoMIPS).
CPU: All CPU(s) started in SVC mode.
Memory: 358752K/524288K available (13312K kernel code, 912K rwdata, 11076K rodata, 1024K init, 498K bss, 33504K reserved, 131072K cma-reserved, 0K highmem)
devtmpfs: initialized
VFP support v0.3: implementor 41 architecture 3 part 30 variant 9 rev 4
clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
futex hash table entries: 512 (order: 3, 32768 bytes, linear)
pinctrl core: initialized pinctrl subsystem
NET: Registered PF_NETLINK/PF_ROUTE protocol family
DMA: preallocated 256 KiB pool for atomic coherent allocations
thermal_sys: Registered thermal governor 'step_wise'
platform axi: Fixed dependency cycle(s) with /axi/interrupt-controller@f8f01000
platform replicator: Fixed dependency cycle(s) with /axi/etb@f8801000
amba f8801000.etb: Fixed dependency cycle(s) with /replicator
platform replicator: Fixed dependency cycle(s) with /axi/tpiu@f8803000
amba f8803000.tpiu: Fixed dependency cycle(s) with /replicator
platform replicator: Fixed dependency cycle(s) with /axi/funnel@f8804000
amba f8804000.funnel: Fixed dependency cycle(s) with /axi/ptm@f889d000
amba f8804000.funnel: Fixed dependency cycle(s) with /axi/ptm@f889c000
amba f8804000.funnel: Fixed dependency cycle(s) with /replicator
amba f8804000.funnel: Fixed dependency cycle(s) with /axi/ptm@f889c000
amba f889c000.ptm: Fixed dependency cycle(s) with /axi/funnel@f8804000
amba f8804000.funnel: Fixed dependency cycle(s) with /axi/ptm@f889d000
amba f889d000.ptm: Fixed dependency cycle(s) with /axi/funnel@f8804000
platform 70e00000.lcd-controller: Fixed dependency cycle(s) with /fpga-axi@0/i2c@41600000/hdmi@39
hw-breakpoint: found 5 (+1 reserved) breakpoint and 1 watchpoint registers.
hw-breakpoint: maximum watchpoint size is 4 bytes.
e0001000.serial: ttyPS0 at MMIO 0xe0001000 (irq = 26, base_baud = 3125000) is a xuartps
printk: legacy console [ttyPS0] enabled
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
mc: Linux media interface: v0.10
videodev: Linux video capture interface: v2.00
pps_core: LinuxPPS API ver. 1 registered
pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
PTP clock support registered
jesd204: found 0 devices and 0 topologies
FPGA manager framework
Advanced Linux Sound Architecture Driver Initialized.
clocksource: Switched to clocksource arm_global_timer
NET: Registered PF_INET protocol family
IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear)
TCP bind hash table entries: 4096 (order: 4, 65536 bytes, linear)
TCP: Hash tables configured (established 4096 bind 4096)
UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
NET: Registered PF_UNIX/PF_LOCAL protocol family
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp-with-tls transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
workingset: timestamp_bits=30 max_order=17 bucket_order=0
NFS: Registering the id_resolver key type
Key type id_resolver registered
Key type id_legacy registered
nfs4filelayout_init: NFSv4 File Layout Driver Registering...
nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...
fuse: init (API version 7.41)
io scheduler mq-deadline registered
io scheduler kyber registered
io scheduler bfq registered
zynq-pinctrl 700.pinctrl: zynq pinctrl initialized
ledtrig-cpu: registered to indicate activity on CPUs
dma-pl330 f8003000.dma-controller: Loaded driver for PL330 DMAC-241330
dma-pl330 f8003000.dma-controller:      DBUFF-128x8bytes Num_Chans-8 Num_Peri-4 Num_Events-16
brd: module loaded
loop: module loaded
Registered mathworks_ip class
spi-nor spi1.0: found s25fl256s1, expected n25q128a11
5 fixed-partitions partitions found on MTD device spi1.0
Creating 5 MTD partitions on "spi1.0":
0x000000000000-0x000000500000 : "boot"
0x000000500000-0x000000520000 : "bootenv"
0x000000520000-0x000000540000 : "config"
0x000000540000-0x000000fc0000 : "image"
0x000000fc0000-0x000002000000 : "spare"
MACsec IEEE 802.1AE
tun: Universal TUN/TAP device driver, 1.6
hwmon hwmon0: temp1_input not attached to any thermal zone
macb e000b000.ethernet eth0: Cadence GEM rev 0x00020118 at 0xe000b000 irq 41 (00:0a:35:00:01:27)
usbcore: registered new interface driver asix
usbcore: registered new interface driver ax88179_178a
usbcore: registered new interface driver cdc_ether
usbcore: registered new interface driver net1080
usbcore: registered new interface driver cdc_subset
usbcore: registered new interface driver zaurus
usbcore: registered new interface driver cdc_ncm
usbcore: registered new interface driver r8153_ecm
usbcore: registered new interface driver uas
usbcore: registered new interface driver usb-storage
usbcore: registered new interface driver usbserial_generic
usbserial: USB Serial support registered for generic
usbcore: registered new interface driver ftdi_sio
usbserial: USB Serial support registered for FTDI USB Serial Device
usbcore: registered new interface driver upd78f0730
usbserial: USB Serial support registered for upd78f0730
ULPI transceiver vendor/product ID 0x0451/0x1507
Found TI TUSB1210 ULPI transceiver.
ULPI integrity check: passed.
ci_hdrc ci_hdrc.0: EHCI Host Controller
ci_hdrc ci_hdrc.0: new USB bus registered, assigned bus number 1
ci_hdrc ci_hdrc.0: USB 2.0 started, EHCI 1.00
usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.12
usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb1: Product: EHCI Host Controller
usb usb1: Manufacturer: Linux 6.12.0-27244-gc894bed472b7 ehci_hcd
usb usb1: SerialNumber: ci_hdrc.0
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
i2c_dev: i2c /dev entries driver
platform 70e00000.lcd-controller: Fixed dependency cycle(s) with /fpga-axi@0/i2c@41600000/hdmi@39
i2c 0-0039: Fixed dependency cycle(s) with /fpga-axi@0/lcd-controller@70e00000
adv7511 0-0039: supply avdd not found, using dummy regulator
adv7511 0-0039: supply dvdd not found, using dummy regulator
adv7511 0-0039: supply pvdd not found, using dummy regulator
adv7511 0-0039: supply bgvdd not found, using dummy regulator
adv7511 0-0039: supply dvdd-3v not found, using dummy regulator
at24 1-0050: supply vcc not found, using dummy regulator
at24 1-0050: 256 byte 24c02 EEPROM, writable, 1 bytes/write
gspca_main: v2.14.0 registered
usbcore: registered new interface driver uvcvideo
cdns-wdt f8005000.watchdog: Xilinx Watchdog Timer with timeout 10s
Xilinx Zynq CpuIdle Driver started
failed to register cpuidle driver
sdhci: Secure Digital Host Controller Interface driver
sdhci: Copyright(c) Pierre Ossman
sdhci-pltfm: SDHCI platform and OF driver helper
clocksource: ttc_clocksource: mask: 0xffff max_cycles: 0xffff, max_idle_ns: 537538477 ns
timer #0 at (ptrval), irq=47
hid: raw HID events driver (C) Jiri Kosina
usbcore: registered new interface driver usbhid
usbhid: USB HID core driver
SPI driver fb_seps525 has no spi_device_id for syncoam,seps525
armv7-pmu f8891000.pmu: hw perfevents: no interrupt-affinity property, guessing.
mmc0: SDHCI controller on e0100000.mmc [e0100000.mmc] using ADMA
hw perfevents: enabled with armv7_cortex_a9 PMU driver, 7 (8000003f) counters available
axi_sysid 45000000.sysid: AXI System ID core version (1.01.a) found
axi_sysid 45000000.sysid: [pulsar_adc] [FMC_N_PMOD=1 SPI_OP_MODE=0] on [zed] git branch <hdl_2026_r1> git <a77599a506f259d09aa871459427287a7cb92ebc> clean [2026-04-22 14:13:48] UTC
fpga_manager fpga0: Xilinx Zynq FPGA Manager registered
usbcore: registered new interface driver snd-usb-audio
axi-i2s 77600000.i2s: probed, capture enabled, playback enabled
NET: Registered PF_INET6 protocol family
Segment Routing with IPv6
In-situ OAM (IOAM) with IPv6
sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
NET: Registered PF_PACKET protocol family
NET: Registered PF_IEEE802154 protocol family
Key type dns_resolver registered
Registering SWP/SWPB emulation handler
mmc0: new high speed SDHC card at address aaaa
mmcblk0: mmc0:aaaa SK32G 29.7 GiB
mmcblk0: p1 p2 p3
of-fpga-region fpga-region: FPGA Region probed
[drm] Initialized axi_hdmi_drm 1.0.0 for 70e00000.lcd-controller on minor 0
axi-hdmi 70e00000.lcd-controller: [drm] Cannot find any crtc or sizes
axi-hdmi 70e00000.lcd-controller: [drm] Cannot find any crtc or sizes
debugfs: File 'Capture' in directory 'dapm' already present!
input: gpio-keys as /devices/soc0/gpio-keys/input/input0
of_cfs_init
of_cfs_init: OK
clk: Not disabling unused clocks
ALSA device list:
#0: HDMI monitor
#1: ZED ADAU1761
EXT4-fs (mmcblk0p2): mounted filesystem a798edfe-3e33-4b1b-8562-f3f1586b9325 r/w with ordered data mode. Quota mode: disabled.
VFS: Mounted root (ext4 filesystem) on device 179:2.
devtmpfs: mounted
Freeing unused kernel image (initmem) memory: 1024K
Run /sbin/init as init process
systemd[1]: System time advanced to built-in epoch: Wed 2025-09-03 14:38:20 EDT
systemd[1]: Failed to find module 'autofs4'
systemd[1]: systemd 257.9-1~deb13u1 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +IPE +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBCRYPTSETUP_PLUGINS +LIBFDISK +PCRE2 +PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -BPF_FRAMEWORK -BTF -XKBCOMMON -UTMP +SYSVINIT +LIBARCHIVE)
systemd[1]: Detected architecture arm.

Welcome to Debian GNU/Linux 13 (trixie)!

systemd[1]: Hostname set to <analog>.
systemd[1]: /usr/lib/systemd/system/iiod.service:16: Invalid environment assignment, ignoring: $IIOD_EXTRA_OPTS=
systemd[1]: Queued start job for default target graphical.target.
systemd[1]: Created slice system-getty.slice - Slice /system/getty.
[  OK  ] Created slice system-getty.slice - Slice /system/getty.
systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[  OK  ] Created slice system-modprobe.slice - Slice /system/modprobe.
systemd[1]: Created slice system-serial\x2dgetty.slice - Slice /system/serial-getty.
[  OK  ] Created slice system-serial\x2dget&slice - Slice /system/serial-getty.
systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[  OK  ] Created slice system-systemd\x2dfs&slice - Slice /system/systemd-fsck.
systemd[1]: Created slice user.slice - User and Session Slice.
[  OK  ] Created slice user.slice - User and Session Slice.
systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[  OK  ] Started systemd-ask-password-wall.&d Requests to Wall Directory Watch.
systemd[1]: proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/binfmt_misc).
systemd[1]: Expecting device dev-disk-by\x2dpartuuid-6832fdb0\x2d01.device - /dev/disk/by-partuuid/6832fdb0-01...
         Expecting device dev-disk-by\x2dpa&dev/disk/by-partuuid/6832fdb0-01...
systemd[1]: Expecting device dev-ttyGS0.device - /dev/ttyGS0...
         Expecting device dev-ttyGS0.device - /dev/ttyGS0...
systemd[1]: Expecting device dev-ttyGS1.device - /dev/ttyGS1...
         Expecting device dev-ttyGS1.device - /dev/ttyGS1...
systemd[1]: Expecting device dev-ttyPS0.device - /dev/ttyPS0...
         Expecting device dev-ttyPS0.device - /dev/ttyPS0...
systemd[1]: Expecting device dev-ttyS0.device - /dev/ttyS0...
         Expecting device dev-ttyS0.device - /dev/ttyS0...
systemd[1]: Reached target nss-user-lookup.target - User and Group Name Lookups.
[  OK  ] Reached target nss-user-lookup.target - User and Group Name Lookups.
systemd[1]: Reached target remote-fs.target - Remote File Systems.
[  OK  ] Reached target remote-fs.target - Remote File Systems.
systemd[1]: Reached target slices.target - Slice Units.
[  OK  ] Reached target slices.target - Slice Units.
systemd[1]: Reached target swap.target - Swaps.
[  OK  ] Reached target swap.target - Swaps.
systemd[1]: Listening on systemd-creds.socket - Credential Encryption/Decryption.
[  OK  ] Listening on systemd-creds.socket - Credential Encryption/Decryption.
systemd[1]: Listening on systemd-initctl.socket - initctl Compatibility Named Pipe.
[  OK  ] Listening on systemd-initctl.socke&- initctl Compatibility Named Pipe.
systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[  OK  ] Listening on systemd-journald-dev-&socket - Journal Socket (/dev/log).
systemd[1]: Listening on systemd-journald.socket - Journal Sockets.
[  OK  ] Listening on systemd-journald.socket - Journal Sockets.
systemd[1]: systemd-pcrextend.socket - TPM PCR Measurements was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
systemd[1]: systemd-pcrlock.socket - Make TPM PCR Policy was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[  OK  ] Listening on systemd-udevd-control.socket - udev Control Socket.
systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[  OK  ] Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
systemd[1]: dev-hugepages.mount - Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages).
systemd[1]: dev-mqueue.mount - POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue).
systemd[1]: Mounting run-lock.mount - Legacy Locks Directory /run/lock...
         Mounting run-lock.mount - Legacy Locks Directory /run/lock...
systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
         Mounting sys-kernel-debug.mount - Kernel Debug File System...
systemd[1]: sys-kernel-tracing.mount - Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing).
systemd[1]: Mounting tmp.mount - Temporary Directory /tmp...
         Mounting tmp.mount - Temporary Directory /tmp...
systemd[1]: Starting fake-hwclock-load.service - Restore the current clock...
         Starting fake-hwclock-load.service - Restore the current clock...
systemd[1]: kmod-static-nodes.service - Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.12.0-27244-gc894bed472b7/modules.devname).
systemd[1]: Starting modprobe@configfs.service - Load Kernel Module configfs...
         Starting modprobe@configfs.service - Load Kernel Module configfs...
systemd[1]: Starting modprobe@drm.service - Load Kernel Module drm...
         Starting modprobe@drm.service - Load Kernel Module drm...
systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
         Starting modprobe@efi_pstore.servi& - Load Kernel Module efi_pstore...
systemd[1]: Starting modprobe@fuse.service - Load Kernel Module fuse...
         Starting modprobe@fuse.service - Load Kernel Module fuse...
systemd[1]: systemd-hibernate-clear.service - Clear Stale Hibernate Storage Info was skipped because of an unmet condition check (ConditionPathExists=/sys/firmware/efi/efivars/HibernateLocation-8cf2644b-4b0b-428f-9387-6d876050dc67).
systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling.
systemd[1]: systemd-journald.service: (This warning is only shown for the first unit using IP firewalling.)
systemd[1]: Starting systemd-journald.service - Journal Service...
         Starting systemd-journald.service - Journal Service...
systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
         Starting systemd-modules-load.service - Load Kernel Modules...
systemd[1]: systemd-pcrmachine.service - TPM PCR Machine ID Measurement was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
systemd[1]: Starting systemd-tmpfiles-setup-dev-early.service - Create Static Device Nodes in /dev gracefully...
         Starting systemd-tmpfiles-setup-de& Device Nodes in /dev gracefully...
systemd[1]: systemd-tpm2-setup-early.service - Early TPM SRK Setup was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
systemd[1]: Starting systemd-udev-load-credentials.service - Load udev Rules from Credentials...
         Starting systemd-udev-load-credent&Load udev Rules from Credentials...
systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
         Starting systemd-udev-trigger.service - Colsystemd-journald[90]: Collecting audit messages is disabled.
dplug All udev Devices...
systemd[1]: Mounted run-lock.mount - Legacy Locks Directory /run/lock.
[  OK  ] Mounted run-lock.mount - Legacy Locks Directory /run/lock.
systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[  OK  ] Mounted sys-kernel-debug.mount - Kernel Debug File System.
systemd[1]: Mounted tmp.mount - Temporary Directory /tmp.
[  OK  ] Mounted tmp.mount - Temporary Directory /tmp.
systemd[1]: fake-hwclock-load.service: Deactivated successfully.
systemd[1]: Finished fake-hwclock-load.service - Restore the current clock.
[  OK  ] Finished fake-hwclock-load.service - Restore the current clock.
systemd[1]: modprobe@configfs.service: Deactivated successfully.
systemd[1]: Finished modprobe@configfs.service - Load Kernel Module configfs.
[  OK  ] Finished modprobe@configfs.service - Load Kernel Module configfs.
systemd[1]: Started systemd-journald.service - Journal Service.
[  OK  ] Started systemd-journald.service - Journal Service.
[  OK  ] Finished modprobe@drm.service - Load Kernel Module drm.
[  OK  ] Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[  OK  ] Finished modprobe@fuse.service - Load Kernel Module fuse.
[  OK  ] Finished systemd-modules-load.service - Load Kernel Modules.
[  OK  ] Finished systemd-tmpfiles-setup-de&ic Device Nodes in /dev gracefully.
[  OK  ] Finished systemd-udev-load-credent&- Load udev Rules from Credentials.
         Mounting sys-fs-fuse-connections.mount - FUSE Control File System...
         Mounting sys-kernel-config.mount - Kernel Configuration File System...
         Starting systemd-remount-fs.servic&unt Root and Kernel File Systems...
         Starting systemd-sysctl.service - Apply Kernel Variables...
[  OK  ] Mounted sys-fs-fuse-connections.mount - FUSE Control File System.
[  OK  ] Mounted sys-kernel-config.mount - Kernel Configuration File System.
[  OK  ] Finished systemd-sysctl.service - Apply Kernel Variables.
[  OK  ] Finished systemd-udev-trigger.service - Coldplug All udev Devices.
         Starting ifupdown-pre.service - He&synchronize boot up for ifupdown...
         Starting systemd-udev-settle.servi&o Complete Device Initialization...
[  OK  ] Finished ifupdown-pre.service - He&o synchronize boot up for ifupdown.
[  OK  ] Finished systemd-remount-fs.servic&mount Root and Kernel File Systems.
         Starting systemd-journal-flush.ser&sh Journal to Persistent Storage...
         Starting systemd-random-seed.service - Load/Save OS Random Seed...
         Starting systemd-tmpfiles-setup-de&eate Static Device Nodes in /dev...
[  OK  ] Finished systemd-random-seed.service - Load/Save OS Random Seed.
[  OK  ] Finished systemd-tmpfiles-setup-de&Create Static Device Nodes in /dev.
[  OK  ] Reached target local-fs-pre.target&Preparation for Local File Systems.
         Starting systemd-udevd.service - R&ager for Device Events and Files...
[  OK  ] Finished systemd-journal-flush.ser&lush Journal to Persistent Storage.
[  OK  ] Started systemd-udevd.service - Ru&anager for Device Events and Files.
         Starting plymouth-start.service - Show Plymouth Boot Screen...
failed to register cpuidle driver
debugfs: File 'Capture' in directory 'dapm' already present!
systemd[1]: Failed to find module 'autofs4'
[  OK  ] Started plymouth-start.service - Show Plymouth Boot Screen.
[  OK  ] Found device dev-ttyPS0.device - /dev/ttyPS0.
[  OK  ] Found device dev-disk-by\x2dpartuu& /dev/disk/by-partuuid/6832fdb0-01.
[  OK  ] Finished systemd-udev-settle.servi& To Complete Device Initialization.
[  OK  ] Started systemd-ask-password-plymo&quests to Plymouth Directory Watch.
[  OK  ] Reached target paths.target - Path Units.
[  OK  ] Reached target sound.target - Sound Card.
         Starting systemd-fsck@dev-disk-by\&dev/disk/by-partuuid/6832fdb0-01...
[  OK  ] Finished systemd-fsck@dev-disk-by\& /dev/disk/by-partuuid/6832fdb0-01.
         Mounting boot.mount - /boot...
[  OK  ] Mounted boot.mount - /boot.
[  OK  ] Reached target local-fs.target - Local File Systems.
[  OK  ] Listening on systemd-sysext.socket& System Extension Image Management.
         Starting networking.service - Raise network interfaces...
         Starting plymouth-read-write.servi&ymouth To Write Out Runtime Data...
         Starting systemd-tmpfiles-setup.se&ate System Files and Directories...
[  OK  ] Finished plymouth-read-write.servi&Plymouth To Write Out Runtime Data.
[  OK  ] Finished systemd-tmpfiles-setup.se&reate System Files and Directories.
[  OK  ] Reached target sysinit.target - System Initialization.
[  OK  ] Started apt-daily.timer - Daily apt download activities.
[  OK  ] Started apt-daily-upgrade.timer - &y apt upgrade and clean activities.
[  OK  ] Started dpkg-db-backup.timer - Daily dpkg database backup timer.
[  OK  ] Started e2scrub_all.timer - Period&Metadata Check for All Filesystems.
[  OK  ] Started fake-hwclock-save.timer - Periodically save current clock.
[  OK  ] Started fstrim.timer - Discard unused filesystem blocks once a week.
[  OK  ] Started logrotate.timer - Daily rotation of log files.
[  OK  ] Started man-db.timer - Daily man-db regeneration.
[  OK  ] Started ntpsec-rotate-stats.timer - Rotate ntpd stats daily.
[  OK  ] Started systemd-tmpfiles-clean.tim&y Cleanup of Temporary Directories.
[  OK  ] Reached target timers.target - Timer Units.
[  OK  ] Listening on avahi-daemon.socket -&DNS/DNS-SD Stack Activation Socket.
[  OK  ] Listening on dbus.socket - D-Bus System Message Bus Socket.
[  OK  ] Listening on sshd-unix-local.socke&temd-ssh-generator, AF_UNIX Local).
[  OK  ] Listening on systemd-hostnamed.socket - Hostname Service Socket.
[  OK  ] Reached target sockets.target - Socket Units.
[  OK  ] Reached target basic.target - Basic System.
         Starting accounts-daemon.service - Accounts Service...
         Starting adi-power.service - Analog Devices power up/down sequence...
         Starting avahi-daemon.service - Avahi mDNS/DNS-SD Stack...
         Starting blueman-mechanism.service - Bluetooth management mechanism...
[  OK  ] Started cron.service - Regular background program processing daemon.
         Starting dbus.service - D-Bus System Message Bus...
         Starting e2scrub_reap.service - Re&ne ext4 Metadata Check Snapshots...
[  OK  ] Started fan-control.service - fan-control.
         Starting fix-display-port.service - Fix DP audio and X11...
         Starting iiod_context_attr.service&ating IIOD Context Attributes......
         Starting systemd-logind.service - User Login Management...
         Starting udisks2.service - Disk Manager...
         Starting xserver.service - ADI X Server...
[  OK  ] Started dbus.service - D-Bus System Message Bus.
[  OK  ] Finished fix-display-port.service - Fix DP audio and X11.
         Starting NetworkManager.service - Network Manager...
         Starting wpa_supplicant.service - WPA supplicant...
[  OK  ] Started avahi-daemon.service - Avahi mDNS/DNS-SD Stack.
         Starting polkit.service - Authorization Manager...
[  OK  ] Finished networking.service - Raise network interfaces.
         Starting modprobe@drm.service - Load Kernel Module drm...
[  OK  ] Started wpa_supplicant.service - WPA supplicant.
[  OK  ] Finished modprobe@drm.service - Load Kernel Module drm.
[  OK  ] Started systemd-logind.service - User Login Management.
[  OK  ] Finished adi-power.service - Analog Devices power up/down sequence.
[  OK  ] Finished e2scrub_reap.service - Re&line ext4 Metadata Check Snapshots.
[  OK  ] Finished iiod_context_attr.service&reating IIOD Context Attributes....
[  OK  ] Created slice user-1000.slice - User Slice of UID 1000.
         Starting systemd-hostnamed.service - Hostname Service...
         Starting user-runtime-dir@1000.ser&Runtime Directory /run/user/1000...
[  OK  ] Started polkit.service - Authorization Manager.
[  OK  ] Started accounts-daemon.service - Accounts Service.
[  OK  ] Finished user-runtime-dir@1000.ser&r Runtime Directory /run/user/1000.
[  OK  ] Started udisks2.service - Disk Manager.
[  OK  ] Started systemd-hostnamed.service - Hostname Service.
         Starting NetworkManager-dispatcher&anager Script Dispatcher Service...
[  OK  ] Started NetworkManager.service - Network Manager.
[  OK  ] Reached target network.target - Network.
         Starting htpdate.service - HTTP based time synchronization tool...
[  OK  ] Started iiod.service - IIO Daemon.
         Starting ntpsec.service - Network Time Service...
         Starting ssh.service - OpenBSD Secure Shell server...
         Starting systemd-user-sessions.service - Permit User Sessions...
[  OK  ] Started udiskie.service - Udiskie &rvice for managing removable media.
[  OK  ] Started NetworkManager-dispatcher.& Manager Script Dispatcher Service.
[  OK  ] Finished systemd-user-sessions.service - Permit User Sessions.
         Starting plymouth-quit-wait.servic&d until boot process finishes up...
         Starting user@1000.service - User Manager for UID 1000...
[  OK  ] Started ntpsec.service - Network Time Service.
[  OK  ] Started htpdate.service - HTTP based time synchronization tool.
[  OK  ] Started ssh.service - OpenBSD Secure Shell server.
[  OK  ] Started blueman-mechanism.service - Bluetooth management mechanism.
[  OK  ] Started user@1000.service - User Manager for UID 1000.
[  OK  ] Started session-c1.scope - Session c1 of User analog.
[  OK  ] Finished xserver.service - ADI X Server.
         Starting lightdm.service - Light Display Manager...
         Starting rtkit-daemon.service - Re&imeKit Scheduling Policy Service...
         Starting x11vnc.service - VNC Server for X11...
[  OK  ] Started rtkit-daemon.service - RealtimeKit Scheduling Policy Service.

Debian GNU/Linux 13 analog ttyPS0

analog login: root (automatic login)

Linux analog 6.12.0-27244-gc894bed472b7 #3 SMP PREEMPT Thu Apr  2 15:57:20 EEST 2026 armv7l

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.

Useful commands for the serial terminal

The below commands are to be run in the serial terminal connected to the FPGA.

Login Information

user: analog password: analog

To find out the IP of the FPGA board, run the following command and take the IP specified at “eth0 inet”:

~$

ifconfig

To see the IIO devices detected, run:

~$

iio_info | grep iio:device

 iio:device0: ad4020 (buffer capable)
 iio:device1: xadc

To power off the system, run the following command, and wait for the final message to be printed, then power off the FPGA board from the switch as well.

~$

poweroff

To reboot the system, run:

~$

reboot

Important

Even though this is Linux, this is a persistent file system. Care should be taken not to corrupt the file system – please shut down things, don’t just turn off the power switch. Depending on your monitor, the standard power off could be hiding. You can do this from the terminal as well with sudo shutdown -h now or the above-mentioned command for powering off.

Scopy

Important

Make sure to download/update to the latest version of Scopy.

Scopy can be used to capture and analyze data from the PulSAR ADC evaluation board.

  1. Once done with the installation or an update of the latest Scopy, open the application.

  2. The user needs to supply a URI which will be used in the context creation. Use the IP address obtained from the ifconfig command.

  3. Press Refresh to display available IIO Devices and press Connect.

After the board is connected and a channel is enabled, hit the play button. Then the data capture window can be seen.

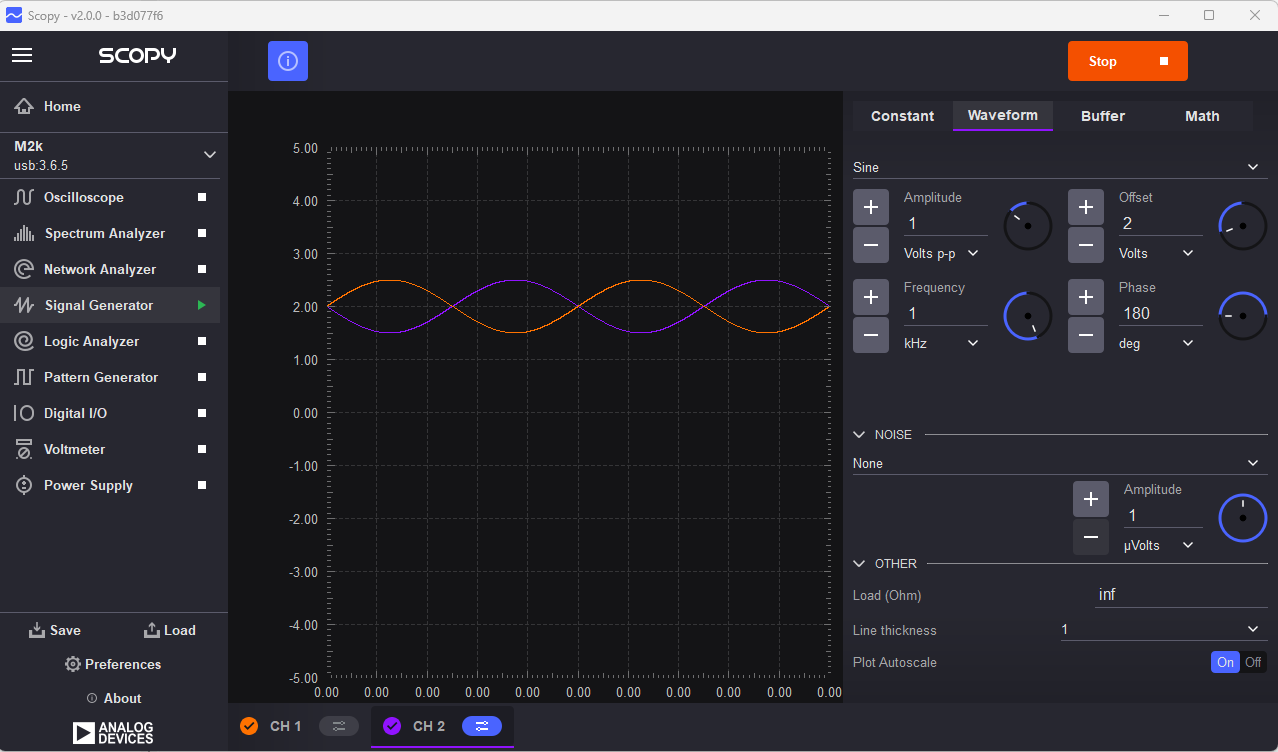

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_scopy_channel1_zed.png

Figure 4 Scopy data capture from PulSAR ADC on ZedBoard (Channel 1)

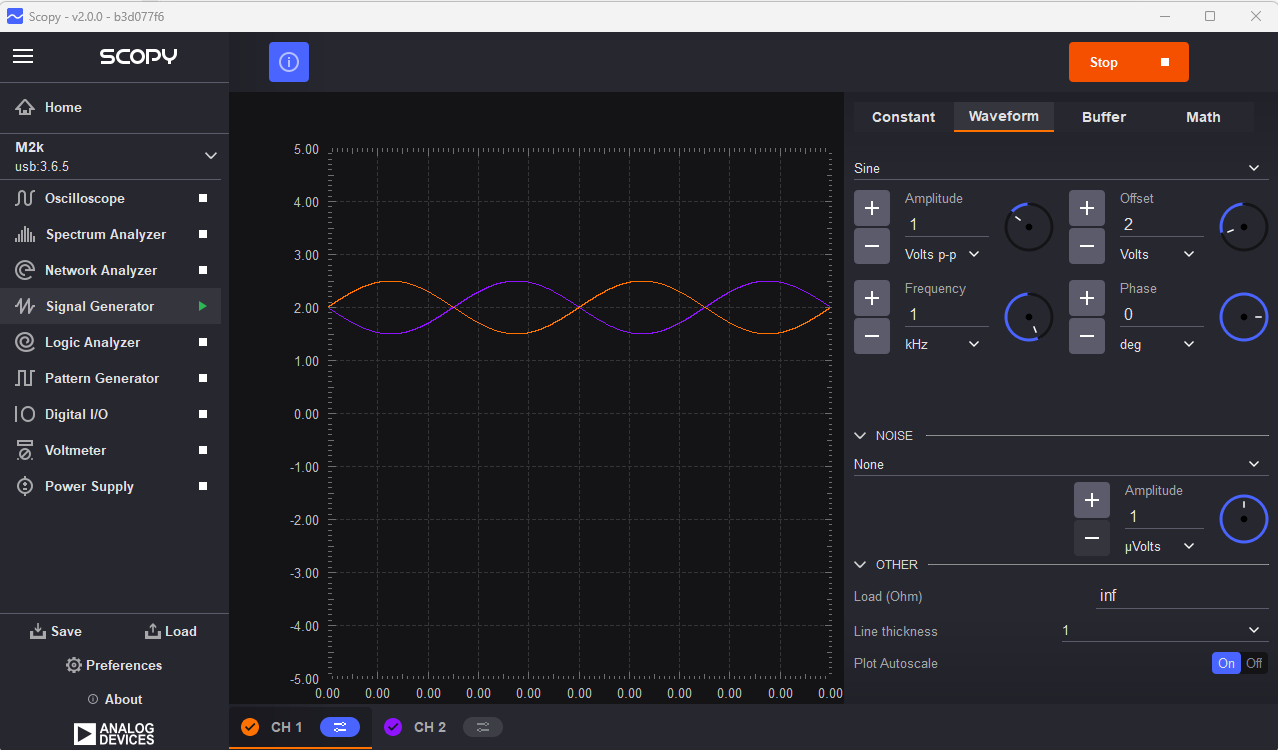

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_scopy_channel2_zed.png

Figure 5 Scopy data capture from PulSAR ADC on ZedBoard (Channel 2)

IIO Oscilloscope

Important

Make sure to download/update to the latest version of IIO Oscilloscope.

  1. Once done with the installation or an update of the latest IIO Oscilloscope, open the application. The user needs to supply a URI which will be used in the context creation of the IIO Oscilloscope.

  2. Press Refresh to display available IIO Devices and press Connect.

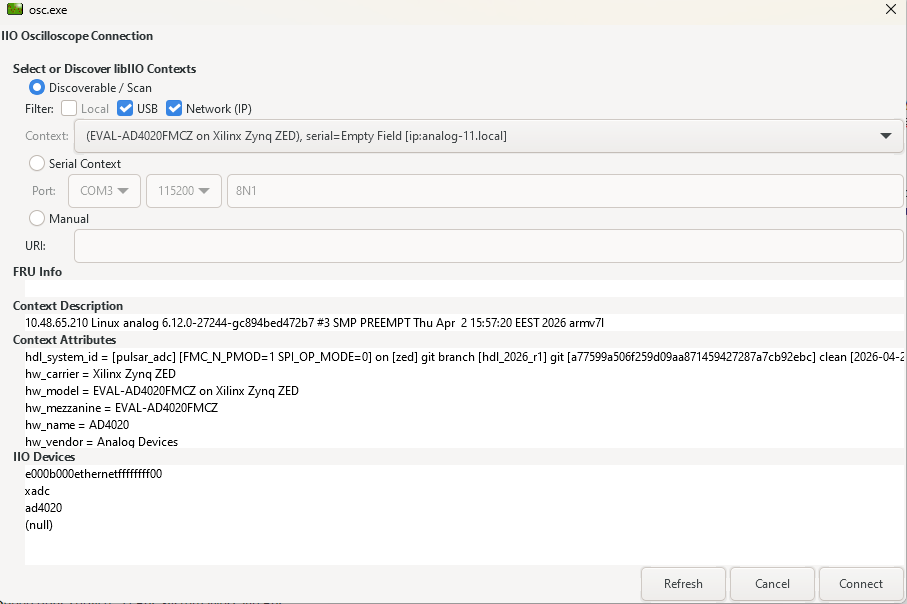

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_iio_osc_connect_zed.png

    Figure 6 IIO Oscilloscope connection

  3. After the board is connected and a channel is enabled, hit the play button. Then the data capture window can be seen like in the shown picture.

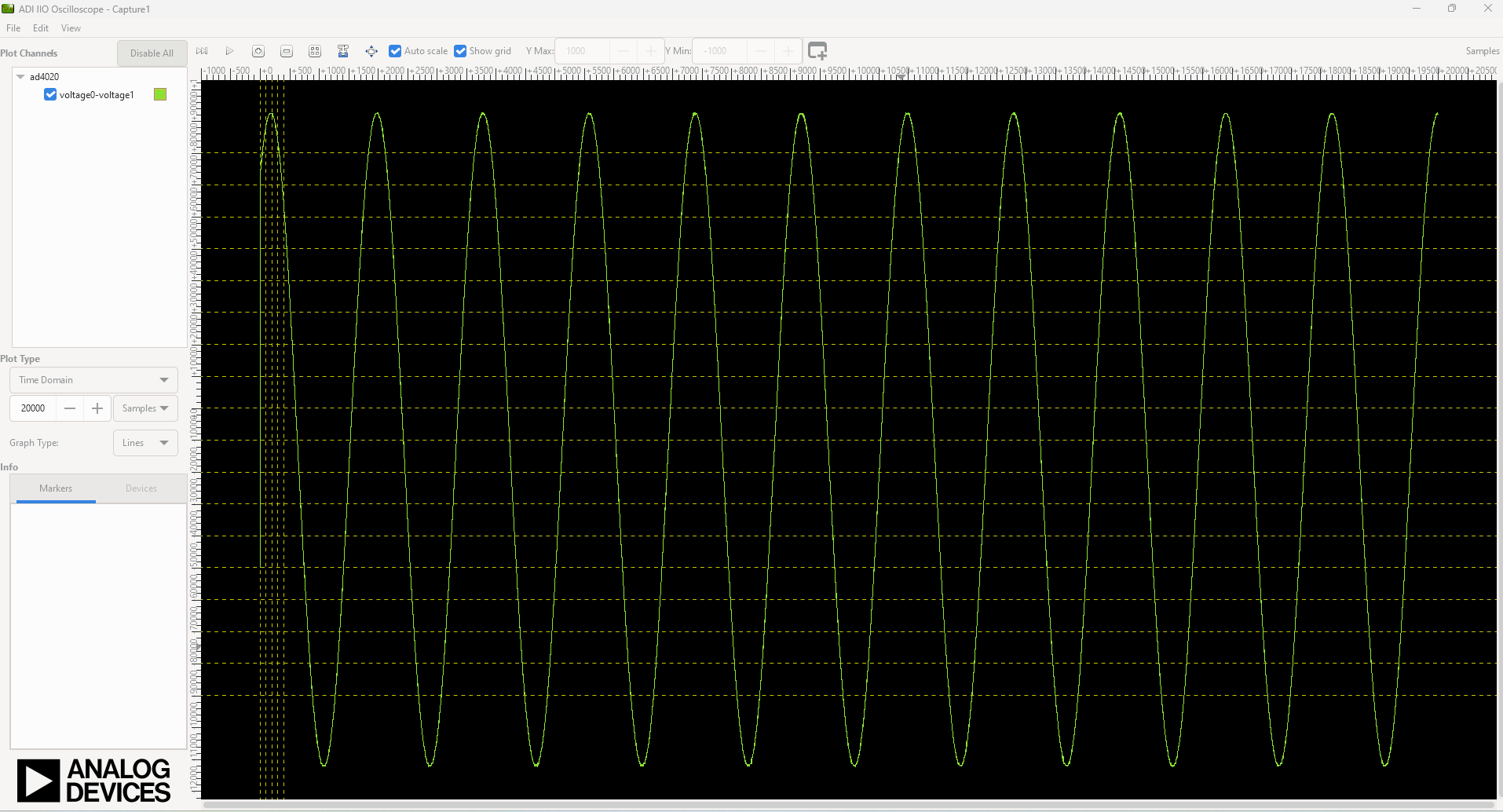

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_iio_osc_plot_zed.png

    Figure 7 IIO Oscilloscope data capture

Using no-OS as software

Necessary files

The following files are needed for the system to boot:

Instructions on how to build the boot files from source can be found here:

Required Software

  • AMD Xilinx Vivado and Vitis (downloading Vitis from here will include Vivado as well)

  • A UART terminal (Putty/Tera Term/Minicom, etc.), Baud rate 115200 (8N1)

Required Hardware

  • AMD Xilinx ZedBoard FPGA board and its power supply (12V)

  • EVAL-AD400x-FMCZ evaluation board

  • 2x Micro-USB cables, one for UART and one for JTAG

  • Signal generator

More details as to why you need these can be found at Prerequisites.

Testing

Creating the setup

EVAL-AD400x-FMCZ/ZED
https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_zed_no_os_setup.jpg

Figure 8 EVAL-AD400x-FMCZ/ZED no-OS setup

In the following example, we will prepare the evaluation setup by connecting the EVAL-AD400x-FMCZ board to the ZedBoard, configuring the board for JTAG boot, and applying a test input signal.

Follow the steps in this order, to avoid damaging the components:

  1. Get the ZedBoard

  2. Configure ZedBoard for JTAG boot:

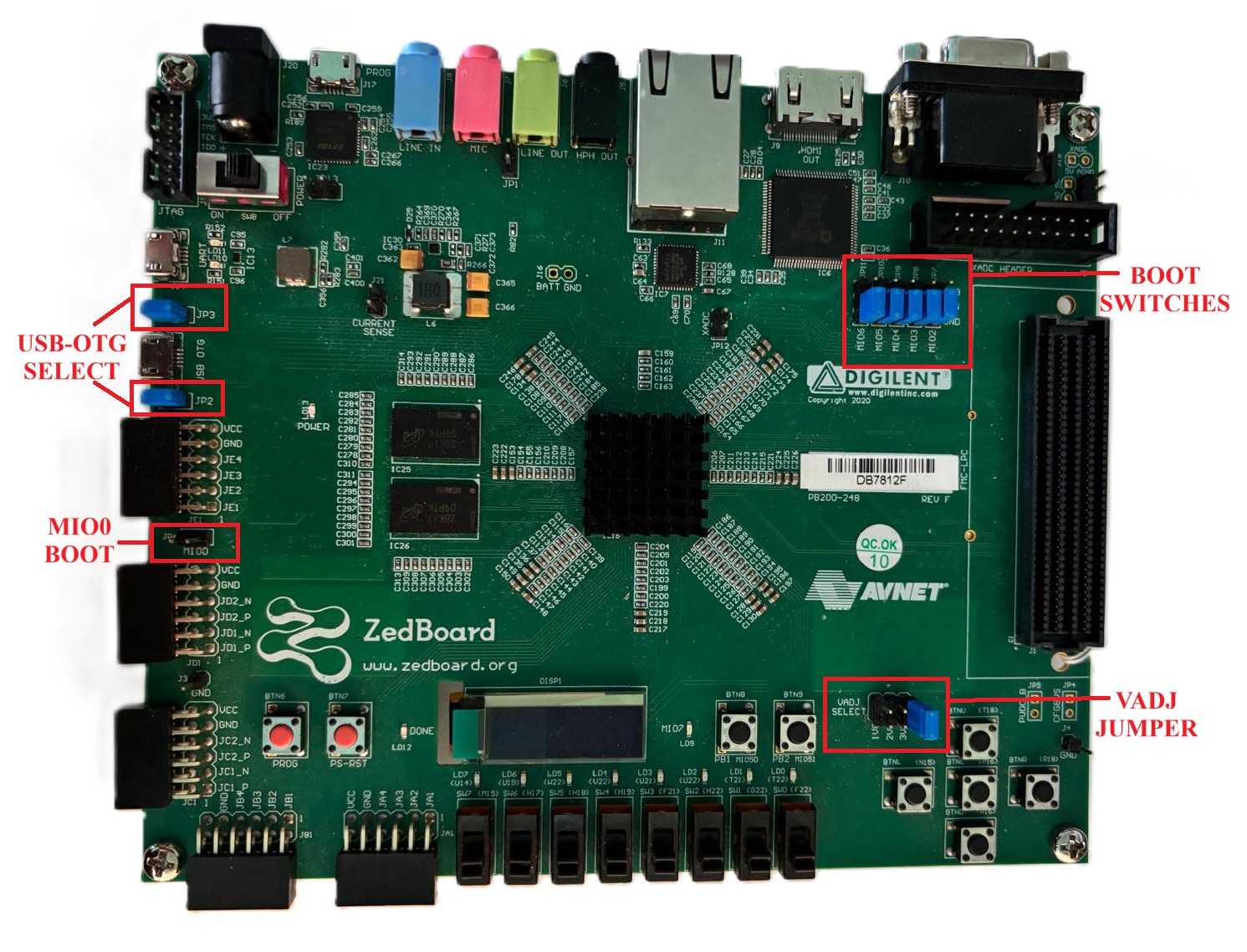

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/pulsar_adc/images/pulsar_adc_zed_jtag.jpg

    Figure 9 ZedBoard JTAG boot jumper configuration

    The BOOT switches (JP7-JP11) and the MIO0 jumper (JP6) must be set for JTAG boot mode. VIO must be set to 3.3V, as specified in the HDL project’s README at PULSAR-ADC HDL project. Optionally, to use USB peripheral devices with the ZedBoard, install jumpers JP2 and JP3.

  3. Connect your signal generator to the analog inputs of the evaluation board using the appropriate jumper wires or SMB connectors.

  4. Plug the EVAL-AD400x-FMCZ into the FMC LPC Connector (J1)

  5. Plug the Power Supply into 12V Power input connector (J20) (DO NOT turn the device on).

  6. Connect the UART port of ZedBoard (J14) to a PC via MicroUSB

  7. Connect the PROG port of ZedBoard (J17) to a PC via MicroUSB

  8. Turn on the power switch on the FPGA board

  9. Observe the serial console output messages on your terminal

Console output

The following is what is printed in the serial console, after you have connected to the proper ttyUSB or COM port:

Spi engine v2.0.0 succesfully initialized.
rx_clkgen: MMCM-PLL locked (160000000 Hz)
ADC: 0
ADC: 47926
ADC: 41001
ADC: 39098
ADC: 38967
ADC: 38763
ADC: 38541
ADC: 38015
ADC: 37366
ADC: 37268
ADC: 37023
ADC: 36674
ADC: 36398
ADC: 35956
ADC: 35241
ADC: 35008
ADC: 35254
ADC: 34737
ADC: 34306
ADC: 34063
ADC: 33516
ADC: 33185
ADC: 33142
ADC: 32775
ADC: 32136
ADC: 32127
ADC: 31359
ADC: 31118
ADC: 31111
ADC: 30742
ADC: 30179
ADC: 29919
ADC: 29486
ADC: 29195
ADC: 29156
ADC: 28786
ADC: 28051
ADC: 27735
ADC: 27379
ADC: 27049
ADC: 27031
ADC: 26715
ADC: 26154
ADC: 25349
ADC: 25230
ADC: 25144
ADC: 24876
ADC: 24484
ADC: 24116
ADC: 23452
ADC: 23150
ADC: 22951
ADC: 22750
ADC: 21985
ADC: 21876
ADC: 21420
ADC: 21405
ADC: 21028
ADC: 20805
ADC: 19914
ADC: 19523
ADC: 19426
ADC: 19218
ADC: 18693
ADC: 18474
ADC: 17982
ADC: 17334
ADC: 17511
ADC: 17295
ADC: 16754
ADC: 16177
ADC: 15995
ADC: 15334
ADC: 15304
ADC: 14960
ADC: 14638
ADC: 13969
ADC: 13427
ADC: 13418
ADC: 13356
ADC: 12627
ADC: 12444
ADC: 12113
ADC: 11332
ADC: 11310
ADC: 11340
ADC: 10718
ADC: 9985
ADC: 9730
ADC: 9343
ADC: 9231
ADC: 8923
ADC: 8725
ADC: 8116
ADC: 7844
ADC: 7863
ADC: 7319
ADC: 6782
ADC: 6224
ADC: 6133
ADC: 5748
ADC: 5575
ADC: 5124
ADC: 4622
ADC: 3996
ADC: 3702
ADC: 3717
ADC: 3422
ADC: 2850
ADC: 2543
ADC: 2147
ADC: 1668
ADC: 1573
ADC: 1421
ADC: 818
ADC: 111
ADC: -211
ADC: -318
ADC: -503
ADC: -1126
ADC: -1302
ADC: -1828
ADC: -2282
ADC: -2270
ADC: -2532
ADC: -3165
ADC: -3946
ADC: -3930
ADC: -4127
ADC: -4515
ADC: -4880
ADC: -5235
ADC: -5935
ADC: -6261
ADC: -6158
ADC: -6668
ADC: -7358
ADC: -7423
ADC: -8029
ADC: -8270
ADC: -8475
ADC: -8475
ADC: -9182
ADC: -9823
ADC: -10164
ADC: -10101
ADC: -10499
ADC: -11218
ADC: -11270
ADC: -11980
ADC: -12205
ADC: -12221
ADC: -12565
ADC: -13074
ADC: -13756
ADC: -13902
ADC: -14211
ADC: -14543
ADC: -14753
ADC: -15227
ADC: -15860
ADC: -16193
ADC: -16227
ADC: -16572
ADC: -17090
ADC: -17271
ADC: -17775
ADC: -18232
ADC: -18285
ADC: -18550
ADC: -19376
ADC: -19829
ADC: -19804
ADC: -20298
ADC: -20695
ADC: -20669
ADC: -21218
ADC: -21857
ADC: -22255
ADC: -22278
ADC: -22609
ADC: -23027
ADC: -23282
ADC: -23859
ADC: -24254
ADC: -24245
ADC: -24575
ADC: -25261
ADC: -25598
ADC: -26040
ADC: -26306
ADC: -26214
ADC: -26598
ADC: -27225
ADC: -27848
ADC: -27871
ADC: -28298
ADC: -28583
ADC: -28743
ADC: -29216
ADC: -29972
ADC: -29998
ADC: -30269
ADC: -30605
ADC: -30798
ADC: -31233
ADC: -31679
ADC: -31642
ADC: -32039
ADC: -32572
ADC: -32930
ADC: -33443
ADC: -33609
ADC: -33689
ADC: -34076
ADC: -34585
ADC: -34922
ADC: -35190
ADC: -35507
ADC: -35657
ADC: -35836
ADC: -36672
ADC: -36822
ADC: -37313
ADC: -37614
ADC: -37584
ADC: -37881
ADC: -38655
ADC: -39018
ADC: -39264
ADC: -39643
ADC: -39685
ADC: -39890
ADC: -40703
ADC: -41062
ADC: -41243
ADC: -41506
ADC: -41688
ADC: -42049
ADC: -42751
ADC: -42657
ADC: -43342
ADC: -43677
ADC: -43514
ADC: -43990
ADC: -44248
ADC: -44662
ADC: -45391
ADC: -45515
ADC: -45517
ADC: -45929
ADC: -45966
ADC: -46720
ADC: -47180
ADC: -47216
ADC: -47598
ADC: -47636
ADC: -48068
ADC: -48703
ADC: -48738
ADC: -49376
ADC: -49732
ADC: -49683
ADC: -50144
ADC: -50252
ADC: -50591
ADC: -51313
ADC: -51341
ADC: -51600
ADC: -51807
ADC: -51949
ADC: -52622
ADC: -52955
ADC: -53358
ADC: -53551
ADC: -53616
ADC: -54045
ADC: -54318
ADC: -54627
ADC: -55434
ADC: -55314
ADC: -55658
ADC: -55654
ADC: -55909
ADC: -56497
ADC: -56601
ADC: -57361
ADC: -57513
ADC: -57655
ADC: -57599
ADC: -57828
ADC: -58718
ADC: -58643
ADC: -59247
ADC: -59539
ADC: -59611
ADC: -59892
ADC: -59887
ADC: -60734
ADC: -60732
ADC: -61242
ADC: -61664
ADC: -61772
ADC: -61820
ADC: -62002
ADC: -62629
ADC: -62669
ADC: -63356
ADC: -63595
ADC: -63584
ADC: -63707
ADC: -63968
ADC: -64496
ADC: -64622
ADC: -65328
ADC: -65221
ADC: -65598
ADC: -65750
ADC: -65890
ADC: -66173
ADC: -66736
ADC: -67031
ADC: -67391
ADC: -67646
ADC: -67621
ADC: -68039
ADC: -68068
ADC: -68586
ADC: -68798
ADC: -69162
ADC: -69447
ADC: -69738
ADC: -69622
ADC: -70067
ADC: -69970
ADC: -70656
ADC: -70764
ADC: -71111
ADC: -71217
ADC: -71654
ADC: -71711
ADC: -72005
ADC: -72193
ADC: -72751
ADC: -72831
ADC: -73053
ADC: -73000
ADC: -73641
ADC: -73714
ADC: -74099
ADC: -74127
ADC: -74764
ADC: -74656
ADC: -74995
ADC: -74834
ADC: -75781
ADC: -75653
ADC: -76133
ADC: -75992
ADC: -76521
ADC: -76655
ADC: -76973
ADC: -76805
ADC: -77350
ADC: -77720
ADC: -77663
ADC: -78085
ADC: -78017
ADC: -78636
ADC: -78552
ADC: -78948
ADC: -78897
ADC: -79471
ADC: -79594
ADC: -79600
ADC: -79951
ADC: -79962
ADC: -80756
ADC: -80656
ADC: -81213
ADC: -81068
ADC: -81213
ADC: -81775
ADC: -81657
ADC: -82029
ADC: -81971
ADC: -82339
ADC: -82486
ADC: -82673
ADC: -83106
ADC: -82948
ADC: -83360
ADC: -83559
ADC: -83743
ADC: -83980
ADC: -84025
ADC: -84281
ADC: -84706
ADC: -84732
ADC: -85040
ADC: -85010
ADC: -85055
ADC: -85201
ADC: -85265
ADC: -85975
ADC: -86033
ADC: -86120
ADC: -86591
ADC: -86787
ADC: -86970
ADC: -87048
ADC: -87044
ADC: -87227
ADC: -87403
ADC: -87234
ADC: -88005
ADC: -87919
ADC: -87913
ADC: -88664
ADC: -88640
ADC: -88945
ADC: -88831
ADC: -88934
ADC: -89058
ADC: -89335
ADC: -89200
ADC: -89721
ADC: -90200
ADC: -89937
ADC: -90188
ADC: -90654
ADC: -90647
ADC: -90717
ADC: -91049
ADC: -91050
ADC: -90994
ADC: -91165
ADC: -91253
ADC: -91436
ADC: -91578
ADC: -91995
ADC: -91959
ADC: -92185
ADC: -92735
ADC: -92726
ADC: -92820
ADC: -93110
ADC: -92948
ADC: -93018
ADC: -92884
ADC: -93215
ADC: -93208
ADC: -93322
ADC: -93668
ADC: -93984
ADC: -93935
ADC: -94000
ADC: -94308
ADC: -94713
ADC: -94689
ADC: -94684
ADC: -95092
ADC: -94912
ADC: -95078
ADC: -95050
ADC: -95100
ADC: -95230
ADC: -95259
ADC: -95338
ADC: -95687
ADC: -95976
ADC: -96055
ADC: -95872
ADC: -95900
ADC: -96664
ADC: -96681
ADC: -96677
ADC: -96765
ADC: -96945
ADC: -97010
ADC: -97065
ADC: -97031
ADC: -97235
ADC: -97058
ADC: -97436
ADC: -97400
ADC: -97444
ADC: -97313
ADC: -97630
ADC: -98036
ADC: -97916
ADC: -98022
ADC: -97999
ADC: -97895
ADC: -98296
ADC: -98650
ADC: -98670
ADC: -98624
ADC: -98499
ADC: -98659
ADC: -98845
ADC: -99016
ADC: -98933
ADC: -98964
ADC: -99051
ADC: -99027
ADC: -98969
ADC: -98931
ADC: -99279
ADC: -99278
ADC: -99273
ADC: -99266
ADC: -99421
ADC: -99259
ADC: -99343
ADC: -99647
ADC: -99972
ADC: -99989
ADC: -100038
ADC: -100042
ADC: -100138
ADC: -99963
ADC: -99800
ADC: -100055
ADC: -100350
ADC: -100221
ADC: -100625
ADC: -100651
ADC: -100828
ADC: -100682
ADC: -100569
ADC: -100809
ADC: -100678
ADC: -100618
ADC: -100647
ADC: -100487
ADC: -101046
ADC: -100992
ADC: -100821
ADC: -100955
ADC: -100962
ADC: -100975
ADC: -100829
ADC: -101040
ADC: -101089
ADC: -101163
ADC: -100965
ADC: -100971
ADC: -100982
ADC: -101042
ADC: -100980
ADC: -101013
ADC: -100925
ADC: -101043
ADC: -100940
ADC: -100976
ADC: -100814
ADC: -101016
ADC: -100844
ADC: -101058
ADC: -100920
ADC: -101028
ADC: -100850
ADC: -100940
ADC: -100940
ADC: -100976
ADC: -100819
ADC: -100883
ADC: -101004
ADC: -101019
ADC: -100979
ADC: -100991
ADC: -100952
ADC: -100875
ADC: -101022
ADC: -100971
ADC: -101033
ADC: -101006
ADC: -101027
ADC: -100915
ADC: -101006
ADC: -101073
ADC: -100962
ADC: -101018
ADC: -100972
ADC: -100974
ADC: -100934
ADC: -100932
ADC: -100934
ADC: -100934
ADC: -101074
ADC: -100659
ADC: -100580
ADC: -100668
ADC: -100747
ADC: -100659
ADC: -100659
ADC: -100691
ADC: -100623
ADC: -100630
ADC: -100594
ADC: -100255
ADC: -100326
ADC: -100043
ADC: -99955
ADC: -100040
ADC: -100099
ADC: -99946
ADC: -99831
ADC: -99905
ADC: -99642
ADC: -99558
ADC: -99268
ADC: -99394
ADC: -99438
ADC: -99154
ADC: -99385
ADC: -99223
ADC: -99005
ADC: -98936
ADC: -99000
ADC: -98879
ADC: -98860
ADC: -98968
ADC: -99057
ADC: -98920
ADC: -98640
ADC: -98617
ADC: -98616
ADC: -98585
ADC: -98554
ADC: -98243
ADC: -98074
ADC: -98018
ADC: -97903
ADC: -98058
ADC: -98090
ADC: -97709
ADC: -97406
ADC: -97330
ADC: -97322
ADC: -97347
ADC: -96982
ADC: -97113
ADC: -97015
ADC: -97118
ADC: -97062
ADC: -97083
ADC: -96747
ADC: -96810
ADC: -96617
ADC: -96653
ADC: -96392
ADC: -96069
ADC: -95904
ADC: -96086
ADC: -95608
ADC: -95446
ADC: -95425
ADC: -95336
ADC: -95245
ADC: -94933
ADC: -94958
ADC: -94991
ADC: -95159
ADC: -94775
ADC: -94605
ADC: -94625
ADC: -94766
ADC: -93895
ADC: -93986
ADC: -93938
ADC: -93728
ADC: -93360
ADC: -93380
ADC: -93291
ADC: -92905
ADC: -92934
ADC: -93093
ADC: -93148
ADC: -92699
ADC: -92675
ADC: -92780
ADC: -92357
ADC: -92071
ADC: -91858
ADC: -91985
ADC: -91262
ADC: -91405
ADC: -91443
ADC: -91105
ADC: -90974
ADC: -90884
ADC: -91157
ADC: -90573
ADC: -90746
ADC: -90349
ADC: -90083
ADC: -89956
ADC: -89822
ADC: -89323
ADC: -89518
ADC: -89104
ADC: -89081
ADC: -88910
ADC: -88988
ADC: -88657
ADC: -88684
ADC: -88401
ADC: -88049
ADC: -87976
ADC: -87589
ADC: -87394
ADC: -87352
ADC: -87205
ADC: -87105
ADC: -86993
ADC: -86684
ADC: -86746
ADC: -86442
ADC: -86002
ADC: -86059
ADC: -85425
ADC: -85216
ADC: -85308
ADC: -85070
ADC: -85067
ADC: -84987
ADC: -84540
ADC: -84865
ADC: -84087
ADC: -84086
ADC: -83675
ADC: -83604
ADC: -83661
ADC: -83048
ADC: -83017
ADC: -83166
ADC: -82491
ADC: -82674
ADC: -82158
ADC: -82049
ADC: -81661
ADC: -81782
ADC: -81449
ADC: -81022
ADC: -81069
ADC: -80830
ADC: -80612
ADC: -80162
ADC: -80091
ADC: -79809
ADC: -79530
ADC: -79622
ADC: -79017
ADC: -78933
ADC: -78712
ADC: -78719
ADC: -78302
ADC: -77964
ADC: -77714
ADC: -77740
ADC: -77554
ADC: -76904
ADC: -77178
ADC: -76685
ADC: -76786
ADC: -76064
ADC: -76124
ADC: -75799
ADC: -75824
ADC: -75156
ADC: -75060
ADC: -75021
ADC: -74901
ADC: -74303
ADC: -74036
ADC: -73918
ADC: -73678
ADC: -73472
ADC: -73228
ADC: -73146
ADC: -72683
ADC: -72488
ADC: -72113
ADC: -71835
ADC: -71600
ADC: -71356
ADC: -71188
ADC: -71152
ADC: -70793
ADC: -70433
ADC: -70089
ADC: -69891
ADC: -69853
ADC: -69659
ADC: -69567
ADC: -68831
ADC: -68797
ADC: -68072
ADC: -68123
ADC: -67723
ADC: -67664
ADC: -67487
ADC: -67516
ADC: -66804
ADC: -66632
ADC: -66057
ADC: -65757
ADC: -65792
ADC: -65693
ADC: -65390
ADC: -64866
ADC: -64767
ADC: -64060
ADC: -63993
ADC: -63724
ADC: -63553
ADC: -63342
ADC: -63142
ADC: -62588
ADC: -62066
ADC: -62134
ADC: -61750
ADC: -61733
ADC: -61413
ADC: -60973
ADC: -60708
ADC: -60119
ADC: -60068
ADC: -59631
ADC: -59775
ADC: -59497
ADC: -59076
ADC: -58700
ADC: -58133
ADC: -58014
ADC: -57617
ADC: -57578
ADC: -57383
ADC: -56768
ADC: -56622
ADC: -56216
ADC: -55946
ADC: -55729
ADC: -55589
ADC: -55454
ADC: -54754
ADC: -54690
ADC: -54043
ADC: -53788
ADC: -53691
ADC: -53325
ADC: -53239
ADC: -52710
ADC: -52152
ADC: -52039
ADC: -51645
ADC: -51637
ADC: -51262
ADC: -50740
ADC: -50779
ADC: -50138
ADC: -49756
ADC: -49666
ADC: -49216
ADC: -49339
ADC: -48765
ADC: -48064
ADC: -48125
ADC: -47682
ADC: -47668
ADC: -47304
ADC: -46711
ADC: -46597
ADC: -45995
ADC: -45634
ADC: -45609
ADC: -45381
ADC: -44855
ADC: -44716
ADC: -43986
ADC: -43696
ADC: -43739
ADC: -43453
ADC: -43150
ADC: -42736
ADC: -42087
ADC: -42021
ADC: -41659
ADC: -41472
ADC: -41437
ADC: -40704
ADC: -39982
ADC: -40027
ADC: -39766
ADC: -39303
ADC: -39255
ADC: -38681
ADC: -38106
ADC: -38161
ADC: -37811
ADC: -37549
ADC: -37337
ADC: -36725
ADC: -36003
ADC: -35920
ADC: -35745
ADC: -35385
ADC: -35412
ADC: -34648
ADC: -34140
ADC: -33992
ADC: -33636
ADC: -33529
ADC: -33517
ADC: -32695
ADC: -31998
ADC: -32191
ADC: -31776
ADC: -31459
ADC: -31372
ADC: -30581
ADC: -30199
ADC: -30379
ADC: -29989
ADC: -29373
ADC: -29021
ADC: -28634
ADC: -28442
ADC: -28326
ADC: -28051
ADC: -27279
ADC: -26603
ADC: -26668
ADC: -26412
ADC: -26201
ADC: -26052
ADC: -25472
ADC: -24553
ADC: -24460
ADC: -24303
ADC: -23841
ADC: -23715
ADC: -23278
ADC: -22774
ADC: -22472
ADC: -22390
ADC: -22009
ADC: -21397
ADC: -21208
ADC: -20652
ADC: -20294
ADC: -20371
ADC: -20036
ADC: -19263
ADC: -18773
ADC: -18696
ADC: -18313
ADC: -18103
ADC: -17796
ADC: -17286
ADC: -16425
ADC: -16317
ADC: -16504
ADC: -15865
ADC: -15406
ADC: -15239
ADC: -14593
ADC: -14231
ADC: -14142
ADC: -13935
ADC: -13158
ADC: -12777
ADC: -12594
ADC: -12338
ADC: -12156
ADC: -11779
ADC: -11385
ADC: -10653
ADC: -10370
ADC: -10233
ADC: -10010
ADC: -9359
ADC: -9139
ADC: -8626
ADC: -8220
ADC: -8148
ADC: -8030
ADC: -7362
ADC: -6753
ADC: -6526
ADC: -6388
ADC: -6049
ADC: -5511
ADC: -5247
ADC: -4559
ADC: -4236
ADC: -4194
ADC: -4066
ADC: -3479
ADC: -2957
ADC: -2635
ADC: -2084
ADC: -1975
ADC: -1869
ADC: -1223
ADC: -596
ADC: -426
ADC: -391
ADC: 84
ADC: 674
ADC: 947
ADC: 1288
ADC: 1636
ADC: 1799
ADC: 2101
ADC: 2783
ADC: 3418
ADC: 3468
ADC: 3595
ADC: 3990
ADC: 4517
ADC: 4782
ADC: 5361
ADC: 5693
ADC: 5690
ADC: 5953
ADC: 6723
ADC: 7171
ADC: 7467
ADC: 7647
ADC: 8079
ADC: 8220
ADC: 8586
ADC: 9355
ADC: 9277
ADC: 9364
ADC: 9893
ADC: 10701
ADC: 10900
ADC: 11254
ADC: 11309
ADC: 11803
ADC: 11904
ADC: 12634
ADC: 13339
ADC: 13348
ADC: 13274
ADC: 13852
ADC: 14327
ADC: 14680
ADC: 15139
ADC: 15265
ADC: 15343
ADC: 15966
ADC: 16508
ADC: 16968
ADC: 17375
ADC: 17274
ADC: 17814
ADC: 17960
ADC: 18512
ADC: 19303
ADC: 19349
ADC: 19276
ADC: 19906
ADC: 20402
ADC: 20632
ADC: 21360
ADC: 21336
ADC: 21422
ADC: 21889
ADC: 22535
ADC: 23017
ADC: 22869
ADC: 23445
ADC: 23952
ADC: 23957
ADC: 24577
ADC: 24967
ADC: 24868
ADC: 25313
ADC: 25833
ADC: 26137
ADC: 26699
ADC: 27119
ADC: 26920
ADC: 27277
ADC: 27974
ADC: 28482
ADC: 28816
ADC: 29009
ADC: 29268
ADC: 29376
ADC: 30086
ADC: 30666
ADC: 30799
ADC: 31124
ADC: 31321
ADC: 31582
ADC: 32030
ADC: 32625
ADC: 32821
ADC: 32985
ADC: 33467
ADC: 33739
ADC: 34047
ADC: 34731
ADC: 34933
ADC: 35078
ADC: 35316
ADC: 35845
ADC: 35953
ADC: 36684
ADC: 37105
ADC: 36945
ADC: 37281
ADC: 38007
ADC: 38045
ADC: 38739
ADC: 39096
ADC: 39143
ADC: 39427
ADC: 39832
ADC: 39984
ADC: 40669
ADC: 40968
ADC: 41032
ADC: 41323
ADC: 41606
ADC: 42068
ADC: 42714
ADC: 42868
ADC: 42998
ADC: 43307
ADC: 43564
ADC: 44066
ADC: 44754
ADC: 44808
ADC: 45121
ADC: 45357
ADC: 45345
ADC: 45870
ADC: 46646
ADC: 46736
ADC: 47061
ADC: 47149
ADC: 47391
ADC: 48084
ADC: 48296
ADC: 48690
ADC: 49033
ADC: 49009
ADC: 49414
ADC: 49837
ADC: 50177
ADC: 50619
ADC: 50812
ADC: 50812
ADC: 51351
ADC: 51409
ADC: 52047
ADC: 52607
ADC: 52804
ADC: 52669
ADC: 52970
ADC: 53357
ADC: 53943
ADC: 54016
ADC: 54585
ADC: 54637
ADC: 54694
ADC: 55323
ADC: 55399
ADC: 56106
ADC: 56357
ADC: 56699
ADC: 56618
ADC: 56784
ADC: 57259
ADC: 57687
ADC: 58193
ADC: 58659
ADC: 58714
ADC: 58668
ADC: 59182
ADC: 59357
ADC: 60142
ADC: 59953
ADC: 60789
ADC: 60784
ADC: 60694
ADC: 61001
ADC: 61384
ADC: 61939
ADC: 62167
ADC: 62782
ADC: 62593
ADC: 62671
ADC: 63264
ADC: 63459
ADC: 64027
ADC: 64058
ADC: 64656
ADC: 64682
ADC: 64622
ADC: 65045
ADC: 65438
ADC: 66131
ADC: 66216
ADC: 66643
ADC: 66849
ADC: 66649
ADC: 66748
ADC: 67375
ADC: 67770
ADC: 68098
ADC: 68322
ADC: 68939
ADC: 68804
ADC: 68773
ADC: 69458
ADC: 69351
ADC: 70143
ADC: 70072
ADC: 70749
ADC: 70579
ADC: 70698
ADC: 70818
ADC: 71435
ADC: 71586
ADC: 72189
ADC: 72159
ADC: 72766
ADC: 72840
ADC: 72610
ADC: 73001
ADC: 73431
ADC: 73595
ADC: 74043
ADC: 74352
ADC: 74671
ADC: 74661
ADC: 74673
ADC: 75039
ADC: 75356
ADC: 75640
ADC: 76072
ADC: 76107
ADC: 76278
ADC: 76337
ADC: 76629
ADC: 76848
ADC: 77598
ADC: 77392
ADC: 77997
ADC: 78086
ADC: 78451
ADC: 78478
ADC: 78536
ADC: 78655
ADC: 79013
ADC: 79400
ADC: 79675
ADC: 80026
ADC: 80143
ADC: 80359
ADC: 80361
ADC: 80727
ADC: 80720
ADC: 81367
ADC: 81374
ADC: 81723
ADC: 82079
ADC: 82133
ADC: 82476
ADC: 82477
ADC: 82750
ADC: 82778
ADC: 83067
ADC: 83527
ADC: 83365
ADC: 84096
ADC: 84054
ADC: 84383
ADC: 84426
ADC: 84308
ADC: 84858
ADC: 84745
ADC: 85300
ADC: 85446
ADC: 85677
ADC: 86187
ADC: 86126
ADC: 86449
ADC: 86301
ADC: 86394
ADC: 86778
ADC: 86577
ADC: 87059
ADC: 87401
ADC: 87375
ADC: 88090
ADC: 87989
ADC: 88390
ADC: 88368
ADC: 88411
ADC: 88413
ADC: 88624
ADC: 88712
ADC: 89347
ADC: 89359
ADC: 89403
ADC: 89989
ADC: 90099
ADC: 90029
ADC: 89910
ADC: 90092
ADC: 90422
ADC: 90789
ADC: 90661
ADC: 91124
ADC: 91488
ADC: 91276
ADC: 91686
ADC: 92077
ADC: 92064
ADC: 92171
ADC: 92073
ADC: 92002
ADC: 92081
ADC: 92660
ADC: 92920
ADC: 92698
ADC: 93494
ADC: 93482
ADC: 93428
ADC: 93799
ADC: 94050
ADC: 94142
ADC: 94040
ADC: 94193
ADC: 94064
ADC: 94065
ADC: 94545
ADC: 94638
ADC: 94658
ADC: 94908
ADC: 95341
ADC: 95350
ADC: 95331
ADC: 95811
ADC: 96088
ADC: 95923
ADC: 96084
ADC: 95917
ADC: 95938
ADC: 96051
ADC: 96079
ADC: 96508
ADC: 96798
ADC: 96698
ADC: 96611
ADC: 97015
ADC: 97291
ADC: 97343
ADC: 97469
ADC: 97723
ADC: 97972
ADC: 98057
ADC: 98046
ADC: 98072
ADC: 98053
ADC: 98069
ADC: 98021
ADC: 98036
ADC: 98351
ADC: 98738
ADC: 98847
ADC: 98612
ADC: 98738
ADC: 99096
ADC: 99288
ADC: 99443
ADC: 99350
ADC: 99394
ADC: 99651
ADC: 99923
ADC: 100092
ADC: 99893
ADC: 99908
ADC: 99978
ADC: 100022
ADC: 99981
ADC: 100047
ADC: 100020
ADC: 99899
ADC: 100166
ADC: 100314
ADC: 100661
ADC: 100681
ADC: 100643
ADC: 100608
ADC: 100706
ADC: 100686
ADC: 100959
ADC: 101377
ADC: 101434
ADC: 101341
ADC: 101381
ADC: 101299
ADC: 101360
ADC: 101668
ADC: 101626
ADC: 101981
ADC: 102050
ADC: 101923
ADC: 101945
ADC: 102117
ADC: 101954
ADC: 102084
ADC: 101913
ADC: 102218
ADC: 101971
ADC: 101998
ADC: 102080
ADC: 101885
ADC: 101951
ADC: 102028
ADC: 101947
ADC: 101959
ADC: 102026
ADC: 102034
ADC: 101933
ADC: 102331
ADC: 102197
ADC: 102803
ADC: 102794
ADC: 102725
ADC: 102675
ADC: 102745
ADC: 102630
ADC: 102781
ADC: 102701
ADC: 102833
ADC: 102614
ADC: 102682
ADC: 102573
ADC: 102636
ADC: 102718
ADC: 102703
ADC: 102756
ADC: 102604
ADC: 102806
ADC: 102669
ADC: 102771
ADC: 102714
ADC: 102684
ADC: 102642
ADC: 102574
ADC: 102709
ADC: 102472
ADC: 102623
ADC: 102653
ADC: 102747
ADC: 102749
ADC: 102681
ADC: 102769
ADC: 102671
ADC: 102651
ADC: 102623
ADC: 102604
ADC: 102480
ADC: 102733
ADC: 102637
ADC: 102664
ADC: 102649
ADC: 102613
ADC: 102625
ADC: 102719
ADC: 102568
ADC: 102658
ADC: 102664
ADC: 102687
ADC: 102626
ADC: 102769
ADC: 102289
ADC: 102400
ADC: 102235
ADC: 101965
ADC: 102020
ADC: 102194
ADC: 102050
ADC: 102002
ADC: 102004
ADC: 102026
ADC: 102007
ADC: 101980
ADC: 101950
ADC: 102156
ADC: 101916
ADC: 101901
ADC: 101821
ADC: 102049
ADC: 102062
ADC: 101907
ADC: 102184
ADC: 102077
ADC: 101777
ADC: 101751
ADC: 101248
ADC: 101365
ADC: 101174
ADC: 101515
ADC: 101303
ADC: 101286
ADC: 101184
ADC: 100705
ADC: 100534
ADC: 100738
ADC: 100710
ADC: 100579
ADC: 100825
ADC: 100459
ADC: 100097
ADC: 100050
ADC: 99979
ADC: 99924
ADC: 100033
ADC: 99911
ADC: 99989
ADC: 100012
ADC: 99988
ADC: 100055
ADC: 100059
ADC: 99699
ADC: 99411
ADC: 99212
ADC: 99408
ADC: 99319
ADC: 99088
ADC: 98674
ADC: 98712
ADC: 98777
ADC: 98829
ADC: 98431
ADC: 98057
ADC: 98106
ADC: 98091
ADC: 98084
ADC: 98065
ADC: 98063
ADC: 98216
ADC: 98036
ADC: 97757
ADC: 97455
ADC: 97435
ADC: 97450
ADC: 97086
ADC: 96776
ADC: 96823
ADC: 96832
ADC: 96731
ADC: 96108
ADC: 95996
ADC: 96135
ADC: 95993
ADC: 96049
ADC: 95991
ADC: 96054
ADC: 95787
ADC: 95454
ADC: 95389
ADC: 95291
ADC: 95024
ADC: 94728
ADC: 94849
ADC: 94690
ADC: 94118
ADC: 94050
ADC: 94042
ADC: 94069
ADC: 94099
ADC: 94004
ADC: 93911
ADC: 93487
ADC: 93445
ADC: 93316
ADC: 92796
ADC: 92931
ADC: 92888
ADC: 92298
ADC: 92147
ADC: 92232
ADC: 92005
ADC: 92079
ADC: 92132
ADC: 91862
ADC: 91375
ADC: 91524
ADC: 91090
ADC: 90786
ADC: 90687
ADC: 90377
ADC: 90159
ADC: 90204
ADC: 90035
ADC: 90254
ADC: 90152
ADC: 89617
ADC: 89359
ADC: 89433
ADC: 88693
ADC: 88722
ADC: 88746
ADC: 88499
ADC: 88393
ADC: 88482
ADC: 88333
ADC: 88108
ADC: 87417
ADC: 87550
ADC: 87268
ADC: 86842
ADC: 86769
ADC: 86399
ADC: 86359
ADC: 86399
ADC: 86098
ADC: 86135
ADC: 85801
ADC: 85449
ADC: 85458
ADC: 84665
ADC: 84748
ADC: 84480
ADC: 84427
ADC: 84482
ADC: 84097
ADC: 84008
ADC: 83618
ADC: 83394
ADC: 83346
ADC: 82821
ADC: 82762
ADC: 82442
ADC: 82470
ADC: 82135
ADC: 82077
ADC: 81789
ADC: 81548
ADC: 81439
ADC: 80718
ADC: 80721
ADC: 80437
ADC: 80515
ADC: 80153
ADC: 80065
ADC: 79811
ADC: 79326
ADC: 79267
ADC: 78878
ADC: 78885
ADC: 78508
ADC: 78508
ADC: 78009
ADC: 78025
ADC: 77366
ADC: 77403
ADC: 76867
ADC: 76795
ADC: 76527
ADC: 76357
ADC: 76302
ADC: 76197
ADC: 75843
ADC: 75491
ADC: 75092
ADC: 74884
ADC: 74881
ADC: 74749
ADC: 74374
ADC: 74186
ADC: 73660
ADC: 73429
ADC: 73175
ADC: 72792
ADC: 72738
ADC: 72892
ADC: 72555
ADC: 72256
ADC: 71672
ADC: 71614
ADC: 70953
ADC: 70739
ADC: 71025
ADC: 70788
ADC: 70202
ADC: 70239
ADC: 69401
ADC: 69485
ADC: 68815
ADC: 68865
ADC: 68904
ADC: 68586
ADC: 68284
ADC: 67942
ADC: 67516
ADC: 66833
ADC: 66641
ADC: 66712
ADC: 66782
ADC: 66112
ADC: 65981
ADC: 65453
ADC: 64981
ADC: 64783
ADC: 64717
ADC: 64595
ADC: 64076
ADC: 64141
ADC: 63467
ADC: 63212
ADC: 62736
ADC: 62708
ADC: 62841
ADC: 62144
ADC: 62062
ADC: 61367
ADC: 61124
ADC: 60739
ADC: 60704
ADC: 60764
ADC: 60347
ADC: 60062
ADC: 59392
ADC: 59158
ADC: 58707
ADC: 58651
ADC: 58646
ADC: 58105
ADC: 57922
ADC: 57474
ADC: 56800
ADC: 56681
ADC: 56743
ADC: 56497
ADC: 55970
ADC: 55406
ADC: 55383
ADC: 54857
ADC: 54757
ADC: 54679
ADC: 54156
ADC: 54101
ADC: 53282
ADC: 53108
ADC: 52727
ADC: 52732
ADC: 52661
ADC: 52109
ADC: 51551
ADC: 51471
ADC: 50762
ADC: 50840
ADC: 50659
ADC: 50106
ADC: 50135
ADC: 49465
ADC: 49089
ADC: 48956
ADC: 48683
ADC: 48533
ADC: 48178
ADC: 47358
ADC: 47302
ADC: 46949
ADC: 46812
ADC: 46843
ADC: 45975
ADC: 45596
ADC: 45499
ADC: 45024
ADC: 45121
ADC: 44746
ADC: 44055
ADC: 43775
ADC: 43376
ADC: 42979
ADC: 43074
ADC: 42766
ADC: 42183
ADC: 41914
ADC: 41319
ADC: 41081
ADC: 41027
ADC: 40735
ADC: 40339
ADC: 39976
ADC: 39406
ADC: 38987
ADC: 38991
ADC: 38749
ADC: 38048
ADC: 38049
ADC: 37328
ADC: 36999
ADC: 37104
ADC: 36714
ADC: 36060
ADC: 35860
ADC: 35311
ADC: 35078
ADC: 35151
ADC: 34926
ADC: 34051
ADC: 33892
ADC: 33405
ADC: 33024
ADC: 33075
ADC: 32683
ADC: 32054
ADC: 31806
ADC: 31515
ADC: 30902
ADC: 31010
ADC: 30822
ADC: 30063
ADC: 29461
ADC: 29319
ADC: 29304
ADC: 28866
ADC: 28722
ADC: 28009
ADC: 27477
ADC: 27142
ADC: 27105
ADC: 26801
ADC: 26278
ADC: 26072
ADC: 25432
ADC: 25186
ADC: 25040
ADC: 24842
ADC: 23966
ADC: 23877
ADC: 23474
ADC: 23000
ADC: 23052
ADC: 22753
ADC: 22033
ADC: 21549
ADC: 21437
ADC: 21338
ADC: 20635
ADC: 20709
ADC: 20040
ADC: 19319
ADC: 19349
ADC: 19492
ADC: 18732
ADC: 18179
ADC: 18007
ADC: 17360
ADC: 17330
ADC: 17099
ADC: 16636
ADC: 15954
ADC: 15560
ADC: 15430
ADC: 15425
ADC: 14595
ADC: 14493
ADC: 13995
ADC: 13379
ADC: 13404
ADC: 13329
ADC: 12856
ADC: 12155
ADC: 11885
ADC: 11297
ADC: 11288
ADC: 10965
ADC: 10811
ADC: 10062
ADC: 9382
ADC: 9418
ADC: 9448
ADC: 8552
ADC: 8586
ADC: 8046
ADC: 7801
ADC: 7539
ADC: 7329
ADC: 6812
ADC: 6177
ADC: 5880
ADC: 5725
ADC: 5232
ADC: 4890
ADC: 4553
ADC: 4073
ADC: 3586
ADC: 3722
ADC: 3383
ADC: 2807
ADC: 2119
ADC: 1889
ADC: 1759
ADC: 1452
ADC: 942
ADC: 737
ADC: 66
ADC: -272
ADC: -276
ADC: -432
ADC: -1179
ADC: -1514
ADC: -2007
ADC: -2265
ADC: -2517
ADC: -2792
ADC: -3284
ADC: -3960
ADC: -4137
ADC: -4190
ADC: -4598
ADC: -5152
ADC: -5516
ADC: -5990
ADC: -6228
ADC: -6179
ADC: -6530
ADC: -7366
ADC: -7943
ADC: -8000
ADC: -8180
ADC: -8619
ADC: -8879
ADC: -9233
ADC: -9822
ADC: -10323
ADC: -10297
ADC: -10446
ADC: -11283
ADC: -11621
ADC: -11755
ADC: -12344
ADC: -12593
ADC: -12841
ADC: -13147
ADC: -13977
ADC: -14129
ADC: -14176
ADC: -14568
ADC: -15118
ADC: -15197
ADC: -15783
ADC: -16219
ADC: -16220
ADC: -16575
ADC: -17301
ADC: -17596
ADC: -17976
ADC: -18249
ADC: -18627
ADC: -18723
ADC: -19357
ADC: -19786
ADC: -20275
ADC: -20357
ADC: -20507
ADC: -21065
ADC: -21331
ADC: -22007
ADC: -22179
ADC: -22378
ADC: -22662
ADC: -23247
ADC: -23404
ADC: -23883
ADC: -24279
ADC: -24364
ADC: -24543
ADC: -25357
ADC: -25755
ADC: -25877
ADC: -26238
ADC: -26718
ADC: -26796
ADC: -27258
ADC: -27877
ADC: -28092
ADC: -28355
ADC: -28767
ADC: -28829
ADC: -29279
ADC: -30108
ADC: -30180
