ADALP2000

ADALP2000 Analog Parts Kit.

The ADALP2000 Parts Kit contains a large selection of components perfect for creating a wide variety of useful circuits and devices. Featuring a variety of components from Analog Devices, the kit includes transistors, resistors, capacitors, diodes, sensors, and variety of useful ICs including op-amps, converters, and regulators.

We are on Rev B of the ADALP2000 parts kit, and its BIGGER and more COMPREHENSIVE than ever. Below is a complete rundown of the components that can be found within the kit.

A complete list and description of components is listed below.

Warning

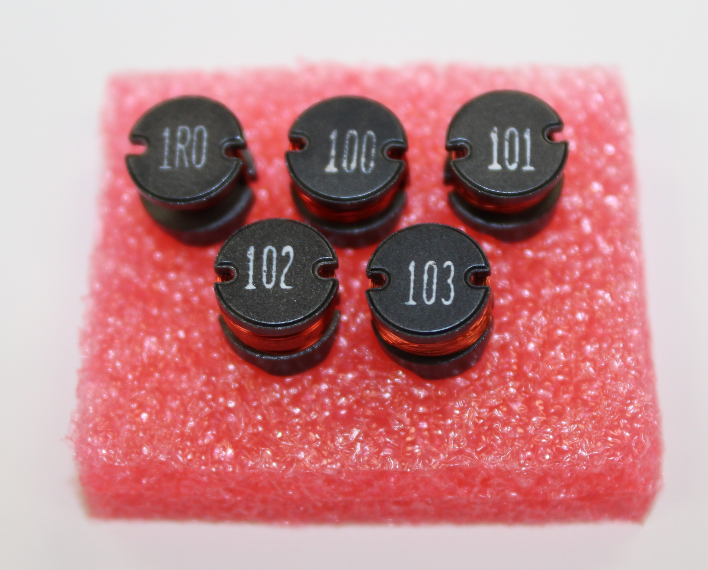

It is possible that some inductors included in the ADALP2000 parts kit may have sustained some cosmetic impairments during shipping and handling. These inductors are 100% functional, and while the cosmetic issues does not look nice, it does not affect the electrical performance, and all devices meet their datasheet specifications.

Warning

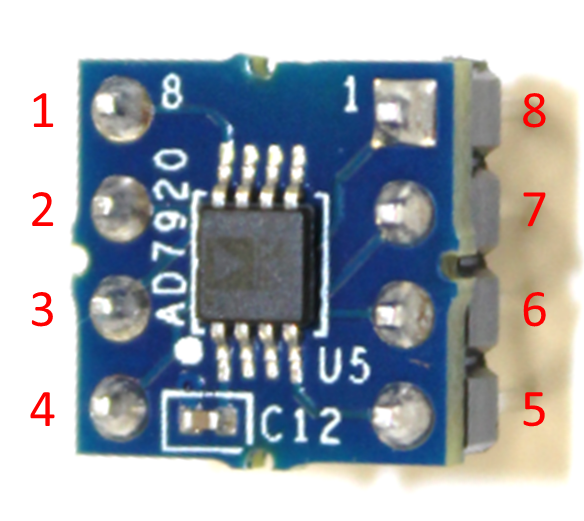

Note that the pinout of some of the breakout boards is mirrored. This was done to maintain a 300-mil row spacing, maximizing available breadboard connection points. Double-check all pinouts before building your circuit.

Kit Contents

Picture	Part Number	Description	Link

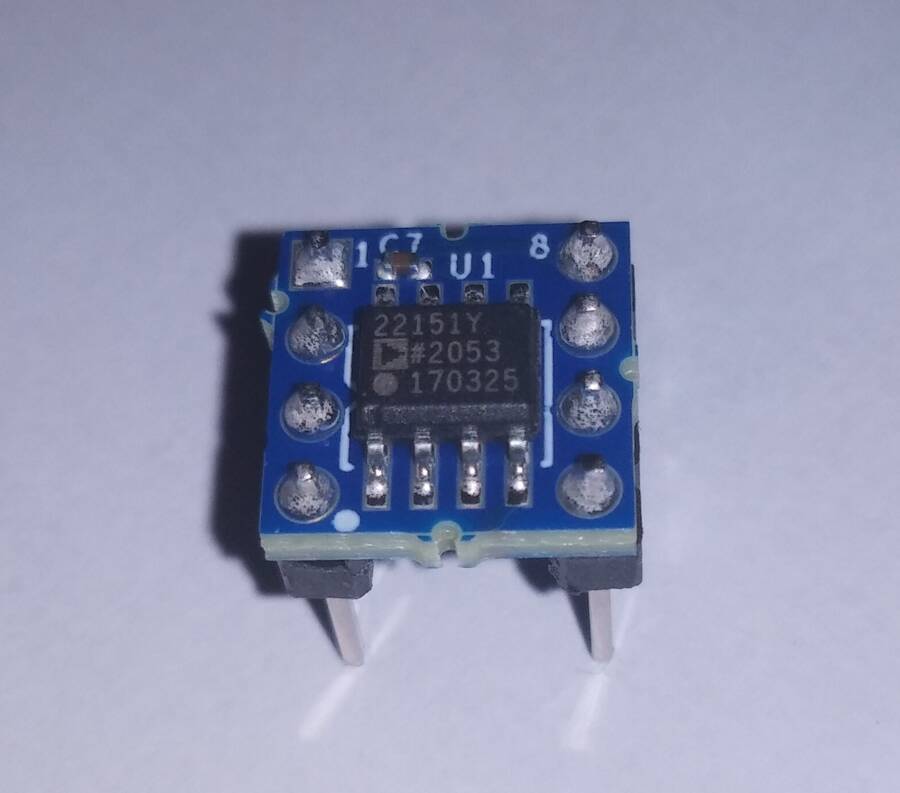

	AD22151	Magnetic Field Sensor	AD22151

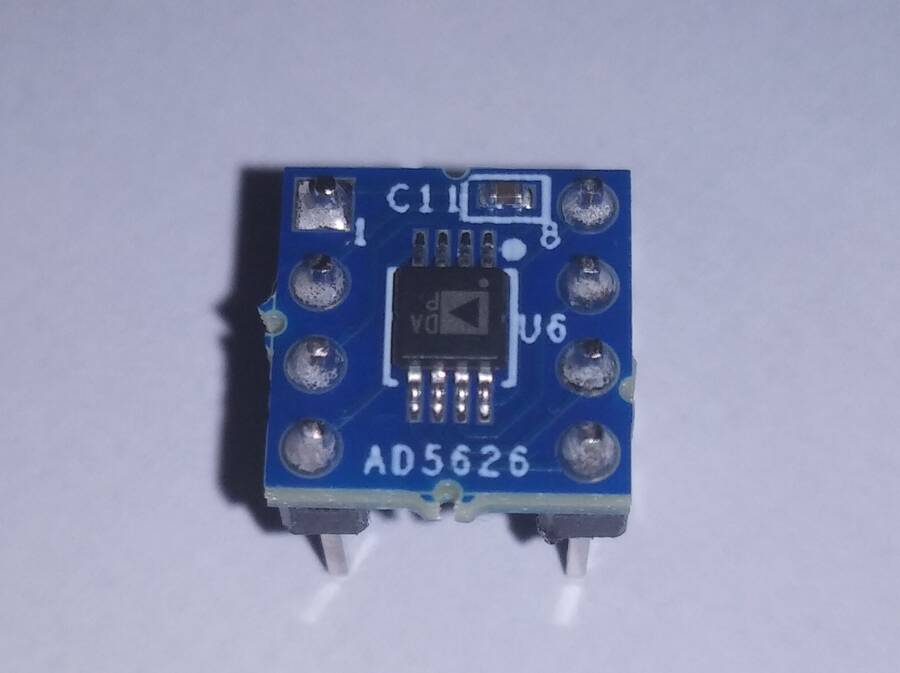

	AD5626	12-Bit DAC	AD5626

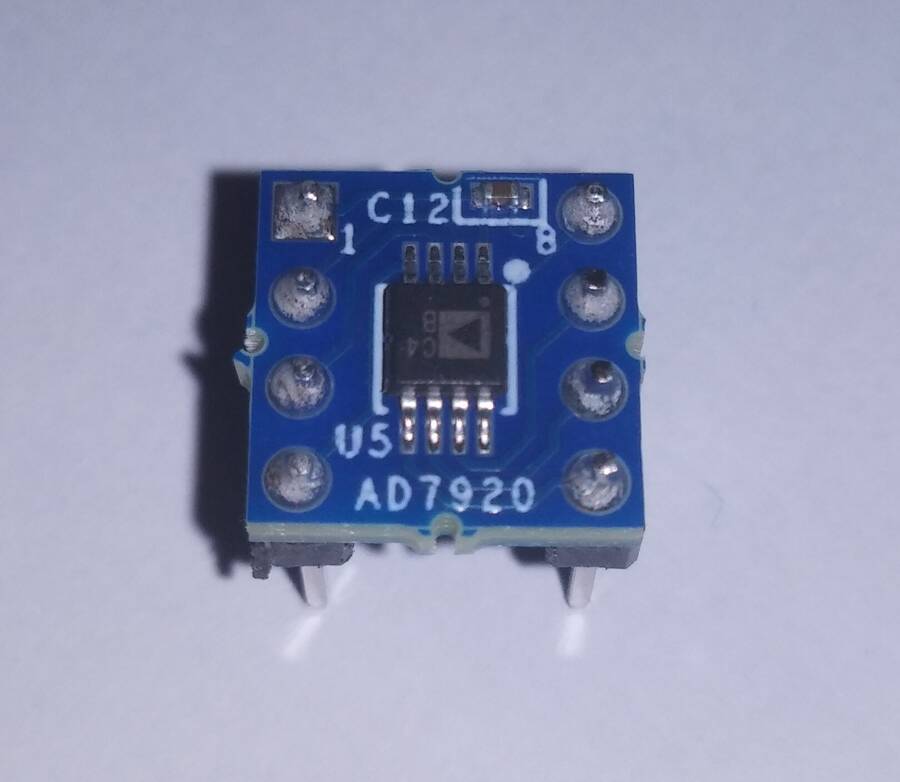

	AD7920	12-Bit ADC	AD7920

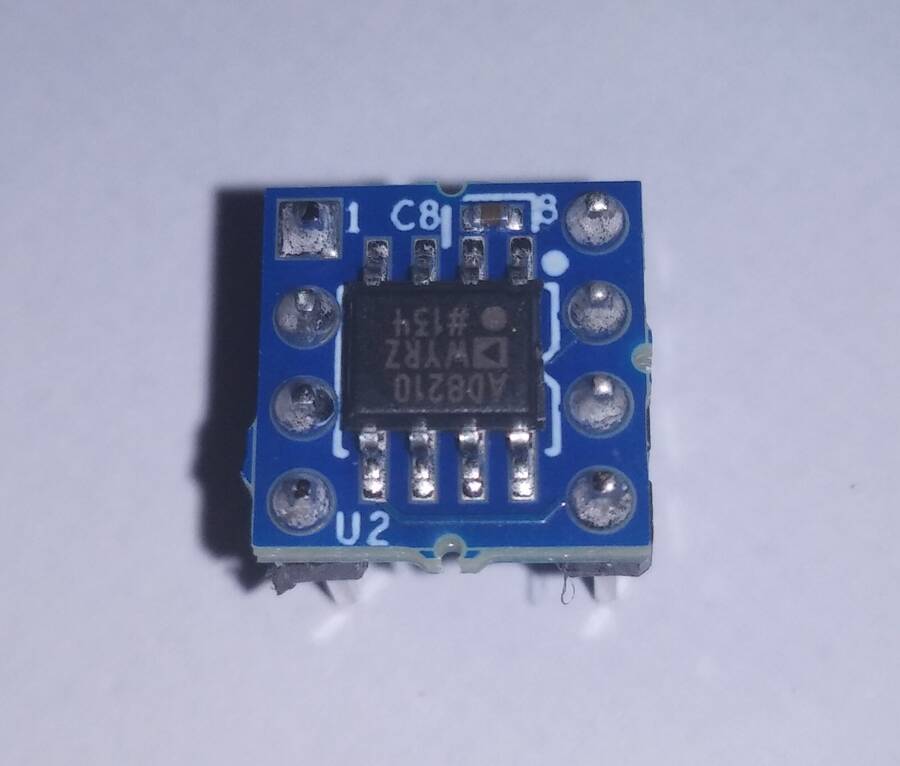

	AD8210	Current Shunt Monitor	AD8210

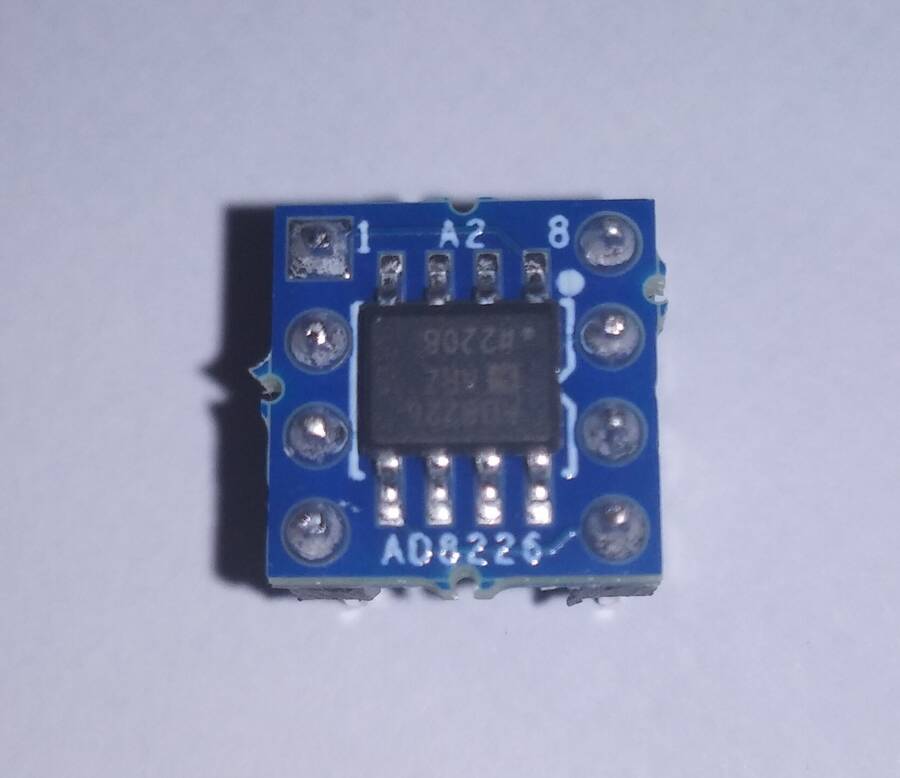

	AD8226	Instrumentation Amplifier	AD8226
	AD8542	CMOS Rail-to-Rail Op Amp	AD8542

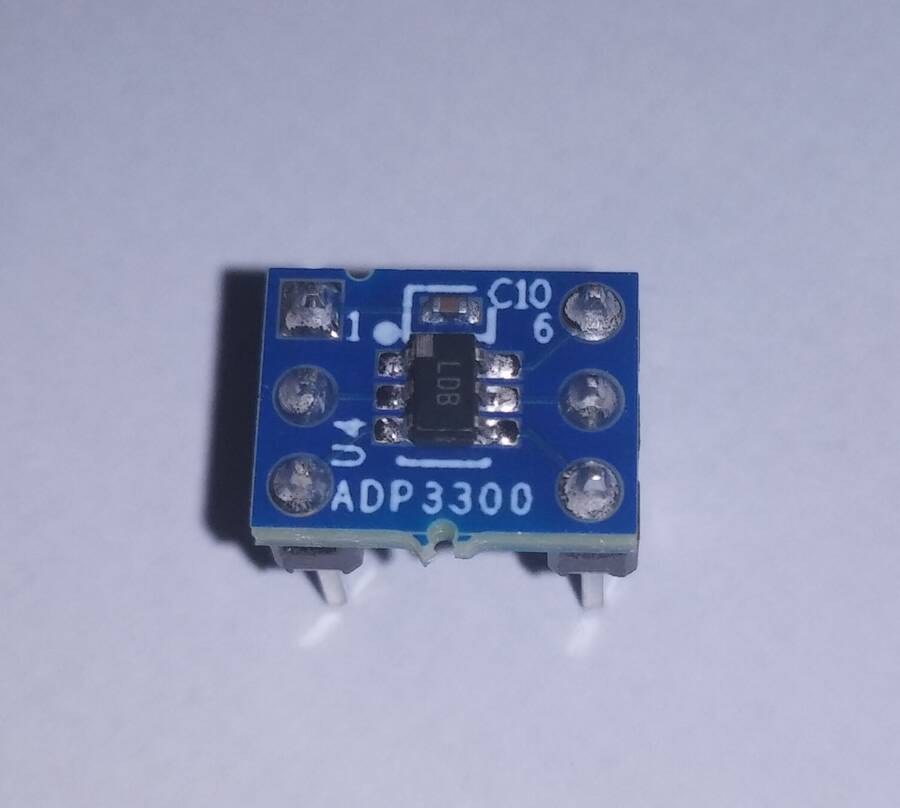

	ADP3300	3.3V, 50mA LDO Regulator	ADP3300
	ADTL082	JFET Op-Amp	ADTL082

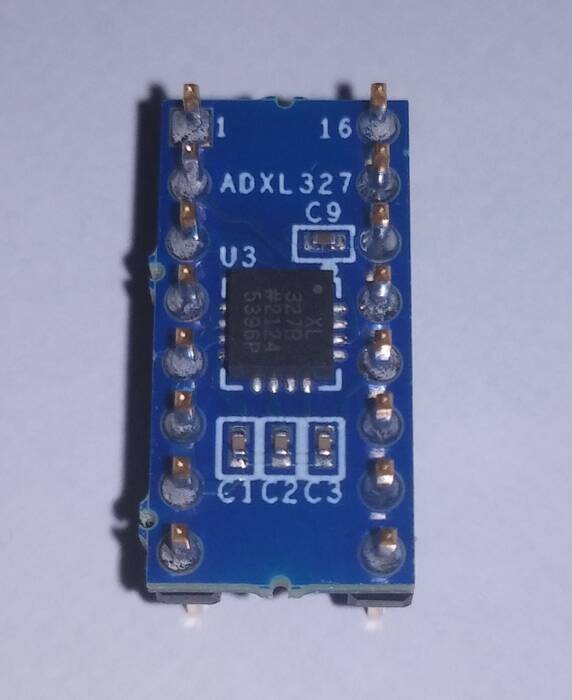

	ADXL327	3-Axis Low-G Accelerometer	ADXL327

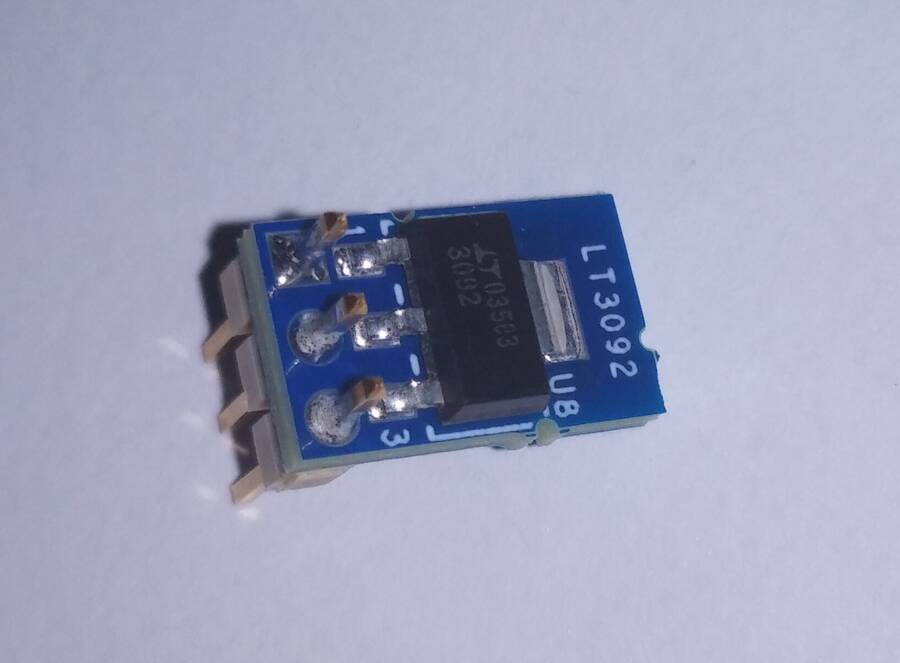

	LT3092	Programmable Current Source	LT3092

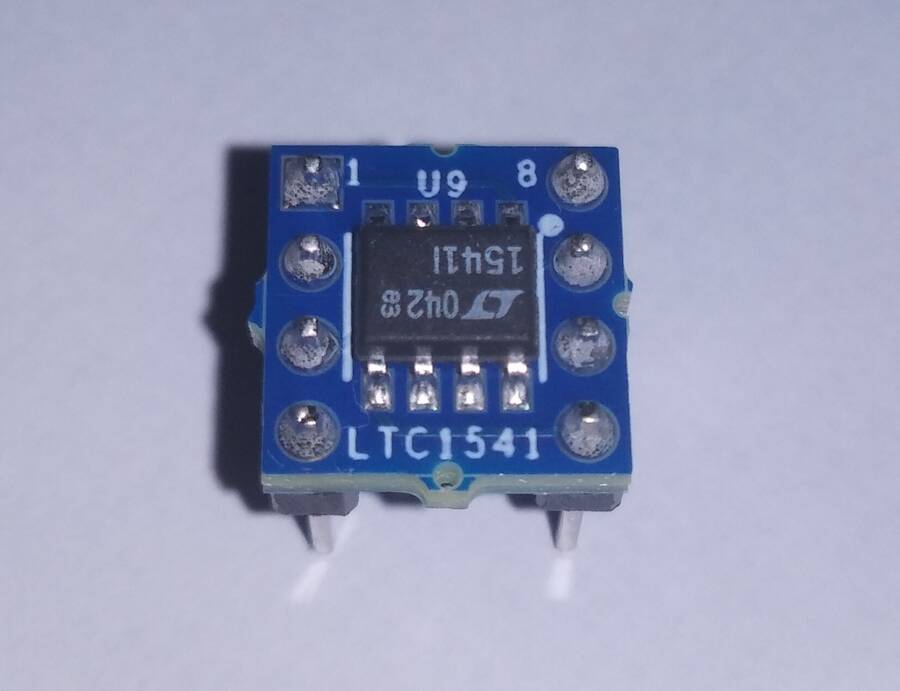

	LTC1541	Micropower Amp, Comparator & Reference	LTC1541

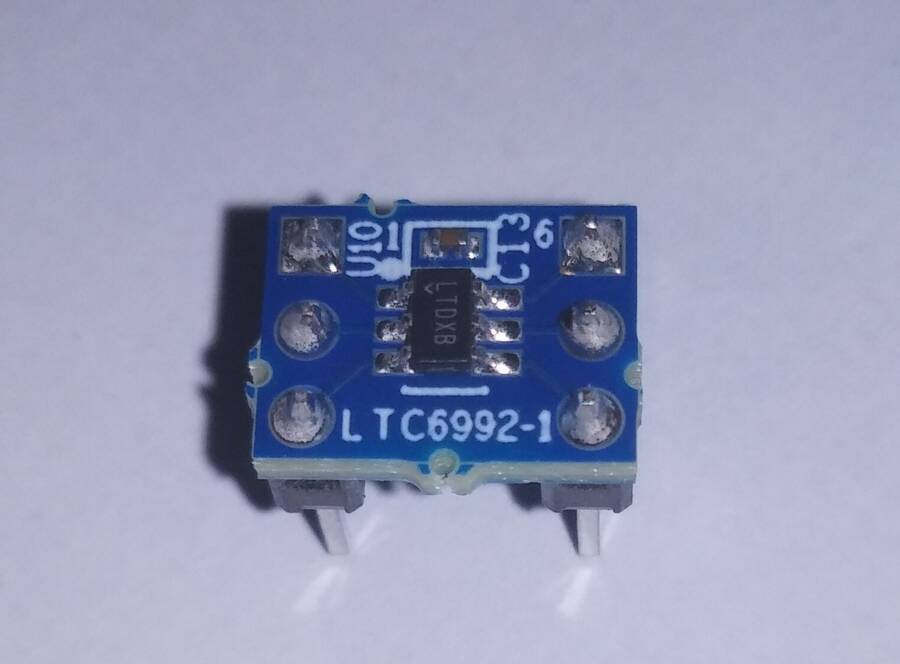

	LTC6992-1	Voltage-Controlled PWM	LTC6992-1

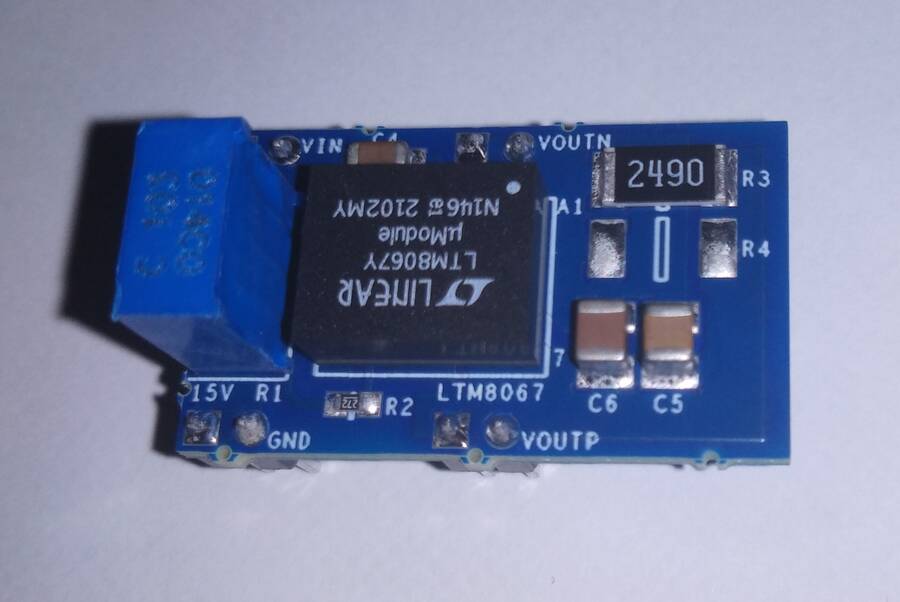

	LTM8067	Isolated DC-DC Converter	LTM8067

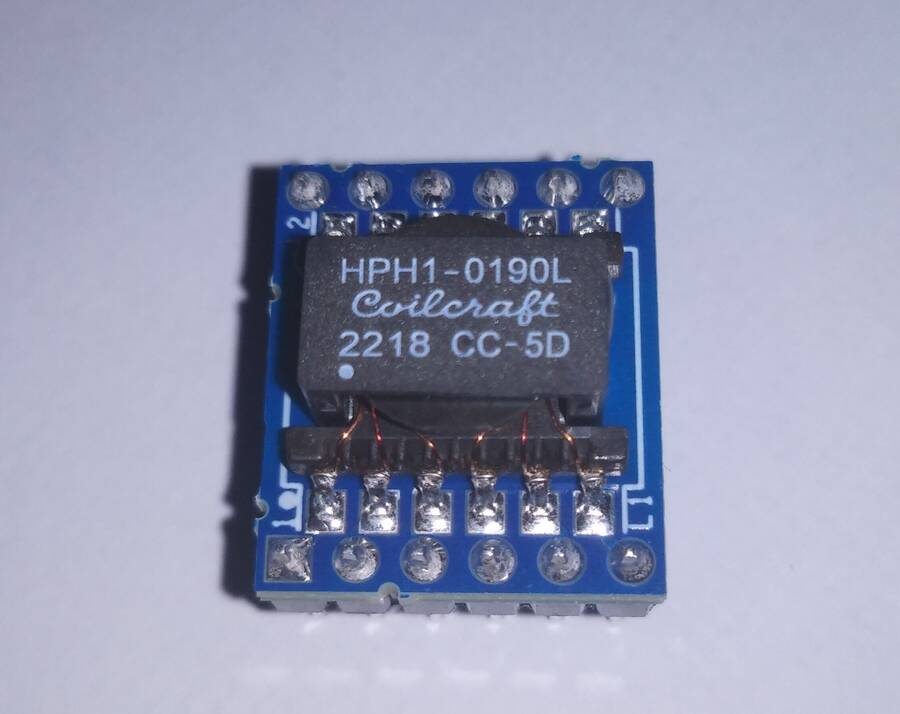

	HPH1-0190	Hexa-Path Transformer	Datasheet

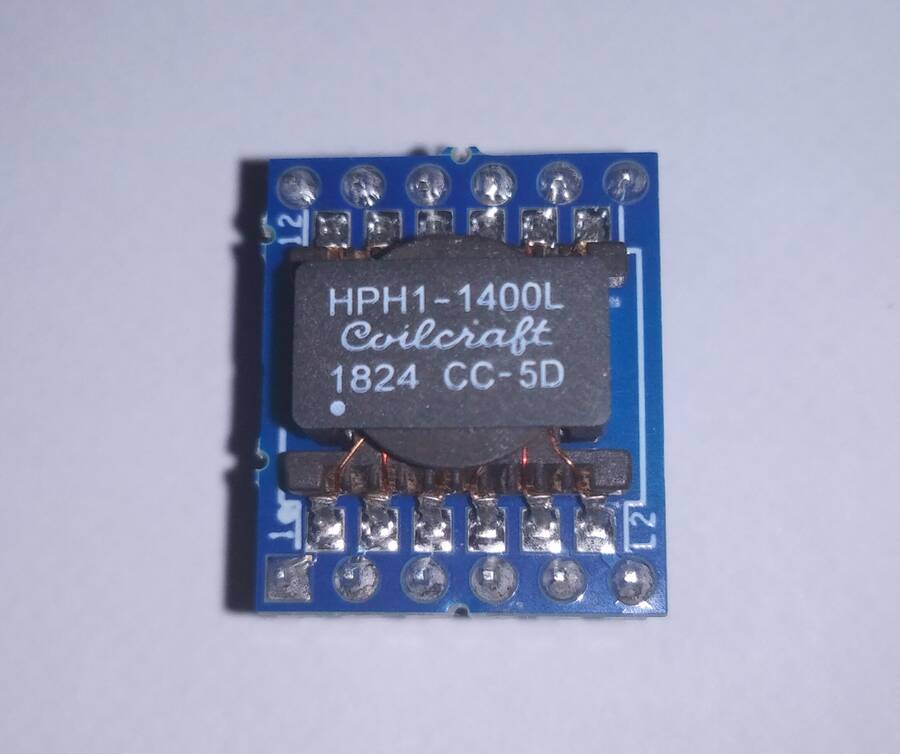

	HPH1-1400	Hexa-Path Transformer	Datasheet

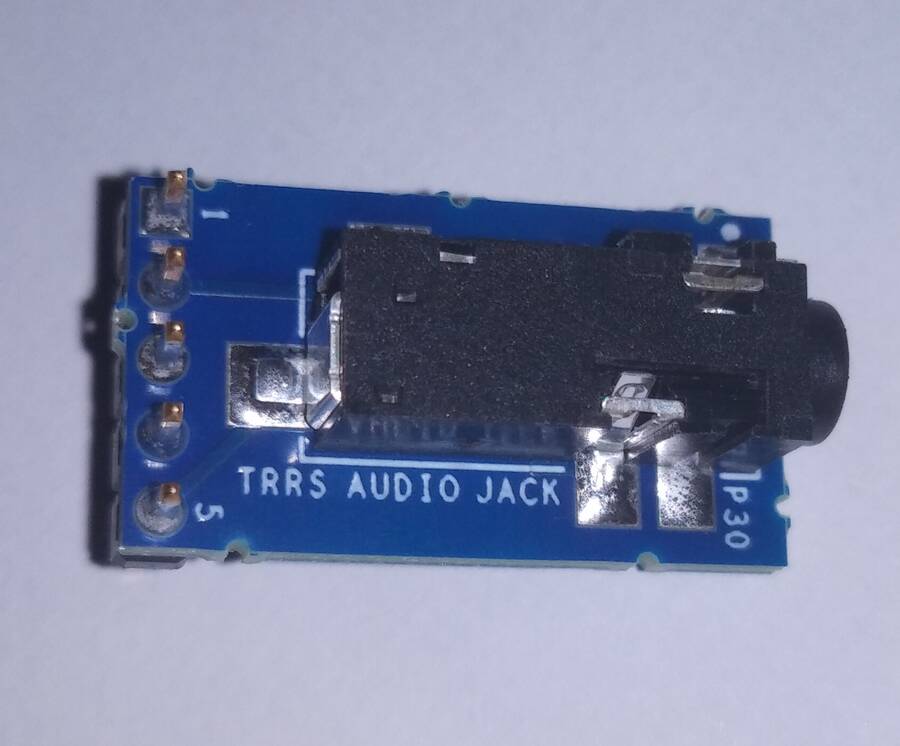

	SJ-43515TS- SMT-TR	TRRS Microphone In	Datasheet

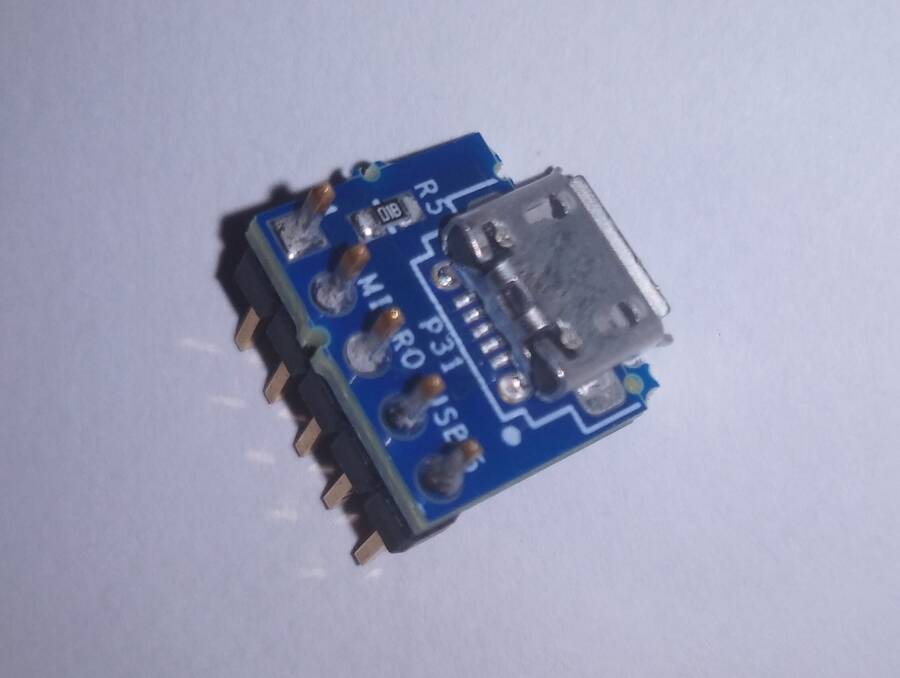

	ZX62D-B- 5PA8(30)	Micro USB Connector
	AD584	Programmable Voltage Reference	AD584
	AD592	Current Temperature Sensor	AD592
	AD654	Voltage-to-Frequency Converter	AD654
	AD22100	Voltage Temperature Sensor	AD22100
	AD8561	Comparator	AD8561

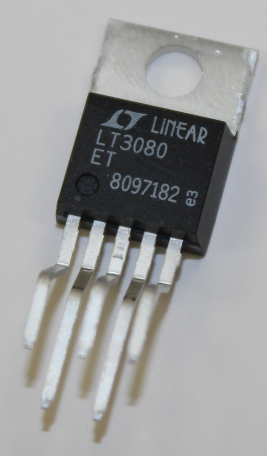

	LT3080	Adjustable 1.1A LDO	LT3080
	LTC1043	Precision Switched-Cap Block	LTC1043
	LTC1054	Switched-Capacitor Regulator	LTC1054
	LTC1485	Differential Bus Transceiver	LTC1485
	OP27	Low Noise Precision Op Amp	OP27
	OP37	Precision Op Amp	OP37
	OP97	Low Noise Precision Op Amp	OP97
	OP482	High Speed JFET Op Amp	OP482
	OP484	Precision Rail-to-Rail Op Amp	OP484
	TMP01	Temperature Controller	TMP01
	SN74HC04N	Hex Inverter	Datasheet

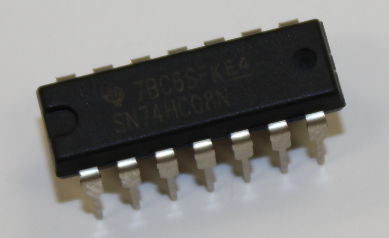

	SN74HC08N	Quad AND Gate	Datasheet

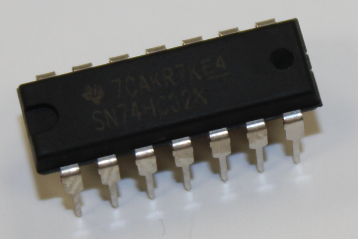

	SN74HC32N	Quad OR Gate	Datasheet

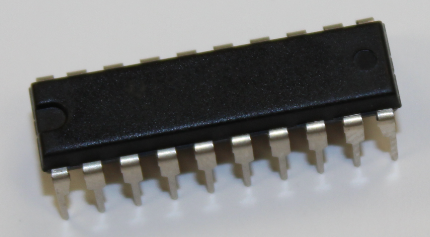

	SN74HC273N	Octal D Flip-Flop	Datasheet

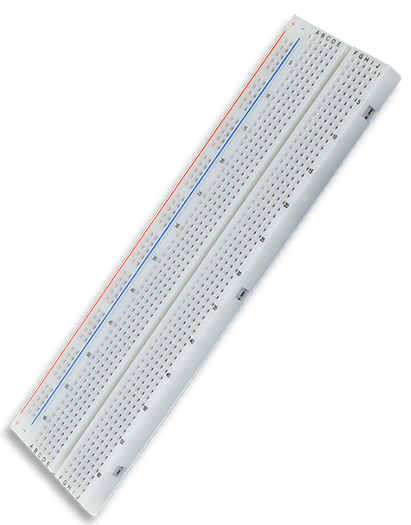

	Solderless Breadboard	Solderless Breadboard

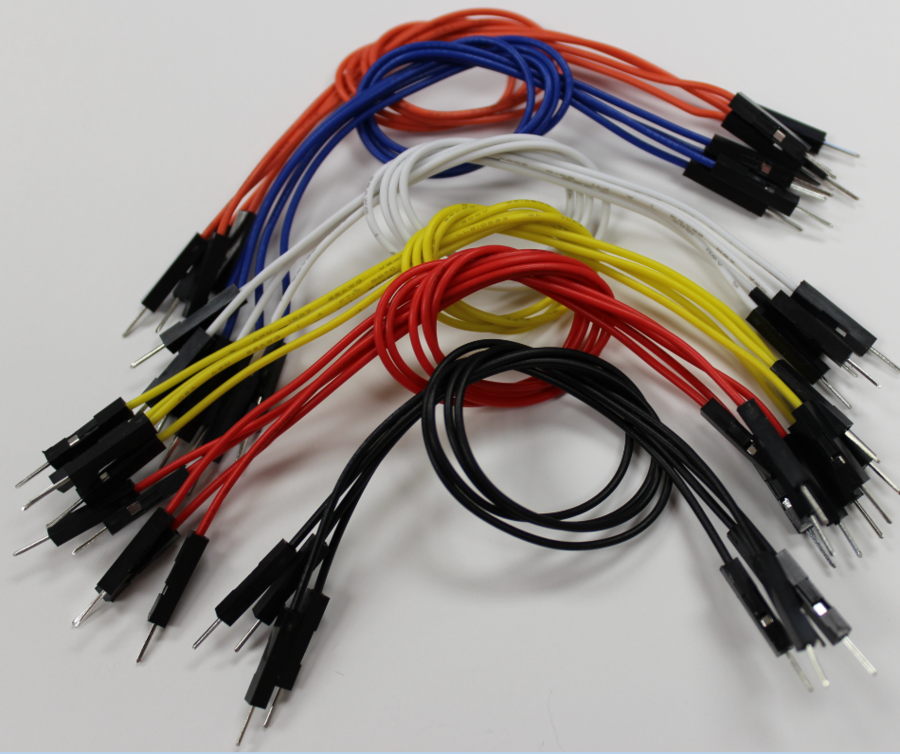

	Jumper Wires	Male-to-Male Jumper Wires

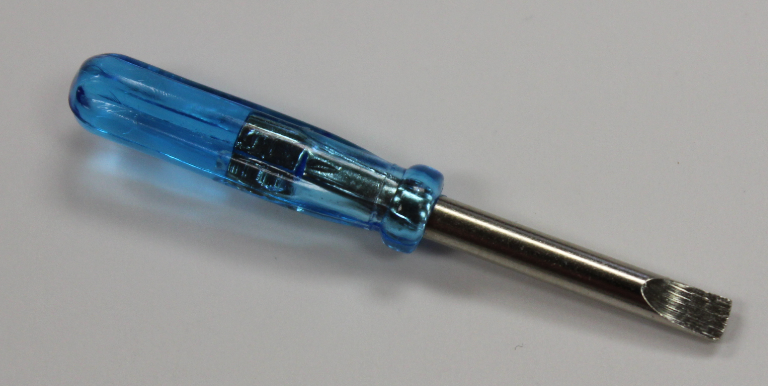

	Screwdriver	Flathead Screwdriver

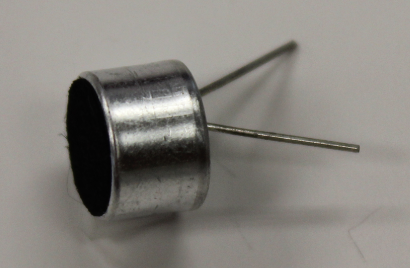

	HCM9765- P11-453	Microphone	Datasheet
	Speaker	8 Ω Speaker
	B57164K103J	10 kΩ Thermistor, 5mm lead coated disk	Datasheet
	SQP10AJB-6R2	6.2 Ω 10W Power Resistor, Axial Cement	Datasheet

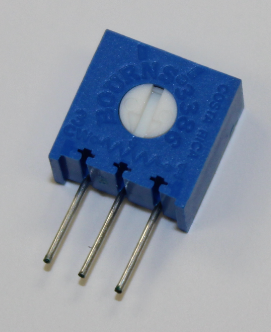

	3386C-1- 502LF 3386C-1- 103LF 3386C-1- 503LF	Single Turn 5 kΩ Pot Single Turn 10 kΩ Pot Single Turn 50 kΩ Pot	Datasheet
	2N3904	NPN General Purpose Transistor TO-92	Datasheet
	2N3906	PNP General Purpose Transistor TO-92	Datasheet
	IRF510	N-Channel MOSFET 100V TO-220	Datasheet
	TIP31CFS	NPN Epitaxial Transistor TO-220	Datasheet
	TIP32CFS	PNP Epitaxial Transistor TO-220	Datasheet
	ZVN2110A	N-Channel Enhancement FET TO-92	Datasheet
	ZVN3310	N-Channel Enhancement Transistor TO-92	Datasheet
	ZVP2110A	P-Channel Enhancement FET TO-92	Datasheet
	Various LEDs	T-1 3/4 (red, yellow, green)
	QED-123	Infrared LED T-1 3/4	Datasheet
	QSD123	Infrared Photo Transistor T-1	Datasheet
	1N3064	Small Signal Diode DO-35	Datasheet
	1N4001	50V General Purpose Rectifier DO-204	Datasheet
	1N4735 (or 1N4729)	6.2V Zener Diode DO-41 (or 3.6V)	Datasheet
	1N914	Small Signal Diode DO-35	Datasheet
	OP999	Photodiode T-1¾	Datasheet
	RFB0807- 1R0L RFB0807- 100L RFB0807- 101L RFB0807- 102L RFB0807- 103L	1 μH Inductor 5mm radial 10 μH Inductor 5mm radial 100 μH Inductor 5mm radial 1 mH Inductor 5mm radial 10 mH Inductor 5mm radial	Datasheet
		1.1 Ω 1/8W axial 10 Ω 1/8W axial 47 Ω 1/8W axial 68 Ω 1/8W axial 100 Ω 1/8W axial 470 Ω 1/8W axial 1 kΩ 1/8W axial 1.5 kΩ 1/8W axial 2.2 kΩ 1/8W axial 4.7 kΩ 1/8W axial 6.8 kΩ 1/8W axial 10 kΩ 1/8W axial 20 kΩ 1/8W axial 47 kΩ 1/8W axial 68 kΩ 1/8W axial 100 kΩ 1/8W axial 200 kΩ 1/8W axial 470 kΩ 1/8W axial 1 MΩ 1/8W axial 5 MΩ 1/8W axial	Resistors (including color code) Axial Carbon Comp.
		39 pF ceramic disc 100 pF ceramic disc 0.001 μF ceramic disc 0.0047 μF ceramic disc 0.01 μF ceramic disc 0.047 μF ceramic disc 0.1 μF ceramic disc 1 μF ceramic disc 4.7 μF ceramic disc 10 μF ceramic disc 22 μF ceramic disc 47 μF ceramic disc 220 μF ceramic disc	Markings: 39, 101, 102, 472, 103, 473, 104, 1 μF, 4.7 μF, 10 μF, 22 μF, 47 μF, 220 μF

Note

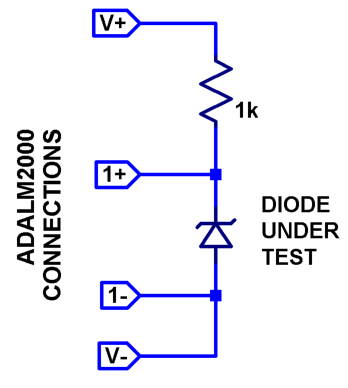

The diodes can be difficult to identify. The circuit below can be used to identify the Zener diode and determine whether it is the 3.6V or 6.2V model. Set V-/V+ to -5V/+5V (or use a bench-top supply set to 10V.) The Zener diode will read ~6.2V (or ~3.6V) from 1- to 1+; a silicon or Schottky diode will read 10V.

Deprecated items

• SSM2220 PNP Matched Transistors BOB

• SSM2212 NPN Matched Transistors BOB

• ADMP504 MEMS Ultralow Noise Microphone BOB

• 605-00004 piezo vibration sensor

• GT-0950RP3 Buzzer/Speaker 5mm radial

• CD4007

• PDV-P9203 5-20kΩ Photocell

• QSC114 Infrared Transistor
