Quick start

The quick start guides provide step-by-step instructions for setting up the LTC23xx evaluation system. The primary path uses the ZedBoard running Kuiper Linux. The DC2135A + MAX32666FTHR path covers the no-OS alternative.

Important

This guide focuses on LTC2378-20 with the ZedBoard for Linux (the primary and most supported path) and the DC2135A with the MAX32666FTHR for no-OS. The setup applies to all other supported devices as they share the same FMC connector and pin-compatible interface.

• ZedBoard Quick Start
  • Using Linux as software
    • Necessary files
    • Required software
    • Required hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands
      • IIO Oscilloscope
• DC2135A + MAX32666FTHR Quick Start
  • Overview
  • Hardware needed
  • DC2135A jumper settings
  • Hardware connections
  • Using no-OS
    • Building the no-OS project
    • Basic example
    • IIO example

Supported carriers

Platform	LTC23xx board
ZedBoard	FMC

Supported environments

Platform	Linux software	no-OS software
ZedBoard	Yes	—
DC2135A + MAX32666FTHR	—	Yes

Hardware setup

ZedBoard + LTC2378-20 board

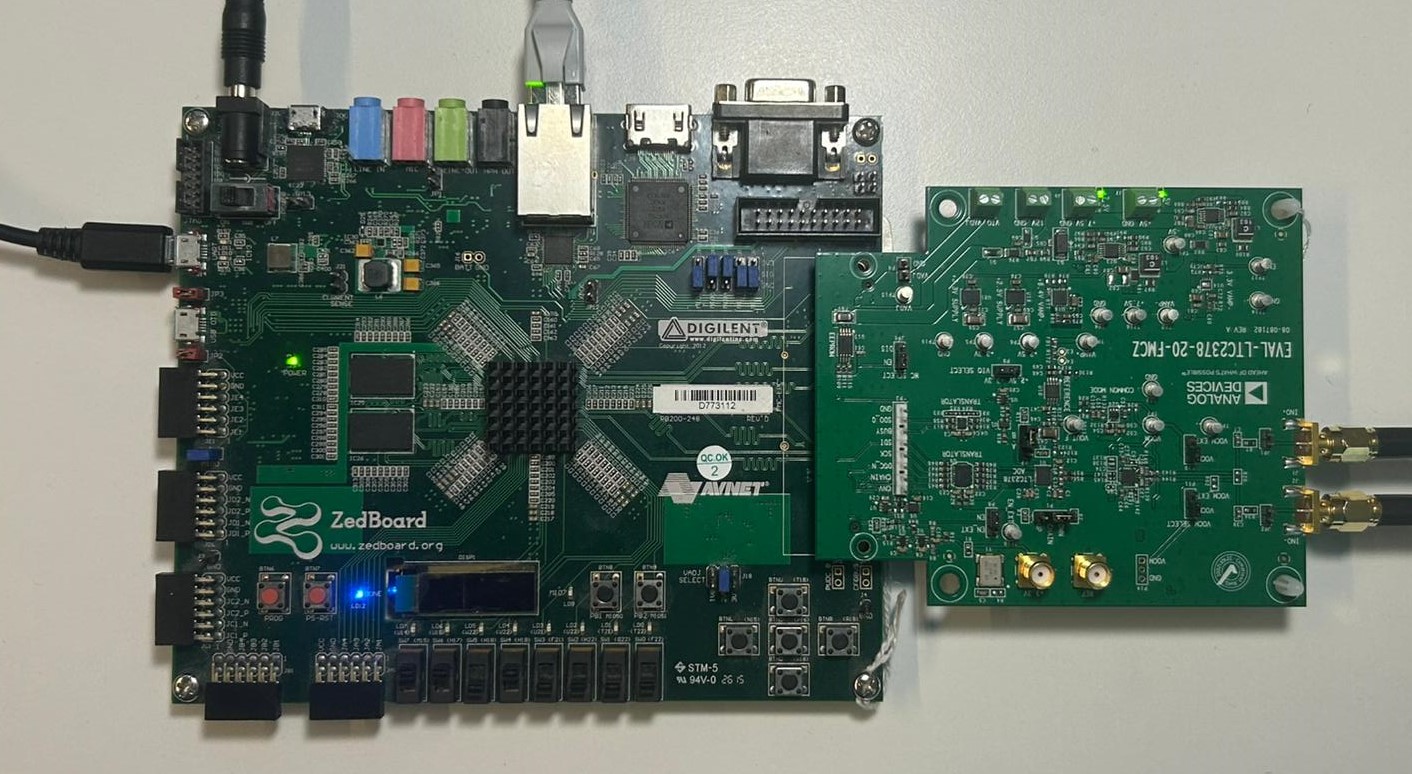

Figure 1 ZedBoard with LTC2378-20 FMC board hardware setup

DC2135A + MAX32666FTHR

Go to the ZedBoard quick start or the DC2135A + MAX32666FTHR quick start.
