Quick Start

The Quick Start Guides provide a simple step by step instruction on how to do an initial system setup for the ADRV9371-N/PCBZ, ADRV9371-W/PCBZ, ADRV9375-N/PCBZ and ADRV9375-W/PCBZ boards on various FPGA development boards. They will discuss how to program the bitstream, run a no-OS program or boot a Linux distribution.

• On ZCU102
• On KCU105
• On ZC706
• On Arria10 SoC
• On Arria10 GX

Supported Carriers

The ADRV9371/PCBZ and ADRV9375/PCBZ are, by definition, “FPGA mezzanine cards” (FMC), which means it needs a carrier to plug into. The carriers we support are:

Board	ADRV9371/PCBZ	ADRV9375/PCBZ
ZCU102	FMC HPC0	FMC HPC0
KCU105	FMC1 HPC	—
ZC706	FMC HPC	FMC HPC
Arria 10 SoC	FMCA	—
Arria 10 GX	Obsolete	Obsolete

Supported Environments

The supported environments are:

FPGA board	HDL	Linux software	no-OS software
ZCU102	Yes	Yes	Yes
KCU105	Yes	Yes	Yes
ZC706	Yes	Yes	Yes
Arria 10 SoC	Yes	Yes	—
Arria 10 GX	Yes	Yes	Yes

Hardware Setup

In most carriers, the ADRV9371/PCBZ and ADRV9375/PCBZ boards connect to the HPC connector (unless otherwise noted). The carrier setup requires power, UART (115200), ethernet (Linux), HDMI (if available) and/or JTAG (no-OS) connections. A few typical setups are shown below.

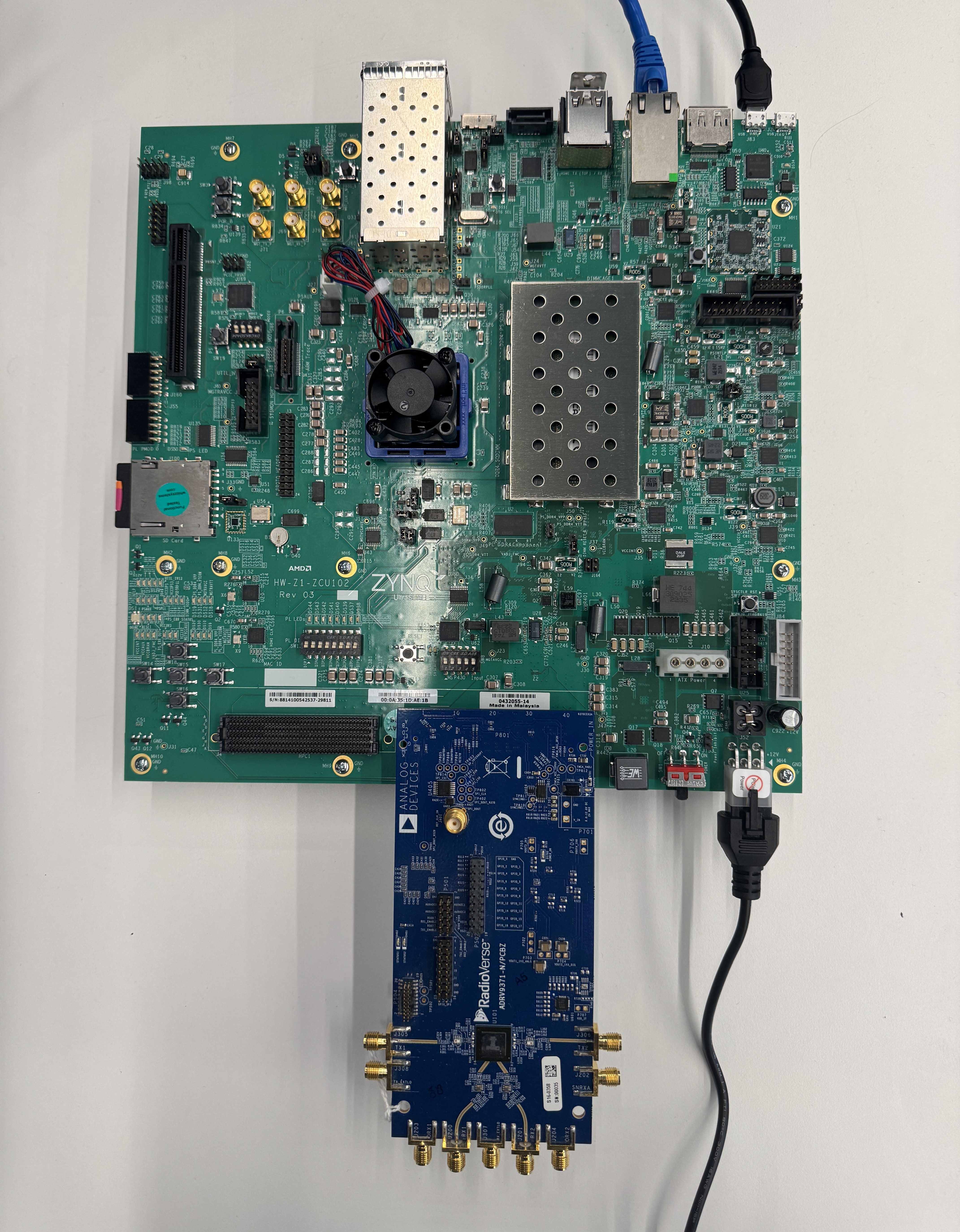

ZCU102 + ADRV9371/PCBZ

KCU105 + ADRV9371/PCBZ

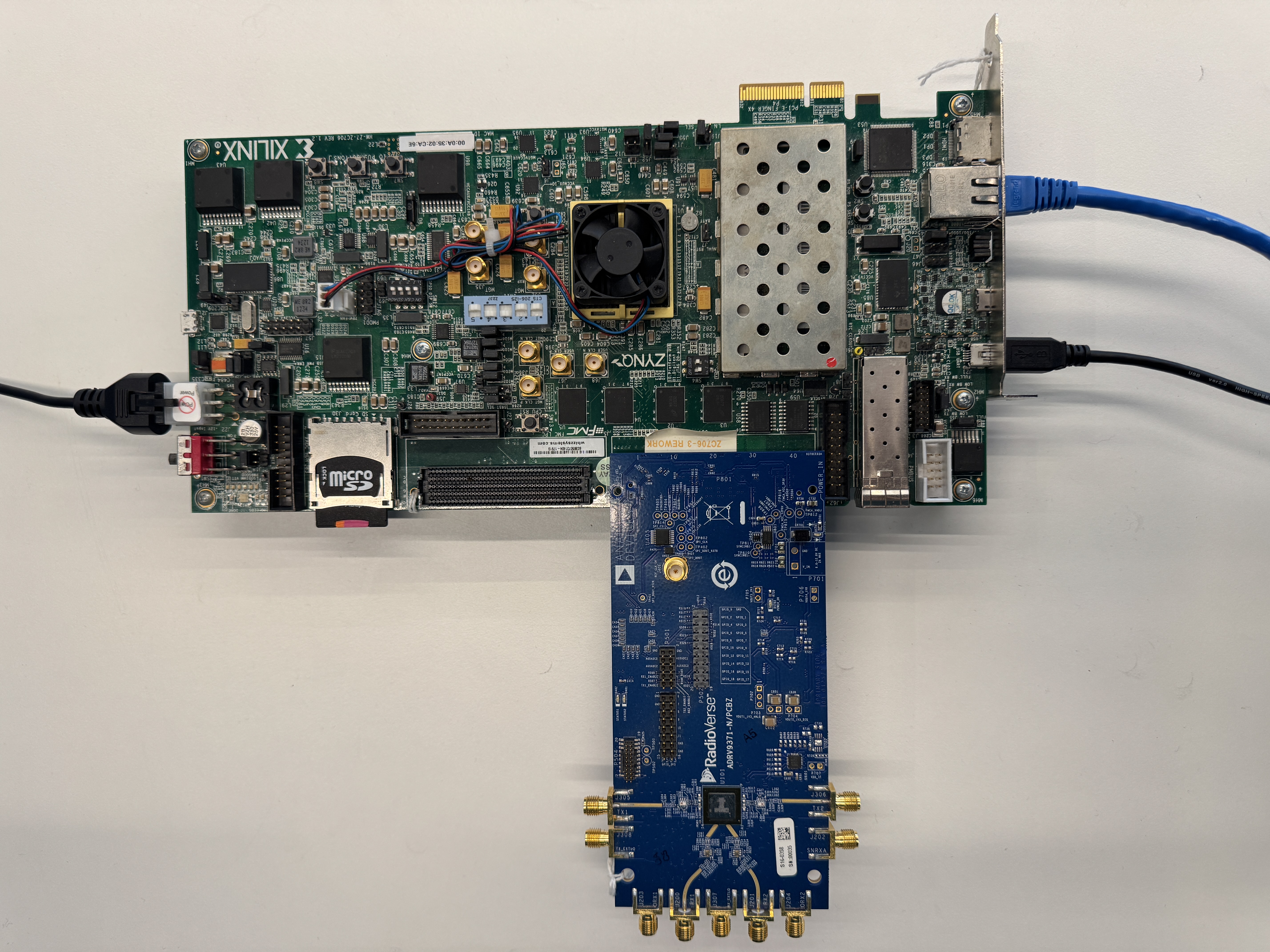

ZC706 + ADRV9371/PCBZ

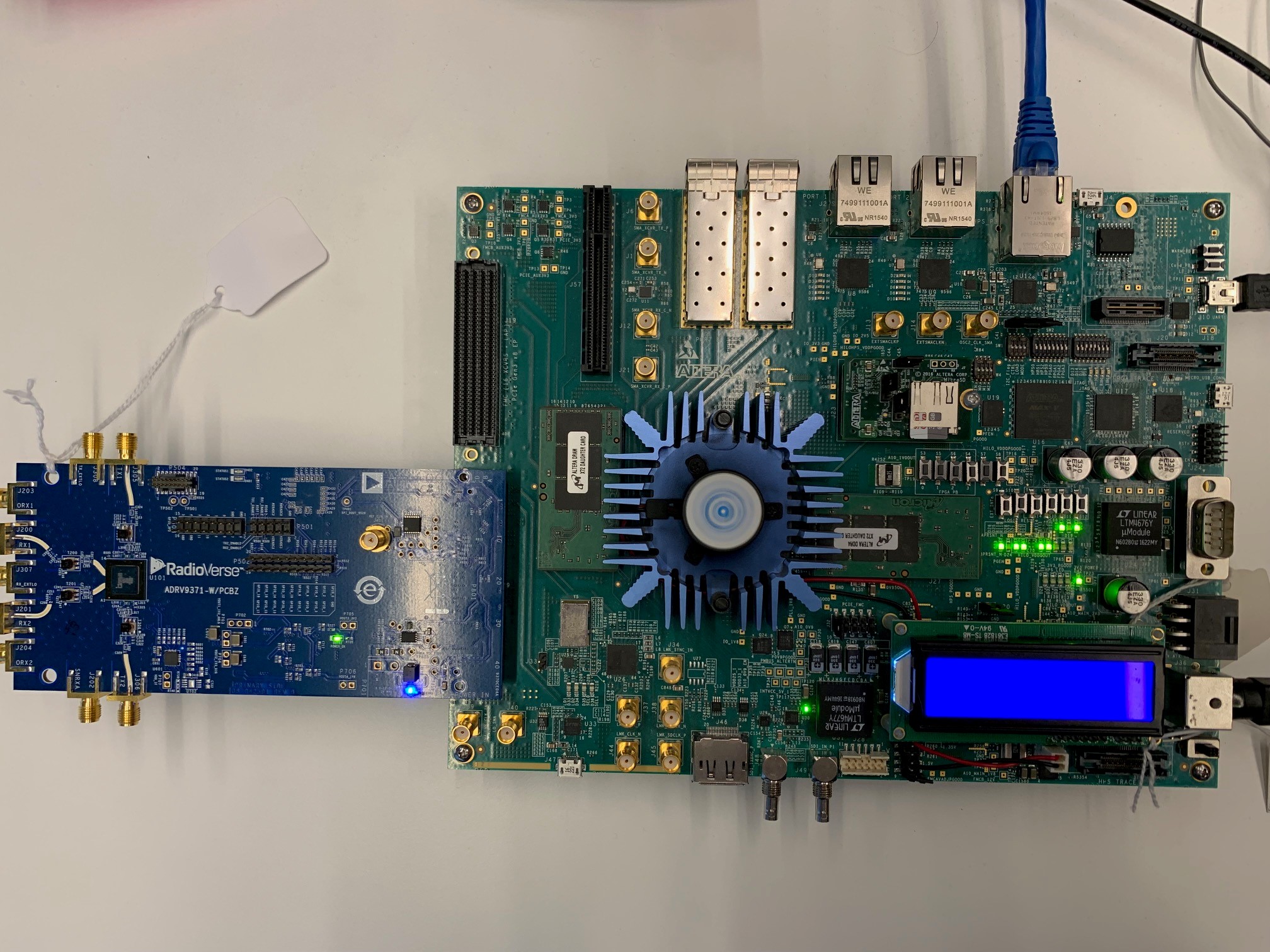

Arria 10 SoC + ADRV9371/PCBZ

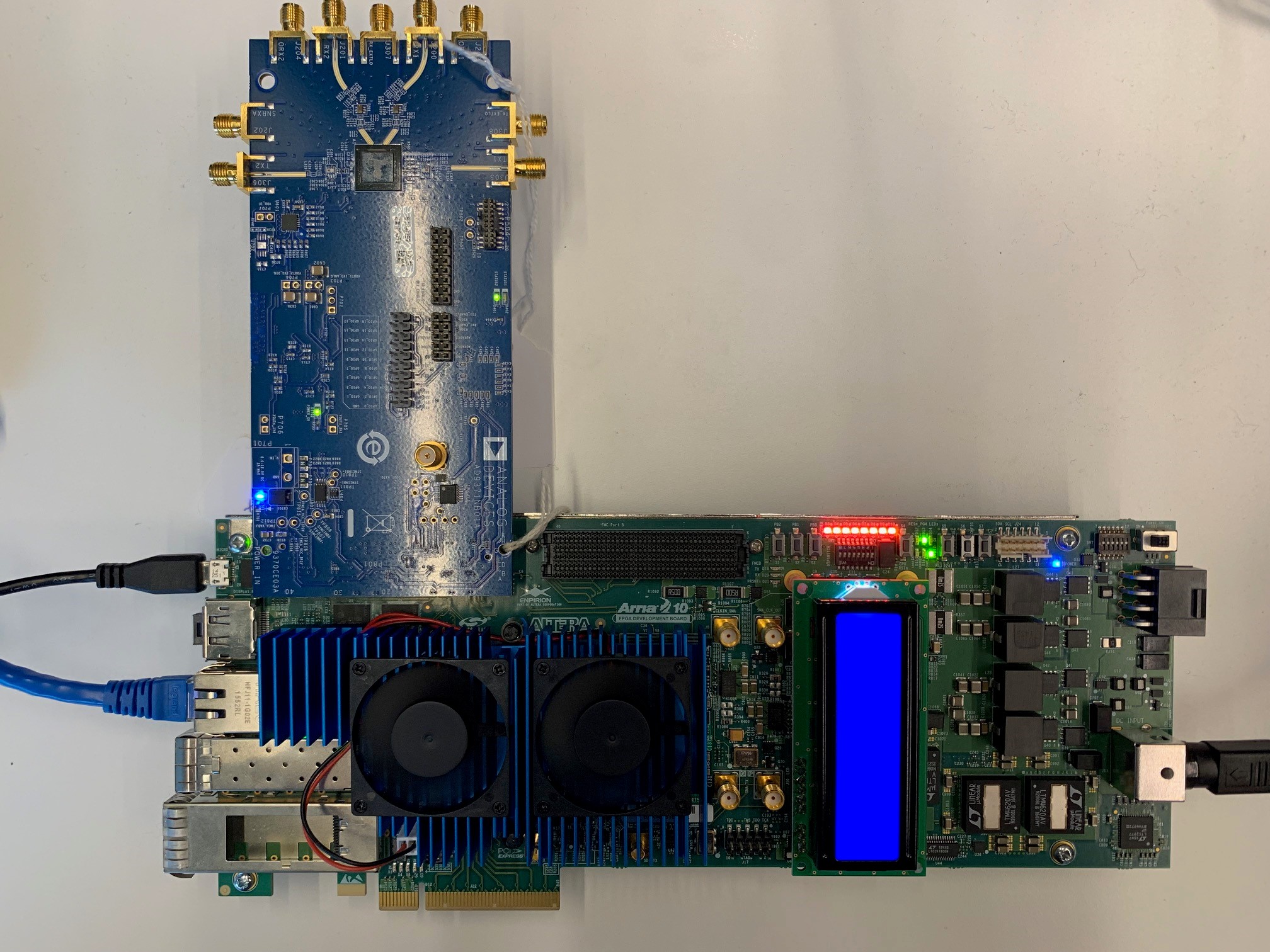

Arria 10 GX + ADRV9371/PCBZ
