ZED Quickstart

This guide provides quick instructions on how to setup the AD-FMCOMMS2-EBZ or AD-FMCOMMS3-EBZ or AD-FMCOMMS4-EBZ on:

ZedBoard FMC LPC

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/ZedBoard.png

Using Linux as software

Necessary files

Note

The SD card includes several folders in the root directory of the BOOT partition. In order to configure the SD card to work with a specific FPGA board and ADI hardware, several files must be copied onto the root directory. Using the host PC, drag and drop the required files onto the BOOT partition, and use the EJECT function when removing the SD card from the reader.

The following files are needed for the system to boot:

HDL boot image: BOOT.BIN
Linux Kernel image: uImage
Linux device tree: devicetree.dtb

They can either be taken from the SD card – already generated by us, or you can build them manually:

Instructions on how to choose the boot files from the SD card can be found in the Platform-Specific Manual Steps section from here: Hardware Configuration.
Instructions on how to manually build the boot files from source can be found here:
- Build Zynq Linux kernel and devicetree (the only difference compared to the ZynqMP is that instead of running make adi_zynqmp_defconfig, you must run make zynq_xcomm_adv7511_defconfig)
- FMCOMMS2/3/4 HDL Project build documentation. More HDL build details at Build an HDL project.

Important

Some projects provide multiple devicetree files in the SD card’s boot folders. Make sure you select the devicetree that matches your specific use case.

Required Software

SD Card 16GB imaged with Kuiper (check out that guide on how to do it, then come back to this section)
A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

Required Hardware

AMD Xilinx ZedBoard FPGA board and its power supply (12V)
AD-FMCOMMS2-EBZ / AD-FMCOMMS3-EBZ / AD-FMCOMMS4-EBZ FMC evaluation board
2x SMA cable orAntenna
Micro-USB cable (UART)
LAN cable (Ethernet)
(Optional) USB keyboard & mouse and a HDMI compatible monitor (Full HD only)

More details as to why you need these can be found at Prerequisites for AD9361/AD9364 based boards.

Testing

Creating the setup

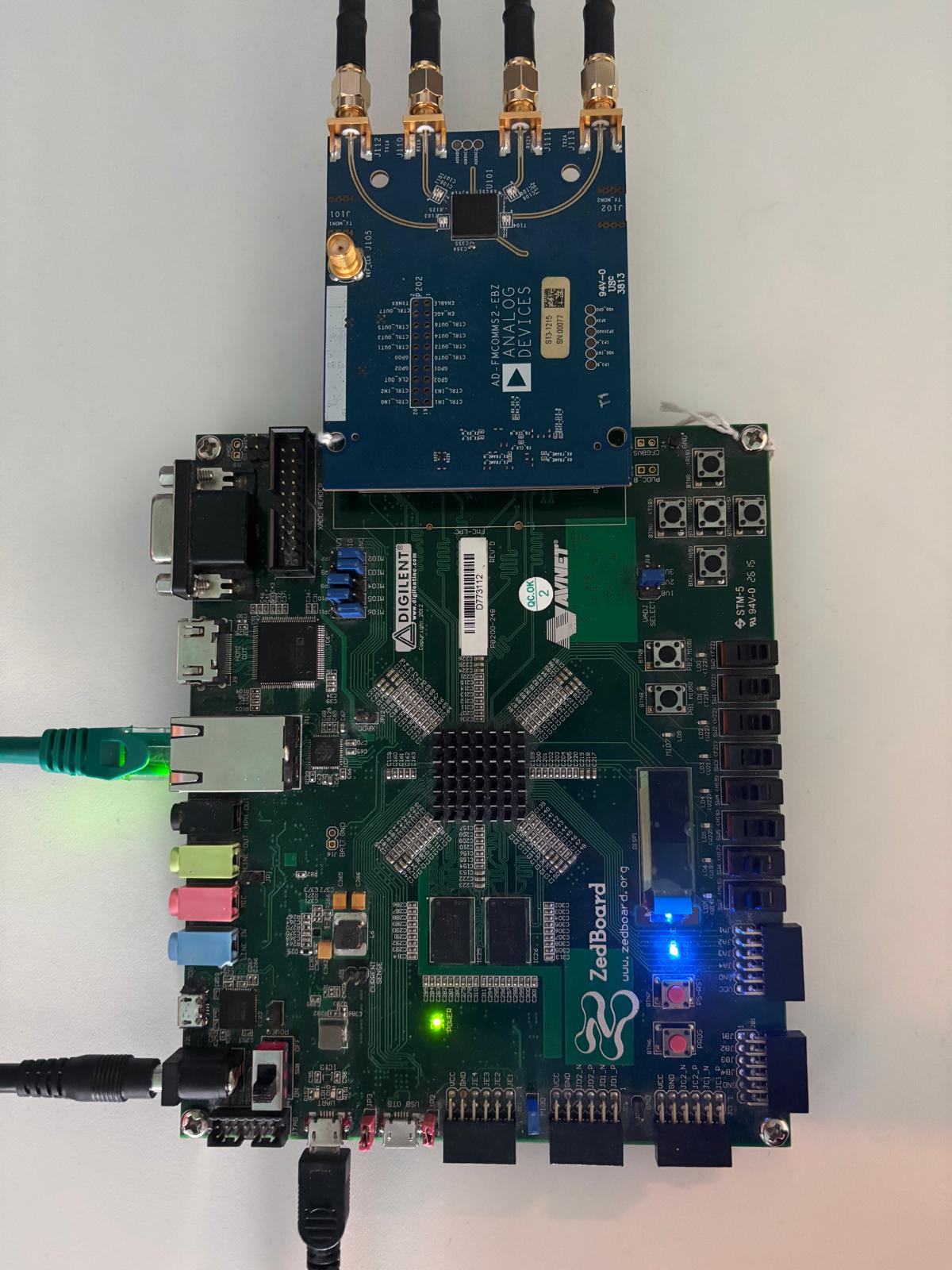

AD-FMCOMMS2-EBZ/ZED

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/fmcomms2/images/fmcomms2_zed_linux.jpeg

In the following example, we will make a physical loopback between the ADC and the DAC channels on the evaluation board, using SMA cables.

Follow the steps in this order, to avoid damaging the components:

Get the ZedBoard
Configure ZedBoard for SD BOOT:

The BOOT switches (JP7-JP11) and the MIO0 jumper (JP6) must be set for SD-card boot mode. VADJ must be set to 2.5V, as specified in the HDL project’s README at FMCOMMS2/3/4 HDL Project. Optionally, to use USB peripheral devices with the ZedBoard, install jumpers JP2 and JP3.
Insert the SD card into the SD Card Interface Connector (J12)
Connect your signal generator to the analog inputs of the evaluation board using the appropriate jumper wires or SMB connectors.
Plug the AD-FMCOMMS2-EBZ into the FMC LPC Connector (J1)
Plug the Power Supply into 12V Power input connector (J20) (DO NOT turn the device on).
Plug-in an Ethernet cable from your router/switch to the Ethernet port on the FPGA board
Connect the UART port of ZedBoard (J14) to a PC via MicroUSB
Turn on the power switch on the FPGA board
Observe Kernel and serial console output messages on your terminal

Optional: Local display connection (keyboard, mouse, monitor)

You can also connect a monitor, keyboard and mouse directly to the board for a local connection. The UART connection is still recommended for debugging purposes. For the local connection, follow these additional steps:

Plug your HDMI display device into the HDMI Video Connector (J9).
Plug your USB mouse/keyboard into the USB OTG Micro-B Connector (J13). You will have to use a USB hub to connect both mouse and keyboard. Some keyboards have a mouse or touch pad sharing the same USB connection or wireless dongle. This can be used to eliminate the use of a USB hub.
Wait another ~30 seconds for the HDMI display device to start showing signs of life.

Note

The USB OTG circuit requires specific jumper settings for Host mode. Ensure the following jumper settings on the ZedBoard (these are the defaults; verify them if USB is not working):

JP2 → Short (enables 5V output to USB OTG connector)
JP3 → Short (Host mode)

Boot messages

The following is what is printed in the serial console, after you have connected to the proper ttyUSB or COM port:

Complete boot log
