AD-FMCDAQ2-EBZ Hardware

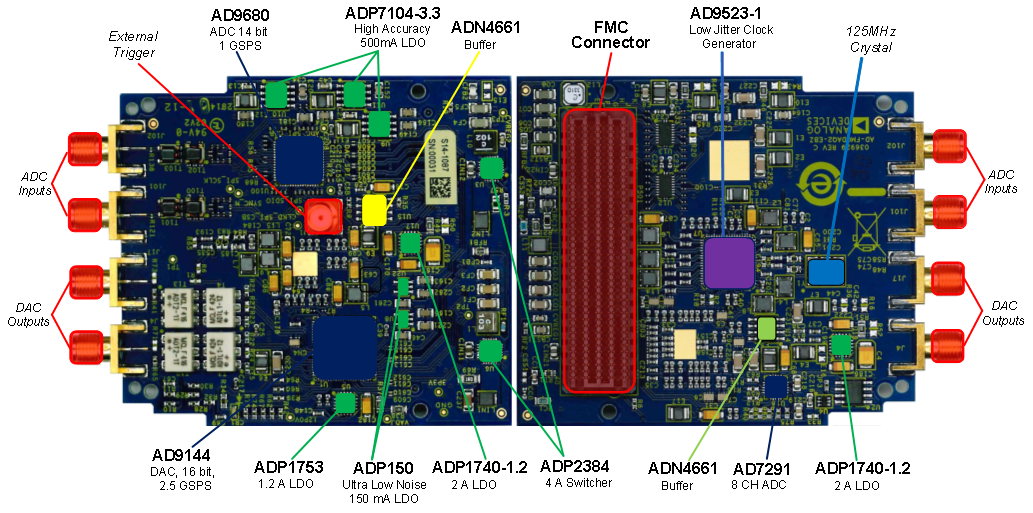

Picture and Main components


Outline

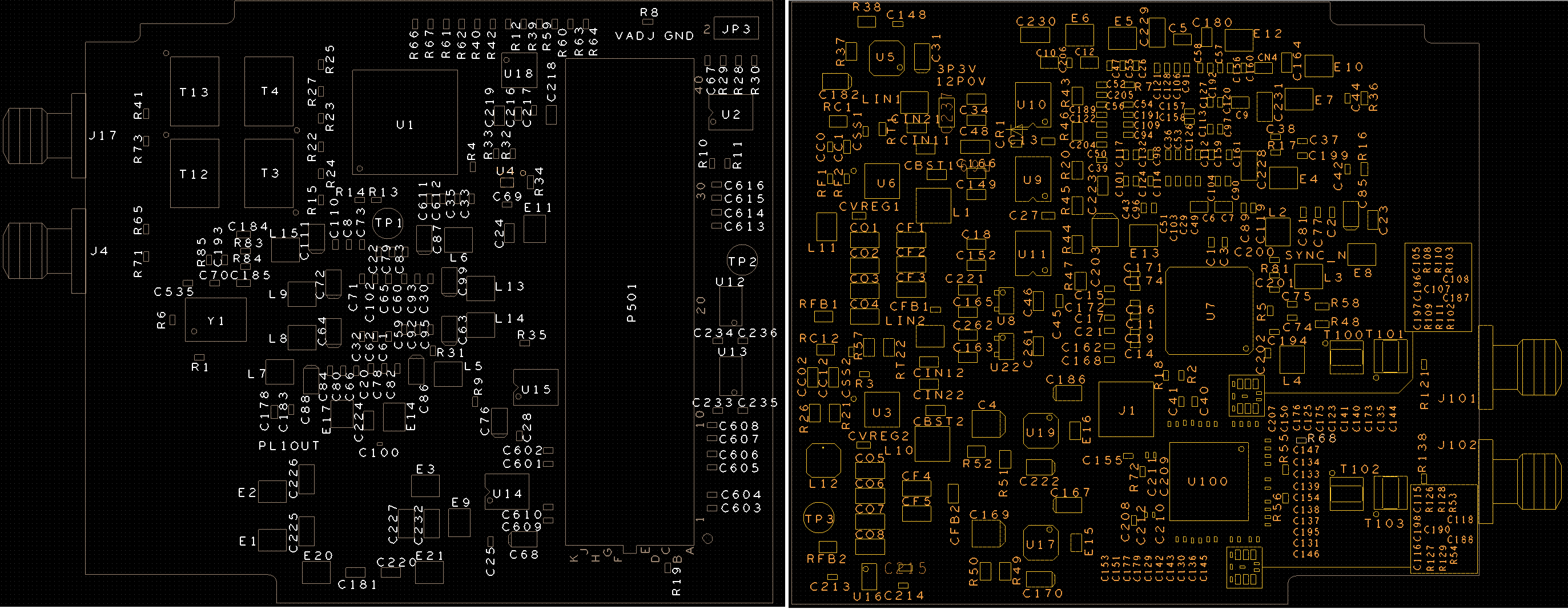

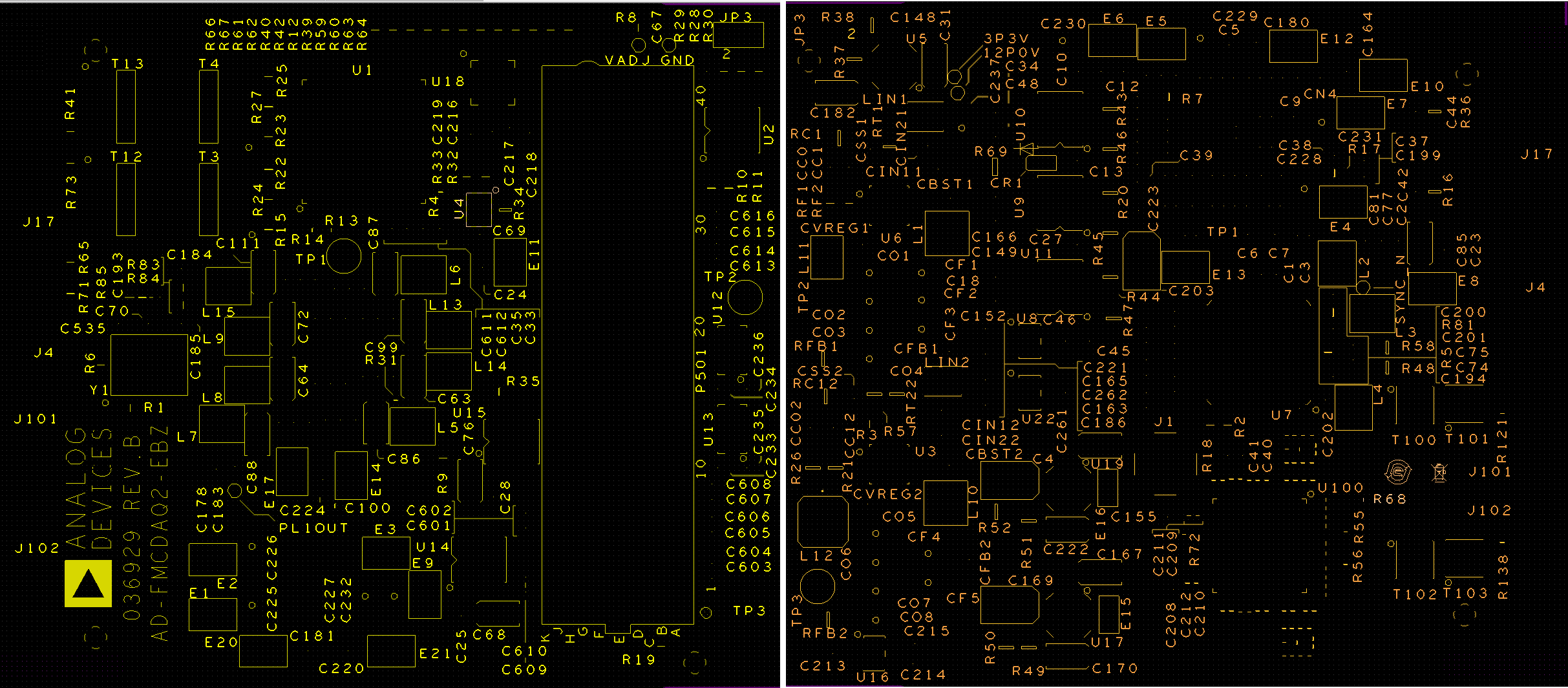

For those that don’t want to load up the Allegro viewer, here is a basic outline/component placements of the board.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/silk_top_bot.png https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/assbly_top_bot.png

Size

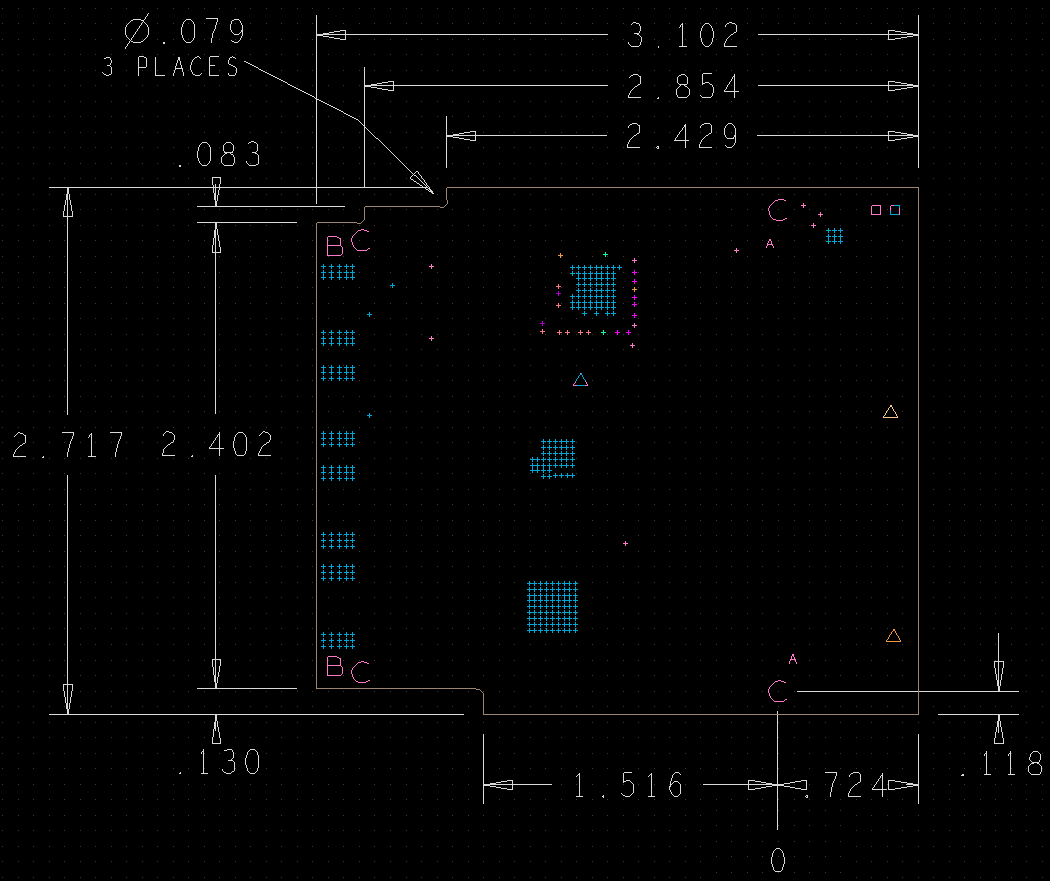

The size of the board (not including the SMA connectors, which project beyond the edge of the board) is 3.12 inches by 2.72 inches (or about 79mm x 69mm).

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/daq2_dimensions.png

Schematic, PCB Layout, Bill of Materials

AD-FMCDAQ2-EBZ Design & Integration Files are comprised of:
