Jupiter MCS Pilot

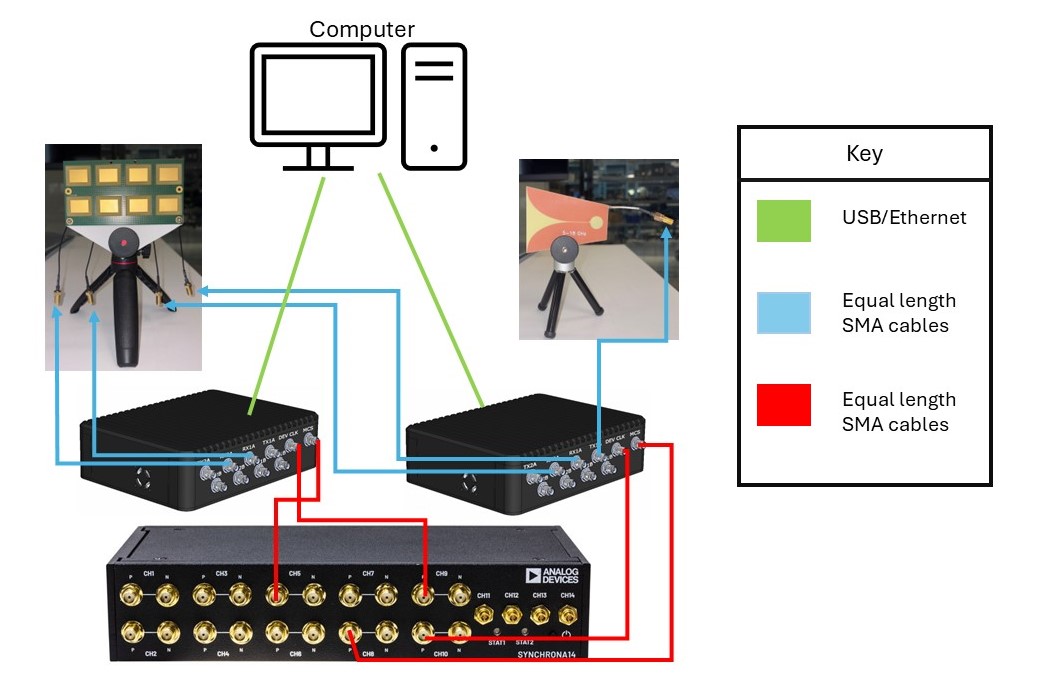

The Jupiter MCS pilot uses two Jupiters and a Synchrona to perform MCS and beamforming. The official MCS Pilot can be found here. This guide aims to be a comprehensive summary that provides a clear user experience.

This pilot will go over the following:

• Theory

• How to configure the Jupiter

• Sine Sync

• Reload Profile Sync

• DOA

• DOA Tracking

Table of Contents

• Pilot specific Hardware
• Synchrona
• Setting up Pilot Hardware
• Walkthrough

The code for this pilot exists in the PyADI-IIO library under the folder labeled “adrv9002_mcs_sync”.
