MICROBLAZE Quickstart

This guide provides some quick instructions on how to setup the AD-FMCDAQ2-EBZ on:

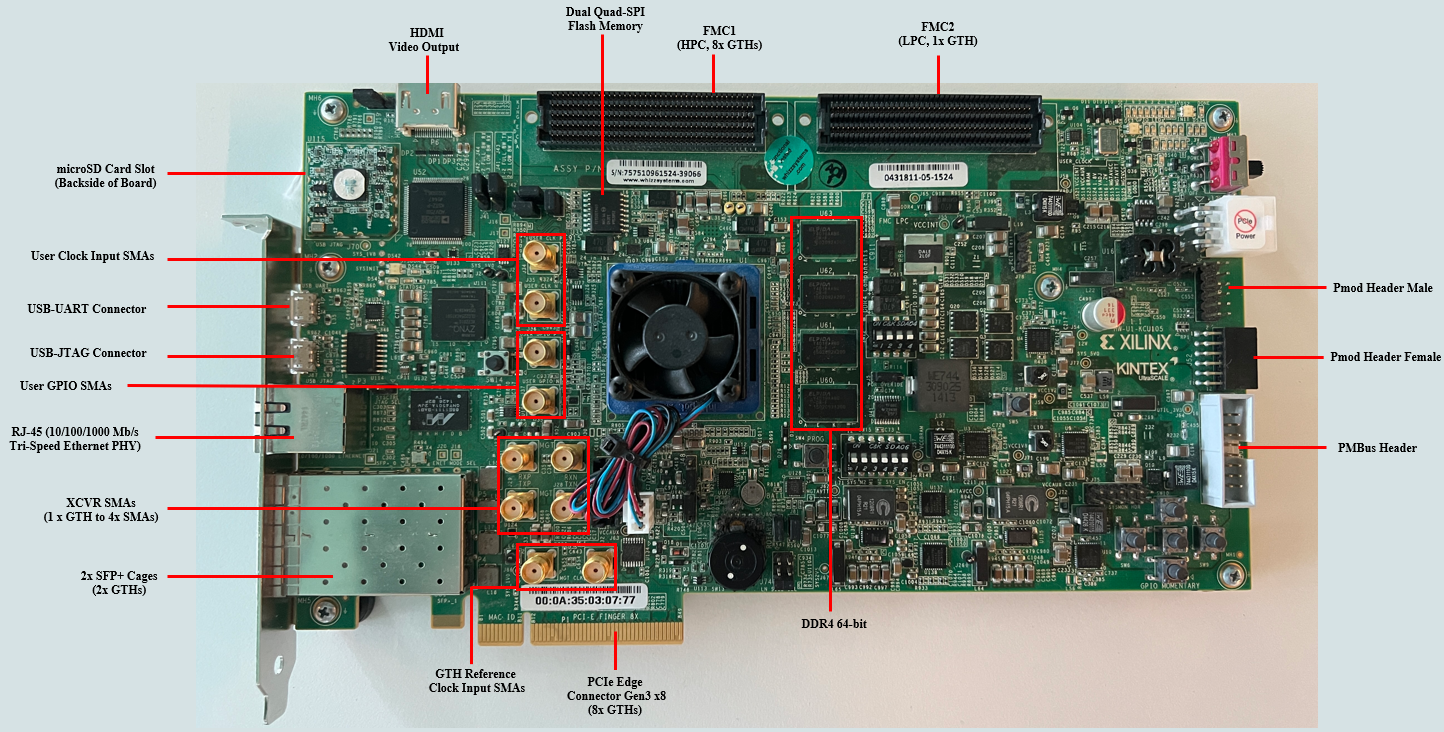

KCU105 on FMC HPC

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/kcu105.png

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.

Using Linux as software

Necessary files

The following files are needed for the system to boot:

HDL boot image: system_top.bit
Linux simple image: simpleImage.kcu105_fmcdaq2.strip

Instructions on how to manually build the boot files from source can be found here:

Build MicroBlaze Linux kernel
DAQ2 HDL Project build documentation.

More HDL build details at Build an HDL project.

user@analog:~$

git clone https://github.com/analogdevicesinc/hdl.git

user@analog:~$

cd projects/daq2/kcu105

user@analog:~/projects/daq2/kcu105$

make

 Building daq2/kcu105
 [/home/microblaze/hdl/projects/daq2/kcu105/daq2_kcu105_vivado.log] ... OK

Required Software

AMD Xilinx Vivado and Vitis (downloading Vitis from here will include Vivado as well)
A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

Required Hardware

AMD Xilinx KCU105 FPGA board and its power supply
AD-FMCDAQ2-EBZ evaluation board
2x Micro-USB cable (UART and JTAG)
LAN cable (Ethernet)
(Optional) 2x SMA cable for analog signal loopback

Testing

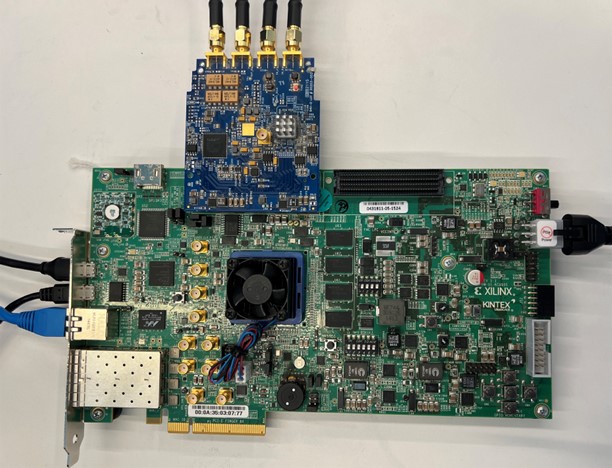

Creating the setup

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/ad-fmcdaq2-ebz_kcu105_setup.jpg

Caution

This project was tested with VADJ = 1.8 V

In the following example, we will make a physical loopback between the ADC and the DAC channels on the evaluation board, using SMA cables.

Connect the AD-FMCDAQ2-EBZ FMC board to the FPGA carrier, on the HPC FMC connector.
Connect USB UART J4 (Micro-USB) to your host PC
Connect USB JTAG J87 (Micro-USB) to your host PC
(Optional) Connect SMA cable for analog signal loopback
Turn on the power switch on the FPGA board.
Program the FPGA using the steps shown here.
Open xsct/xsdb and run the run.tcl script.
Observe console output messages on your terminal (use the first ttyUSB or COM port registered)

We need to prepare a working directory where we will gather all the required binary files.

From the HDL build directory locate the system_top.bit and copy it to the working directory.

From the Linux build directory locate the simpleImage and copy it to the working directory.

~$

mkdir working_dir

~$

cp <hdl_repo_dir>/projects/daq2/kcu105/daq2_kcu105.runs/impl_1/system_top.bit working_dir

~$

cp <linux_repo_dir>/arch/microblaze/boot/simpleImage.kcu105_fmcdaq2.strip working_dir

Next step is to program the board with xsct or similar tool

~$

xsct

~$

xsct% connect

~$

xsct% fpga -f system_top.bit

~$

xsct% after 1000

~$

xsct% target 3

~$

xsct% dow simpleImage.kcu105_fmcdaq2.strip

~$

xsct% after 1000

~$

xsct% con

~$

xsct% disconnect

Alternatively, you can run the TCL script directly:

connect
fpga -f system_top.bit
after 1000
target 3
dow simpleImage.kcu105_fmcdaq2.strip
after 1000
con
disconnect

Note

Login Information

Welcome to Buildroot
buildroot login: root, password: analog
buildroot login: analog, password: analog

Note

For other obsolete carrier: If your FPGA carrier board (KC705, VC707, ML605) features a LCD display and the board is connected to a DHCP enabled network. You should also see its IP address printed on the display. This allows you to connect remote to the board as well. (ssh, libiio remote)

Unlike shown in the picture below you won’t see the second line. In case the IP address is 192.168.2.2, this indicates that DHCP failed and it is now using its default address. This address may not be within your subnet, and things therefore may fail.

Boot messages

Complete boot log

Ramdisk addr 0x00000000,
Compiled-in FDT at 0x8077ab50
earlycon: uartlite_a0 at MMIO 0x40600000 (options '115200n8')
printk: bootconsole [uartlite_a0] enabled
cma: Reserved 512 MiB at 0x8fc00000
Linux version 6.1.70-35308-ge2e62cc28c80 (jenkins@romlxbuild1) (microblazeel-xilinx-linux-gcc.real (GCC) 12.2.0, GNU ld (GNU Binutils) 2.39.0.20220819) #1706 Tue Sep 16 08:02:59 EEST 2025
setup_memory: max_mapnr: 0x7ffff
setup_memory: min_low_pfn: 0x80000
setup_memory: max_low_pfn: 0xb0000
setup_memory: max_pfn: 0xfffff
Zone ranges:
DMA      [mem 0x0000000080000000-0x00000000afffffff]
Normal   empty
HighMem  [mem 0x00000000b0000000-0x00000000ffffefff]
Movable zone start for each node
Early memory node ranges
node   0: [mem 0x0000000080000000-0x00000000ffffefff]
Initmem setup node 0 [mem 0x0000000080000000-0x00000000ffffefff]
setup_cpuinfo: initialising cpu 0
setup_cpuinfo: Using full CPU PVR support
wt_msr_noirq
pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
pcpu-alloc: [0] 0
Built 1 zonelists, mobility grouping on.  Total pages: 522751
Kernel command line: earlycon
Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear)
Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
mem auto-init: stack:all(zero), heap alloc:off, heap free:off
Memory: 1535084K/2097148K available (7658K kernel code, 598K rwdata, 6064K rodata, 210K init, 166K bss, 37776K reserved, 524288K cma-reserved, 1310716K highmem)
NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
irq-xilinx: mismatch in kind-of-intr param
irq-xilinx: /amba_pl/interrupt-controller@41200000: num_irq=16, sw_irq=0, edge=0xffff05f0
xilinx_timer_init: Timer base: 0xb0002000, Clocksource base: 0xb0002010
clocksource: xilinx_clocksource: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604467 ns
sched_clock: 32 bits at 100MHz, resolution 10ns, wraps every 21474836475ns
/amba_pl/timer@41c00000: irq=1, cpu_id 0
xilinx_timer_shutdown
xilinx_timer_set_periodic
Calibrating delay loop... 49.35 BogoMIPS (lpj=246784)
pid_max: default: 4096 minimum: 301
Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear)
Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear)
devtmpfs: initialized
clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
futex hash table entries: 16 (order: -4, 448 bytes, linear)
NET: Registered PF_NETLINK/PF_ROUTE protocol family
DMA: preallocated 256 KiB GFP_KERNEL pool for atomic allocations
DMA: preallocated 256 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
gpio gpiochip0: (40000000.gpio): not an immutable chip, please consider fixing it!
pps_core: LinuxPPS API ver. 1 registered
pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
PTP clock support registered
jesd204: created con: id=0, topo=1, link=0, /amba_pl/axi-ad9144-adxcvr@44a60000 <-> /amba_pl/axi-jesd204-tx@44a90000
jesd204: created con: id=1, topo=0, link=0, /amba_pl/axi-ad9680-adxcvr@44a50000 <-> /amba_pl/axi-jesd204-rx@44aa0000
jesd204: created con: id=2, topo=1, link=0, /amba_pl/axi-jesd204-tx@44a90000 <-> /amba_pl/axi-ad9144-hpc@44a04000
jesd204: created con: id=3, topo=0, link=0, /amba_pl/axi-jesd204-rx@44aa0000 <-> /amba_pl/axi-ad9680-hpc@44a10000
jesd204: created con: id=4, topo=0, link=0, /amba_pl/axi-ad9680-hpc@44a10000 <-> /amba_pl/spi@44a70000/ad9680@2
jesd204: created con: id=5, topo=1, link=0, /amba_pl/axi-ad9144-hpc@44a04000 <-> /amba_pl/spi@44a70000/ad9144@1
jesd204: /amba_pl/spi@44a70000/ad9680@2: JESD204[0:0] transition uninitialized -> initialized
jesd204: /amba_pl/spi@44a70000/ad9144@1: JESD204[1:0] transition uninitialized -> initialized
jesd204: found 8 devices and 2 topologies
vgaarb: loaded
clocksource: Switched to clocksource xilinx_clocksource
NET: Registered PF_INET protocol family
IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear)
tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 10240 bytes, linear)
Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear)
TCP bind hash table entries: 8192 (order: 6, 327680 bytes, linear)
TCP: Hash tables configured (established 8192 bind 8192)
UDP hash table entries: 512 (order: 2, 24576 bytes, linear)
UDP-Lite hash table entries: 512 (order: 2, 24576 bytes, linear)
NET: Registered PF_UNIX/PF_LOCAL protocol family
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
PCI: CLS 0 bytes, default 32
workingset: timestamp_bits=30 max_order=19 bucket_order=0
Key type cifs.idmap registered
jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
romfs: ROMFS MTD (C) 2007 Red Hat, Inc.
bounce: pool size: 64 pages
io scheduler mq-deadline registered
io scheduler kyber registered
Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
40600000.serial: ttyUL0 at MMIO 0x40600000 (irq = 4, base_baud = 0) is a uartlite
printk: console [ttyUL0] enabled
printk: bootconsole [uartlite_a0] disabled
uartlite 41400000.serial: error -EINVAL: could not read current-speed
uartlite: probe of 41400000.serial failed with error -22
brd: module loaded
SPI driver spidev has no spi_device_id for adi,swspi
xilinx_axienet 40e00000.ethernet: TX_CSUM 2
xilinx_axienet 40e00000.ethernet: RX_CSUM 2
i2c_dev: i2c /dev entries driver
i2c i2c-0: Added multiplexed i2c bus 1
at24 2-0050: supply vcc not found, using dummy regulator
at24 2-0050: 256 byte 24c02 EEPROM, writable, 1 bytes/write
i2c i2c-0: Added multiplexed i2c bus 2
i2c i2c-0: Added multiplexed i2c bus 3
i2c i2c-0: Added multiplexed i2c bus 4
pca954x 0-0075: registered 4 multiplexed busses for I2C mux pca9544
ad9523 spi0.0: supply vcc not found, using dummy regulator
axi_adxcvr_drv 44a50000.axi-ad9680-adxcvr: AXI-ADXCVR-RX (17.05.a) using CPLL on GTH3 at 0x44A50000. Number of lanes: 4.
axi_adxcvr_drv 44a60000.axi-ad9144-adxcvr: AXI-ADXCVR-TX (17.05.a) using QPLL on GTH3 at 0x44A60000. Number of lanes: 4.
axi-jesd204-rx 44aa0000.axi-jesd204-rx: AXI-JESD204-RX (1.07.a) at 0x44AA0000. Encoder 8b10b, width 4/4, lanes 4, jesd204-fsm.
axi-jesd204-tx 44a90000.axi-jesd204-tx: AXI-JESD204-TX (1.06.a) at 0x44A90000. Encoder 8b10b, width 4/4, lanes 4, jesd204-fsm.
axi_sysid 45000000.axi-sysid-0: AXI System ID core version (1.01.a) found
axi_sysid 45000000.axi-sysid-0: [daq2] [RX:M=2 L=4 S=1 TX:M=2 L=4 S=1 ADC_OFFLOAD:TYPE=0 SIZE=524288 DAC_OFFLOAD:TYPE=0 SIZE=1048576] on [kcu105] git branch <main> git <5da8736cb717e92a827934dd1c272b5c07c8e871> clean [2026-02-24 21:17:14] UTC
Initializing XFRM netlink socket
NET: Registered PF_INET6 protocol family
Segment Routing with IPv6
In-situ OAM (IOAM) with IPv6
sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
NET: Registered PF_PACKET protocol family
NET: Registered PF_KEY protocol family
Key type dns_resolver registered
Key type encrypted registered
ad9208 spi0.2: ad9680 PLL LOCKED
ad9208 spi0.2: ad9680 Rev. 3 Grade 10 (API 1.0.1) probed
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition probed -> initialized
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition probed -> idle
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition idle -> device_init
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition device_init -> link_init
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition link_init -> link_supported
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition link_supported -> link_pre_setup
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition link_pre_setup -> clk_sync_stage1
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition clk_sync_stage1 -> clk_sync_stage2
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition clk_sync_stage2 -> clk_sync_stage3
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition clk_sync_stage3 -> link_setup
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition link_setup -> opt_setup_stage1
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition opt_setup_stage1 -> opt_setup_stage2
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition opt_setup_stage2 -> opt_setup_stage3
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition opt_setup_stage3 -> opt_setup_stage4
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition opt_setup_stage4 -> opt_setup_stage5
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition opt_setup_stage5 -> clocks_enable
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition clocks_enable -> link_enable
ad9144 spi0.1: Link0 code grp sync: f
ad9144 spi0.1: Link0 frame sync stat: f
ad9144 spi0.1: Link0 good checksum stat: f
ad9144 spi0.1: Link0 init lane_sync stat: f
ad9144 spi0.1: Link0 4 lanes @ 10000000 kBps
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition link_enable -> link_running
jesd204: /amba_pl/spi@44a70000/ad9144@1,jesd204:0,parent=spi0.1: JESD204[1:0] transition link_running -> opt_post_running_stage
cf_axi_dds 44a04000.axi-ad9144-hpc: Analog Devices CF_AXI_DDS_DDS MASTER (9.02.b) at 0x44A04000 mapped to 0x(ptrval), probed DDS (null)
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition probed -> initialized
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition probed -> idle
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition idle -> device_init
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition device_init -> link_init
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition link_init -> link_supported
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition link_supported -> link_pre_setup
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition link_pre_setup -> clk_sync_stage1
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition clk_sync_stage1 -> clk_sync_stage2
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition clk_sync_stage2 -> clk_sync_stage3
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition clk_sync_stage3 -> link_setup
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition link_setup -> opt_setup_stage1
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition opt_setup_stage1 -> opt_setup_stage2
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition opt_setup_stage2 -> opt_setup_stage3
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition opt_setup_stage3 -> opt_setup_stage4
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition opt_setup_stage4 -> opt_setup_stage5
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition opt_setup_stage5 -> clocks_enable
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition clocks_enable -> link_enable
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition link_enable -> link_running
jesd204: /amba_pl/spi@44a70000/ad9680@2,jesd204:1,parent=spi0.2: JESD204[0:0] transition link_running -> opt_post_running_stage
cf_axi_adc 44a10000.axi-ad9680-hpc: ADI AIM (10.03.) at 0x44A10000 mapped to 0x(ptrval) probed ADC AD9680 as MASTER
Freeing unused kernel image (initmem) memory: 208K
This architecture does not have kernel memory protection.
Run /init as init process
  with arguments:
    /init
  with environment:
    HOME=/
    TERM=linux
Starting syslogd: OK
Starting klogd: OK
Running sysctl: OK
Saving 256 bits of non-creditable seed for next boot
Starting network: udhcpc: started, v1.36.1
xilinx_axienet 40e00000.ethernet eth0: PHY [axienet-40e00000:07] driver [Marvell 88E1111] (irq=POLL)
xilinx_axienet 40e00000.ethernet eth0: configuring for phy/sgmii link mode
random: crng init done
udhcpc: broadcasting discover
xilinx_axienet 40e00000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
udhcpc: broadcasting discover
udhcpc: broadcasting discover
udhcpc: broadcasting select for 10.48.65.202, server 10.48.65.20
udhcpc: lease of 10.48.65.202 obtained from 10.48.65.20, lease time 21600
deleting routers
adding dns 10.32.51.110
adding dns 10.64.53.110
Starting dropbear sshd: OK
Starting IIO Server Daemon

Using no-OS as software

Necessary files

The following files are needed for the system to boot:

HDL boot file: system_top.xsa
no-OS project: projects/fmcdaq2
rootfs.cpio.gz

Instructions on how to build the boot files from source can be found here:

More no-OS build details at No-OS Build Guide.
DAQ2 HDL Project. More HDL build details at Build an HDL project.

Required Software

AMD Xilinx Vivado and Vitis (downloading Vitis from here will include Vivado as well)
A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

Required Hardware

AMD Xilinx KCU105 board
AD-FMCDAQ2-EBZ evaluation board
2x Micro-USB cables, one for UART and one for JTAG
LAN cable (Ethernet)
Power supply for the FPGA carrier board
(Optional) 2x SMA cable for analog signal loopback

Testing

Creating the setup

Caution

This project was tested with VADJ = 1.8 V

Follow the steps in this order, to avoid damaging the components:

Connect the AD-FMCDAQ2-EBZ FMC board to the FPGA carrier, on the HPC FMC connector.
Connect USB UART J4 (Micro-USB) to your host PC
Connect USB JTAG J87 (Micro-USB) to your host PC
(Optional) Connect the SMA cable for analog signal loopback
Turn on the power switch on the FPGA board.
Build and run the project using the steps shown here.
Open xsct/xsdb and run the run.tcl script.
Observe console output messages on your terminal (use the first ttyUSB or COM port registered)

Console output

The following is what is printed in the serial console, after you have connected to the proper ttyUSB or COM port:

Complete boot log

 Available sampling rates:
- ADC 1000 MSPS; DAC 1000 MSPS
- ADC  500 MSPS; DAC 1000 MSPS
- ADC  500 MSPS; DAC  500 MSPS
- ADC  600 MSPS; DAC  600 MSPS
- ADC 1000 MSPS; DAC 2000 MSPS (2x interpolation)
choose an option [default 1]:
- ADC  600 MSPS; DAC  600 MSPS
ad9144_xcvr: OK (6000000 kHz)
ad9680_xcvr: OK (6000000 kHz)
ad9680_adc: Successfully initialized (599981689 Hz)
ad9144_dac: Successfully initialized (599987792 Hz)
ad9680_xcvr: OK (6000000 kHz)
ad9144_xcvr: OK (6000000 kHz)
Link0 code grp sync: f
Link0 frame sync stat: f
Link0 good checksum stat: f
Link0 init lane_sync stat: f
Link0 4 lanes @ 6000000 kBps
ad9680_jesd status:
  Link is enabled
  Measured Link Clock: 149.997 MHz
  Reported Link Clock: 150.000 MHz
  Lane rate: 6000.000 MHz
  Lane rate / 40: 150.000 MHz
  LMFC rate: 18.750 MHz
  Link status: DATA
  SYSREF captured: Yes
  SYSREF alignment error: No
ad9144_jesd status:
  Link is enabled
  Measured Link Clock: 149.997 MHz
  Reported Link Clock: 150.000 MHz
  Lane rate: 6000.000 MHz
  Lane rate / 40: 150.000 MHz
  LMFC rate: 18.750 MHz
  SYNC~: deasserted
  Link status: DATA
  SYSREF captured: Yes
  SYSREF alignment error: No
 [ --snip-- ]
     |    0x0bb4   |    0x013f    |
     |    0x0c19   |    0x029e    |
     |    0x0b12   |    0x03fe    |
     |    0x08bc   |    0x0553    |
     |    0x0558   |    0x0694    |
     |    0x0160   |    0x07b9    |
     |    0xfd32   |    0x08be    |
     |    0xf95d   |    0x09b6    |
     |    0xf654   |    0x0a86    |
     |    0xf473   |    0x0b2c    |
     |    0xf3ec   |    0x0bb5    |
     |    0xf4d9   |    0x0c0e    |
     |    0xf70a   |    0x0c4d    |
     |    0xfa54   |    0x0c57    |
     |    0xfe4e   |    0x0c37    |
     |    0x0274   |    0x0bee    |
     |    0x065d   |    0x0b80    |
     |    0x0973   |    0x0ae0    |
     |    0x0b7c   |    0x0a2e    |
     |    0x0c25   |    0x0951    |
     |    0x0b5b   |    0x084c    |
     |    0x093f   |    0x0734    |
     |    0x0606   |    0x0602    |
     |    0x0224   |    0x04b8    |
     |    0xfdf2   |    0x0362    |
     |    0xfa04   |    0x0201    |
     |    0xf6ca   |    0x009e    |
     |    0xf4af   |    0xff35    |
     |    0xf3e7   |    0xfdca    |
     |    0xf48a   |    0xfc66    |
     |    0xf689   |    0xfb13    |
     |    0xf9ae   |    0xf9cc    |
     |    0xfd8b   |    0xf8a1    |
     |    0x01be   |    0xf78a    |
     |    0x05b3   |    0xf692    |
     |    0x08fd   |    0xf5bd    |
     |    0x0b37   |    0xf504    |
     |    0x0c1e   |    0xf476    |
     |    0x0b97   |    0xf40c    |
     |    0x09b7   |    0xf3cc    |
     |    0x06ac   |    0xf3b0    |
     |    0x02d2   |    0xf3c2    |
     |    0xfeae   |    0xf3fe    |
     |    0xfaac   |    0xf466    |
     |    0xf74c   |    0xf4f1    |
     |    0xf4f9   |    0xf59d    |
     |    0xf3f3   |    0xf67a    |
     |    0xf454   |    0xf76c    |
     |    0xf619   |    0xf87f    |
     |    0xf90a   |    0xf9a4    |
     |    0xfcd0   |    0xfae8    |
     |    0x0101   |    0xfc3c    |
     |    0x0502   |    0xfd9a    |
     |    0x0877   |    0xff05    |
     |    0x0ae7   |    0x006f    |
     |    0x0c11   |    0x01d6    |
     |    0x0bce   |    0x0337    |
     |    0x0a21   |    0x0496    |
     |    0x074a   |    0x05e1    |
     |    0x0392   |    0x070f    |
     |    0xff6e   |    0x082c    |
     |    0xfb60   |    0x092a    |
     |    0xf7d4   |    0x0a12    |
     |    0xf54f   |    0x0ad2    |
     |    0xf405   |    0x0b6d    |
     |    0xf42a   |    0x0bdf    |
     |    0xf5b5   |    0x0c2c    |
     |    0xf873   |    0x0c50    |
     |    0xfc20   |    0x0c50    |
     |    0x003a   |    0x0c19    |
     |    0x0450   |    0x0bbf    |
     |    0x07ed   |    0x0b44    |
     |    0x0a8a   |    0x0a99    |
     |    0x0bf5   |    0x09ce    |
     |    0x0bf6   |    0x08df    |
     |    0x0a86   |    0x07de    |
     |    0x07e2   |    0x06b3    |
     |    0x044c   |    0x0578    |
     |    0x0030   |    0x042c    |
     |    0xfc13   |    0x02cc    |
     |    0xf86d   |    0x0162    |
     |    0xf5a7   |    0xfffe    |
     |    0xf424   |    0xfe96    |
     |    0xf406   |    0xfd2f    |
     |    0xf556   |    0xfbd2    |
     |    0xf7e6   |    0xfa88    |
     |    0xfb6b   |    0xf94b    |
     |    0xff79   |    0xf828    |
     |    0x039b   |    0xf71f    |
     |    0x0753   |    0xf637    |
     |    0x0a2c   |    0xf568    |
     |    0x0bd0   |    0xf4c5    |
     |    0x0c0b   |    0xf443    |
     |    0x0ae4   |    0xf3e9    |
     |    0x086d   |    0xf3ba    |
     |    0x04fb   |    0xf3b9    |
     |    0x00ec   |    0xf3d8    |
     |    0xfcc9   |    0xf429    |
     |    0xf900   |    0xf4a1    |
     |    0xf615   |    0xf53d    |
     |    0xf452   |    0xf5fa    |
     |    0xf3f3   |    0xf6e0    |
     |    0xf500   |    0xf7dd    |
     |    0xf758   |    0xf901    |
     |    0xfabc   |    0xfa33    |
     |    0xfebd   |    0xfb79    |
     |    0x02e5   |    0xfcd6    |
     |    0x06b7   |    0xfe3b    |
     |    0x09be   |    0xffa2    |
     |    0x0b9e   |    0x010a    |
     |    0x0c1f   |    0x0273    |
     |    0x0b32   |    0x03d3    |
     |    0x08f2   |    0x0522    |
     |    0x05a4   |    0x0666    |
     |    0x01ae   |    0x0790    |
     |    0xfd82   |    0x089f    |
     |    0xf9a6   |    0x0992    |
     |    0xf684   |    0x0a6b    |
     |    0xf48b   |    0x0b1d    |
     |    0xf3e8   |    0x0ba5    |
     |    0xf4b3   |    0x0c0a    |
     |    0xf6d5   |    0x0c3e    |
     |    0xfa0e   |    0x0c55    |
     |    0xfe01   |    0x0c3d    |
     |    0x022a   |    0x0bf9    |
     |    0x0614   |    0x0b87    |
     |    0x0947   |    0x0aff    |
     |    0x0b61   |    0x0a40    |
     |    0x0c24   |    0x096c    |
     |    0x0b72   |    0x0873    |
     |    0x0972   |    0x075d    |
     |    0x0649   |    0x0632    |
     |    0x026f   |    0x04ea    |
     |    0xfe42   |    0x0395    |
     |    0xfa4b   |    0x0234    |
     |    0xf703   |    0x00d0    |
     |    0xf4cd   |    0xff62    |
     |    0xf3e8   |    0xfdf6    |
     |    0xf471   |    0xfc99    |
     |    0xf65e   |    0xfb3e    |
     |    0xf96b   |    0xf9f9    |
     |    0xfd40   |    0xf8c8    |
     |    0x016c   |    0xf7b0    |
     |    0x056c   |    0xf6b6    |
     |    0x08c8   |    0xf5ce    |
     |    0x0b16   |    0xf51d    |
     |    0x0c1c   |    0xf487    |
     |    0x0baf   |    0xf415    |
     |    0x09e6   |    0xf3d1    |
     |    0x06ef   |    0xf3b5    |
     |    0x0324   |    0xf3c1    |
     |    0xfefe   |    0xf3f7    |
     |    0xfaf8   |    0xf459    |
     |    0xf783   |    0xf4de    |
     |    0xf51a   |    0xf588    |
     |    0xf3f5   |    0xf654    |
     |    0xf443   |    0xf74d    |
     |    0xf5e8   |    0xf857    |
     |    0xf8cf   |    0xf980    |
     |    0xfc88   |    0xfab7    |
     |    0x00ac   |    0xfc0e    |
     |    0x04b8   |    0xfd6e    |
     |    0x0842   |    0xfecd    |
     |    0x0ac4   |    0x0040    |
     |    0x0c08   |    0x01aa    |
     |    0x0be0   |    0x030a    |
     |    0x0a4c   |    0x046b    |
     |    0x0789   |    0x05b0    |
     |    0x03da   |    0x06e6    |
     |    0xffc0   |    0x0809    |
     |    0xfba8   |    0x090f    |
     |    0xf814   |    0x09f6    |
     |    0xf572   |    0x0ab9    |
     |    0xf412   |    0x0b56    |
     |    0xf418   |    0x0bd1    |
     |    0xf587   |    0x0c2a    |
     |    0xf836   |    0x0c50    |
     |    0xfbd2   |    0x0c4b    |
     |    0xffeb   |    0x0c25    |
     |    0x0407   |    0x0bd0    |
     |    0x07ab   |    0x0b55    |
     |    0x0a66   |    0x0ab4    |
     |    0x0be6   |    0x09ed    |
     |    0x0c00   |    0x0909    |
     |    0x0ab2   |    0x0803    |
     |    0x081d   |    0x06e0    |
     |    0x048f   |    0x05a5    |
     |    0x007f   |    0x045b    |
     |    0xfc5b   |    0x02f9    |
     |    0xf8aa   |    0x0195    |
     |    0xf5d1   |    0x0032    |
     |    0xf439   |    0xfec4    |
     |    0xf3fc   |    0xfd60    |
     |    0xf532   |    0xfc05    |
     |    0xf7a6   |    0xfab2    |
     |    0xfb1c   |    0xf970    |
     |    0xff2c   |    0xf84e    |
     |    0x0348   |    0xf740    |
     |    0x0716   |    0xf654    |
     |    0x0a00   |    0xf581    |
     |    0x0bbf   |    0xf4d7    |
     |    0x0c1a   |    0xf44e    |
     |    0x0b02   |    0xf3f4    |
     |    0x08a7   |    0xf3bf    |
     |    0x0540   |    0xf3b6    |
     |    0x013e   |    0xf3d5    |
     |    0xfd14   |    0xf416    |
     |    0xf947   |    0xf48a    |
     |    0xf646   |    0xf523    |
     |    0xf46c   |    0xf5de    |
     |    0xf3eb   |    0xf6b9    |
     |    0xf4df   |    0xf7b9    |
     |    0xf71e   |    0xf8d5    |
     |    0xfa6e   |    0xfa09    |
     |    0xfe69   |    0xfb52    |
     |    0x0296   |    0xfca4    |
     |    0x066f   |    0xfe08    |
     |    0x098d   |    0xff6a    |
     |    0x0b89   |    0x00db    |
     |    0x0c25   |    0x0241    |
     |    0x0b4d   |    0x039d    |
     |    0x092d   |    0x04f8    |
     |    0x05e8   |    0x063b    |
     |    0x01f9   |    0x0768    |
     |    0xfdd3   |    0x087f    |
     |    0xf9ea   |    0x0978    |
     |    0xf6b7   |    0x0a4d    |
     |    0xf4a3   |    0x0b09    |
     |    0xf3ea   |    0x0b93    |
     |    0xf497   |    0x0c00    |
     |    0xf6a9   |    0x0c3d    |
     |    0xf9c7   |    0x0c55    |
     |    0xfdad   |    0x0c41    |
     |    0x01da   |    0x0c07    |
     |    0x05cb   |    0x0b9e    |
     |    0x090e   |    0x0b14    |
     |    0x0b3e   |    0x0a62    |
     |    0x0c21   |    0x098a    |
     |    0x0b91   |    0x0899    |
     |    0x09a2   |    0x0787    |
     |    0x0697   |    0x0658    |
     |    0x02ba   |    0x0517    |
     |    0xfe93   |    0x03c7    |
     |    0xfa93   |    0x0268    |
     |    0xf737   |    0x00fc    |
     |    0xf4f3   |    0xff95    |
     |    0xf3f2   |    0xfe29    |
     |    0xf45a   |    0xfcc7    |
     |    0xf629   |    0xfb71    |
     |    0xf928   |    0xfa22    |
     |    0xfcef   |    0xf8f1    |
     |    0x0117   |    0xf7d1    |
     |    0x0520   |    0xf6d7    |
     |    0x088b   |    0xf5ee    |
     |    0x0af3   |    0xf533    |
     |    0x0c13   |    0xf496    |
     |    0x0bc5   |    0xf423    |
     |    0x0a14   |    0xf3d8    |
     |    0x0734   |    0xf3b4    |
     |    0x0374   |    0xf3bb    |
     |    0xff54   |    0xf3ee    |
     |    0xfb42   |    0xf44a    |
     |    0xf7c1   |    0xf4cc    |
     |    0xf542   |    0xf56d    |
     |    0xf402   |    0xf639    |
     |    0xf42d   |    0xf72a    |
     |    0xf5c4   |    0xf82d    |
     |    0xf88f   |    0xf957    |
     |    0xfc3c   |    0xfa91    |
     |    0x005e   |    0xfbde    |
     |    0x046d   |    0xfd3d    |
     |    0x0801   |    0xfea2    |
     |    0x0a96   |    0x000e    |
     |    0x0c00   |    0x0175    |
     |    0x0bee   |    0x02da    |
     |    0x0a7d   |    0x0437    |
     |    0x07cb   |    0x0586    |
     |    0x042a   |    0x06c2    |
     |    0x0010   |    0x07df    |
     |    0xfbf5   |    0x08ea    |
     |    0xf853   |    0x09d4    |
     |    0xf59e   |    0x0aa5    |
     |    0xf41f   |    0x0b4b    |
     |    0xf407   |    0x0bc7    |
     |    0xf563   |    0x0c1a    |
     |    0xf7fa   |    0x0c4b    |
     |    0xfb85   |    0x0c51    |
     |    0xff9d   |    0x0c2d    |
     |    0x03b9   |    0x0bde    |
     |    0x076b   |    0x0b6b    |
     |    0x0a3d   |    0x0acc    |
     |    0x0bd4   |    0x0a09    |
     |    0x0c0a   |    0x0927    |
     |    0x0ad4   |    0x081e    |
     |    0x0859   |    0x0705    |
     |    0x04de   |    0x05cf    |
     |    0x00cd   |    0x0488    |
     |    0xfcad   |    0x032e    |
     |    0xf8f0   |    0x01d0    |
     |    0xf605   |    0x0063    |
     |    0xf447   |    0xfef6    |
     |    0xf3f4   |    0xfd8d    |
     |    0xf50e   |    0xfc2e    |
     |    0xf76d   |    0xfadc    |
     |    0xfad3   |    0xf9a3    |
     |    0xfed7   |    0xf875    |
     |    0x0304   |    0xf765    |
     |    0x06d0   |    0xf66d    |
     |    0x09d3   |    0xf59a    |
     |    0x0ba8   |    0xf4ec    |
     |    0x0c1b   |    0xf45e    |
     |    0x0b28   |    0xf3fe    |
     |    0x08e4   |    0xf3c8    |
     |    0x0587   |    0xf3b4    |
     |    0x0191   |    0xf3cc    |
     |    0xfd62   |    0xf413    |
     |    0xf991   |    0xf479    |
     |    0xf671   |    0xf510    |
     |    0xf480   |    0xf5c0    |
     |    0xf3ef   |    0xf69e    |
     |    0xf4be   |    0xf794    |
     |    0xf6ef   |    0xf8ac    |
     |    0xfa24   |    0xf9dc    |
     |    0xfe1a   |    0xfb23    |
     |    0x0247   |    0xfc71    |
     |    0x062f   |    0xfddb    |
     |    0x095b   |    0xff3b    |
     |    0x0b69   |    0x00aa    |
     |    0x0c21   |    0x020e    |
     |    0x0b6c   |    0x0376    |
     |    0x0960   |    0x04c4    |
     |    0x0635   |    0x0611    |
     |    0x024d   |    0x0743    |
     |    0xfe17   |    0x085a    |
     |    0xfa31   |    0x0955    |
     |    0xf6ea   |    0x0a32    |
     |    0xf4c2   |    0x0aef    |
     |    0xf3eb   |    0x0b85    |
     |    0xf47f   |    0x0bef    |
     |    0xf66f   |    0x0c37    |
     |    0xf985   |    0x0c54    |
     |    0xfd5d   |    0x0c49    |
     |    0x018a   |    0x0c11    |
     |    0x0586   |    0x0bb1    |
     |    0x08e0   |    0x0b23    |
     |    0x0b27   |    0x0a7a    |
     |    0x0c23   |    0x09a9    |
     |    0x0baa   |    0x08b9    |
     |    0x09d5   |    0x07aa    |
     |    0x06d7   |    0x0682    |
     |    0x030e   |    0x0541    |
     |    0xfedf   |    0x03f0    |
     |    0xfada   |    0x029a    |
     |    0xf772   |    0x012f    |
     |    0xf511   |    0xffc6    |
     |    0xf3f5   |    0xfe5e    |
     |    0xf44c   |    0xfcf4    |
     |    0xf5fc   |    0xfb9c    |
     |    0xf8e8   |    0xfa55    |
     |    0xfca7   |    0xf91d    |
     |    0x00cf   |    0xf7f6    |
     |    0x04d5   |    0xf6f3    |
     |    0x0855   |    0xf607    |
     |    0x0ad4   |    0xf54f    |
     |    0x0c0f   |    0xf4ac    |
     |    0x0bda   |    0xf431    |
     |    0x0a3f   |    0xf3da    |
     |    0x076e   |    0xf3b4    |
     |    0x03c2   |    0xf3b8    |
     |    0xff9b   |    0xf3e9    |
     |    0xfb8b   |    0xf439    |
     |    0xf7f9   |    0xf4b3    |
     |    0xf564   |    0xf559    |
     |    0xf410   |    0xf61a    |
     |    0xf422   |    0xf704    |
     |    0xf59a   |    0xf810    |
     |    0xf850   |    0xf92e    |
     |    0xfbf0   |    0xfa68    |
     |    0x0007   |    0xfbae    |
     |    0x041f   |    0xfd0d    |
     |    0x07c3   |    0xfe73    |
     |    0x0a77   |    0xffdc    |
     |    0x0bef   |    0x0143    |
     |    0x0bf7   |    0x02aa    |
     |    0x0aa6   |    0x040e    |
     |    0x0804   |    0x0556    |
     |    0x0473   |    0x0698    |
     |    0x0060   |    0x07be    |
     |    0xfc41   |    0x08cb    |
     |    0xf88d   |    0x09ba    |
     |    0xf5c2   |    0x0a8d    |
     |    0xf42e   |    0x0b35    |
     |    0xf3fd   |    0x0bbb    |
     |    0xf53e   |    0x0c16    |
     |    0xf7c6   |    0x0c4e    |
     |    0xfb3d   |    0x0c52    |
     |    0xff4b   |    0x0c2f    |
     |    0x0368   |    0x0be9    |
     |    0x0728   |    0x0b7c    |
     |    0x0a17   |    0x0ae4    |
     |    0x0bc4   |    0x0a27    |
     |    0x0c13   |    0x0943    |
     |    0x0afa   |    0x084a    |
     |    0x0893   |    0x072d    |
     |    0x0524   |    0x05fc    |
     |    0x0124   |    0x04b2    |
     |    0xfcf6   |    0x035e    |
     |    0xf931   |    0x01fd    |
     |    0xf62e   |    0x0090    |
     |    0xf45d   |    0xff2a    |
     |    0xf3ee   |    0xfdc0    |
     |    0xf4f0   |    0xfc5e    |
     |    0xf730   |    0xfb0a    |
     |    0xfa8f   |    0xf9c4    |
     |    0xfe87   |    0xf896    |
     |    0x02b3   |    0xf785    |
     |    0x068d   |    0xf68e    |
     |    0x099d   |    0xf5b7    |
     |    0x0b8f   |    0xf501    |
     |    0x0c21   |    0xf46f    |
     |    0x0b42   |    0xf406    |
     |    0x0915   |    0xf3c7    |
     |    0x05d8   |    0xf3ae    |
     |    0x01de   |    0xf3ca    |
     |    0xfdb4   |    0xf404    |
     |    0xf9ce   |    0xf46b    |
     |    0xf6a3   |    0xf4f5    |
     |    0xf49a   |    0xf5a8    |
     |    0xf3e4   |    0xf67f    |
     |    0xf49e   |    0xf76f    |
     |    0xf6b4   |    0xf886    |
     |    0xf9e6   |    0xf9b3    |
     |    0xfdc9   |    0xfaf5    |
     |    0x01f7   |    0xfc4c    |
     |    0x05e9   |    0xfda8    |
     |    0x0926   |    0xff11    |
     |    0x0b4f   |    0x007a    |
     |    0x0c22   |    0x01e2    |
     |    0x0b8c   |    0x0347    |
     |    0x0990   |    0x049d    |
     |    0x0676   |    0x05e9    |
     |    0x029d   |    0x0718    |
     |    0xfe6c   |    0x0838    |
     |    0xfa78   |    0x0937    |
     |    0xf71d   |    0x0a17    |
     |    0xf4e4   |    0x0ad3    |
     |    0xf3eb   |    0x0b6c    |
     |    0xf463   |    0x0be7    |
     |    0xf63d   |    0x0c2f    |
     |    0xf944   |    0x0c50    |
     |    0xfd0d   |    0x0c46    |
     |    0x0137   |    0x0c1c    |
     |    0x0542   |    0x0bbe    |
     |    0x08a3   |    0x0b3b    |
     |    0x0b01   |    0x0a96    |
     |    0x0c14   |    0x09c4    |
     |    0x0bbe   |    0x08d7    |
     |    0x0a01   |    0x07d2    |
     |    0x0719   |    0x06af    |
     |    0x0353   |    0x0572    |
     |    0xff31   |    0x0420    |
     |    0xfb20   |    0x02c8    |
     |    0xf7ac   |    0x015f    |
     |    0xf533   |    0xfff7    |
     |    0xf3fb   |    0xfe87    |
     |    0xf431   |    0xfd28    |
     |    0xf5d4   |    0xfbcb    |
     |    0xf8a5   |    0xfa7e    |
     |    0xfc54   |    0xf941    |
     |    0x007a   |    0xf81d    |
     |    0x048b   |    0xf718    |
     |    0x0816   |    0xf62d    |
     |    0x0aaa   |    0xf563    |
     |    0x0c01   |    0xf4bb    |
     |    0x0be8   |    0xf43d    |
     |    0x0a6b   |    0xf3eb    |
     |    0x07b2   |    0xf3bb    |
     |    0x0409   |    0xf3b7    |
     |    0xffee   |    0xf3da    |
     |    0xfbd2   |    0xf42d    |
     |    0xf83a   |    0xf49f    |
     |    0xf586   |    0xf53e    |
     |    0xf418   |    0xf604    |
     |    0xf40b   |    0xf6e4    |
     |    0xf56d   |    0xf7e8    |
     |    0xf813   |    0xf905    |
     |    0xfba4   |    0xfa3e    |
     |    0xffb6   |    0xfb83    |
     |    0x03d6   |    0xfcdb    |
     |    0x0782   |    0xfe40    |
     |    0x0a45   |    0xffaa    |
     |    0x0be2   |    0x0114    |
     |    0x0c0e   |    0x0279    |
     |    0x0ac6   |    0x03db    |
     |    0x0841   |    0x0527    |
     |    0x04bc   |    0x066e    |
     |    0x00b4   |    0x0795    |
     |    0xfc8b   |    0x08a9    |
     |    0xf8ce   |    0x099d    |
     |    0xf5f2   |    0x0a6e    |
     |    0xf443   |    0x0b1d    |
Running IIOD server...
If successful, you may connect an IIO client application by:
Disconnecting the serial terminal you use to view this message.
Connecting the IIO client application using the serial backend configured as shown:
Baudrate: 115200
Data size: 8 bits
Parity: none
Stop bits: 1
Flow control: none

IIO Oscilloscope Remote

After booting process is complete, you can open IIO-Oscilloscope. Learn more about it here. You can interact with the IIO-Osc GUI either directly or over the network.

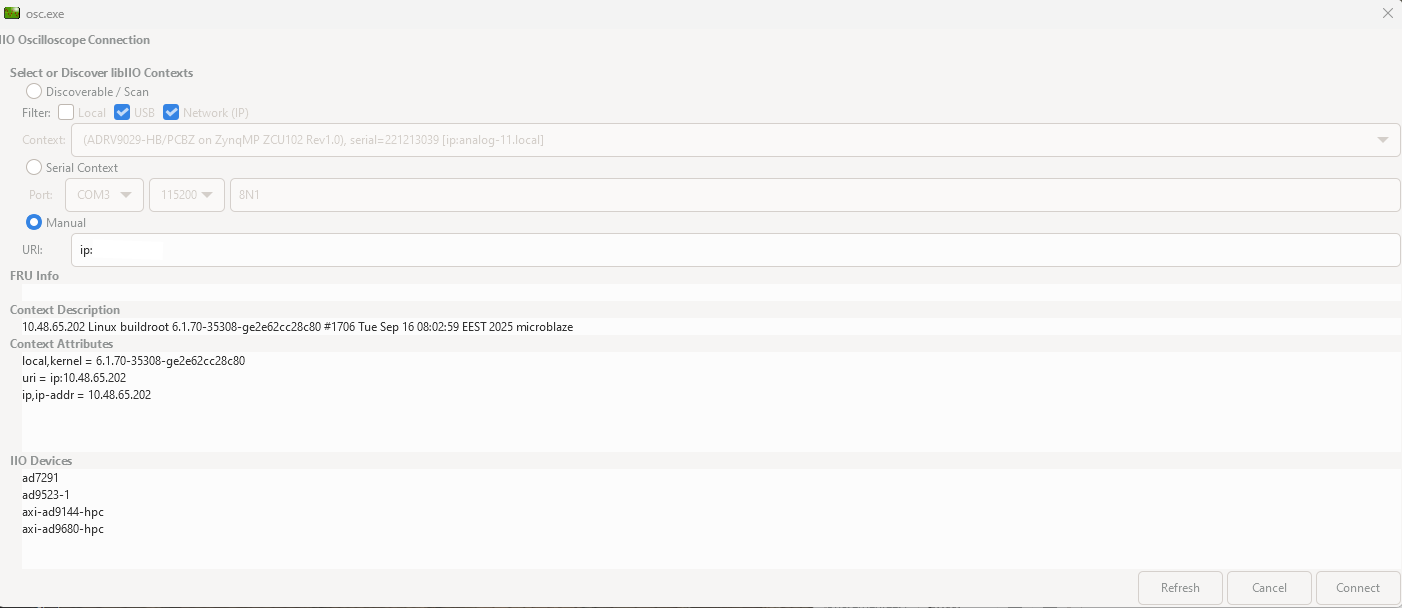

Once the application is launched go to Settings then Connect and enter the IP address of the target in the popup window.

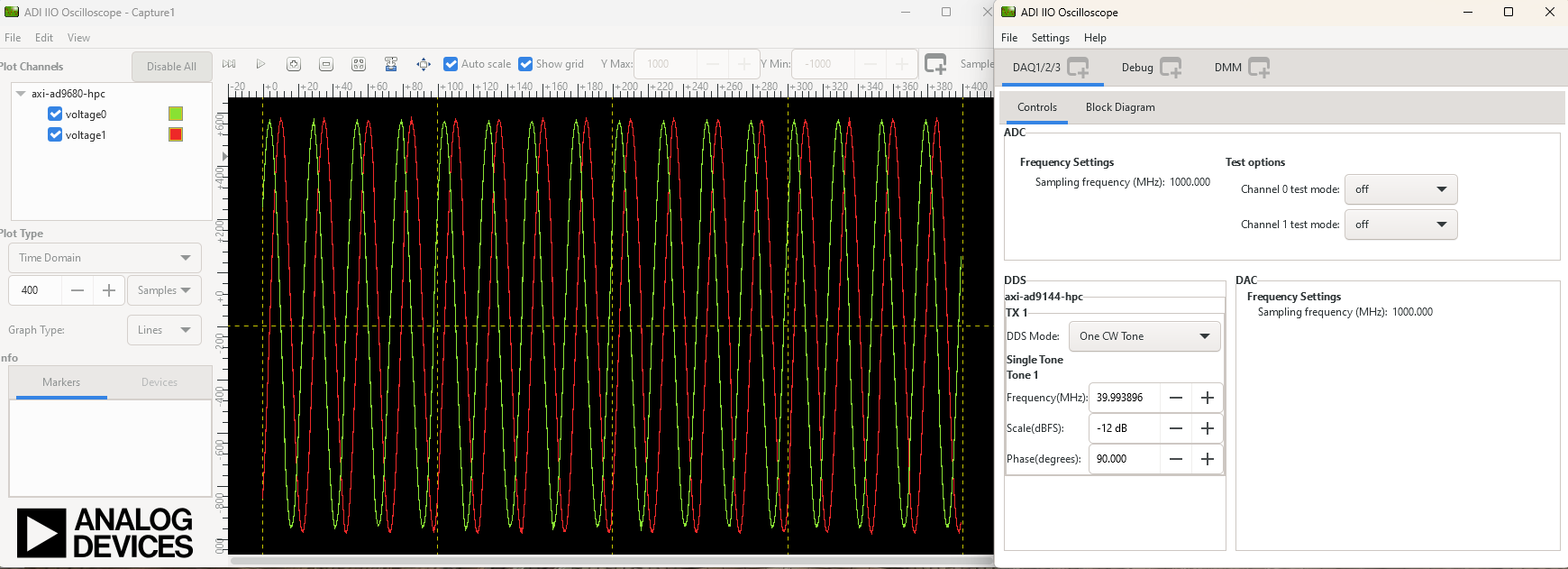

Captured Loopback Signal Time Domain

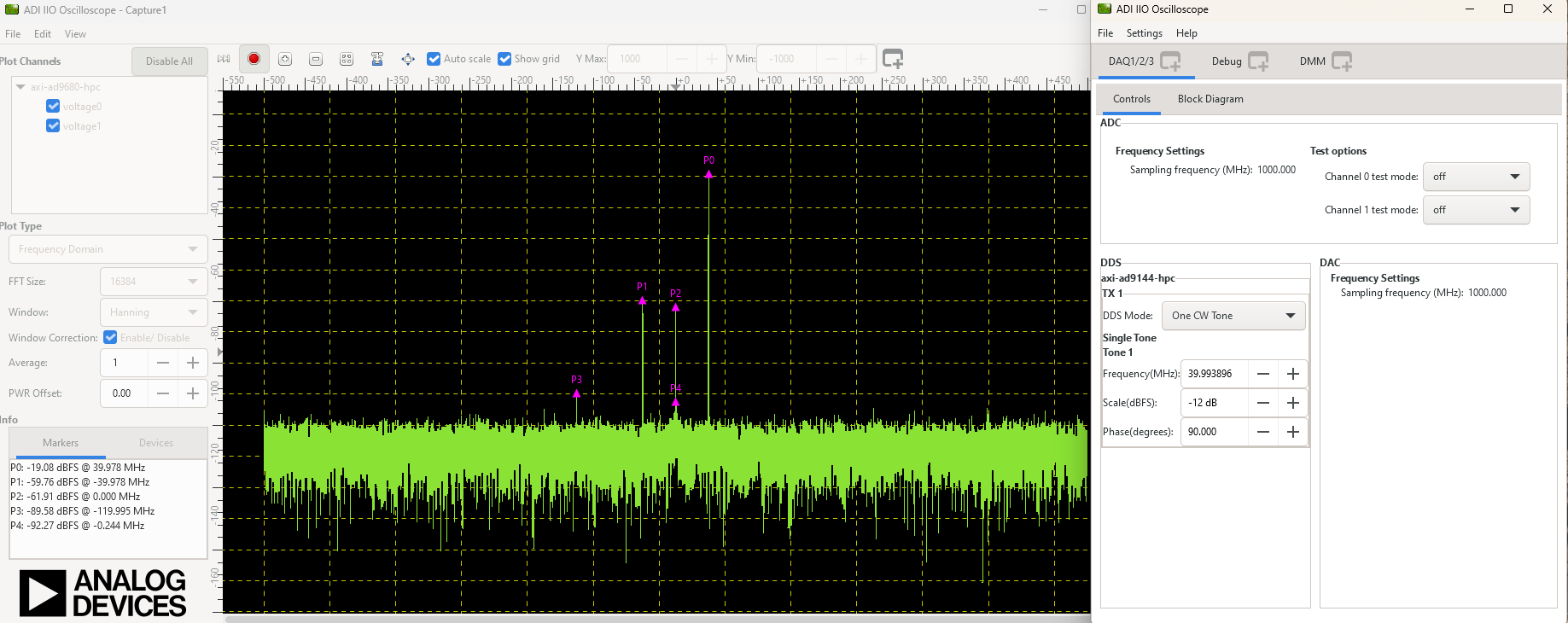

Captured Loopback Signal Frequency Domain
