EVAL-ADPAQ3029 - HC-SR04 demo

  • Download firmware and Tile application from below

Download

HC-SR04 Firmware

Tile GUI application

  • Follow the same steps as given here

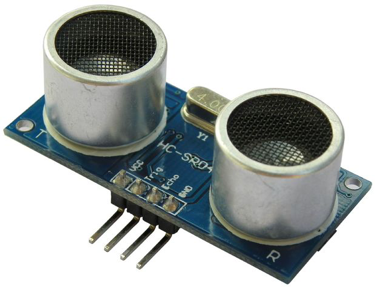

  • In this project, an Ultrasonic Sensor – HC-SR04 has been used.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adpaq3029/images/app5.png

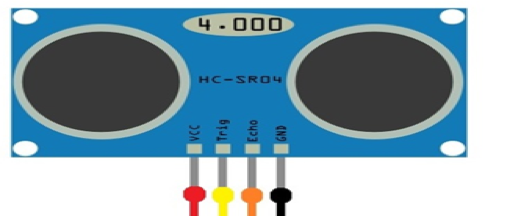

  • The connections between the Ultrasonic Sensor and ADPAQ module are made as described in the table below.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adpaq3029/images/app6.png

HC-SR04 Pins

GPIO port used

ADPAQ Header Pins

Vcc

3.3V

P1-3.3V

Trig

P0_0

P2-5

Echo

P2_1

P3-1

Gnd

GND

P1-GND_POWER

  • Build and run the project

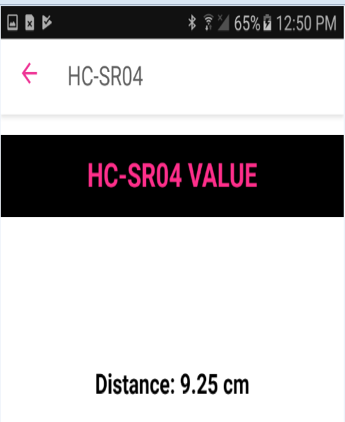

  • The Ultrasonic Sensor measurement is displayed on tile in “cm”.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adpaq3029/images/tile10.png
