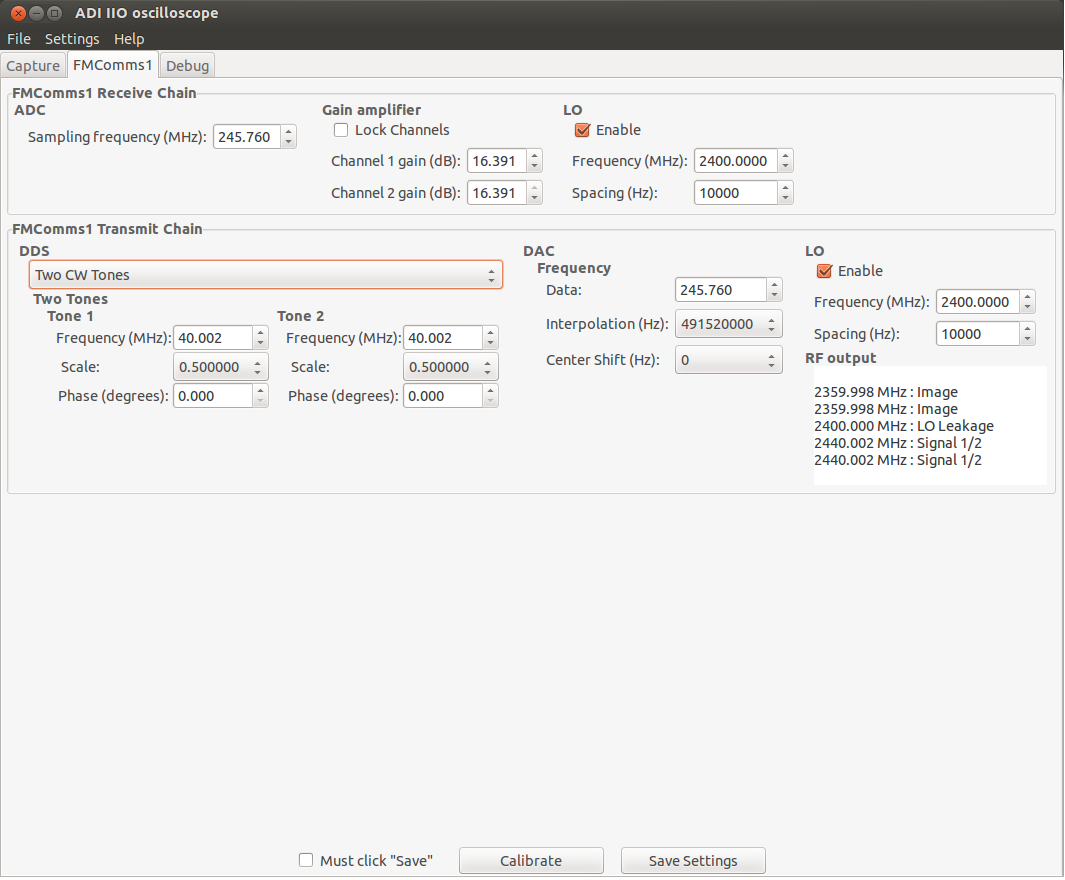

The FMCOMMS1 plugin works with the IIO Oscilloscope. The FMCOMMS1 view is divided into two sections:

  • Receive Chain

  • Transmit Chain

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcomms1-ebz/images/fmcomms1_plugin.png

Clicking the Save Settings button will write changes which have been made to the FMCOMMS1 settings to the hardware. Values round to the nearest hardware-supported value upon saving.

Receive Chain

ADC Settings

  • Sampling Frequency (MHz): Configures the ADC sampling rate.

Gain Amplifier Settings

  • Lock Channels: Forces matching gain values on both channels.

  • Gain (dB): Adjustable I/Q channel gain, from 4.5 dB to 20.5 dB. See AD8366 for more details.

RX LO Settings

Configures the receive PLL (ADF4350).

  • Enable: Toggles the local oscillator on/off.

  • Frequency (MHz): Sets the receive base frequency.

  • Spacing (Hz): Selects the frequency spacing.

Transmit Chain

DDS Settings

The DDS (Direct Digital Synthesizer) provides test tone generation. See AXI DAC DDS HDL documentation for more details.

Available modes:

  • One CW Tone

  • Two CW Tones

  • Independent I/Q Control

  • DAC Buffer Output

  • Disabled

Tone Parameters:

  • Frequency (MHz): Tone frequency selection.

  • Scale: Amplitude adjustment.

  • Phase (degrees): Phase offset configuration.

DAC Frequency Settings

  • Data (MHz): DAC data clock.

  • Interpolation (Hz): Selectable interpolation frequencies.

  • Center Shift (Hz): Selectable center shift frequencies.

TX LO Settings

Configures the transmit PLL (ADF4350).

  • Enable: Toggles the local oscillator on/off.

  • Frequency (MHz): Sets the transmit output frequency.

  • Spacing (Hz): Selects the frequency spacing.
