EVAL-ADMX2001EBZ

Overview

The EVAL-ADMX2001EBZ is an easy-to-use evaluation and development breakout board for the ADMX2001B High-Performance Precision Impedance Analyzer Measurement Module. It enables resistance measurements at DC and impedance measurements from 0.2 Hz to 10 MHz with 18-bit acquisition channels.

Features:

  • Impedance measurements from 0.2 Hz to 10 MHz

  • 18-bit acquisition channels

  • BNC connectors for standard LCR meter test probes and fixtures

  • UART and SPI host interfaces

  • Trigger and clock synchronization via SMA connectors

  • Arduino-style headers compatible with SDP-K1

  • Power jack accepts +5V to +12V input

Applications:

  • Passive component characterization (R, L, C measurement)

  • Impedance spectroscopy

  • Material characterization

  • LCR meter evaluation and development

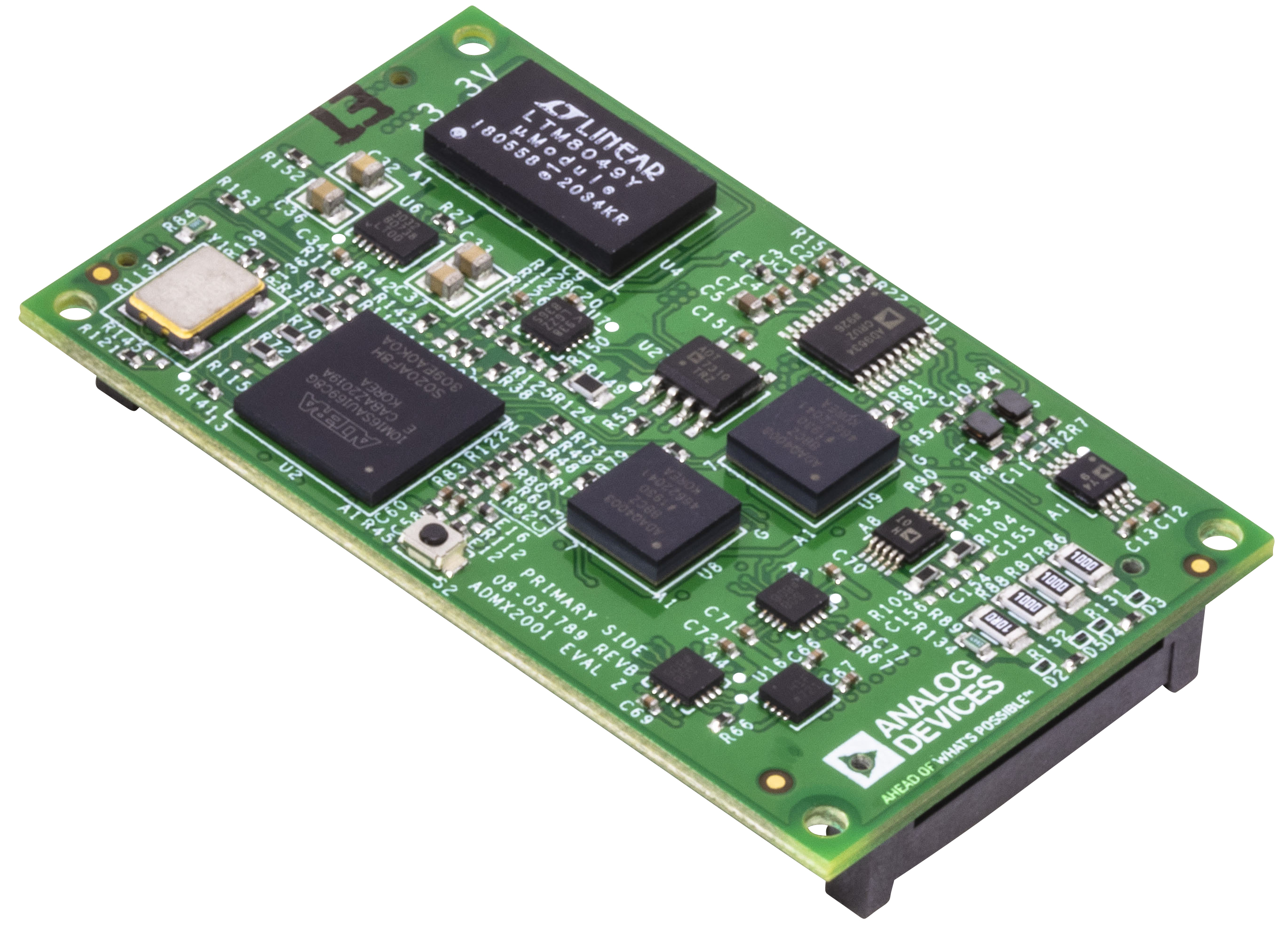

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/admx2001_ebz/images/admx2001_evaluation-board.jpg
