Quickstart
The Quick Start Guide provides simple step by step instructions on how to do an initial system setup for the DC2677A board.
FPGA-based evaluation
Use this guide when evaluating with an FPGA carrier board. It covers bitstream programming and Linux boot.
Supported carriers
The DC2677A uses an HSMC connector to interface with the FPGA carrier.
The carriers we support are:
FPGA board |
DC2677A |
|---|---|
HSMC |
Supported environments
The supported OS are:
Eval Board |
FPGA board |
HDL |
Linux software |
No-OS software |
|---|---|---|---|---|
DC2677A |
Yes |
Yes |
No |
Hardware setup
The DC2677A board connects to the Cyclone V SoCkit via the HSMC connector. The carrier setup requires power (12V for carrier, ±16V/±18V for DC2677A), UART (115200) and Ethernet connections.

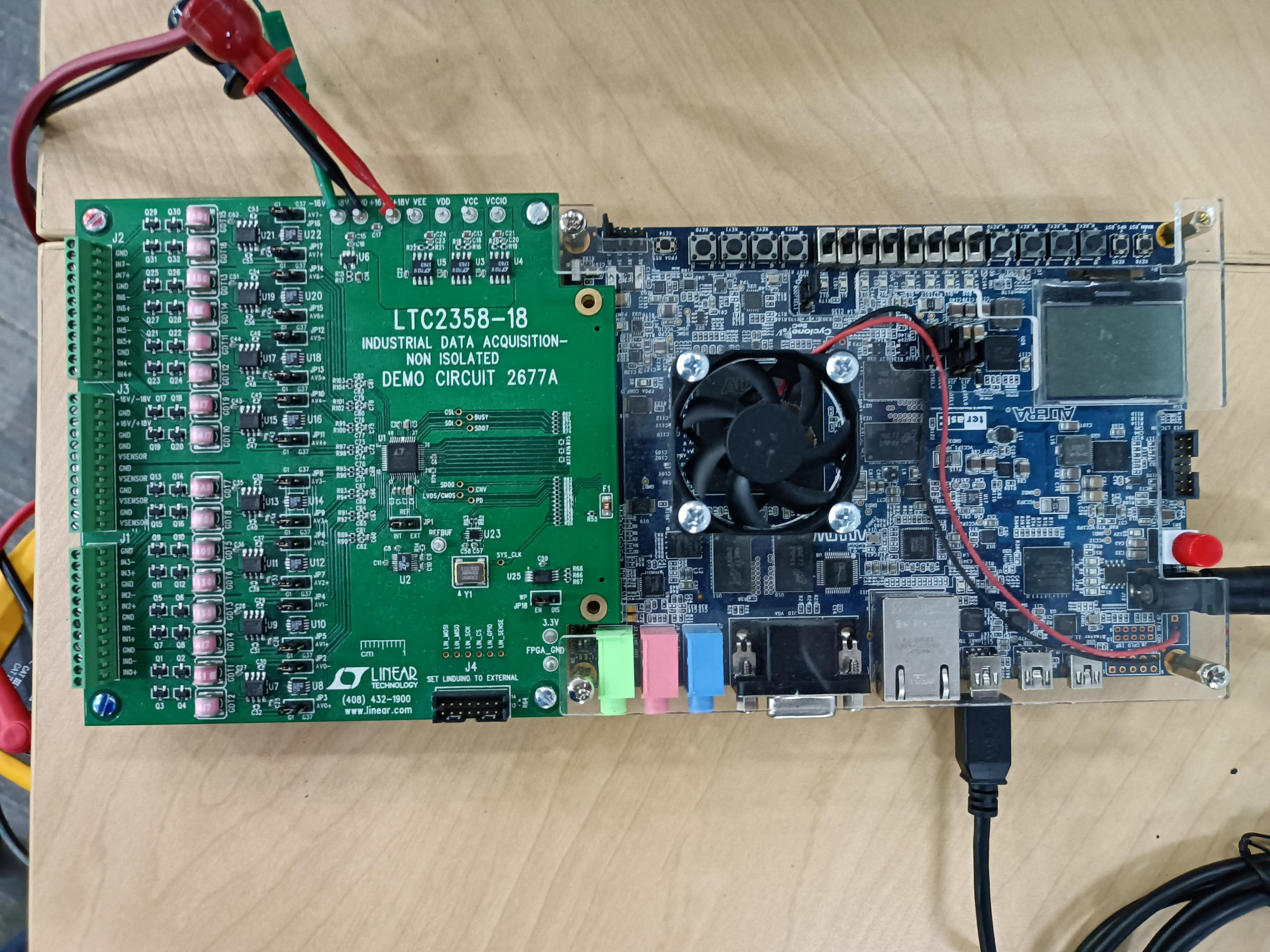

C5SOC + DC2677A
