Quickstart

The Quick Start Guide provides a simple step by step instruction on how to do an initial system setup for the EVAL-AD5758SDZ board on the ZedBoard FPGA development board. It will discuss how to program the bitstream and run a no-OS program.

• ZedBoard
  • Using no-OS as software
    • Necessary files
    • Required Software
    • Required Hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Verifying the setup

Supported carriers

The EVAL-AD5758SDZ is an SDP-format board; it connects to an FPGA carrier’s FMC LPC connector through the EVAL-SDP-CK1Z (FMC-I-SDP) interposer.

The carrier we support is:

• ZedBoard on the FMC LPC connector (via the EVAL-SDP-CK1Z interposer)

Supported Environments

The supported environments are:

Board	HDL	Linux Software	No-OS Software
ZedBoard	Yes	No	Yes

Hardware Setup

The EVAL-AD5758SDZ board connects to the ZedBoard FMC LPC connector through the EVAL-SDP-CK1Z (FMC-I-SDP) interposer. The carrier setup requires power, UART (115200 baud), and a USB connection for no-OS development.

A typical setup is shown below.

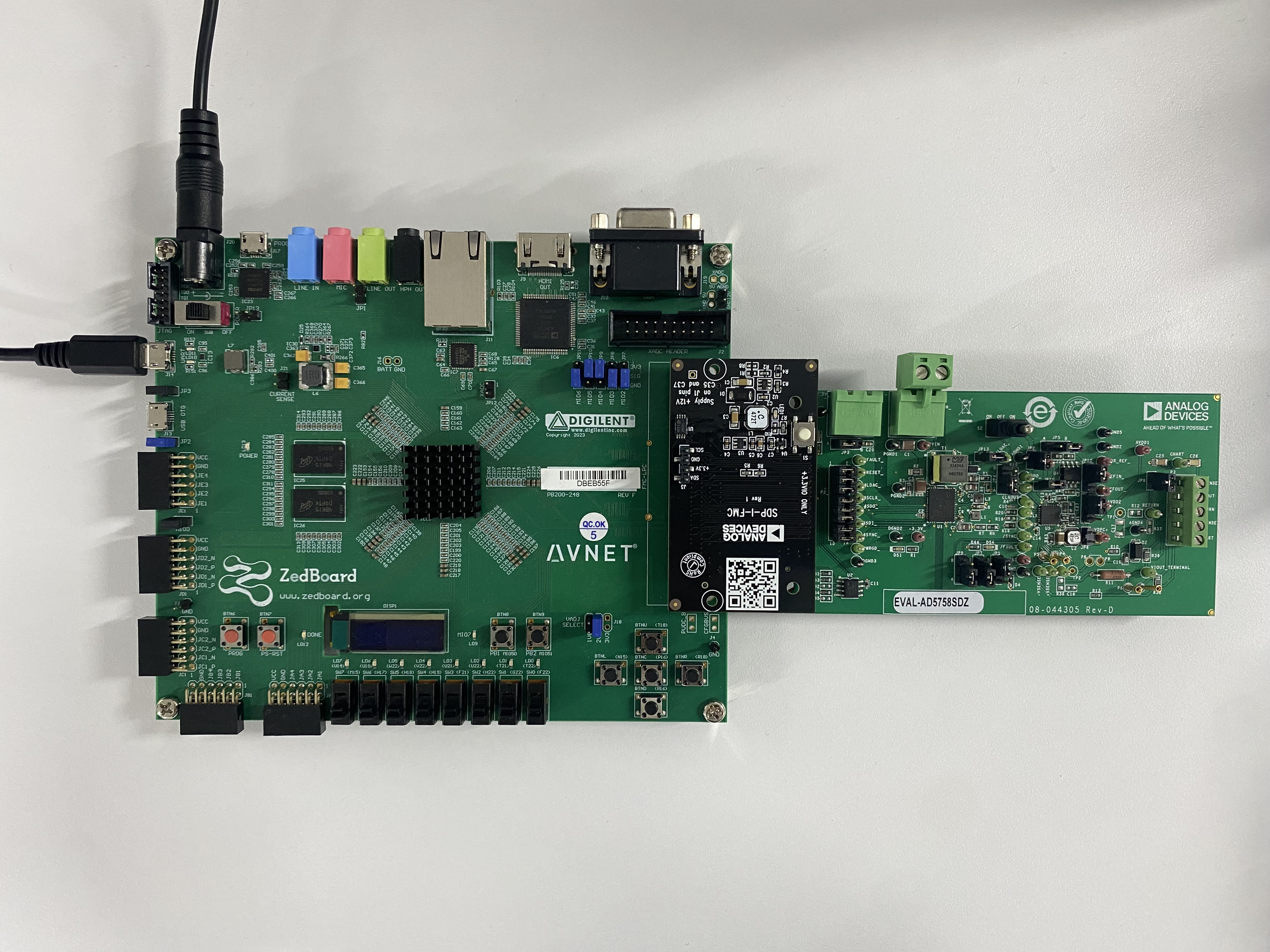

ZedBoard + EVAL-AD5758SDZ

The EVAL-AD5758SDZ connects to the ZedBoard via the FMC LPC (Low Pin Count) connector using the EVAL-SDP-CK1Z (FMC-I-SDP) interposer board. The interposer provides the physical and electrical connection between the SDP-format AD5758 board and the ZedBoard’s FMC connector.

Next Steps

Proceed to the ZedBoard quickstart guide for detailed build and programming instructions.
