EVAL-AD469x

Overview

The EVAL-AD4696FMCZ and EVAL-AD4692-ARDZ evaluation boards enable quick and easy evaluation of the performance and features of the AD469x family of devices.

The AD4695/AD4696 are compact, 16-channel, 16-bit, 1 MSPS, multiplexed successive approximation register (SAR) analog-to-digital converter (ADC) that enable high performance data acquisition of multiple signals in a small form factor. The AD4697/AD4698 are pin-compatible 8-channel variants.

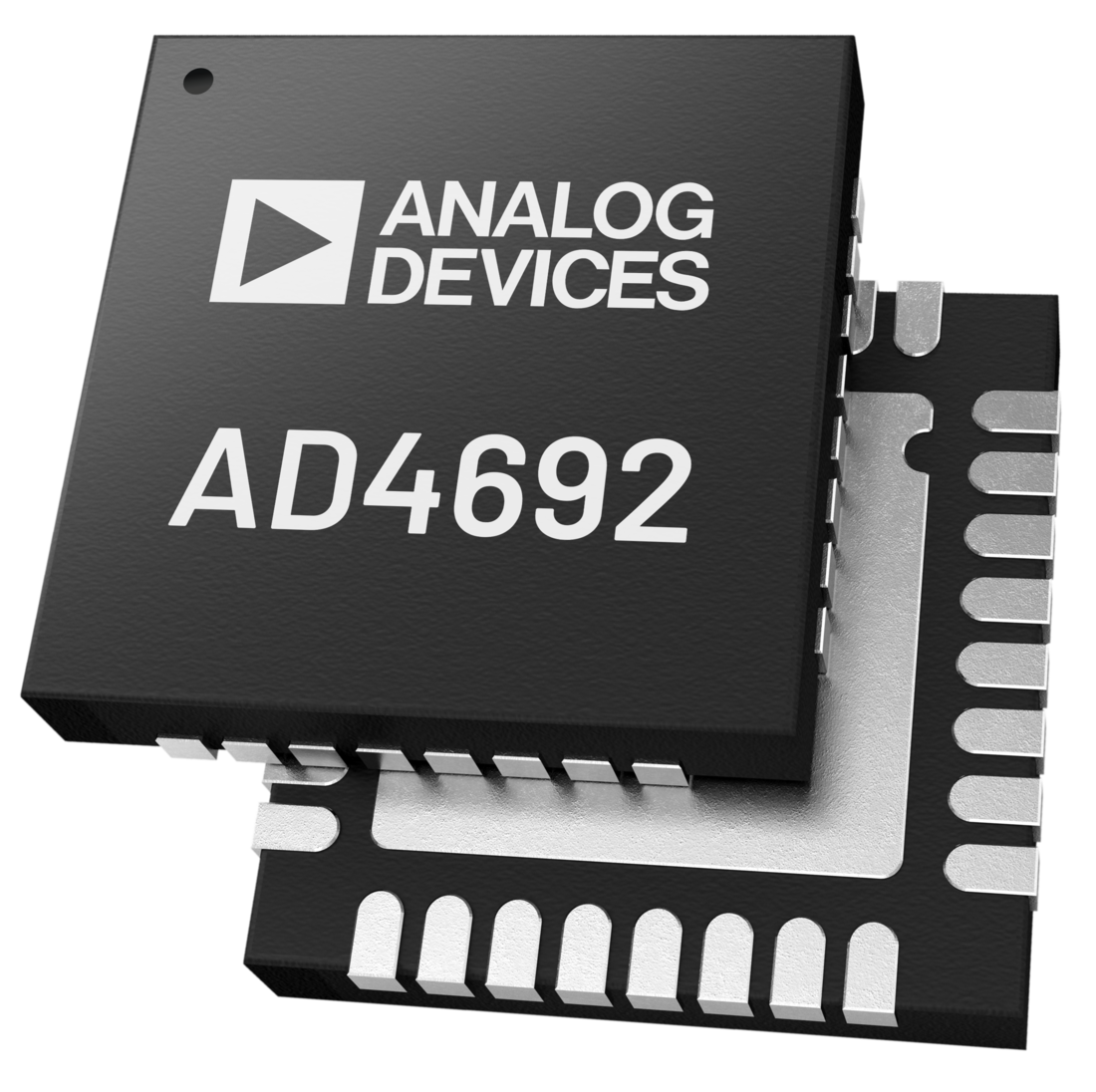

The AD4692/AD4691 are compact, high accuracy, 16-bit Easy Drive successive approximation register (SAR) ADCs optimized for high-density multichannel precision data acquisition solutions. The AD4693/AD4694 are pin-compatible 8-channel variants.

Features:

• 16-bit resolution

• Up to 1 MSPS throughput rate

• 16 channels (AD4691/AD4692/AD4695/AD4696) or 8 channels (AD4693/AD4694/AD4697/AD4698)

• On-board reference circuitry

• ACE plugin available for device configuration and performance evaluation

• SPI-compatible serial interface

• FMC and Arduino form factor evaluation boards

Applications:

• Optical networking

• Wireless infrastructure

• Industrial automation

Figure 1 EVAL-AD4692ARDZ

Figure 2 EVAL-AD4696FMCZ

Recommendations

People who follow the flow that is outlined have a much better experience with things. However, like many things, documentation is never as complete as it should be. If you have any questions, feel free to ask on our EngineerZone forums, but before that, please make sure you read our documentation thoroughly.

Table of contents

1. Using the evaluation board:

   1. Prerequisites - what you need to get started

   2. Quick start guide:

      1. Using the ZedBoard

      2. Using the CoraZ7-07S

      3. Using the DE10-Nano

   3. Configure an SD Card with ADI Kuiper Linux

2. Design with the AD469x

   • Simplified functional block diagram

   • User guide

   • LTspice AD469x model user guide

     • Transient simulations with AD469x LTspice model

   • Resources for designing a custom AD469x-based platform software

     1. For Linux software:

        1. About the device driver:

           • AD4695 IIO ADC driver

        2. About the device tree:

           • Customizing the device tree on the target

     2. HDL reference design which you must use in your FPGA.

3. Help and Support

Simplified functional block diagram

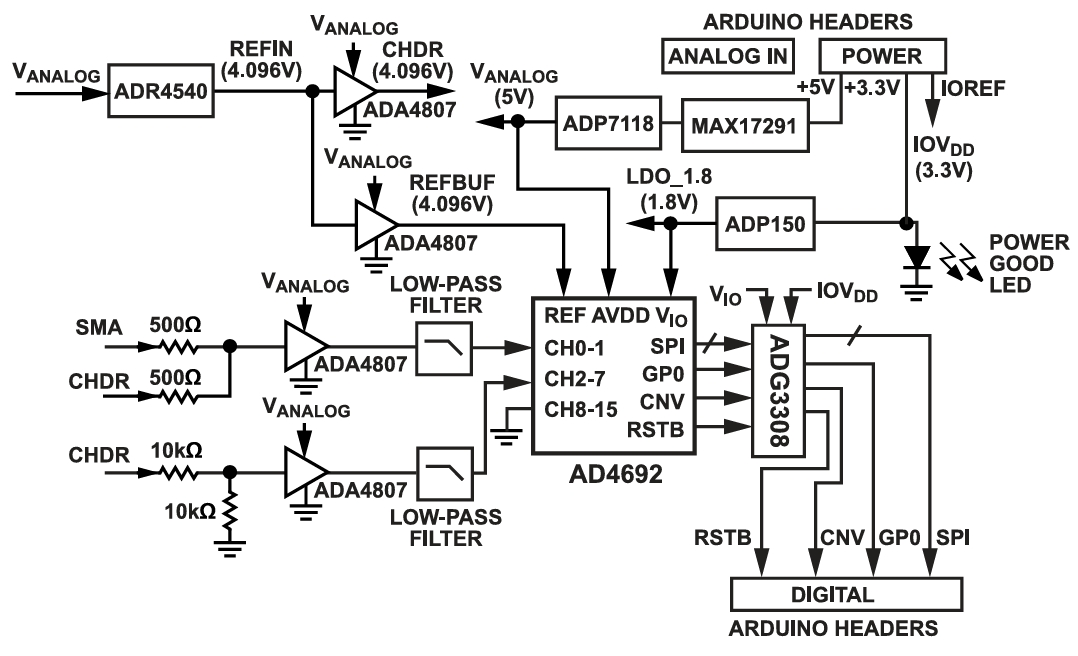

Figure 12 EVAL-AD4692-ARDZ Block Diagram

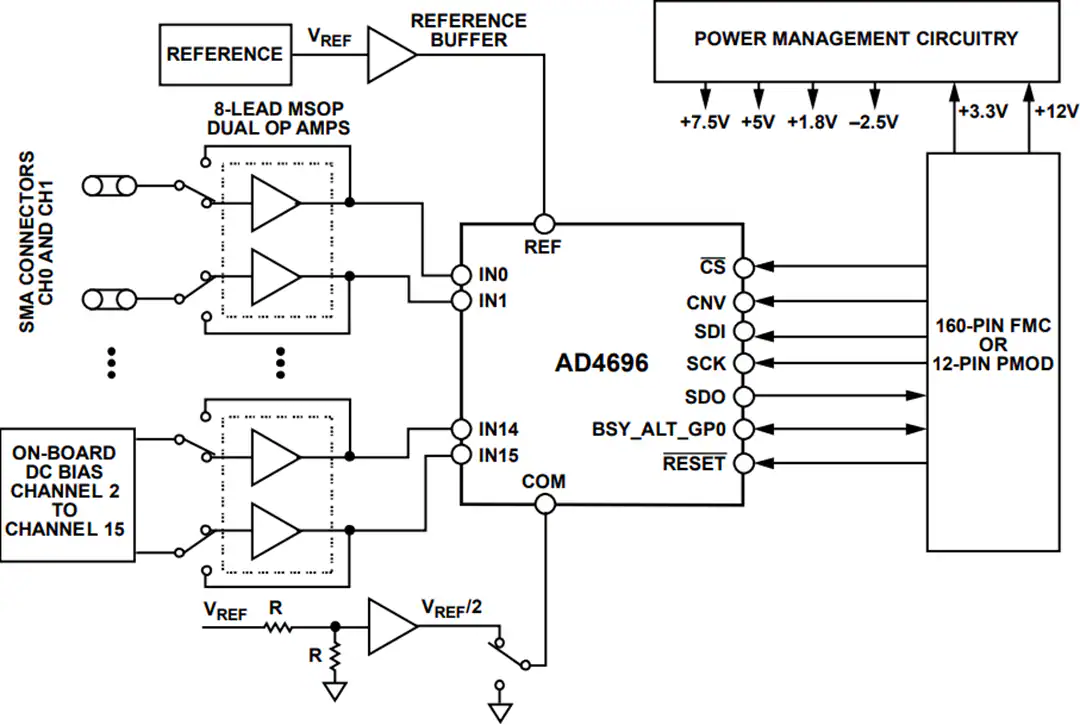

Figure 13 EVAL-AD4696FMCZ Block Diagram

More Information and Useful Links

• AD4691 Product Page

• AD4692 Product Page

• AD4693 Product Page

• AD4694 Product Page

• AD4695 Product Page

• AD4696 Product Page

• AD4697 Product Page

• AD4698 Product Page

Warning

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.

Help and support

Technical support for the evaluation board hardware and software can be obtained by posting a question to ADI’s EngineerZone technical support community for precision ADCs.
