AD-FMCDAQ3-EBZ

Dual 14-bit, 1.25 GSPS JESD204B ADC and dual 16-bit, 2.5 GSPS JESD204B DAC FMC Board.

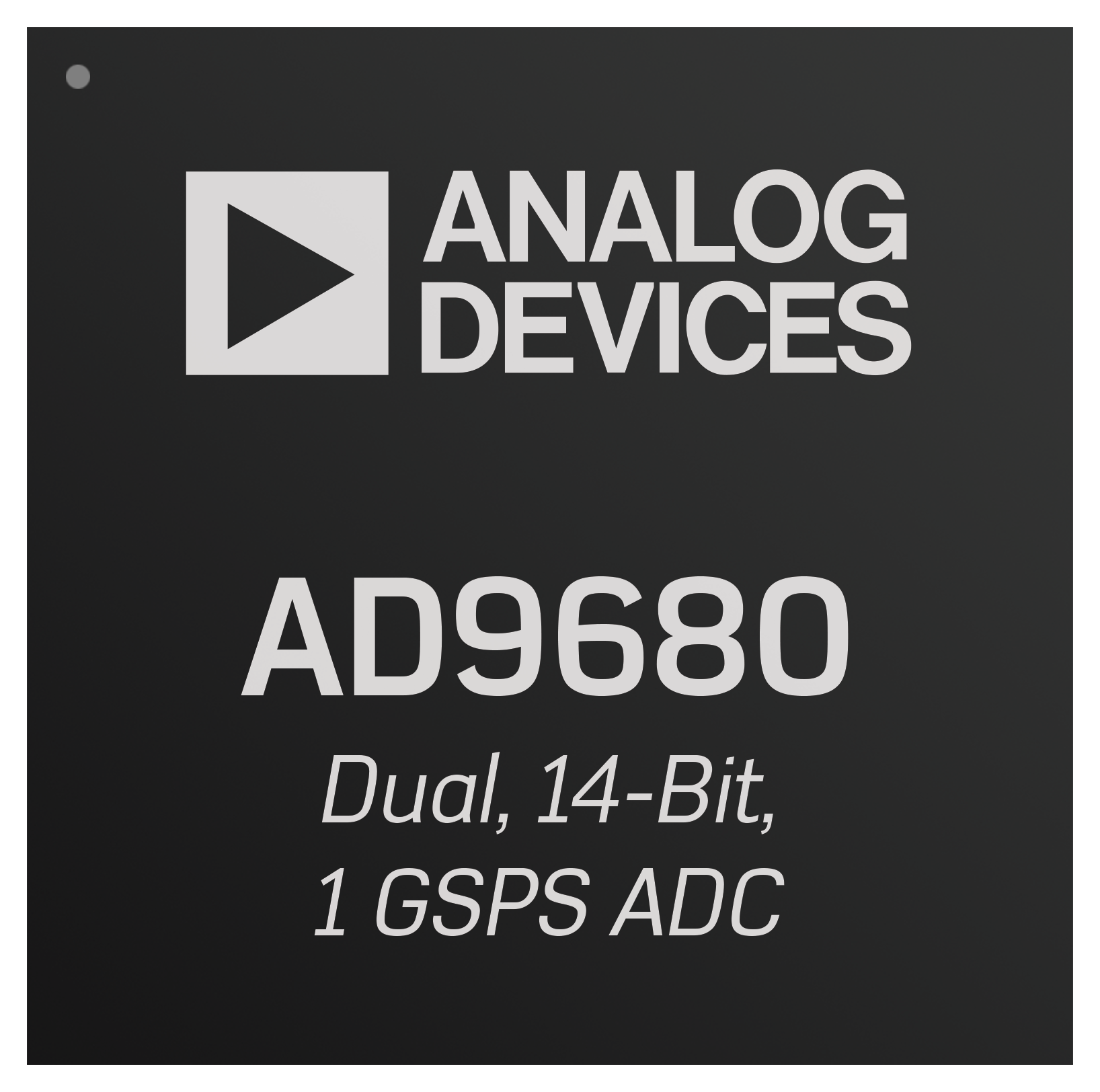

AD9680 chip

Overview

The AD-FMCDAQ3-EBZ is an FMC board featuring the AD9680 dual, 14-bit, 1.25 GSPS, JESD204B ADC, the AD9152 dual, 16-bit, 2.5 GSPS, JESD204B DAC, the AD9528 clock, and power management components. It is clocked by an internally generated carrier platform via the FMC connector, comprising a completely self-contained data acquisition and signal synthesis prototyping platform. In an FMC footprint (84 mm × 69 mm), the module’s combination of wideband data conversion, clocking, and power closely approximates real-world hardware and software for system prototyping and design, with no compromise in signal chain performance.

Features:

  • FMC-compatible form factor, powered from a single FMC connector

  • Provides two channels of ADC and two channels of DAC with full synchronization capabilities

  • Includes schematics, layout, BOM, Gerber files, HDL, Linux® drivers, IIO Oscilloscope, VisualANALOG

  • AD9680: JESD204B (subclass 1) 4-lane coded serial digital outputs, SFDR: 80 dBc at 1.0 GHz AIN, 2 GHz usable analog input full power bandwidth

  • AD9152: JESD204B (subclass 1), supports complex signal bandwidths up to 800 MHz, selectable 2×, 4×, 8× interpolation filters

Applications:

  • Electronic test and measurement equipment

  • General-purpose software radios

  • Radar systems

  • Ultra wideband satellite receivers

  • Signals intelligence (SIGINT)

  • Point-to-point communication systems

  • Multiple input/multiple output (MIMO) radios

  • Automated test equipment

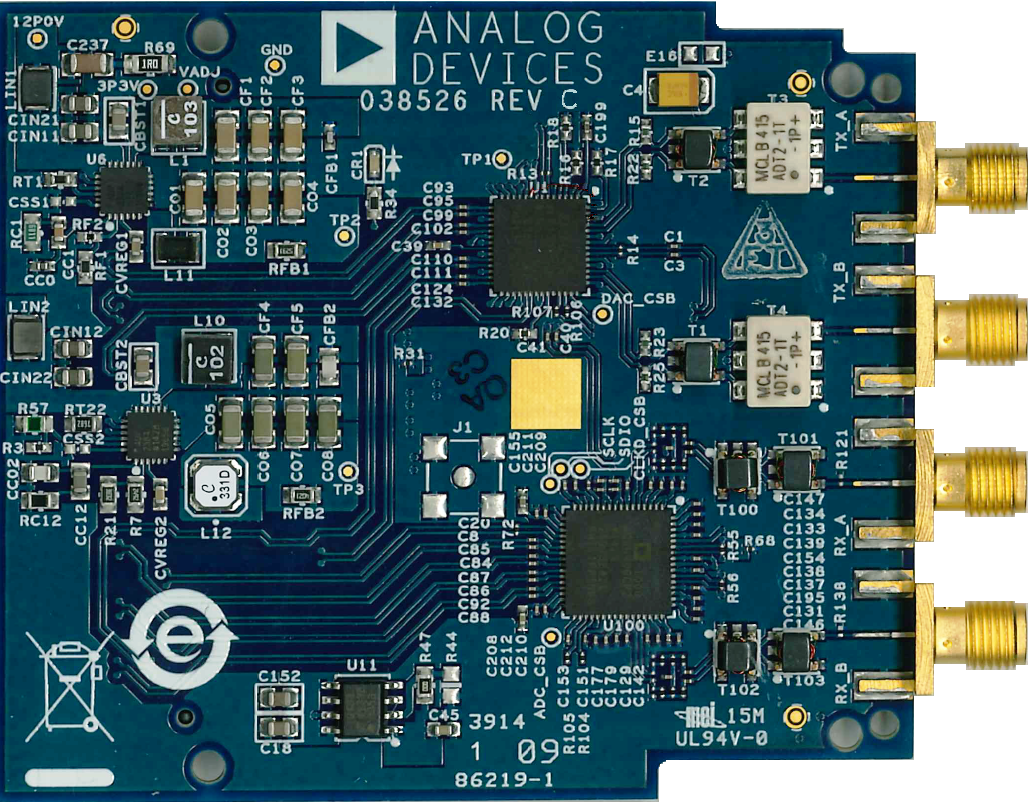

AD-FMCDAQ3-EBZ board top view
