ZedBoard Quick Start
All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.
This guide provides step-by-step instructions for setting up the LTC2378-20 evaluation board on the ZedBoard using Kuiper Linux.
Important
Although this guide only focuses on LTC2378-20 with the ZedBoard, the setup applies to all other supported devices as they share the same FMC connector and pin-compatible interface.
Using Linux as software
Necessary files
The ZedBoard boots Kuiper Linux from a microSD card. The SD card must contain a boot partition with the following files:
BOOT.BIN- combines the FSBL, U-Boot, and FPGA bitstream built from projects/ltc2378_fmc/zeduImage- Linux kernel imagedevicetree.dtb- device tree for ZedBoard + LTC2378 FMC
Note
Pre-built Kuiper Linux SD card images with the LTC2378 FMC support are available from the Kuiper page. If you want to build the files yourself, refer to the Build an HDL project guide.
Required software
On the host PC:
A UART terminal (e.g. PuTTY, Tera Term, or Minicom) at 115200 baud (8N1)

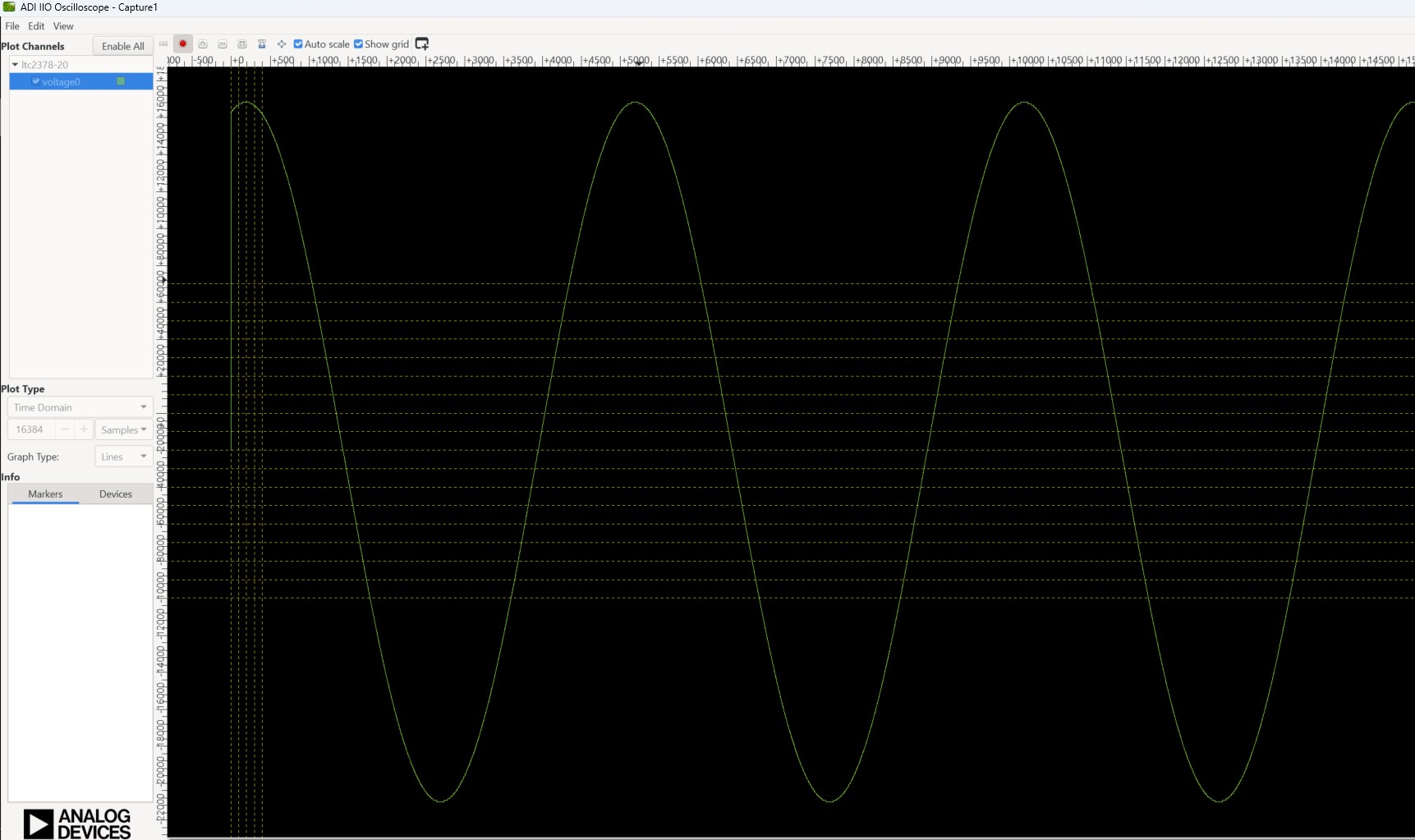

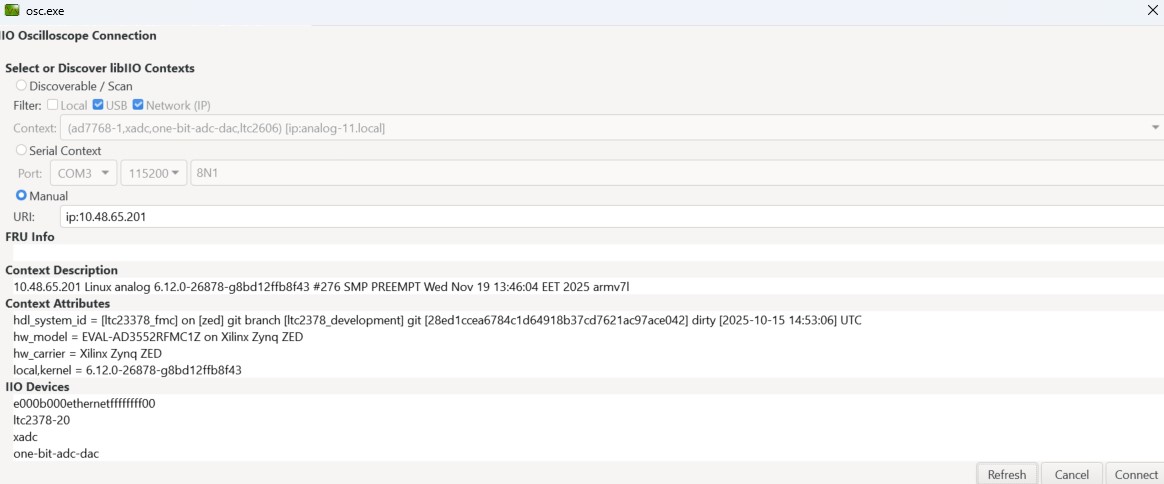

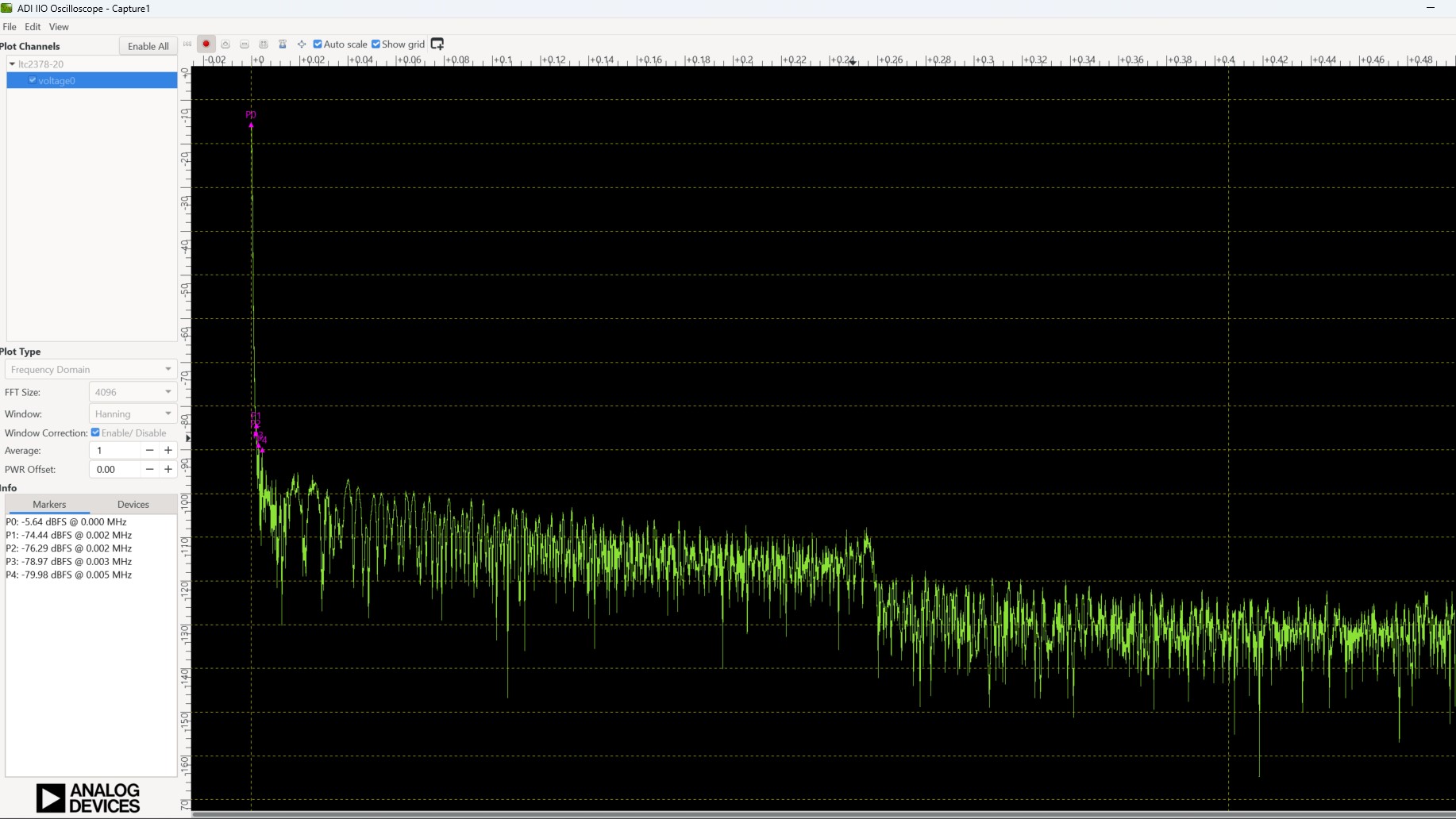

IIO Oscilloscope for data capture and visualization
Required hardware
ZedBoard and its 12V power supply
LTC2378-20 FMC evaluation board
microSD card
Micro-USB cable for UART
Ethernet cable connected to your local network
Signal source for the analog input
More details on hardware requirements are at Prerequisites.
Testing
Creating the setup
Follow the steps below in order to avoid damaging the components:
Write the Kuiper Linux image to the microSD card on the host PC
Insert the microSD card into the ZedBoard SD card slot
Insert the LTC2378-20 FMC evaluation board into the FMC slot on the ZedBoard

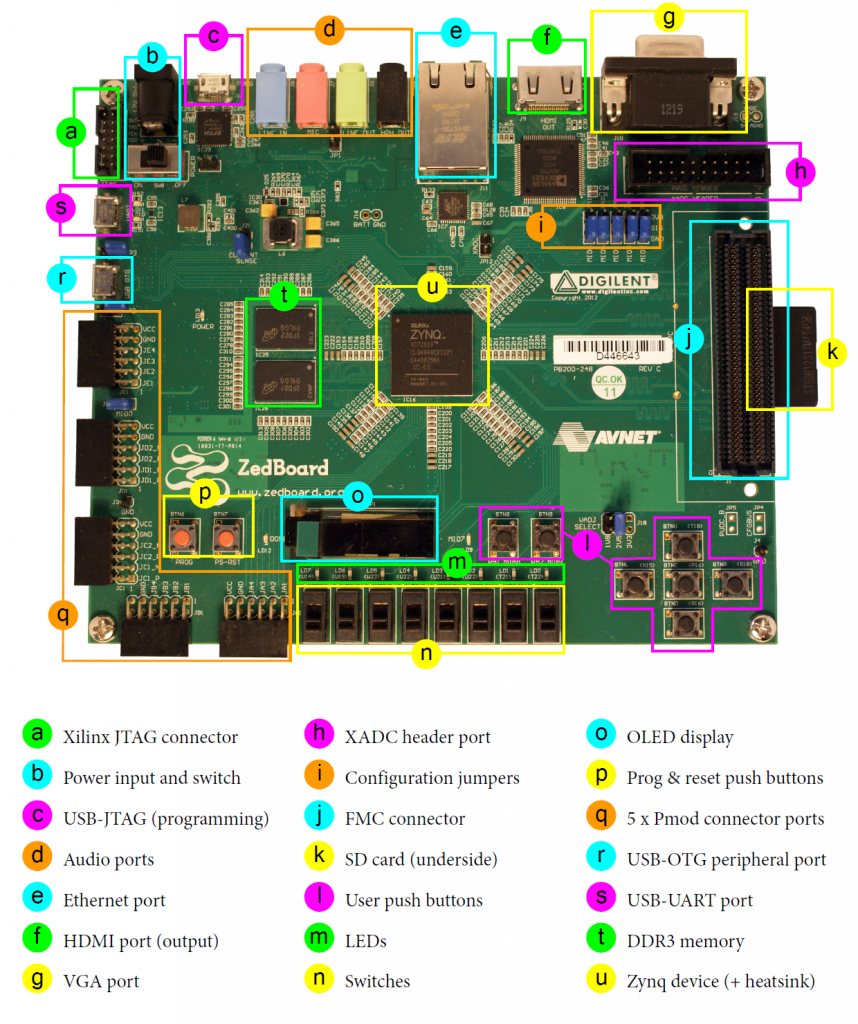

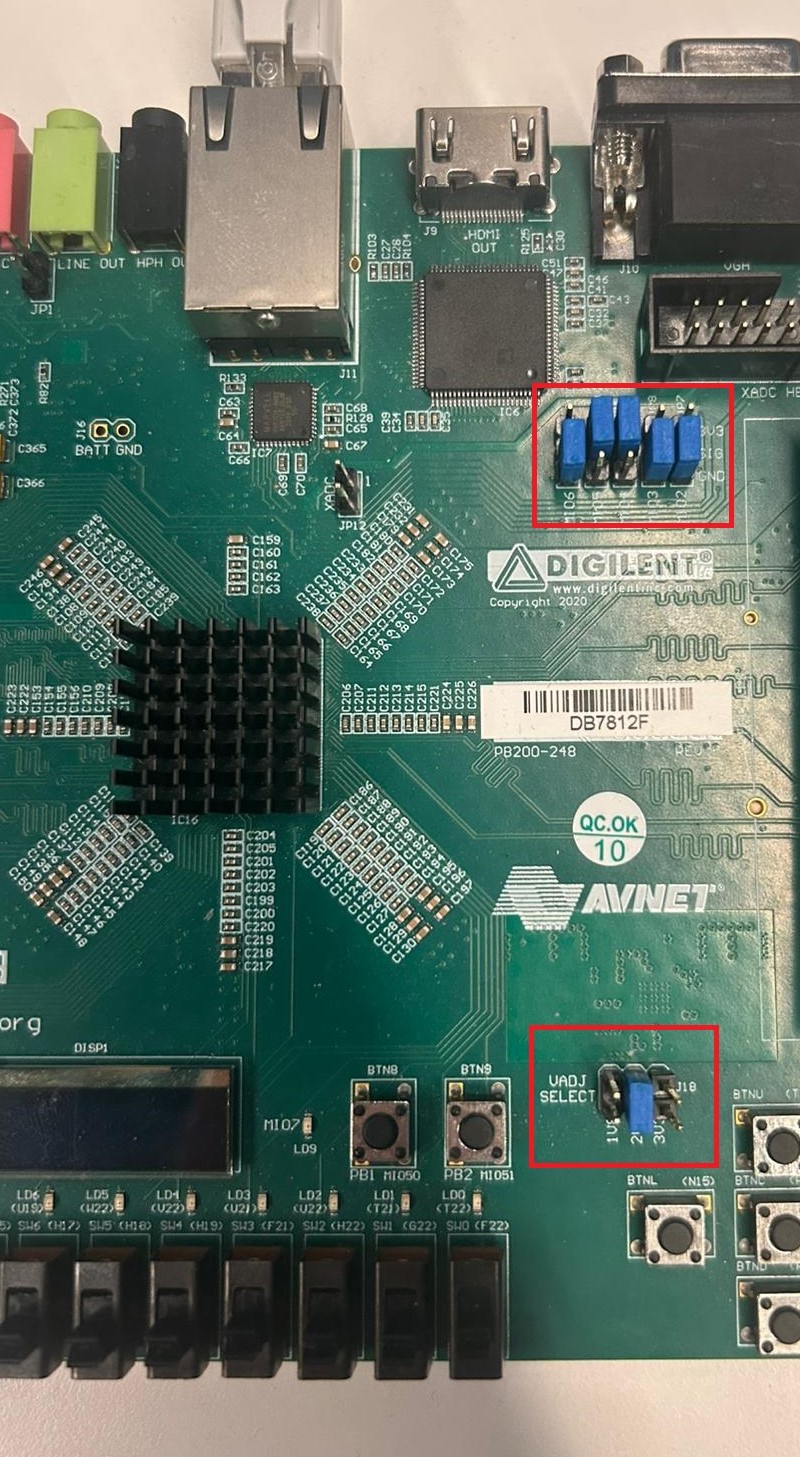

Set the ZedBoard boot mode jumpers for SD card boot and VADJ to 2.5V:
Connect the Micro-USB cable to the UART port (J14) on the ZedBoard
Connect the Ethernet cable to the ZedBoard RJ45 port
Power on the ZedBoard using the power switch
Boot messages
Connect your UART terminal at 115200 baud, 8N1 before powering on the ZedBoard to observe the full boot log. Once the system has finished booting, a login prompt appears:
