EVAL-AD4170-4ARDZ

Customer Evaluation Board for the AD4170-4 Sigma-Delta ADC

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-ad4170-4ardz/images/ad4170.webp

Overview

The EVAL-AD4170-4ARDZ is a comprehensive evaluation board for the AD4170-4, a multiplexed sigma-delta analog-to-digital converter (ADC) with ultra-low noise performance. The AD4170-4 features a 5.5 nV/√Hz noise floor at 128x gain, integrated programmable gain amplifier (PGA), and programmable digital filters offering output data rates from 500 kSPS to 5 SPS.

The AD4170-4 Family

The AD4170-4 family of ADCs offers the highest integration and feature set required for multi-sensor measurement applications. The platform combines excellent AC and DC performance, enabling instrumentation and industrial system designers to address multiple measurement requirements for both isolated and non-isolated applications.

Features:

  • Ultra-low noise sigma-delta ADC core (5.5 nV/√Hz)

  • Integrated programmable gain amplifier (PGA) with gains from 0.5x to 128x

  • Programmable digital filters

  • Integrated low-drift 5 ppm/°C reference

  • 12-bit programmable DAC for sensor biasing/excitation

  • Multiple measurement diagnostic capabilities

  • Optimal input path for AC performance

  • Support for various sensor types (thermocouples, RTDs, load cells, accelerometers)

Applications:

  • Industrial process control: PLC/DCS modules

  • Temperature and pressure measurement

  • High accuracy medical and scientific instrumentation

  • Chromatography

  • Seismic and energy exploration

  • Electrical test and measurement

  • Acoustic analysis

  • Instrumentation

  • Weigh scale

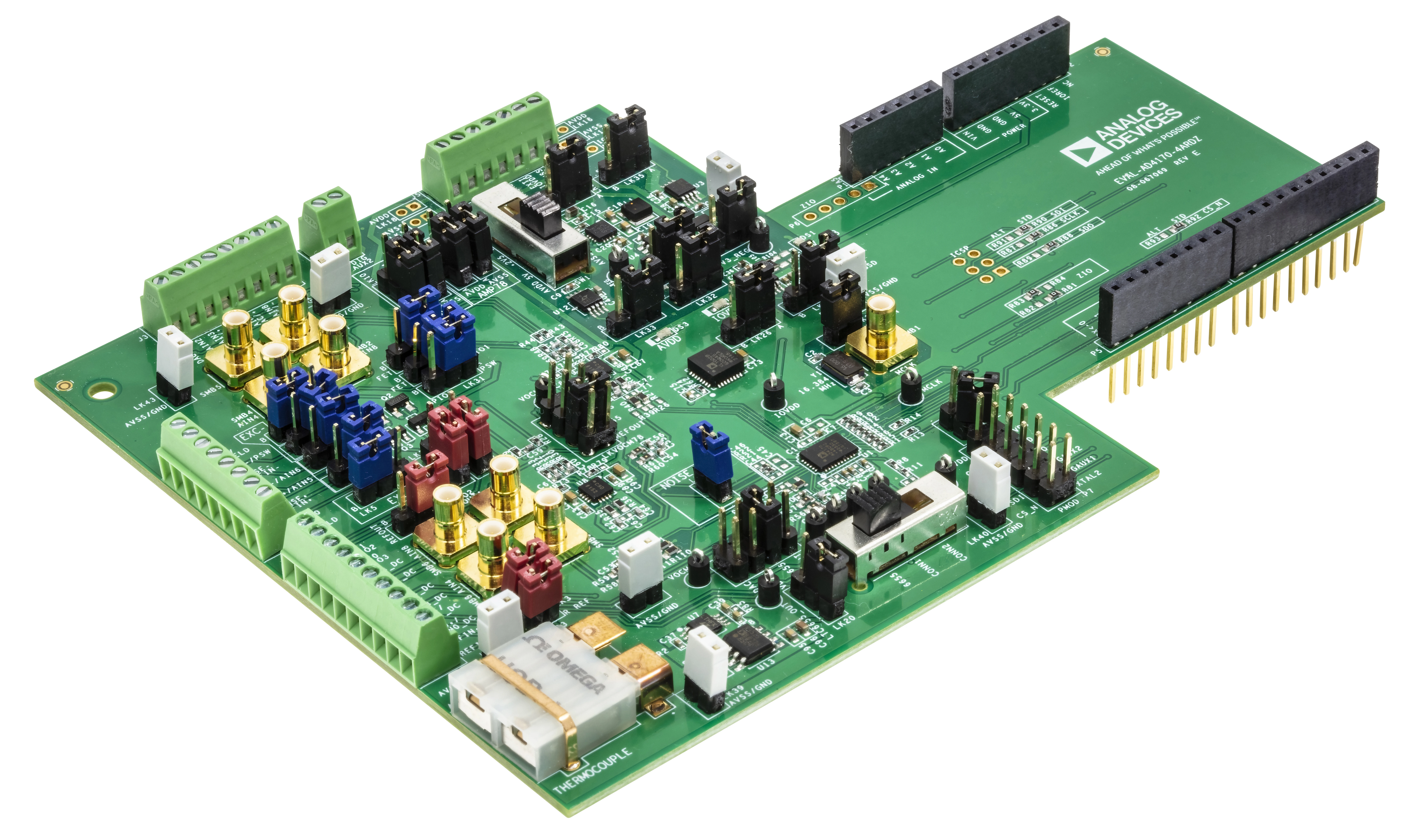

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-ad4170-4ardz/images/eval-ad4170-4.webp

Evaluation board Features

  • Full featured evaluation board for the AD4170-4

  • PC control in conjunction with SDP controller boards (SDP-K1, SDP-B)

  • PC software for control and data analysis (time and frequency domain)

  • Standalone capability

Recommendations

Following the recommended flow outlined in this documentation provides a much better experience. However, documentation is never completely comprehensive. If you have questions, feel free to ask on our EngineerZone forums, but please read the documentation thoroughly first.

To better understand the AD4170-4, we recommend using the EVAL-AD4170-4ARDZ evaluation board.

Table of contents

  1. Using the evaluation board:

    1. User Guide - what you need to know about the evaluation board

    2. Prerequisites - what you need to get started with the setup

    3. Quick start guides:

      1. Using the SDP-K1 Controller (EVAL-SDP-CK1Z)

  2. Design with the AD4170-4

  3. Software

  4. Help and Support

Block diagram

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-ad4170-4ardz/images/ad4170_board_block_diagram.png

Warning
