Quick start
Warning
The AD-FMCADC4-EBZ is a legacy product that has been retired and is no longer available for sale. It has been removed from the HDL and software repositories, but is still available in the git history. This documentation is provided for reference only.
The Quick Start Guide provides step-by-step instructions on how to do an initial system setup for the AD-FMCADC4-EBZ boards.
Supported carriers
The AD-FMCADC4-EBZ is an FMC board that needs a carrier to plug into. In most carriers, the AD-FMCADC4-EBZ connects to the HPC connector (unless otherwise noted).
Board |
AD-FMCADC4-EBZ |
|---|---|
FMC HPC |
Supported environments
Board |
HDL |
Linux Software |
No-OS Software |
|---|---|---|---|
Yes |
Yes |
— |
Hardware setup

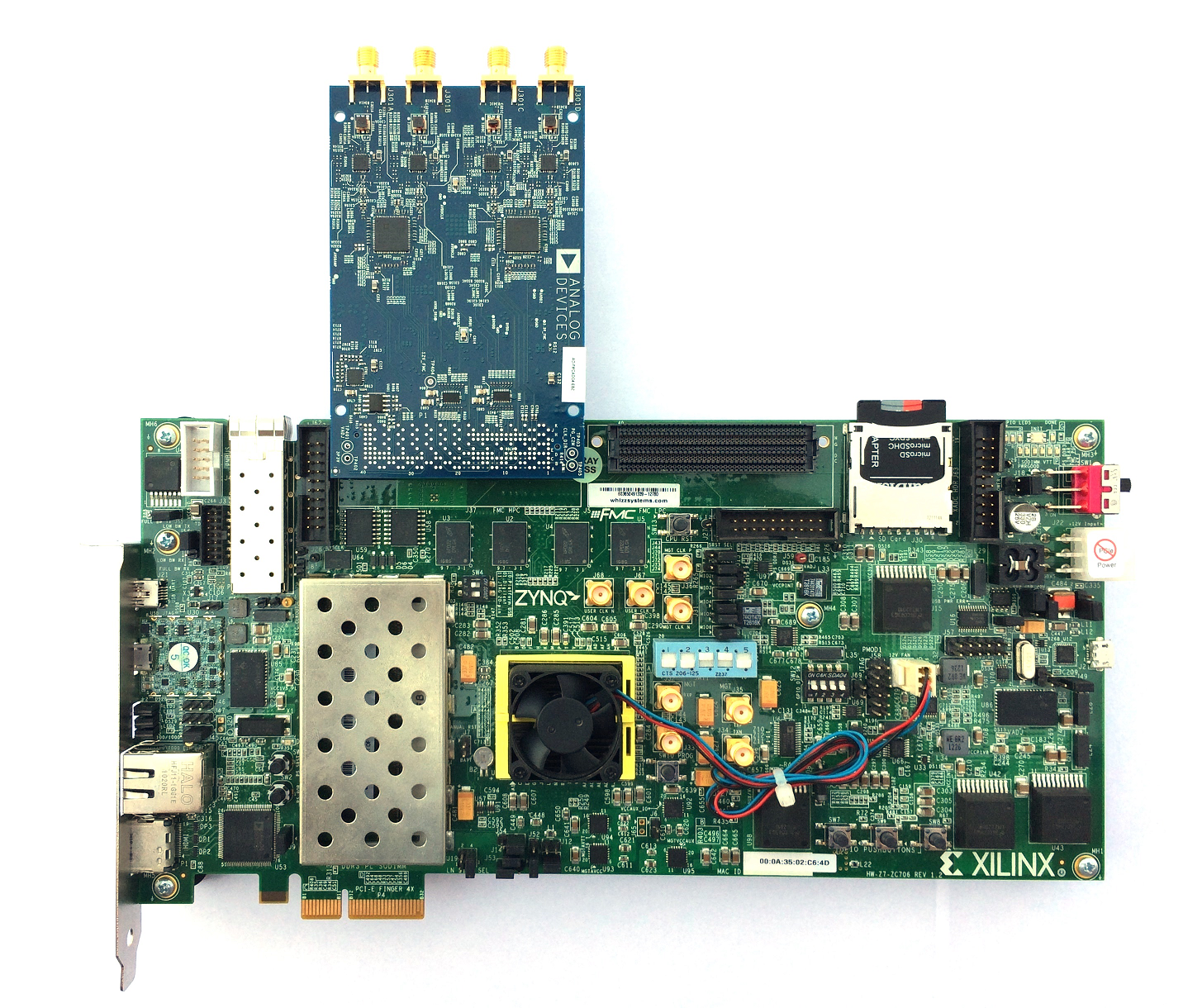

The carrier setup requires power, UART connection (115200 baud), Ethernet cable to connect to local network, HDMI (if available) and/or JTAG. A typical setup with the ZC706 is shown below.
