EVAL-AD7606x

Overview

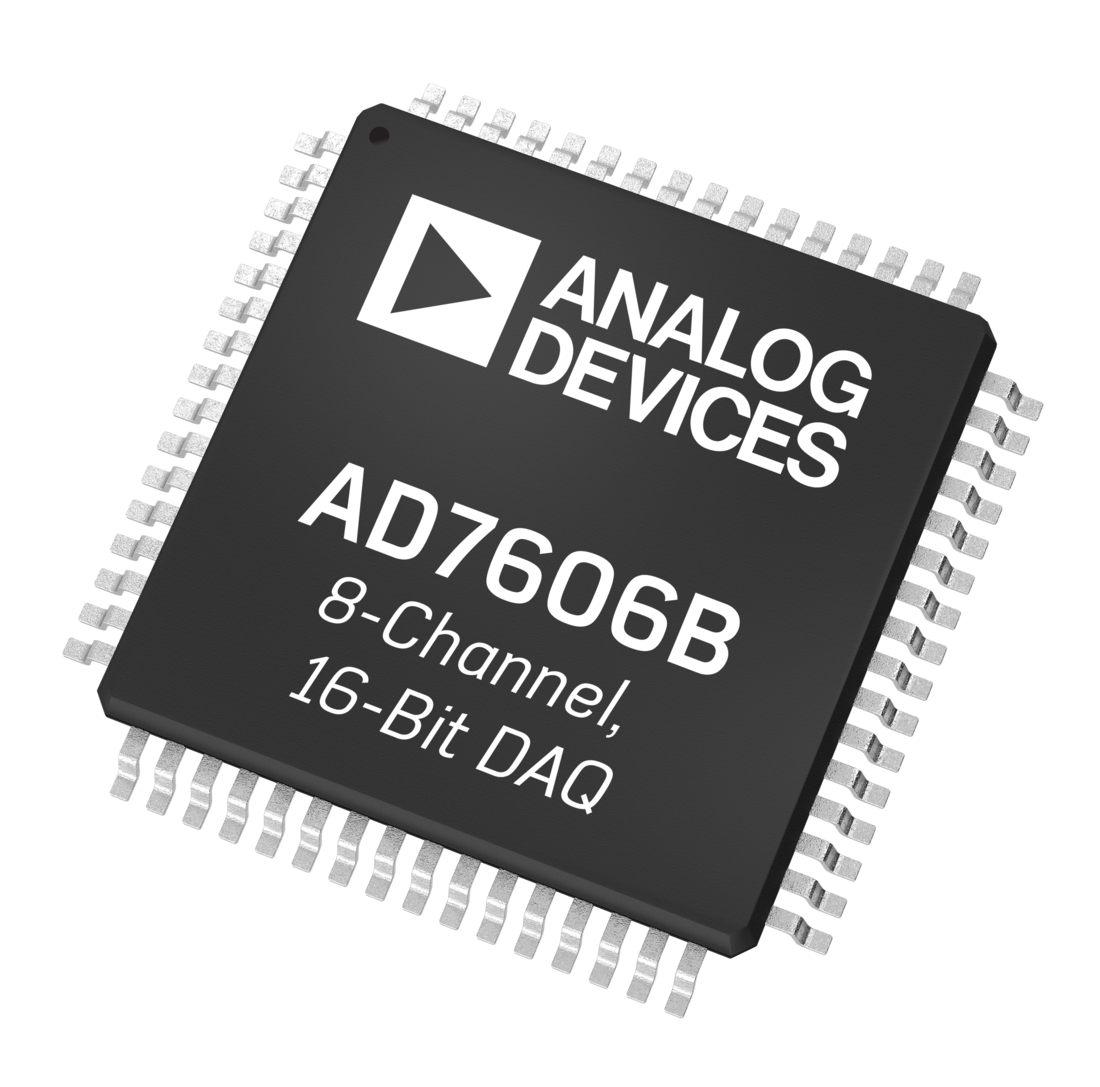

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-ad7606x/images/AD7606B-P-TAG-chip-illustration.png

The AD7606 family is an 8-/6-/4-channel simultaneous sampling ADC with 16-bit, bipolar input. Each device includes analog input clamp protection (±16.5 V tolerance), a second-order antialiasing filter (22 kHz, 3 dB cutoff), track-and-hold amplifier, 16-bit successive approximation ADC, flexible digital filter, 2.5 V reference and reference buffer, and high-speed serial/parallel interfaces. The family operates from a single 2.7 V to 5.25 V supply and supports ±10 V and ±5 V true bipolar inputs with synchronized sampling at up to 200 kSPS (300 kSPS for AD7605-4). All devices feature 1 MΩ analog input impedance regardless of sampling frequency. Single supply operation, on-chip filtering, and high input impedance eliminate the need for driver op-amps and external bipolar supplies.

The AD7606C is a direct pin replacement (software and hardware compatible) for both AD7608 and AD7609, with higher input impedance, extended temperature range, and additional features including 16/18-bit sample size, system gain/offset/phase calibration, sensor disconnect detection, lower VDRIVE operation, diagnostics, additional oversampling ratios, and per-channel analog input range selection with bipolar differential, bipolar single-ended, and unipolar single-ended options.

Features:

  • Multi-channel simultaneous sampling (8/6/4 channels)

  • 16-bit resolution with ±10 V and ±5 V bipolar input ranges

  • ±16.5 V input clamp protection and 22 kHz antialiasing filter

  • 1 MΩ analog input impedance (independent of sampling rate)

  • On-chip 2.5 V reference, flexible digital filter, SPI/parallel interfaces

  • Sensor disconnect detection (AD7606B/C) and per-channel range selection (AD7606C)

Applications:

  • Industrial data acquisition and power monitoring

  • Motor control and automotive diagnostics

  • Medical instrumentation and laboratory equipment

  • Environmental monitoring and FPGA-based systems

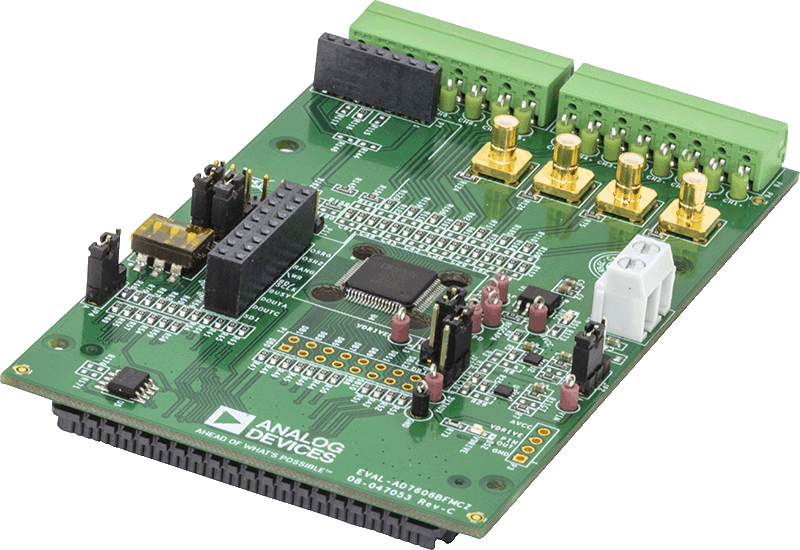

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-ad7606x/images/eval-ad7606bfmcz.gif

Recommendations

To get the most from the EVAL-AD7606 evaluation board, we recommend starting with the Prerequisites to ensure you have all required hardware and software. Then choose an evaluation approach that best suits your needs. Each path is independent and provides complete documentation for that specific workflow.

For questions not covered in the documentation, please visit the Help and Support page or post on the EngineerZone forums.

Table of contents

  1. Prerequisites - Required hardware, software tools, and evaluation platform options

  2. Evaluation approaches

    1. IIO Ecosystem Quick Start - Fast evaluation with IIO Oscilloscope and graphical tools (recommended)

    2. ZedBoard Quick Start - Linux and no-OS evaluation on AMD Xilinx ZedBoard (FMC)

    3. No-OS Driver Integration

    4. Linux IIO Driver - Configure and build the Linux IIO driver with DeviceTree support

    5. FPGA Prototyping - Evaluation with the CED1Z board and Nios II application

    6. Automated Testing - ACE software automation for MATLAB/Python scripting

  3. HDL reference design

    1. AD7606x HDL Project - Complete HDL reference design for the EVAL-AD7606x-FMCZ board

  4. Device and driver resources

  5. Help and Support
