Quickstart

The Quick start guides provide simple step by step instructions on how to do an initial system setup for the EVAL-AD4134FMCZ board on various FPGA development boards. In these guides, we will discuss how to program the bitstream, run a no-OS program or boot a Linux distribution.

• On ZedBoard
  • Using Linux as software
    • Necessary files
    • Required Software
    • Required Hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands for the serial terminal
    • Scopy
    • IIO Oscilloscope

Supported carriers

The EVAL-AD4134FMCZ, is, by definition a “FPGA mezzanine card” (FMC); that means it needs a carrier to plug into.

The carriers we support are:

FPGA board	EVAL-AD4134FMCZ
ZedBoard	FMC LPC

Supported environments

The supported OS are:

FPGA board	HDL	Linux software	No-OS software
ZedBoard	Yes	Yes	No

Hardware setup

On the ZedBoard, the EVAL-AD4134FMCZ board connects to the FMC LPC connector. The carrier setup requires power, UART (115200), Ethernet (Linux), and/or JTAG (no-OS) connections.

ZedBoard + EVAL-AD4134FMCZ

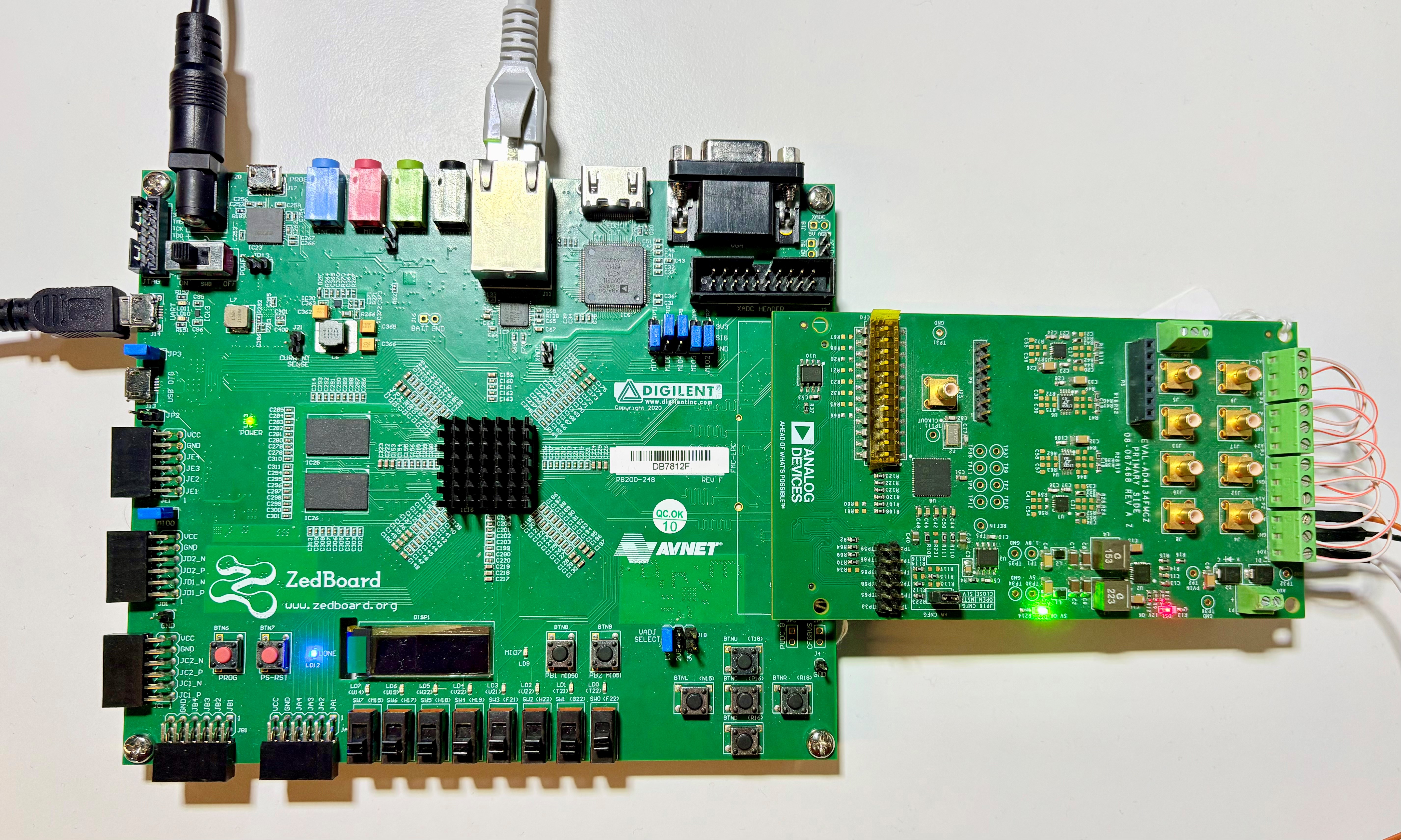

Figure 1 ZedBoard + EVAL-AD4134FMCZ setup
