CN0549

Condition-Based Monitoring Development Platform

CN0549

Overview

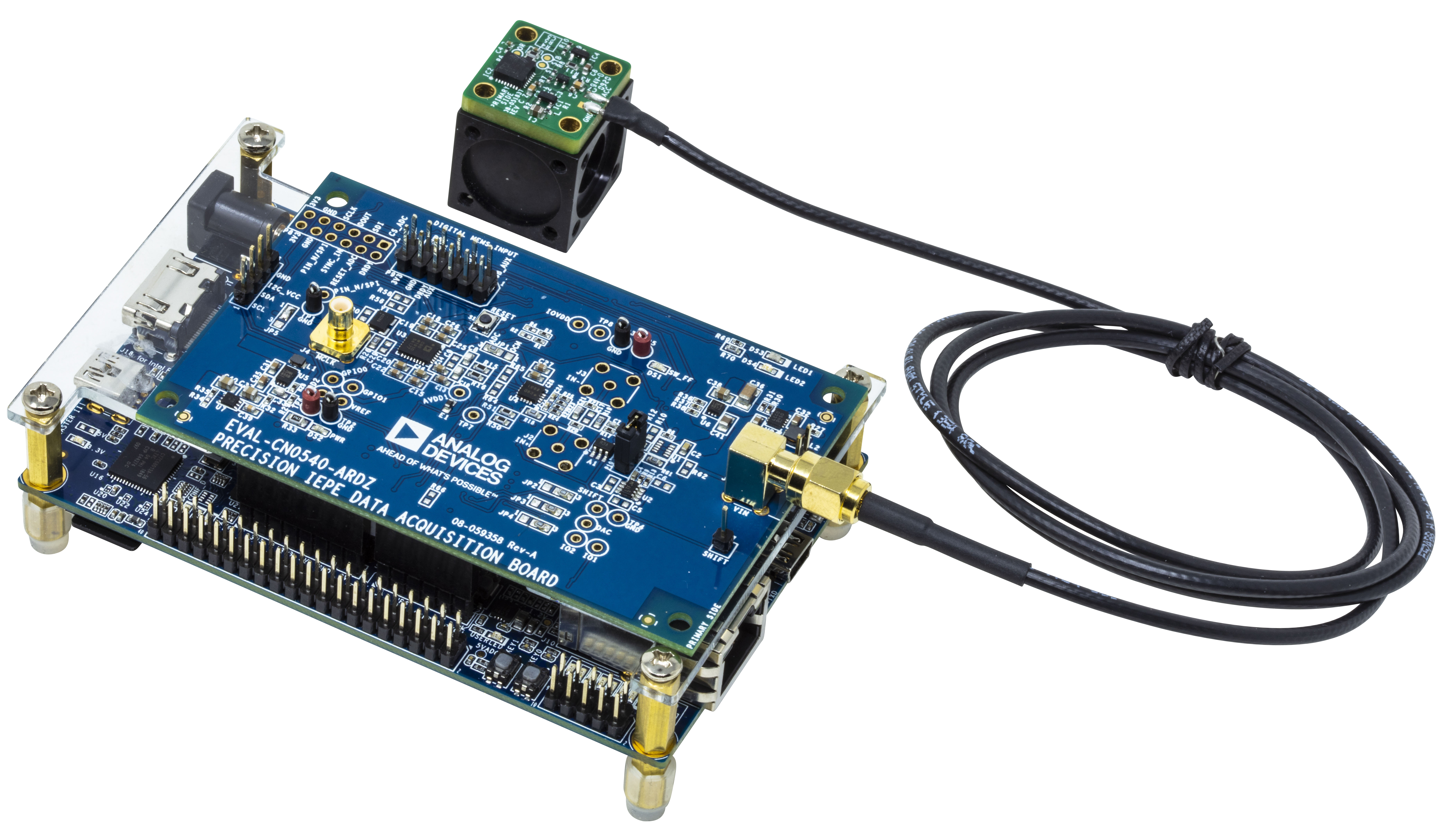

The CN0549 is a high-fidelity vibration acquisition platform designed to accelerate the development of custom condition-based monitoring and predictive maintenance solutions from prototype to production. It provides a complete system for capturing high-quality vibration data from industrial assets.

The design features combination of the following components:

  • CN0540: 24-Bit Data Acquisition System for IEPE Sensors

  • CN0532: IEPE-Compatible Interface for Wideband MEMS Accelerometer Sensors

Software Ecosystem:

The CN0549 features an open-source, reusable software stack that enables:

  • Real-time processing capabilities

  • Integration with popular data analysis tools (MATLAB, Python)

  • Algorithm development for CbM applications

  • Support for various processing options (microcontrollers, FPGAs)

Features

  • Wide bandwidth MEMS accelerometer sensor data is output in the popular IEPE format

  • Easy mounting to machines (like pumps, fans, and motors) while maintaining sensor signal integrity

  • The DAQ solution provides a high fidelity, IEPE analog input bandwidth from DC to 54 kHz

  • Embedded FPGA Software captures and stores the raw data for local embedded or networked processing

  • IIO Oscilloscope application allows users to quickly visualize the data for evaluation purposes.

Applications

  • Develop and validate CbM algorithms

  • Collect and analyze vibration data from industrial equipment

  • Create predictive maintenance solutions

  • Prototype custom monitoring systems

Tip

Navigate through the following sections to learn more about the CN0549, including detailed setup information, software examples, and how to get started with your own condition-based monitoring projects.
