Quick start

Warning

The AD-FMCADC3-EBZ is a legacy product and is no longer actively supported. This documentation is provided for reference only.

The Quick Start Guide provides step-by-step instructions on how to do an initial system setup for the AD-FMCADC3-EBZ boards.

Supported carriers

The AD-FMCADC3-EBZ is an FMC board that needs a carrier to plug into. In most carriers, the AD-FMCADC3-EBZ connects to the HPC connector (unless otherwise noted).

Board	AD-FMCADC3-EBZ
VC707	FMC HPC
ZC706	FMC HPC

Supported environments

Board	HDL	Linux Software	No-OS Software
VC707	Yes	Yes	—
ZC706	Yes	Yes	—

Hardware setup

The carrier setup requires power, UART connection (115200 baud), Ethernet cable to connect to local network, HDMI (if available) and/or JTAG. A typical setup with the ZC706 is shown below.

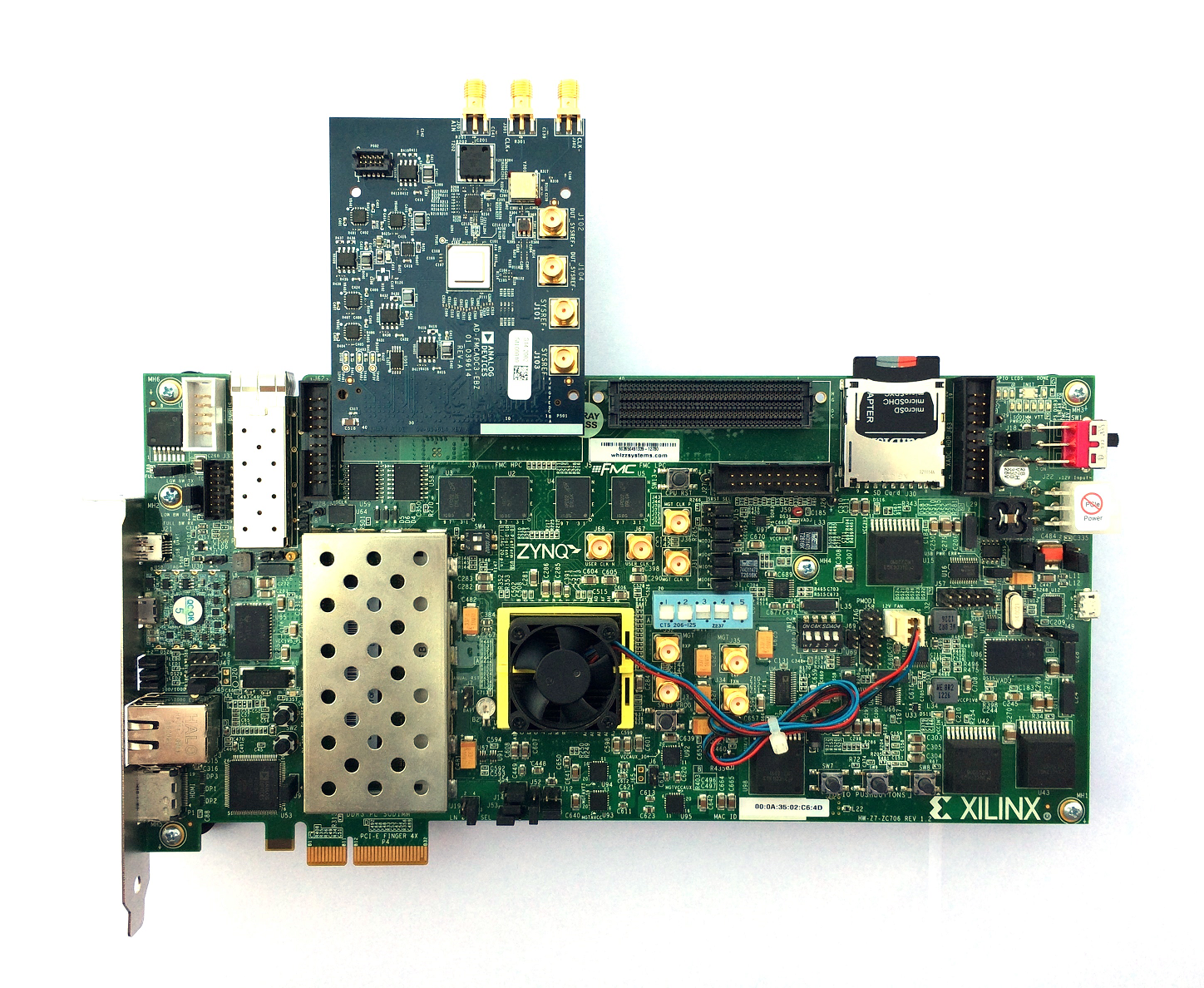

AD-FMCADC3-EBZ connected to the ZC706 FPGA carrier — Figure 1 AD-FMCADC3-EBZ with ZC706 hardware setup
