Installing RF Blockset Models for Analog Devices RF Transceivers

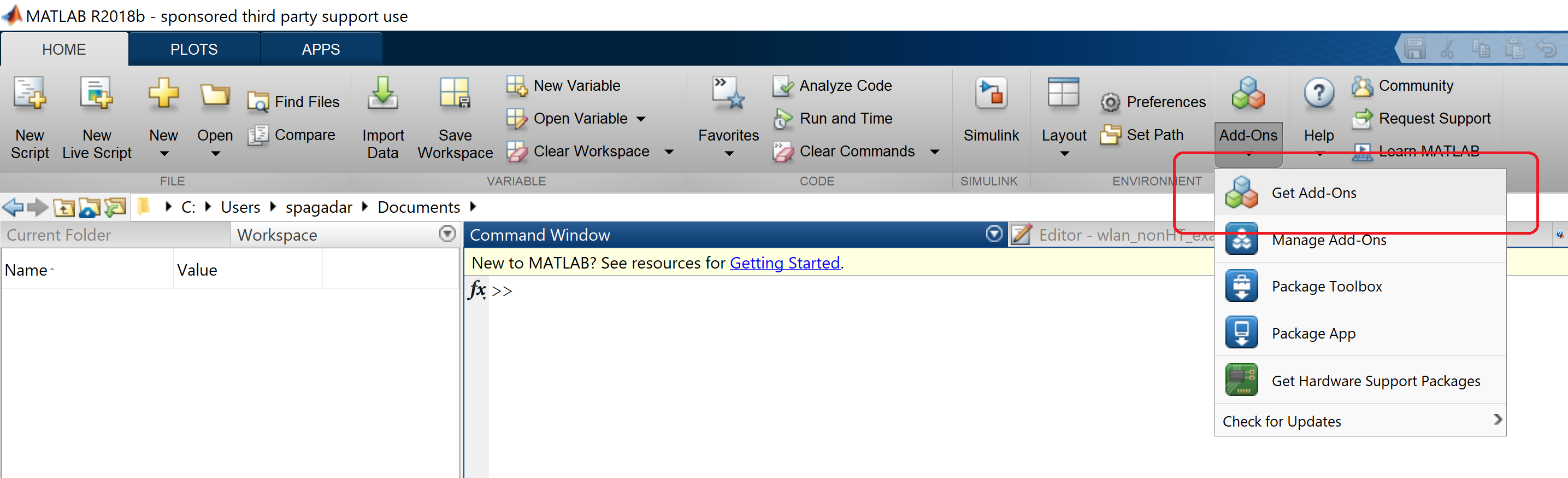

MathWorks’ RF Blockset Models of Analog Devices RF Agile Transceivers AD9361 and AD9371 can be installed from within MATLAB using the add-on explorer, as shown below:

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/fmcomms2/images/install0.png

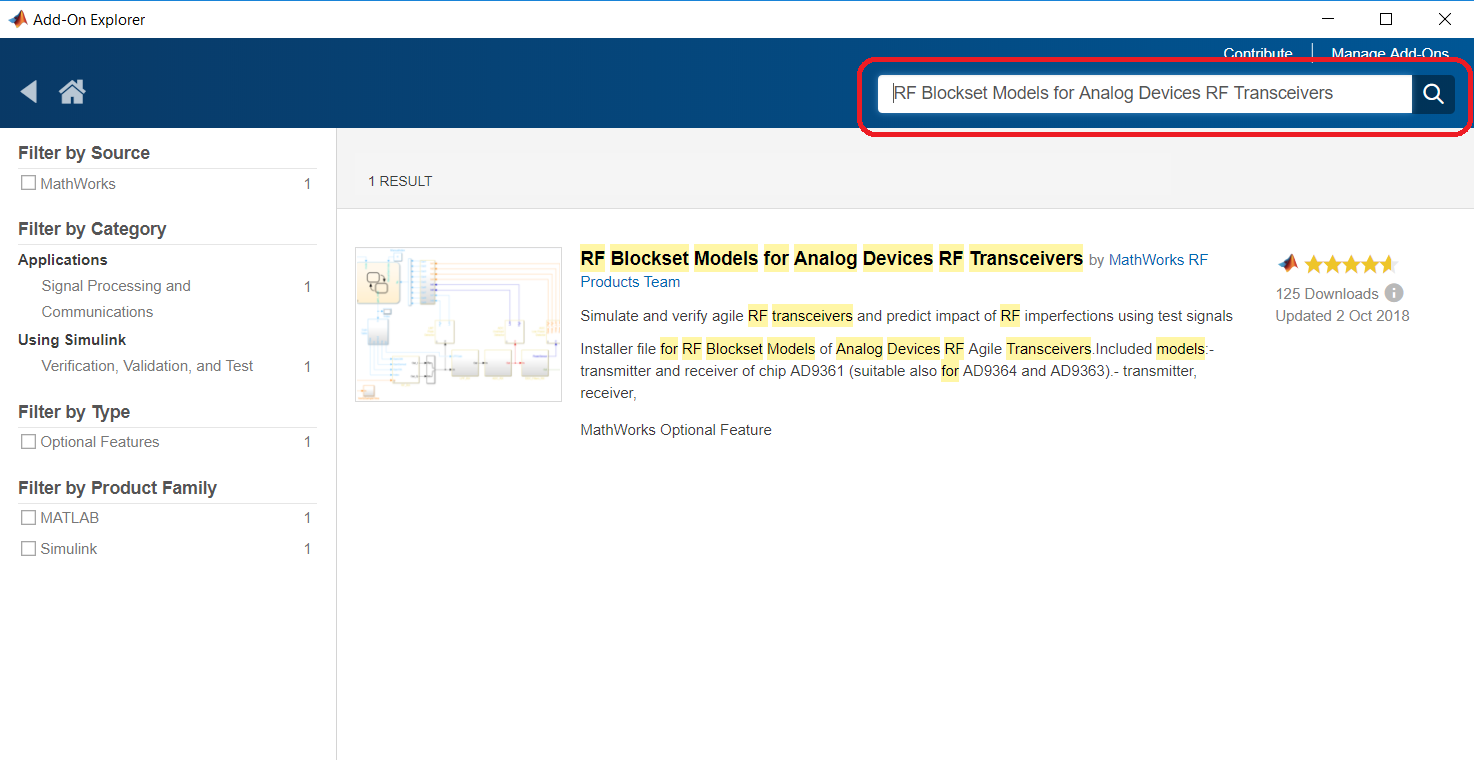

Next, search for RF Blockset Models for Analog Devices RF Transceivers and select it:

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/fmcomms2/images/install1.png

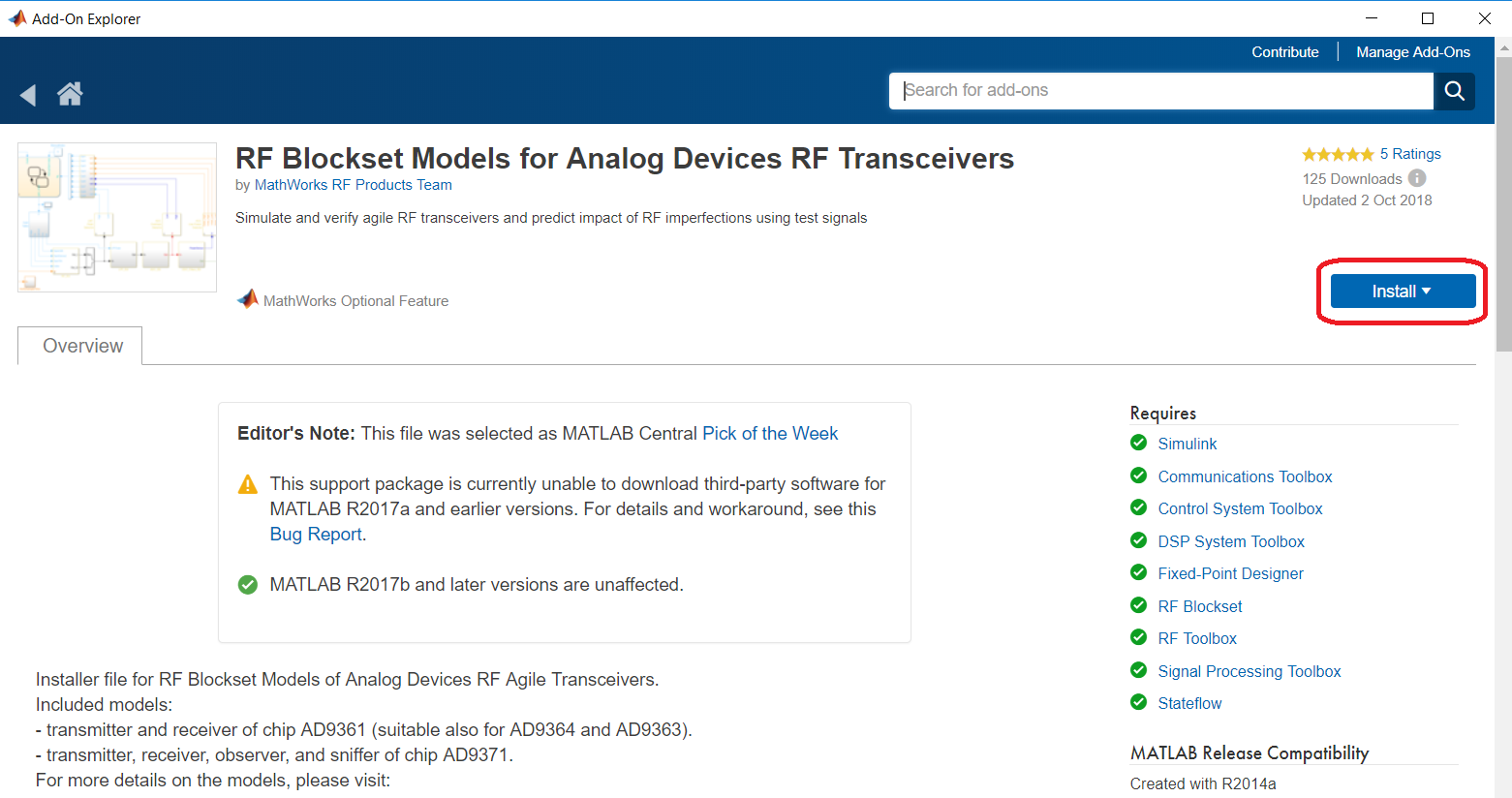

Finally, click on the install button and follow the instructions:

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/fmcomms2/images/install2.png

If the installer fails, please contact MathWorks support.
