EVAL-ADPAQ3029 - Servo motor demo

  • Download firmware and Tile application from below

Download

Servo motor Firmware

Tile GUI application

  • Follow the same steps as given here

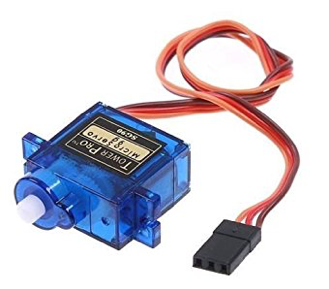

  • In this project, a Servo motor is used.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adpaq3029/images/app9.png

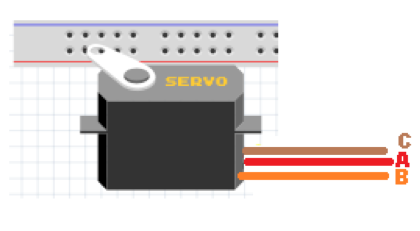

  • The connections between the Servo Motor and the ADPAQ module are made as shown below.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adpaq3029/images/app10.png

Servo motor Pins

GPIO port used

ADPAQ Header Pins

A

5V

P2-1

B

P0_1

P2-5

C

GND

P2-10

  • Build and run the project

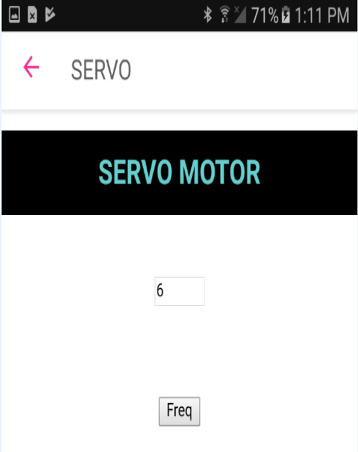

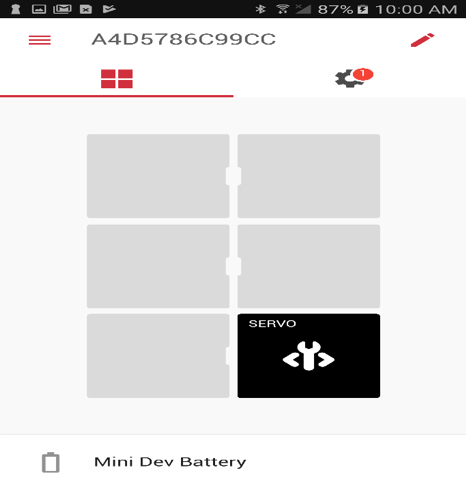

  • The tile has a “Freq” button and an input value option. We can set the frequency of the servo any value between 0-100 and the servo motor rotates accordingly.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adpaq3029/images/tile13.png
