Quickstart

The Quick start guides provide simple step by step instructions on how to do an initial system setup for the EVAL-AD9083 board on various FPGA development boards. In these guides, we will discuss how to program the bitstream, run a no-OS program or boot a Linux distribution.

• On ZCU102
  • Using Linux as software
    • Necessary files
    • Required software
    • Required hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands for the serial terminal
  • Using no-OS as software
    • Necessary files
    • Required Software
    • Required Hardware
    • Testing
      • Creating the setup
      • Console output
    • IIO Oscilloscope
• On ADS8-V3EBZ
  • Typical Setup
  • Equipment Needed
  • Hardware Needed
  • Software Needed
  • Helpful Documents
  • Board Design and Integration Files
  • Set Up MicroZed™ Connection
    • MicroSD Card for the MicroZed™ Board
    • Configure the Network Interface to the MicroZed™ Board
  • Evaluation Software Configuration
    • Plugin Installation from ACE
    • Plugin Installation from the Web
  • Introduction to the AD9083 Plugin
    • Board View
    • Chip View
  • Evaluation
    • Wide Bandwidth Real Output Mode
    • Narrow Bandwidth Complex Output Mode
    • Precision Time Domain Mode
  • External Trigger
  • Troubleshooting Notes
    • Evaluation Board is not Functioning Properly
    • Evaluation Board is not Communicating with the ADS8-V3 / No SPI Communication
    • Evaluation Board Fails to Capture Data

Supported carriers

The EVAL-AD9083, is, by definition a “FPGA mezzanine card” (FMC); that means it needs a carrier to plug into.

The carriers we support are listed below, as well as the FMC port where to connect the evaluation board:

FPGA board	EVAL-AD9083
ZCU102	FMC HPC0

Supported environments

The supported OS are:

FPGA board	HDL	Linux software	No-OS software
ZCU102	Yes	Yes	Yes

Hardware setup

On most carriers, the EVAL-AD9083 board connects to the HPC0 connector (unless otherwise noted). The carrier setup requires power, UART (115200), Ethernet (Linux), HDMI (if available) and/or JTAG (no-OS) connections.

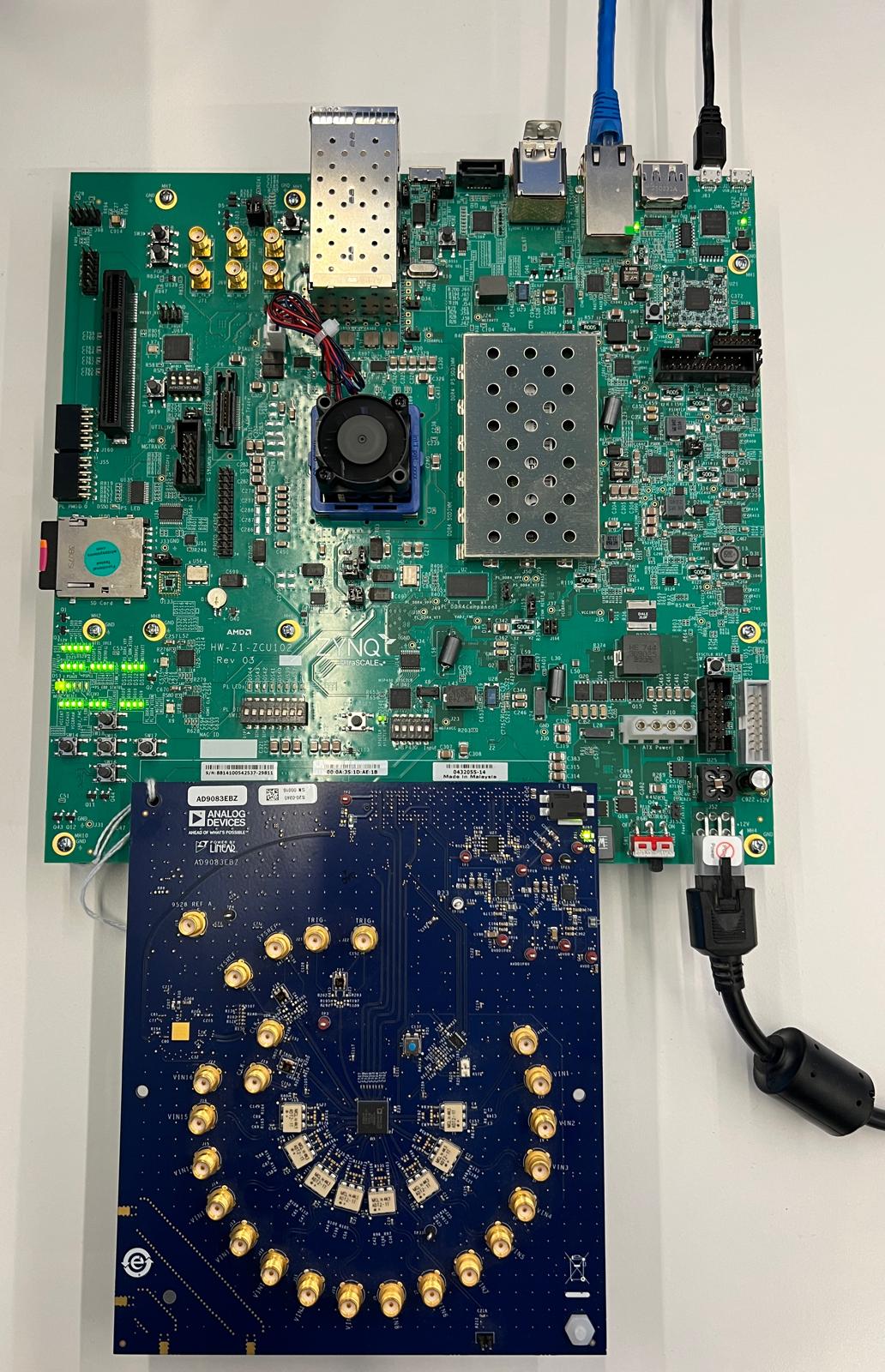

ZCU102 + EVAL-AD9083
