AD-FMCDAQ3-EBZ Hardware

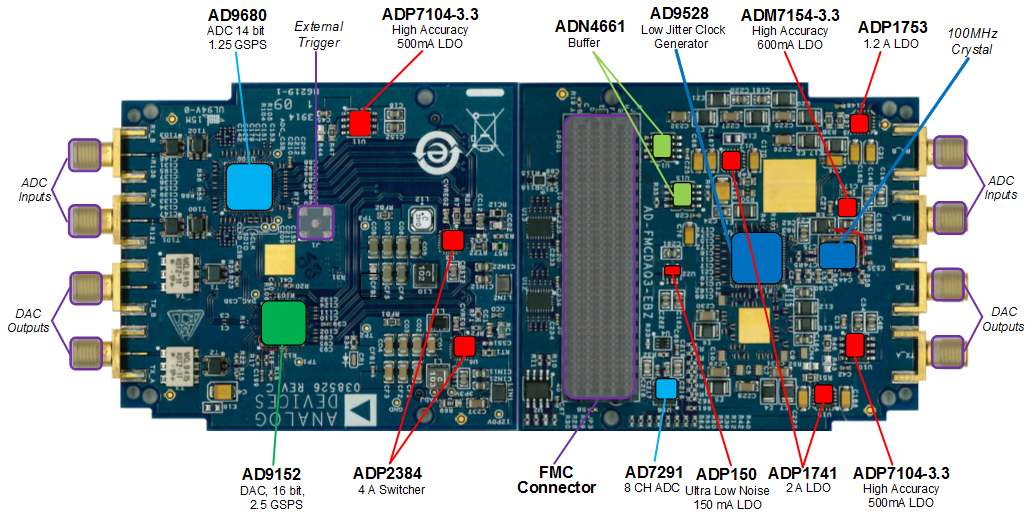

Picture and Main components

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq3-ebz/images/parts_list.png

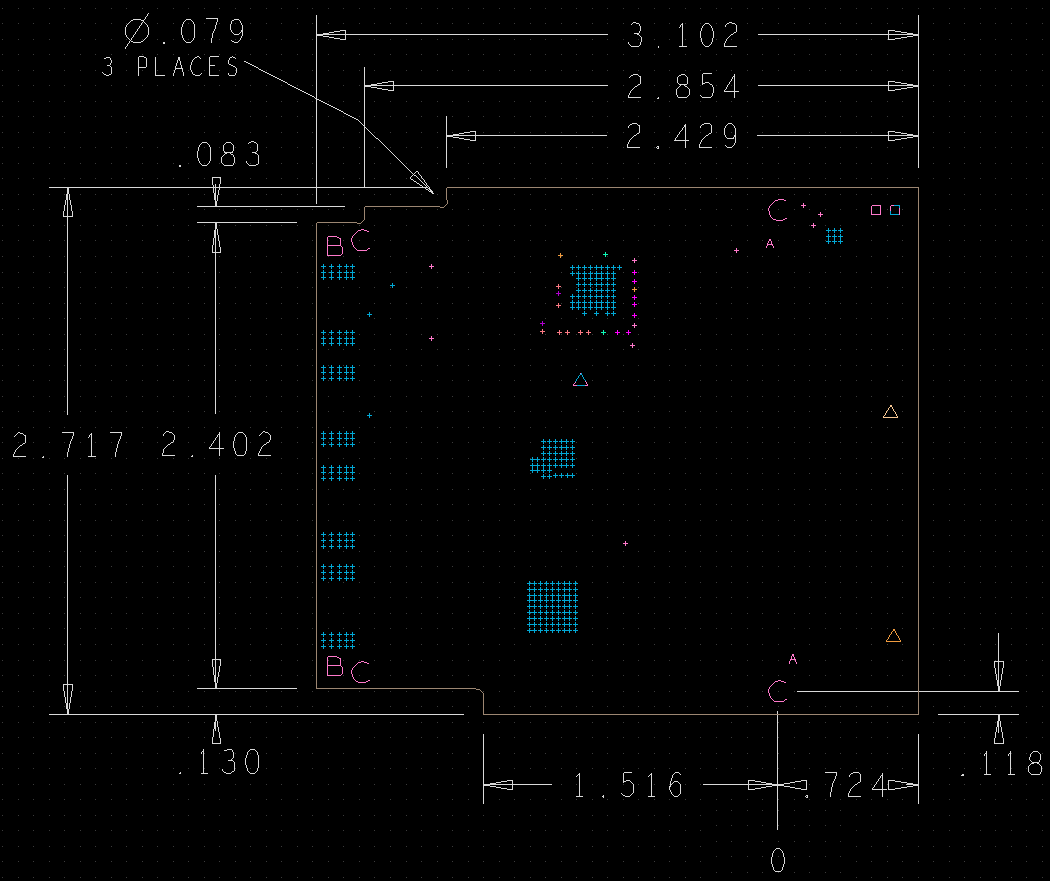

Size

The size of the board (not including the SMA connectors, which project beyond the edge of the board) is 3.12 inches by 2.72 inches (or about 79mm x 69mm).

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq3-ebz/images/daq2_dimensions.png

Schematic, PCB Layout, Bill of Materials

AD-FMCDAQ3-EBZ Design & Integration Files are comprised of:

  • Schematic

  • PCB Layout

  • Bill of Materials

  • Allegro Project
