Hardware Guide

Components and Connections

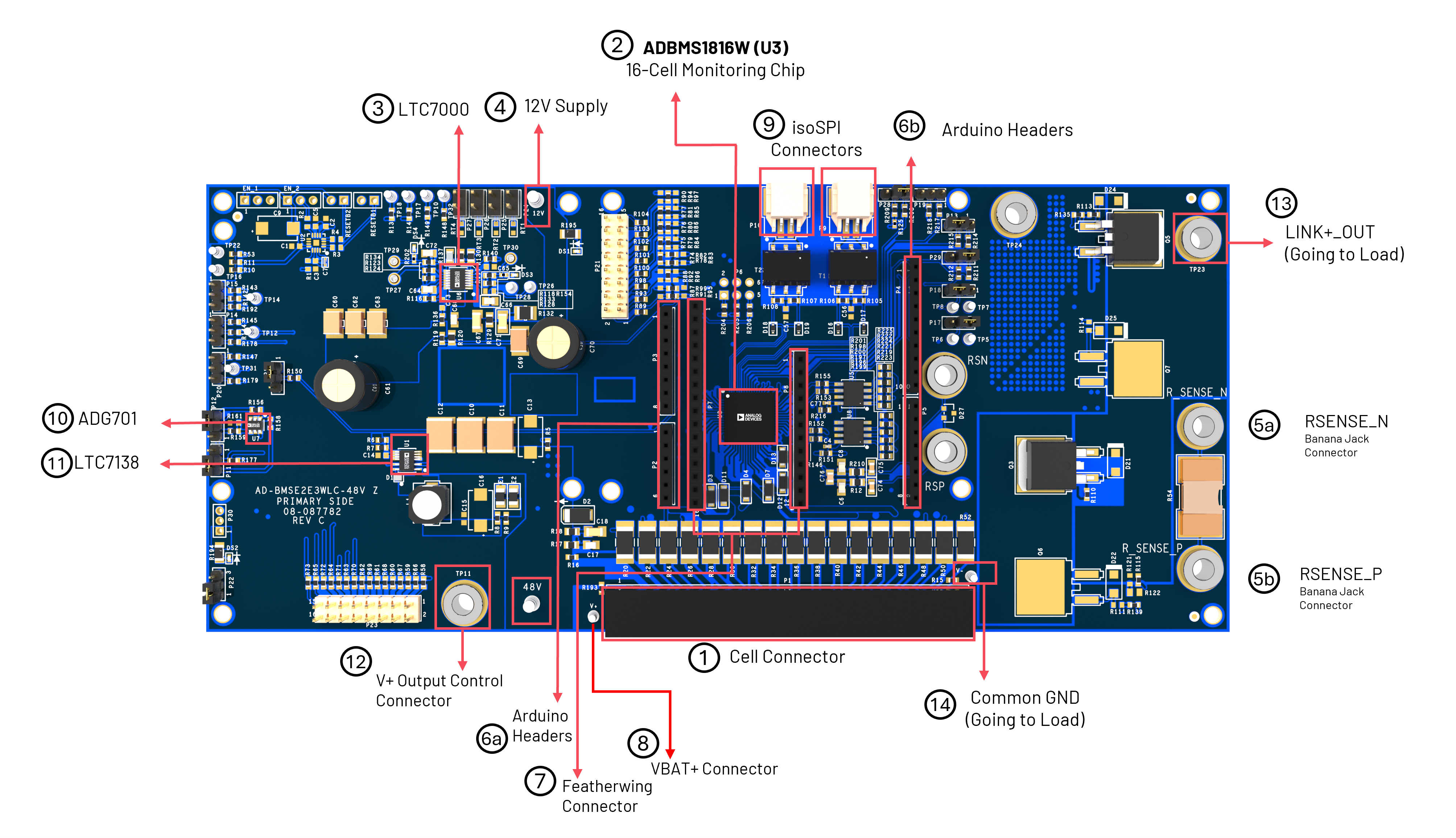

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/baseboard-components.png

Figure 1 AD-BMSE2E3WLC-48V Baseboard Components

No.

Component

Function

1

Battery Cell Connector

Connector going to battery cells

2

ADBMS1816W

Battery cell monitoring IC

3

LTC7000

FET Driver IC

4

12V Supply

12V supply access

5a

Rsense_N

Resistor sensing for detecting and monitoring total current on the baseboard negative side

5b

Rsense_P

Resistor sensing for detecting and monitoring total current on the baseboard positive side

6a

Arduino Headers

Arduino header connector left side

6b

Arduino Headers

Arduino header connector right side

7

Featherwing Connector

Connector for placing Featherwing form- factor boards

8

VBAT+ Connector

Positive terminal connector for total voltage capacity of the battery pack

9

isoSPI Connectors

Duraclik isoSPI connector terminals

10

ADG701

5V switch, USB-enabled

11

LTC7138

5V analog and 5V digital LDO regulator

12

V+ Output Control Connector

Output control connector from V+ going to Link+ Output

13

LINK+_OUT

Access going to load side

14

Common GND

Access ground going to load side
https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/daughterboard-components.png

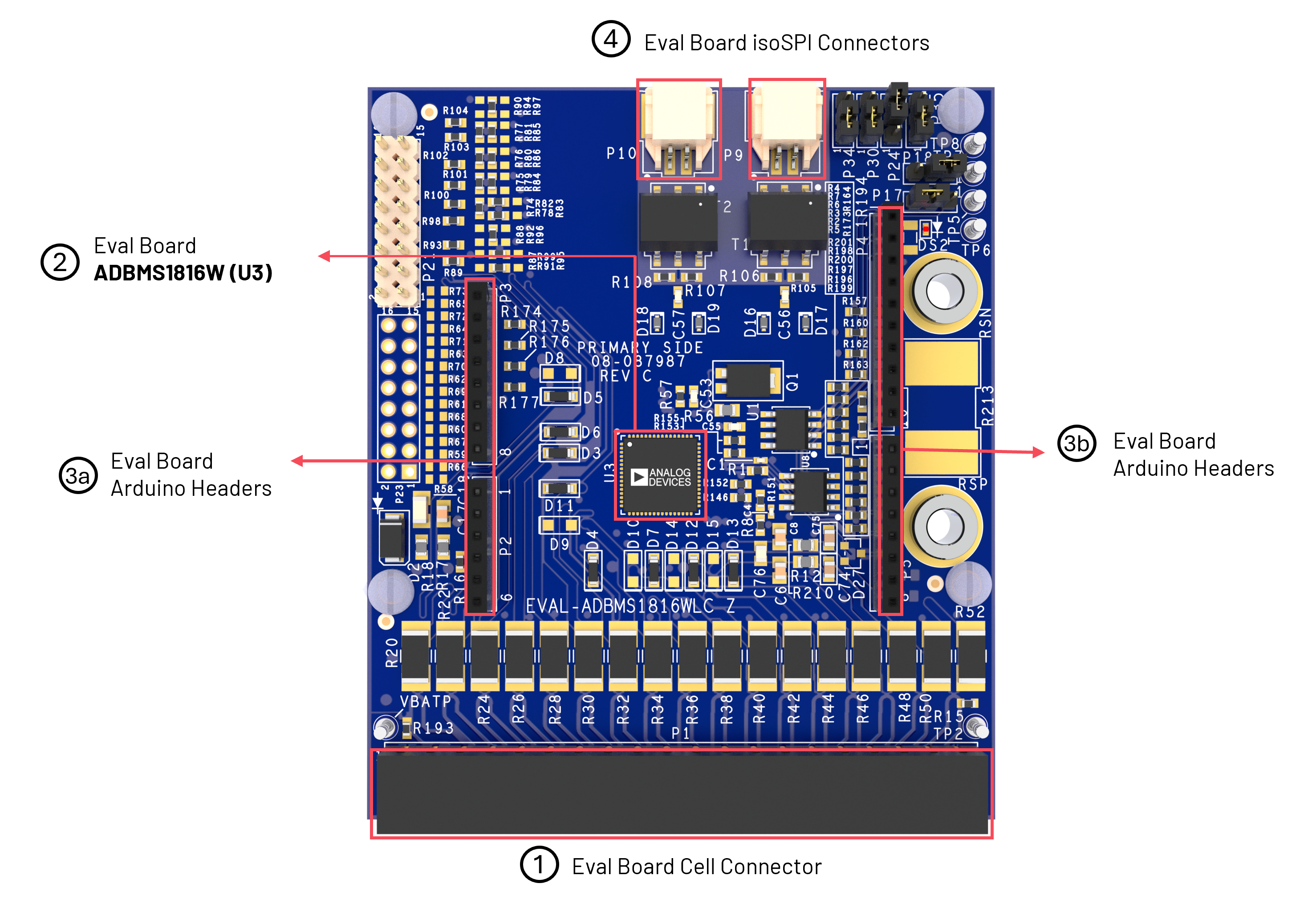

Figure 2 AD-BMSE2E3WLC-48V Daughter Board Components

No.

Component

Function

1

Battery Cell Connector

Connector for Cell Input (for example, DC2472A cell emulator)

2

ADBMS1816W (U3)

16-Cell BMS Monitoring Chip

3a

Arduino Headers

Arduino Header Connector left side

3b

Arduino Headers

Arduino Header Connector right side

4

isoSPI Connectors

Duraclik isoSPI Connector terminals

Test Points

AD-BMSE2E3WLC-48V Baseboard

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/baseboard-testpoints.png

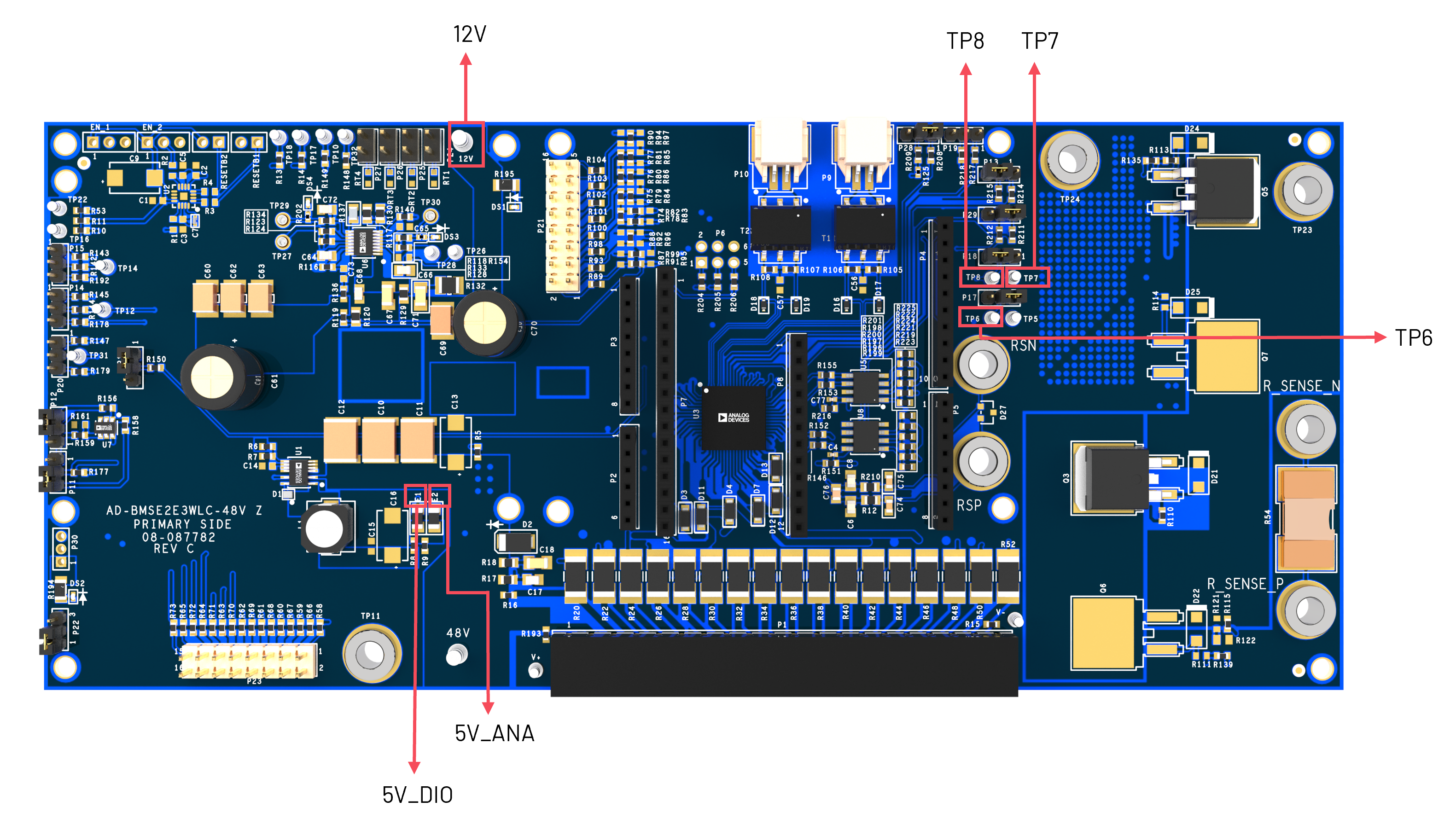

Figure 3 AD-BMSE2E3WLC-48V Baseboard Test Points

Test Point

Name

Typical (V)

Range (V)

TP6

PORT

4.9

4.5 to 5.15

TP8

TRANS

0

0

TP7

VREG

4.9

4.7 to 5.15

12V

12V SUPPLY

11.9

11.5 to 12.5

E1 (PIN2)

5V_ANA

5

4.5 to 5.15

E2 (PIN2)

5V_DIG

5

4.5 to 5.15

Hardware Setup

Required Hardware

  • 1 × AD-BMSE2E3WLC-48V Baseboard

  • 1 × EVAL-ADBMS1816WLC Daughter Board

  • 2 × DC2472A Battery Emulator

  • 1 × MAX32666FTHR Microcontroller

  • 1 × MAX32625PICO Programming Board

  • 2 × isoSPI twisted-pair cables

  • 1 × 10-pin SWD debugger cable

  • 3 × Micro-USB to USB cables

  • 1 × PC/Laptop

  • 2 × Red Alligator-to-Banana Plug Cables (1166-12-0)

  • 2 × Black Alligator-to-Banana Plug Cables (1166-12-0)

  • 12 × Pin Header Shunts (if not yet installed)

  • 1 × Digital Multimeter (DMM)

Jumper Configuration

AD-BMSE2E3WLC-48V Baseboard

From the list of required hardware, select the AD-BMSE2E3WLC-48V Baseboard.

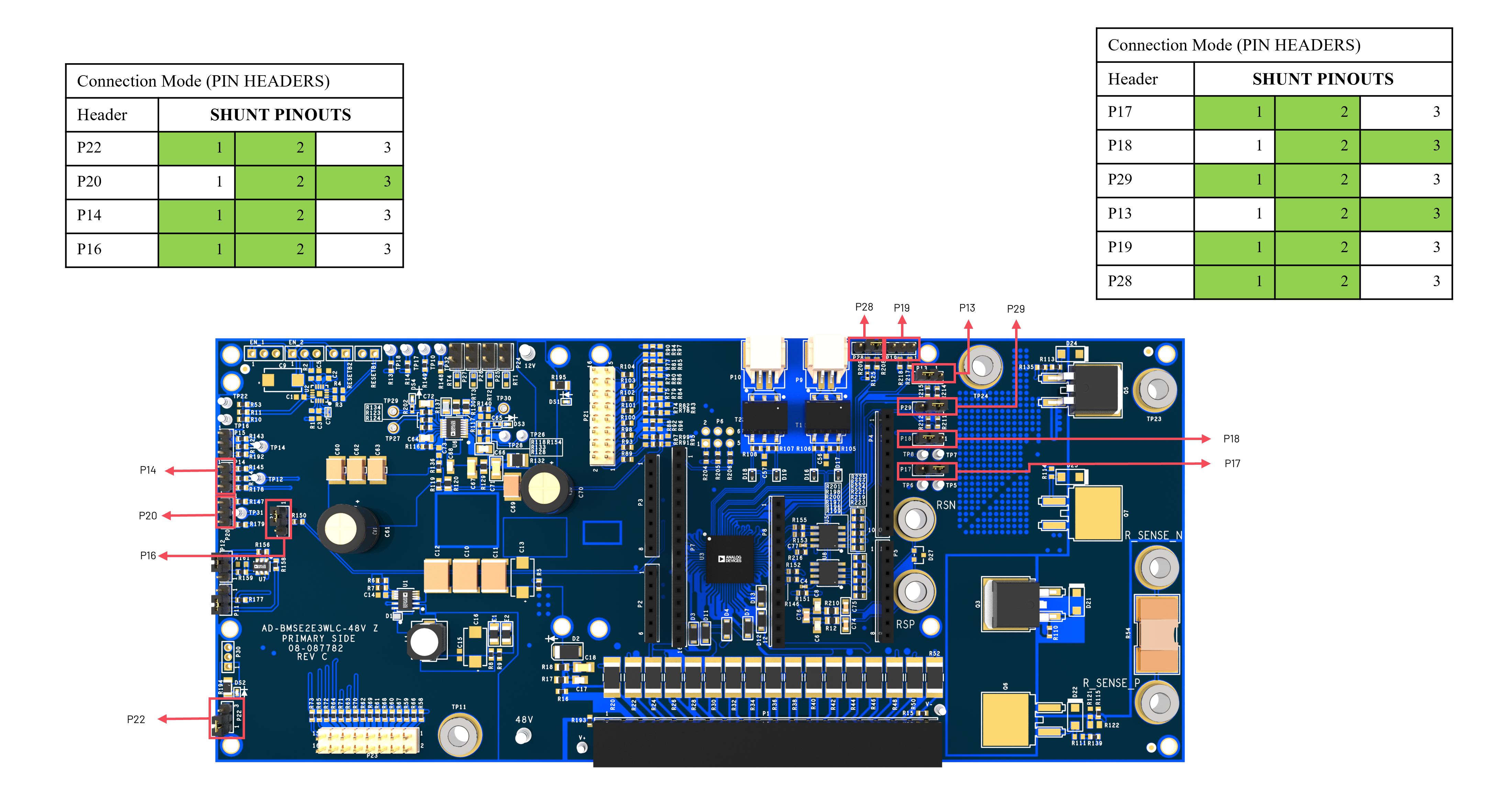

Install the shunt connectors (if not yet installed) and ensure correct positions, as highlighted in red in the figure below.

Important

Header P16 must be configured with the shunt installed between pin 2 and pin 3. This setting configures the board for 48V operation.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/baseboard-shunt-configuration.png

Figure 4 AD-BMSE2E3WLC-48V Baseboard Shunt Configuration

EVAL-ADBMS1816WLC Daughter Board

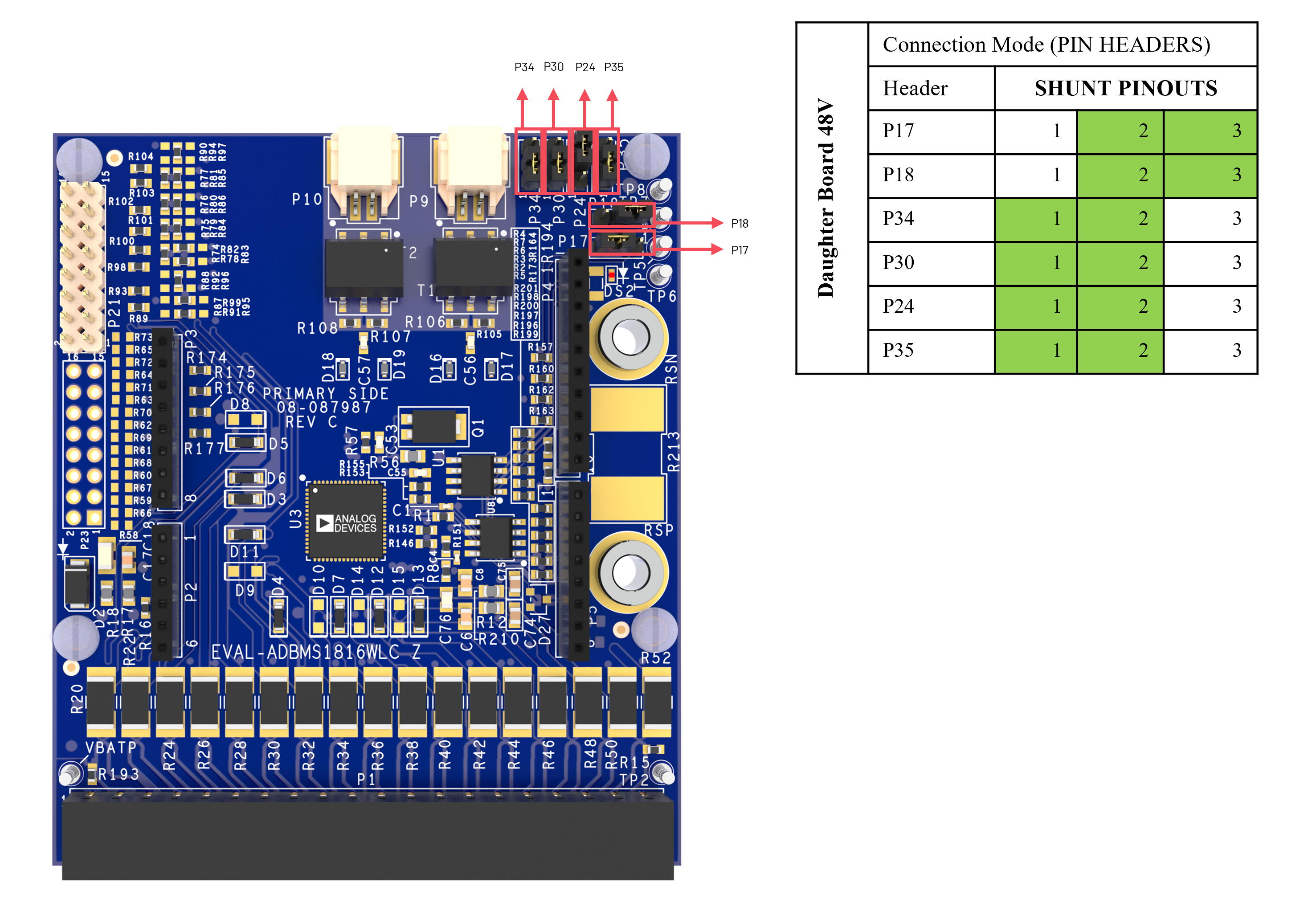

Configure the shunt connectors in P17,P18, P24, P30, P34, and P35. Refer to the pin positions in the figure below for proper shunt configuration.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/daughterboard-shunt-configuration.png

Figure 5 EVAL-ADBMS1816WLC Daughter Board Shunt Configuration

Battery Emulator Setup

Note

The DC2472A Battery Emulator Board is used for cell voltage input in this setup.

  • Plug the screw-terminal block into the cell voltage connector of the two DC2472A battery emulators.

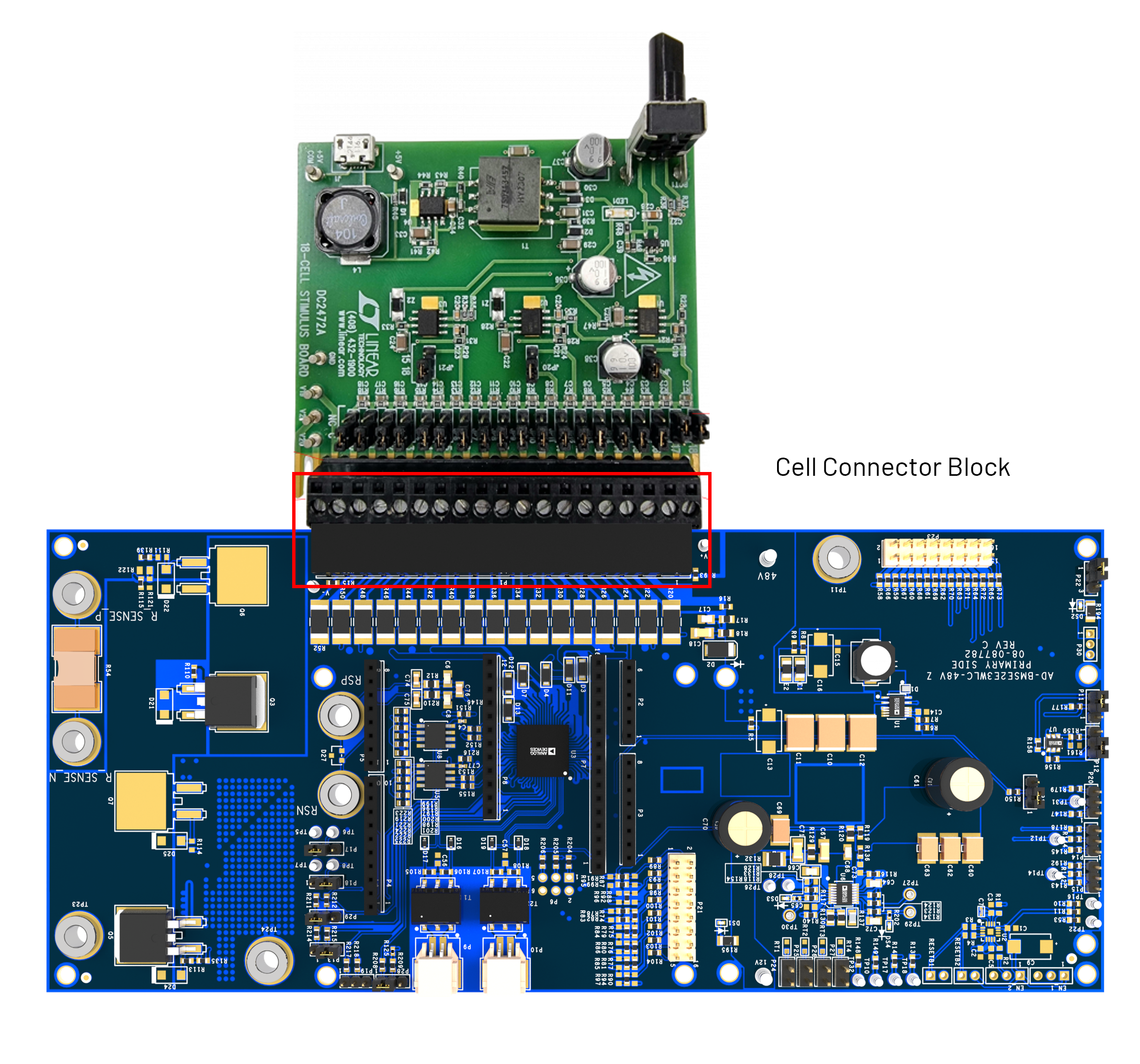

  • Connect the first DC2472A battery emulator to the AD-BMSE2E3WLC-48V Baseboard through the cell connector.

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/baseboard-to-emulator.png

    Figure 6 AD-BMSE2E3WLC-48V to Battery Emulator Setup

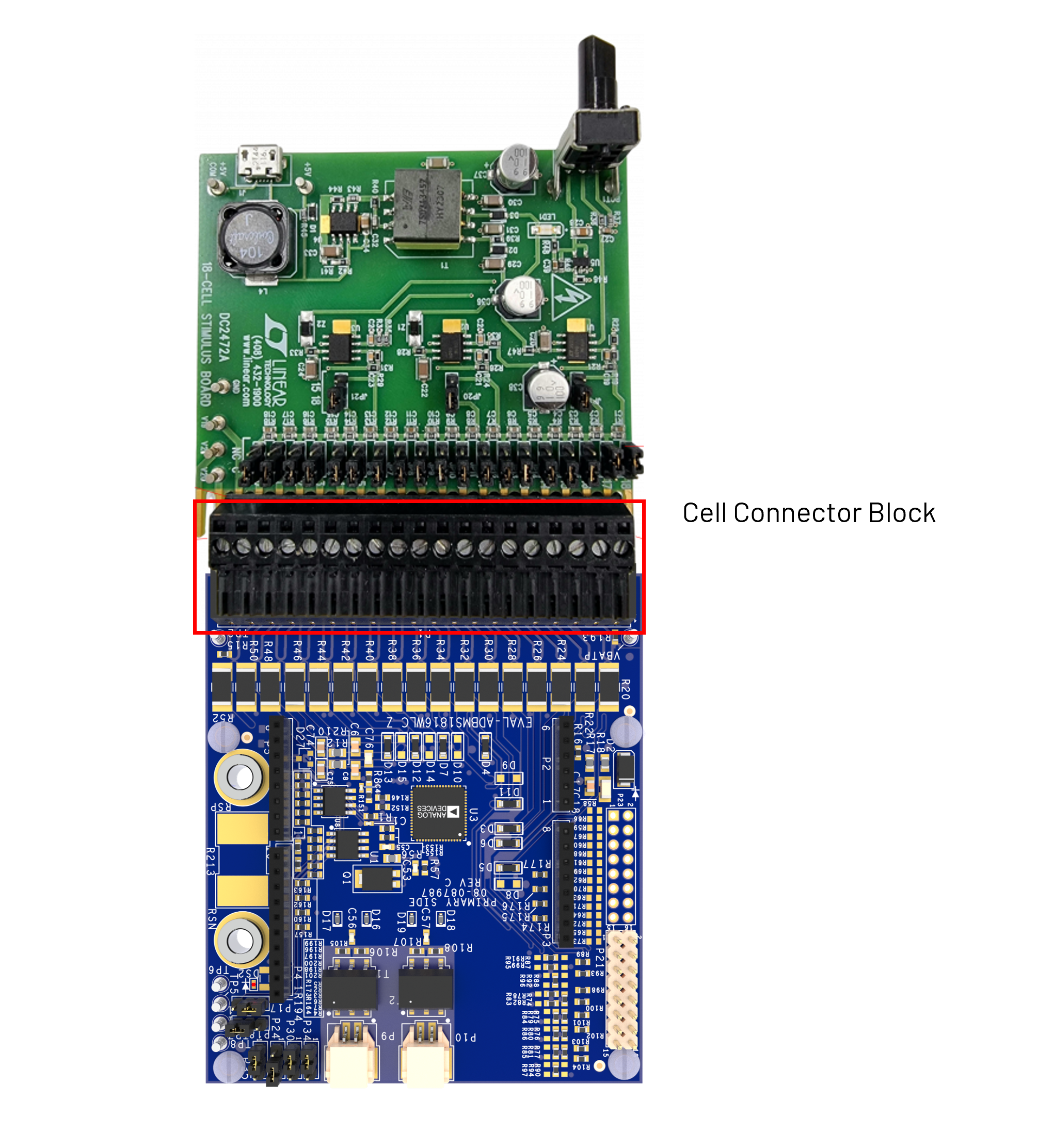

  • Connect the second DC2472A battery emulator to the EVAL-ADBMS1816WLC Daughter Board through the cell connector.

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/daughterboard-to-emulator.png

    Figure 7 EVAL-ADBMS1816WLC to Battery Emulator Setup

  • Connect a 5V external power source to the DC2472A (J1) using a USB cable. External power supply is recommended for adequate power.

  • Alternatively, power it through a PC using a USB cable.

Power Verification

After powering up:

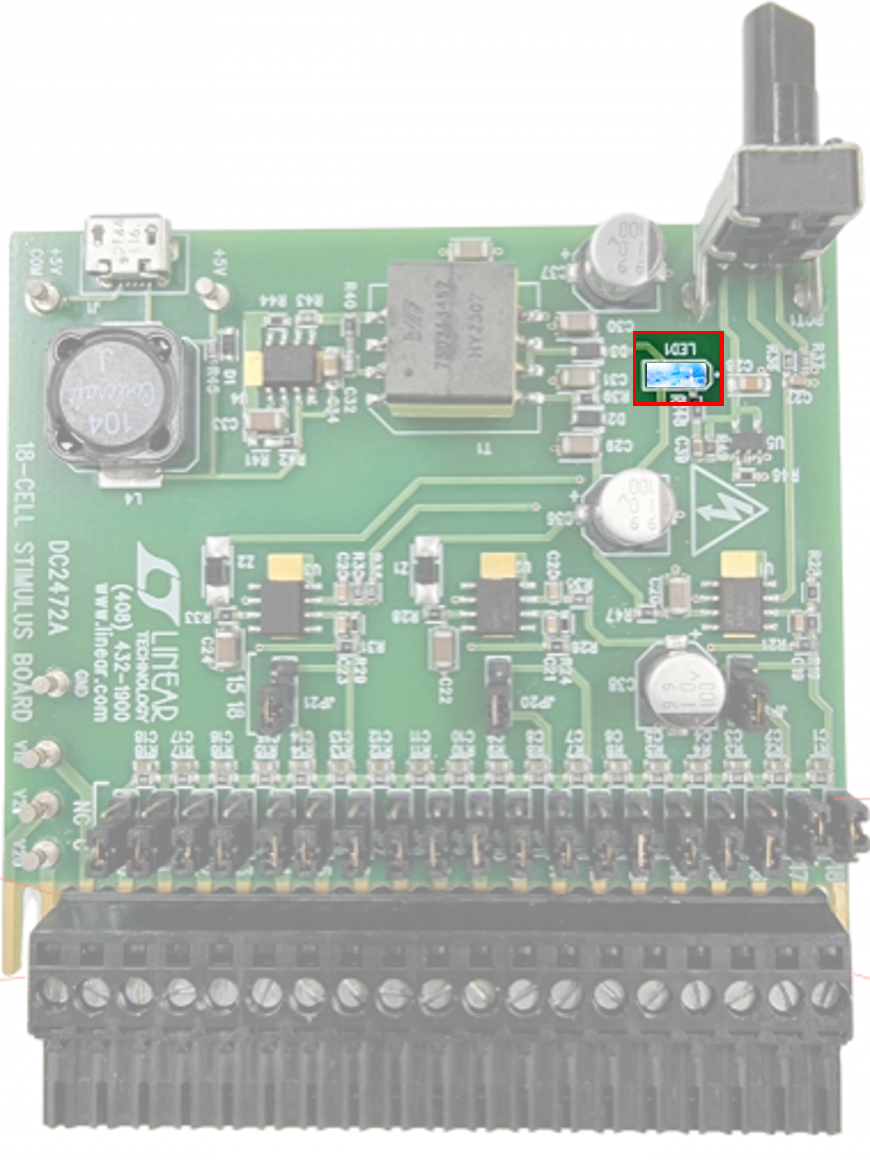

  • On DC2472A:

    • Blue LED (LED1) should turn ON

      https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/emulator-led-on.png

      Figure 8 DC2472A Emulator Power LED

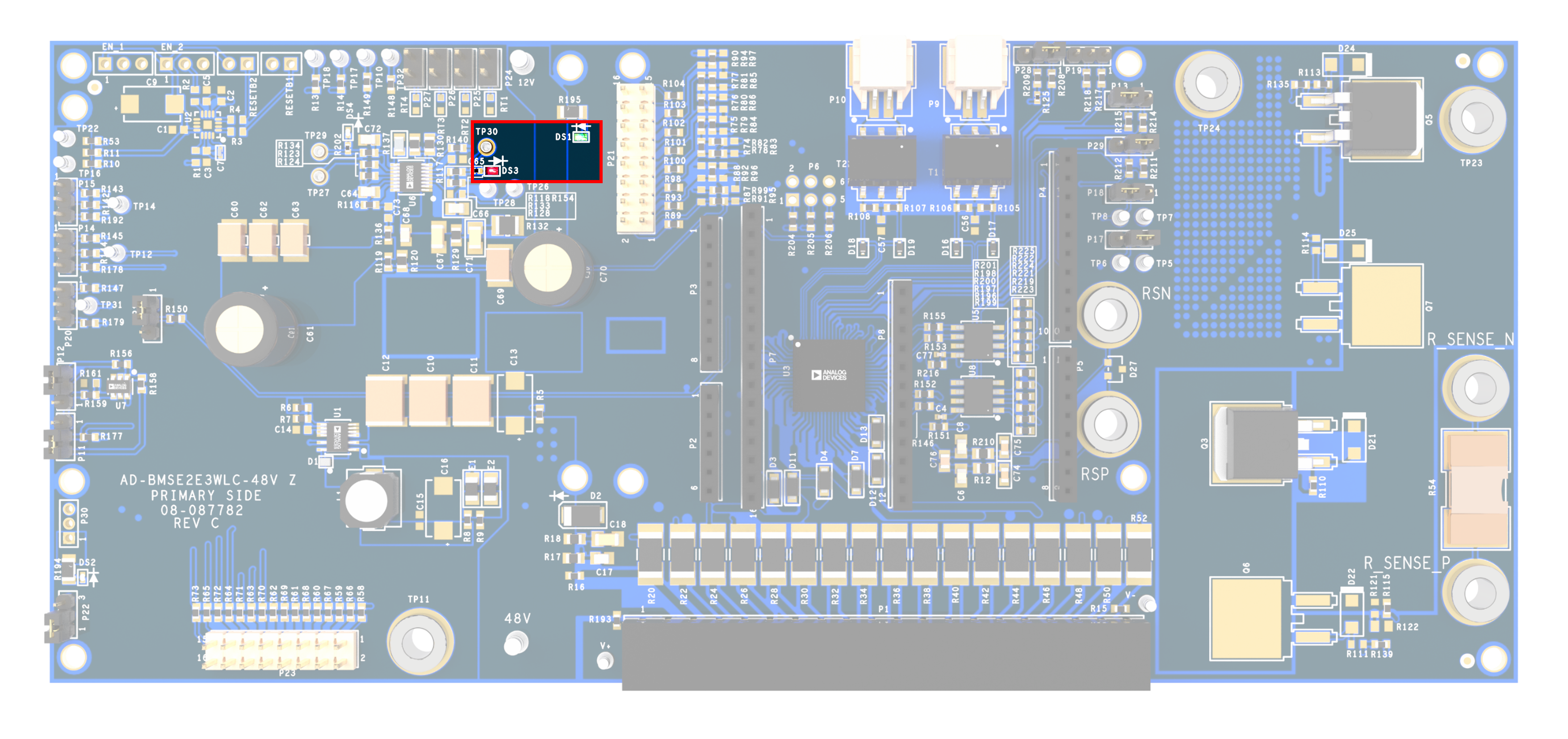

  • On AD-BMSE2E3WLC-48V Baseboard:

    • Red LED (DS3) and Green LED (DS1) should turn ON

      https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/baseboard-led-on.png

      Figure 9 AD-BMSE2E3WLC-48V Baseboard Power LED

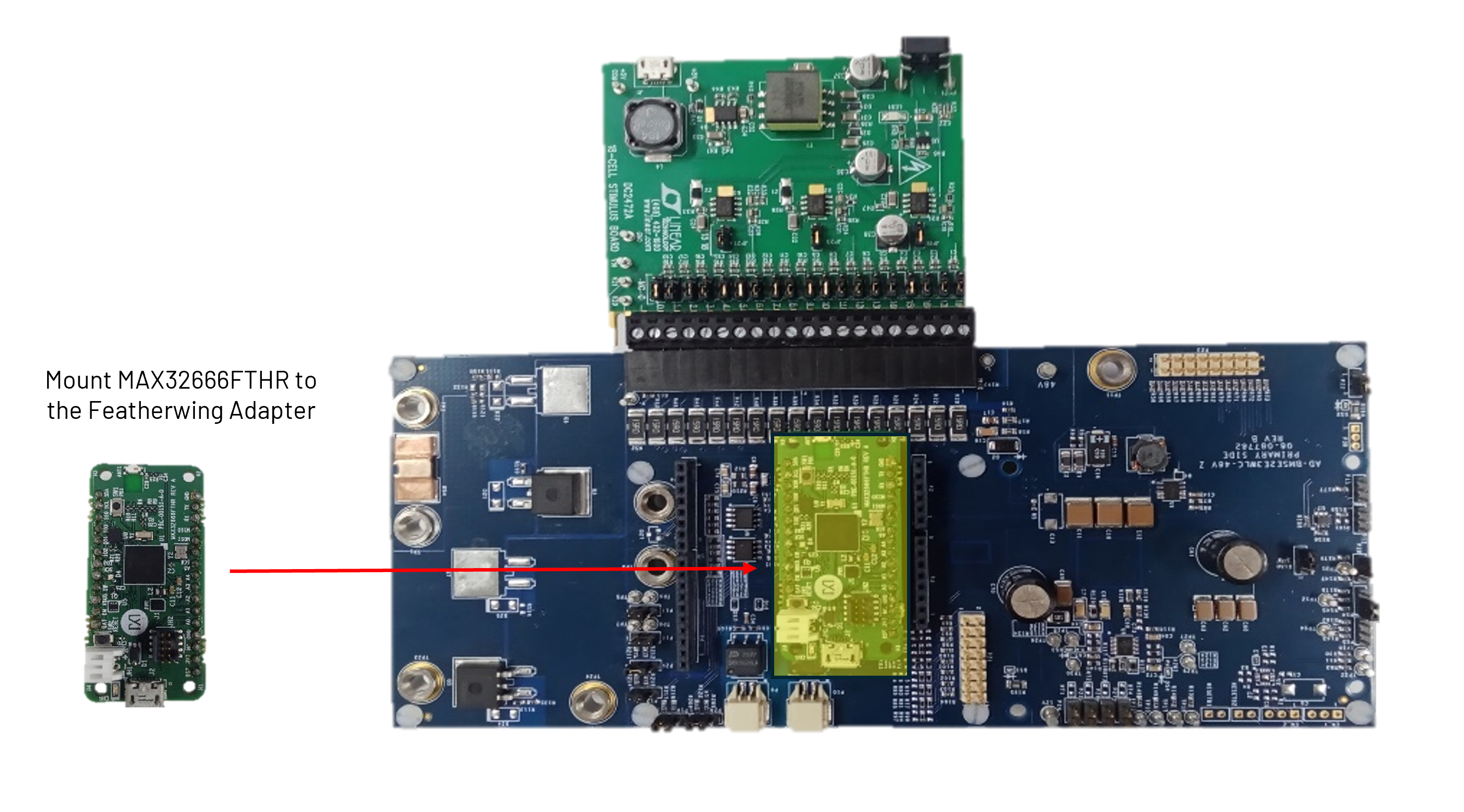

Microcontroller Connection

  • Attach the MAX32666FTHR microcontroller to the AD-BMSE2E3WLC-48V baseboard through the Featherwing connector.

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/max32666fthr-connection.png

    Figure 10 MAX32666FTHR MCU to AD-BMSE2E3WLC-48V Baseboard

48V Connection

  • Connect the red alligator to banana jack cable between 48V and TP11 on the AD-BMSE2E3WLC-48V as shown below.

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/48v-connection.png

    Figure 11 48V Connection

Cable and PC Connection

(A). Plug the micro-USB cable to the first DC2472A battery emulator

that is connected to the AD-BMSE2E3WLC-48V baseboard.

(B). Plug the micro-USB cable to the second DC2472A battery emulator

that is connected to the EVAL-ADBMS1816WLC daughterboard.

(C). Plug the micro-USB cable into the MAX32666FTHR microcontroller.

(D). Connect the 2-wire isoSPI cable from P10 of the AD-BMSE2E3WLC-48V baseboard.

(E). Connect the other end of the 2-wire isoSPI cable to P10 of

the EVAL-ADBMS1816WLC daughterboard.

(F). Connect all USB cables to a USB hub (preferred).

Note

If your PC/laptop USB ports can supply ≥1A, you may connect devices directly without a USB hub.

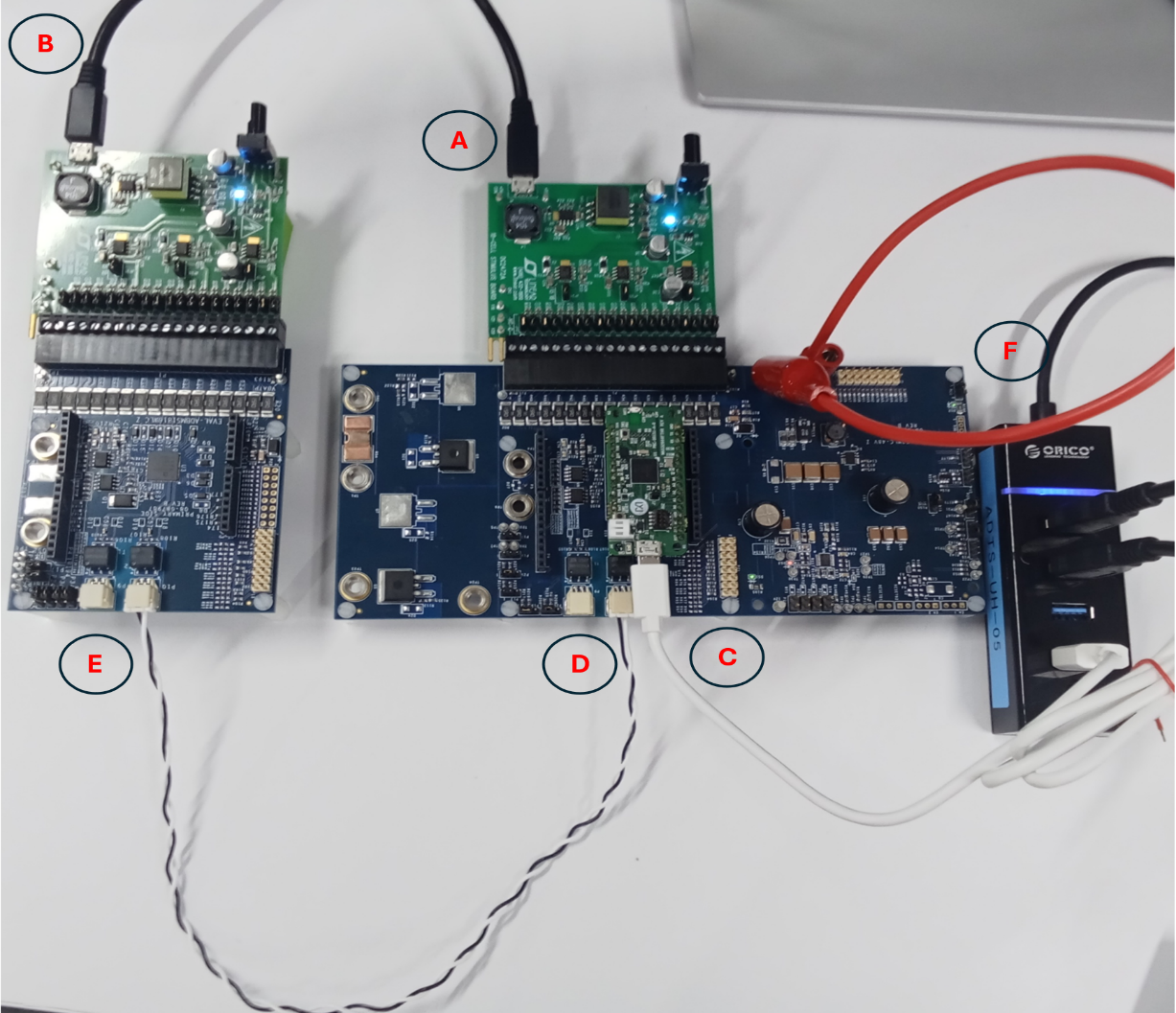

Your setup should look like below:

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/full-integration-setup.png

Figure 12 Full Hardware Evaluation Setup

Sample Application Setup

Refer to the diagrams below for the sample application setup for Charge and Discharge applications.

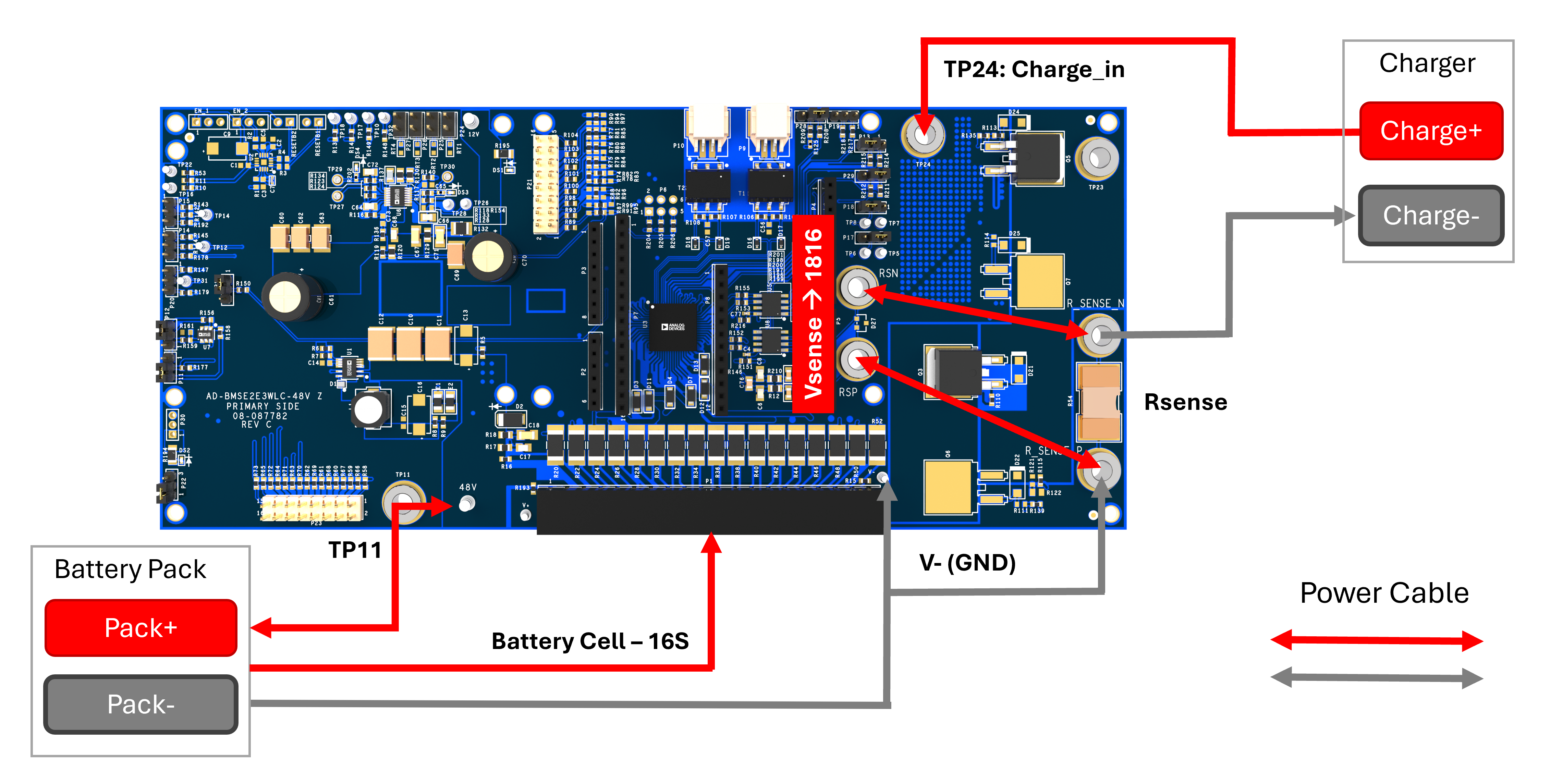

Charge Application

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/charge-application.png

Figure 13 Charge Application Setup

Discharge Application

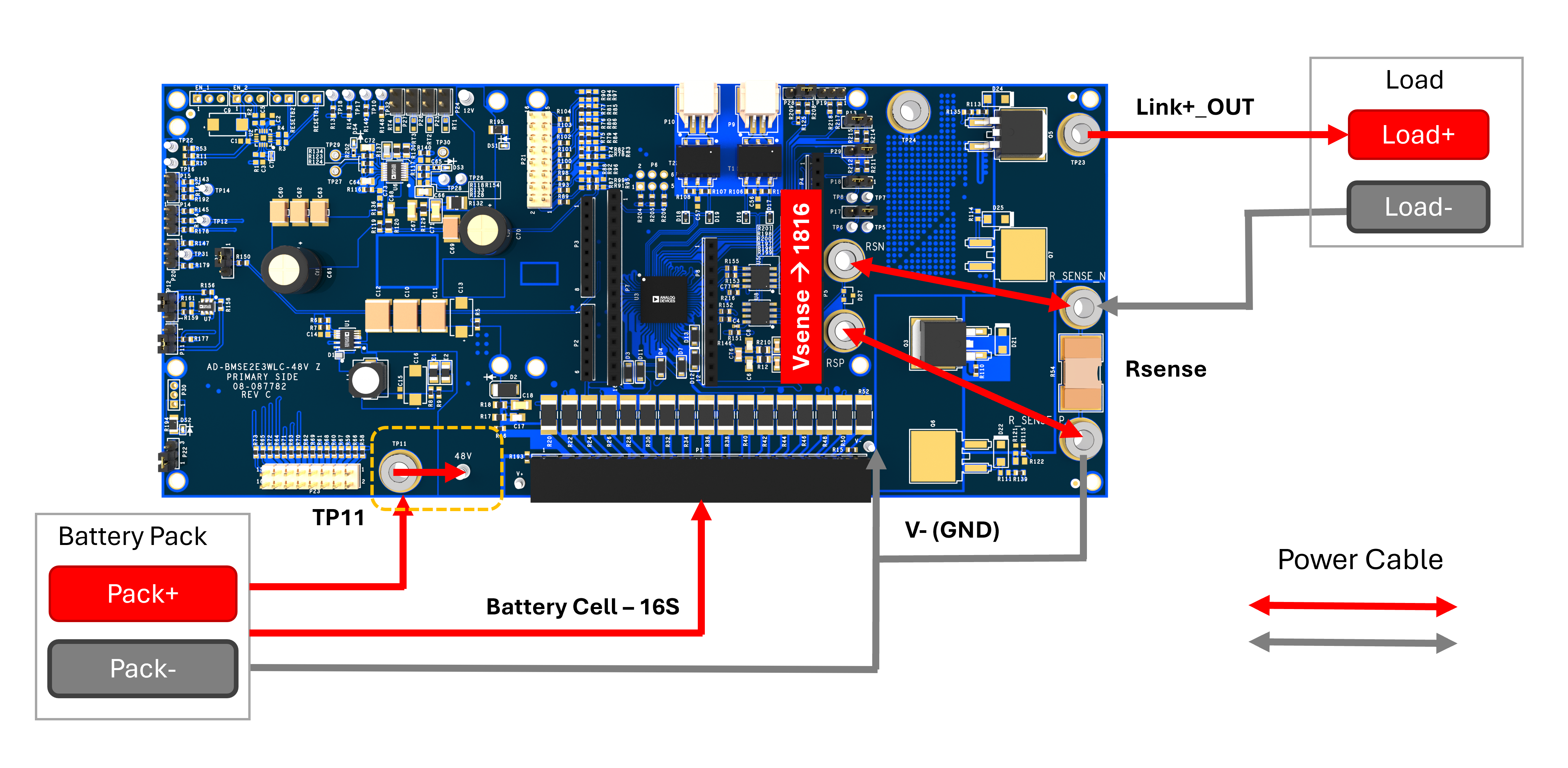

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-bmse2e3wlc-sl/hardware-guide/discharge-application.png

Figure 14 Discharge Application Setup

Tip

The AD-BMSE2E3WLC-SL comes complete with firmware and easy-to-use application GUI.

Access the software resources and see the setup procedure in the AD-BMSE2E3WLC-SL Software User Guide.
