EVAL-ADBMS1816WLC

E2/E3W BMS Extension Board

Overview

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adbms1816wlc/eval-adbms1816wlc_board.png

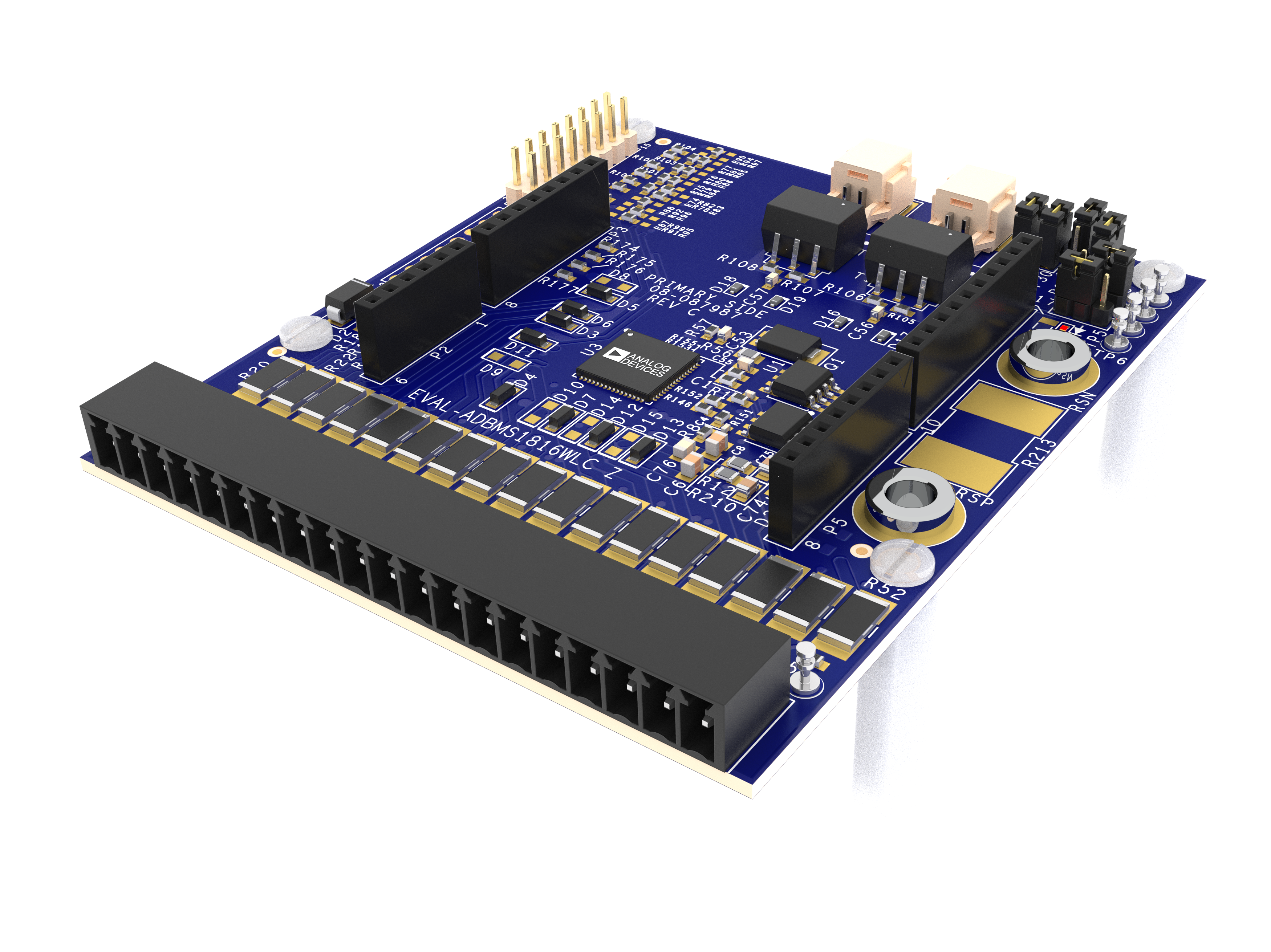

Figure 1 EVAL-ADBMS1816WLC Board

The EVAL-ADBMS1816WLC is an expansion and evaluation platform designed to work in conjunction with the AD-BMSE2E3WLC-48V Baseboard, providing additional cell-monitoring capability for battery packs used in Electric 2-Wheeler (E2W), Electric 3-Wheeler (E3W), and Light Electric Vehicle (LEV) applications.

The board is built around the ADBMS1816W battery-monitoring IC, which enables precise measurement of battery cell voltages as part of the AD-BMSE2E3WLC-SL reference design.

Designed for seamless integration, the EVAL-ADBMS1816WLC Daughter Board connects to the AD-BMSE2E3WLC-48V Baseboard through isoSPI communication, supporting scalable and daisy-chain-ready battery management architectures.

The board includes Arduino-compatible headers and dedicated cell connectors, that simplify hardware setup and system expansion.

When combined with the AD-BMSE2E3WLC software ecosystem, firmware examples, and GUI tools, the daughter board enables real-time cell-voltage monitoring, diagnostics, data visualization, and rapid evaluation of battery management algorithms for a wide range of rechargeable battery chemistries and energy-storage applications.

Features

Wide Range BMS System

  • can operate from 36V to 48V, can handle currents up to 100A

Battery Chemistry Compatibility

  • Supports multiple battery chemistries: Ni-MH, Li-ion, LiFePO4, Sodium-ion

System Integration

  • Can be used with Arduino-based microcontroller board

  • Plug-and-play integration

Monitoring Capabilities

  • Cell voltage accuracy: ±3.6mV

  • Temperature monitoring: Up to 8 sensors

  • SOC/SOH Coulomb counting

  • High-side and low-side current sensing

Connectivity and Software

  • Daisy-chaining ready for multi-board configurations

  • With comprehensive GUI that is compatible with any PC/laptop and enables real-time battery monitoring and diagnostics

Applications

  • Medium to High Performance Electric and Hybrid 2-and 3-Wheeler Vehicles

  • Light Electric Vehicles

  • BMS Battery Research and Development

  • Adaptive Battery Type System Monitoring

  • Portable Energy Storage Systems

System Architecture

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adbms1816wlc/eval-adbms1816wlc-block_diagram.png

Figure 2 EVAL-ADBMS1816WLC Simplified Block Diagram

Specifications

Parameter

Min

Typical

Max

Unit

Notes

ADBMS1816W Cell Monitor

VREG Supply

4.5

5

5.5

V

VREF1, VREF2

3

3.3

V

Supply to internal ADCs

VRES/VDD

4.5

5

5.5

V

Operating Temperature

-40

125

°C

CPIN Input Range

-2.5

5.5

V

Cell Count

1

32

Minimum 17 cells to initiate daisy chain

Drive Voltage Range

-0.3

6

V

Relative to each cell monitor V-

VP Range

16

80

V

VREG Pack Monitor

4.5

5

5.5

V

User Guides

Proceed to the following pages for detailed information on how to use the EVAL-ADBMS1816WLC reference design:

Resources

Design & Integration Files

Download

EVAL-ADBMS1816WLC Design Support Package

  • Schematic

  • PCB Layout

  • Bill of Materials

  • Allegro Project

Help and Support

For questions and more information, please visit the EngineerZone Support Community.
