ADRV9029 DPD evaluation prerequisites

Equipment needed

  • 1x ADS9 Evaluation Platform

  • 1x ADRV9029 Transceiver Evaluation Board

  • 1x Signal generator for generating clock to the ADRV9029 evaluation board

  • 1x Host computer and an ethernet cable to connect the host computer to the ADS9 evaluation platform

  • 1x 5 Watt or lower RF power amplifier for evaluation

  • DC power supply and cables for the RF power amplifier

  • 1x 30 dB fixed RF attenuator (Mini-Circuits BW-S30W20+ or equivalent)

  • 1x 6 dB fixed RF attenuator (Mini-Circuits VAT-6W2+ or equivalent)

  • 1x Coupler (Mini-Circuits ZFBDC16-63HP-S+ or equivalent)

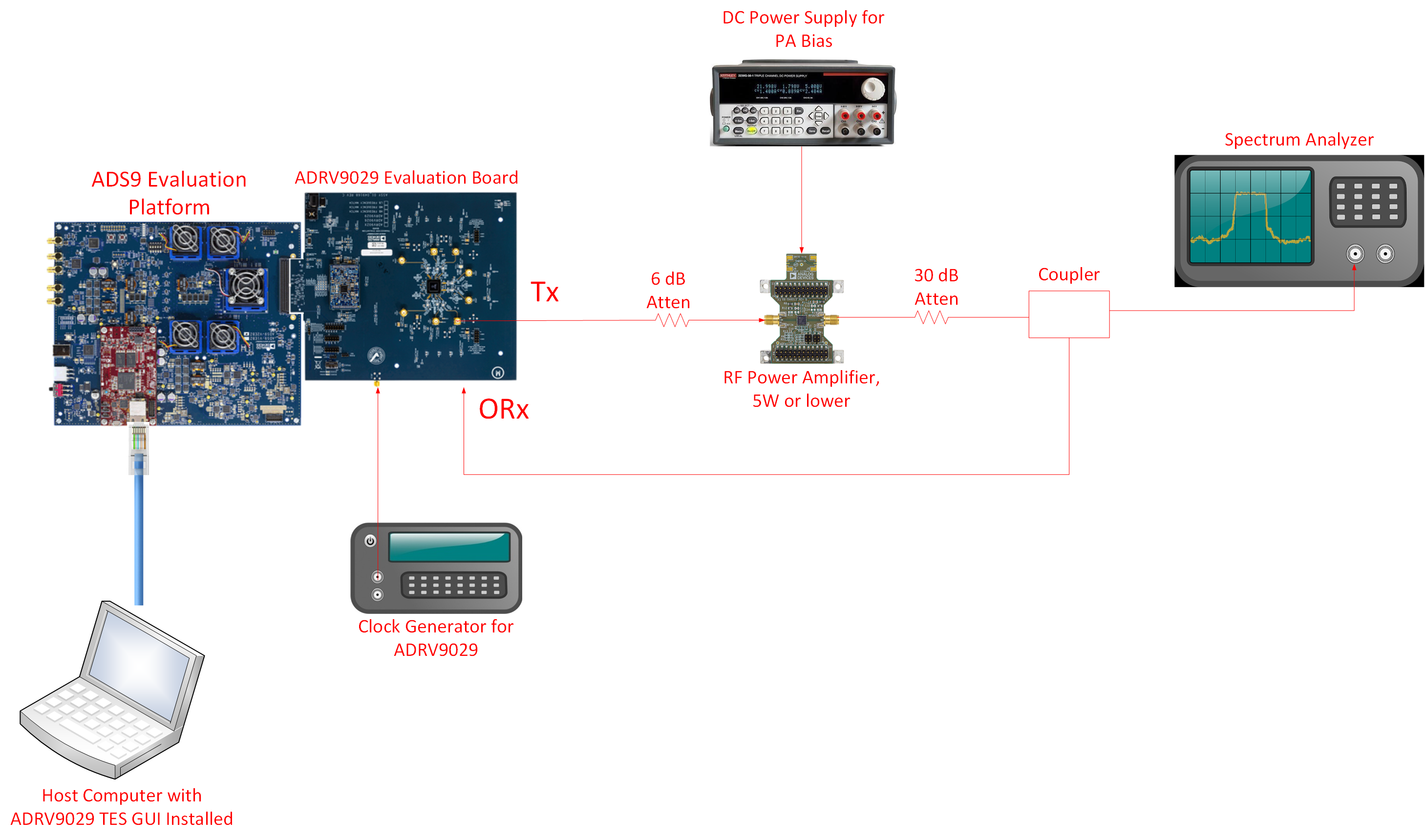

  • SMA connectors and RF cables to connect various components as shown in the figure below. Please note that the Observation Receiver (ORx) is on the bottom side of the ADRV9029 evaluation board.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adrv902x/images/adrv9029_hw_setup.png

Software requirements

Other requirements

  • A wideband OFDM test signal such as LTE5/LTE10/LTE20 or NR100 signal sampled at a Tx IQ rate of 245.76 MSPS in tab separated IQ format for evaluating DPD. Ensure that the peak power level of the OFDM signal does not exceed -4 dBFS to provide sufficient head-room for DPD gain expansion.

    • Typically, an OFDM signal with -14 dBFS rms and 8 dB Peak-To-Average-Power Ratio is used for DPD evaluation.
