AD-FREQCVT1-EBZ

TX/RX channels, Frequency conversion from 1‑100 MHz up to 400 MHz

Overview

The AD-FREQCVT1-EBZ is an add on board for the FMCOMMS3/4/5 boards which contain the AD9361.

The purpose of the AD-FREQCVT1-EBZ is frequency up and down conversion to allow the AD9361 to operate down to 1MHz. The AD-FREQCVT1-EBZ module is comprised of the AD8342 mixer, the ADL5530 LNA, the ADF4351 synthesizer and power management components. It is controlled via Pmod port on the FPGA board.

Features:

  • Add on to the FMCOMMS3/4/5 family

  • Powered from FMCOMMSx board

  • Provides one channel down conversion transmit and one channel up conversion receive.

Applications:

  • Electronic test and measurement equipment

  • General-purpose software radios

  • Radar systems

  • Ultra wideband satellite receivers

  • Signals intelligence (SIGINT)

  • Point to point communication systems

  • Automated test equipment

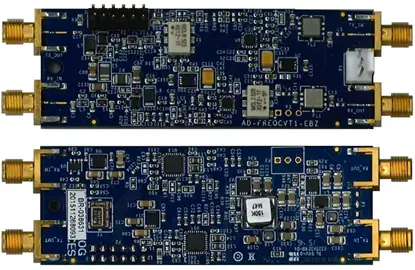

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-freqcvt1-ebz/images/ad_freqcvt1_ebz.webp
