EVAL-ADF4377

Microwave Wideband Synthesizer with Integrated VCO

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adf4377/eval-adf4377.png

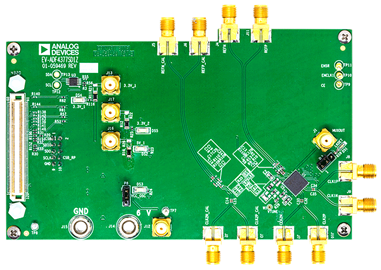

Overview

The EV-ADF4377SD1Z evaluation board evaluates the performance of the ADF4377, a high performance, ultralow jitter, dual output integer-N phase-locked loop (PLL) with an integrated voltage controlled oscillator (VCO) ideally suited for data converter and mixed signal front end (MxFE) clock applications. The high performance PLL has a figure of merit of -239 dBc/Hz, ultralow 1/f noise, and a high phase frequency detector (PFD) frequency that can achieve ultralow in-band noise and integrated jitter. The fundamental VCO and output divider generate frequencies from 800 MHz to 12.8 GHz.

Features:

  • Output frequency range: 800 MHz to 12.8 GHz

  • Ultralow jitter: 18 fs RMS (100 Hz to 100 MHz integration bandwidth)

  • Wideband noise floor: -160 dBc/Hz at 12 GHz

  • Normalized in-band phase noise floor: -239 dBc/Hz

  • Phase detector frequency up to 500 MHz

  • Reference input frequency up to 1000 MHz

  • Multichip output phase alignment

  • 3.3 V and 5 V power supplies

Applications:

  • High performance data converter and MxFE clocking

  • Wireless infrastructure (MC-GSM, 5G)

  • Test and measurement

Software

Recommendations
