Quickstart

The quick start guides provide simple step by step instructions on how to do an initial system setup for the EVAL-ADAQ23875FMCZ board on supported FPGA development boards. In these guides, we will discuss how to program the bitstream and boot a Linux distribution.

• On ZedBoard

Supported carriers

The EVAL-ADAQ23875FMCZ is an FMC (FPGA Mezzanine Card), meaning it requires a compatible carrier board. The officially supported carriers are listed below.

The carriers we support are listed below, as well as the FMC port where to connect the evaluation board:

FPGA board	EVAL-ADAQ23875FMCZ
ZedBoard	FMC LPC

Supported Environments

FPGA board	HDL	Linux software	No-OS software
ZedBoard	Yes	Yes	No

Hardware Setup

The EVAL-ADAQ23875FMCZ connects to the ZedBoard FMC LPC connector. The carrier setup requires a 12 V power supply, an Ethernet (LAN) connection, and an analog signal source connected via SMA cable and XLR-to-SMA adapter.

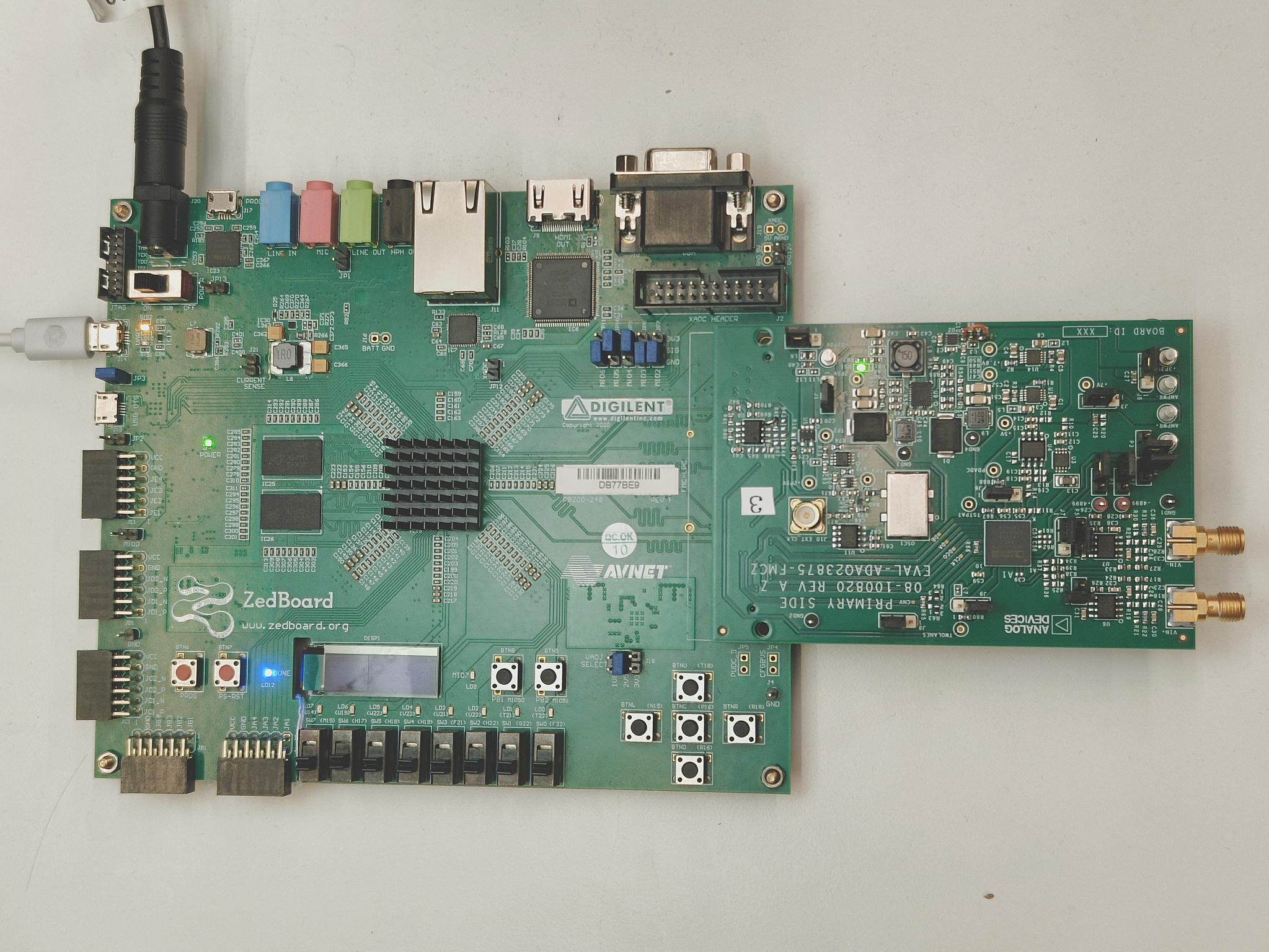

ZedBoard + EVAL-ADAQ23875FMCZ
